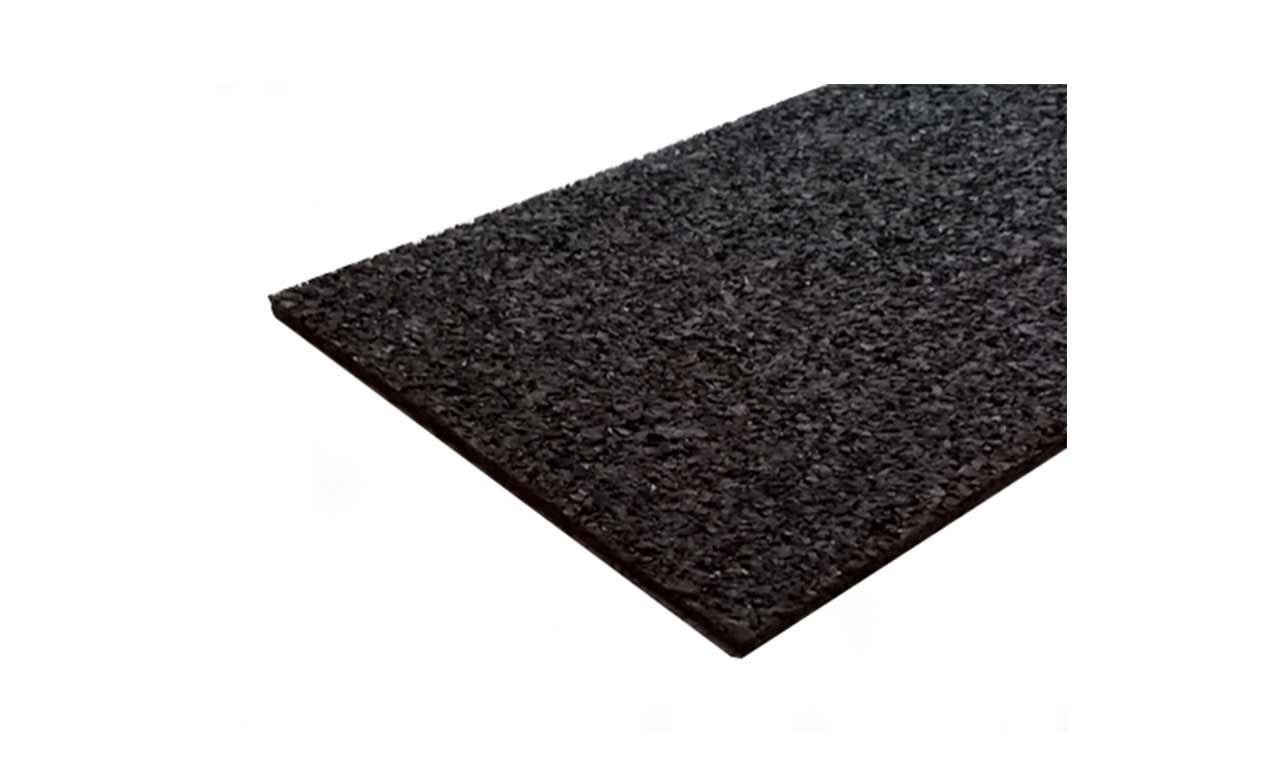

SBR (recycled rubber) sub-floor mat for reduction of impact noise. ΔLw = 23 dB. Thickness 5 mm.

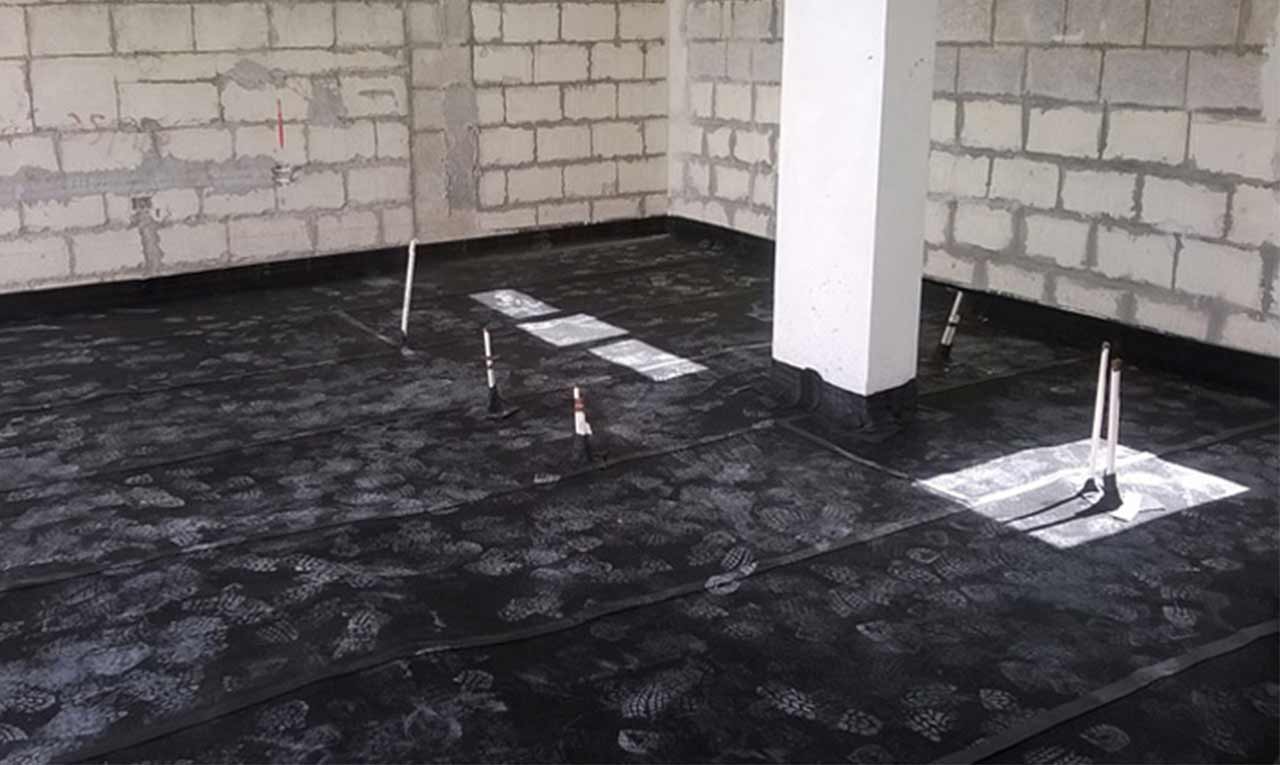

Recycled rubber sub-floor mat with high mechanical resistance and good impact sound absorbance capacity. Excellent crush-proof performance over time when exposed to permanent loads. Ideal for circumstances where floor thermal insulation is already installed.
Applications:
Protection of floor below from footstep noise, banging and moving of furniture.
* Listed Insulation (ΔLw) is the average impact insulation in dB’s. Attained value of insulation is dependent on the mat loading (weight of over-screed per sq.m) – see datasheet.
| Impact Insulation | Weight | Roll Sizes and Thickness |
| AE 3 – 19 dB | AE 3 – 2.25 Kg/m² | AE 3 – 1 m x 15 m / 3mm |
| AE 4 – 21 dB | AE 4 – 3.00 Kg/m² | AE 4 – 1 m x 12 m / 4 mm |
| AE 5 – 23 dB | AE 5 – 3.75 Kg/m² | AE 5 – 1 m x 10 m / 5 mm |
| AE 6 – 24 dB | AE 6 – 4.50 Kg/m² | AE 6 – 1 m x 8 m / 6 mm |
| AE 8 – 25 dB | AE 8 – 6.00 Kg/m² | AE 8 – 1 m x 6 m / 8 mm |
| AE 10 – 26 dB | AE 10 – 7.50 Kg/m² | AE 10 – 1 m x 5 m / 10 mm |
Compression Resistance:
5000 Kg/m² – all models
Material:
Vulcanised Rubber – (SBR)
Colour: Black
