Slim wall mounting speaker for Center, main or surround: twin 4″ C-CAM mid/bass drivers astride a 1″ C-CAM tweeter – superb accuracy from horizontal and vertical positions.

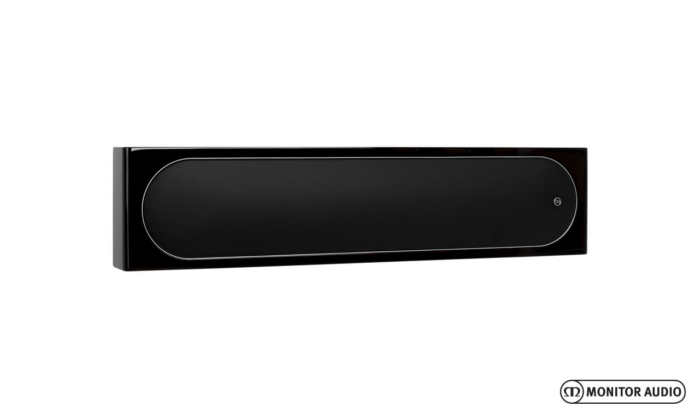

Monitor Audio Radius 225 – LCR wall mounting – Black
- 4″ C-CAM bass driver – Radius features bass drivers with concave cone profiles, introduced by our top-of-the-range Platinum speakers and applied subsequently to Gold GX. Extensive research and FEA modeling have allowed us to perfect the relationship between the radiating diaphragm and its motor design, introducing larger motor sizes and voice coils for increased excursion, higher power capability, and reduced distortion.
- C-CAM Gold Dome tweeter – optimised to deliver the finest and widest performance within the compact Radius cabinets. It benefits from a more efficient rear-venting design, releasing air trapped and compressed at the back of the tweeter dome, and guiding it around the drive assembly to a rear-loading chamber.
- HiVe II port design – Straight from Platinum’s design blueprint, the HiVe reflex port makes its Radius debut. It’s shaped to have the same effect on airflow as a gun barrel on a bullet. Rifled grooves inside the port help to accelerate the flow and reduce turbulence, so air moves in and out of the port more efficiently, for a faster more dynamic bass response.
- Single through-bolt driver fixing provides mechanical de-coupling and enhanced mid-band clarity and resolution. The through-bolts also act as rigid cross bracing to give a very solid non-resonant cabinet.
- Comes complete with a dedicated wall bracket.
80 Hz — 35 kHz
Power Handling (RMS)
System Power Handling (RMS)
Recommended Amplifier Requirements
40 — 150 W
Bass reflex – Front ported
Drive Unit Complement
2 x 4″ (100 mm) C-CAM cone bass/mid driver
1 x 1″ (25 mm) C-CAM Gold Dome tweeter
Cabinet Dimensions (H x W x D)
140 x 610 x 67 mm (51/2 x 24 x 25/8“)
Cabinet Dimensions (Including Grille and Terminals (H x W x D))
140 x 610 x 77 mm (51/2 x 24 x 31/16“)
Cabinet Dimensions (Including Grille and Bracket (H x W x D))
140 x 610 x 84 mm (51/2 x 24 x 35/16“)
Dedicated bracket included
4.2 kg (9 lb 4 oz)
1 kg (2 lb 4 oz)
