An all-in-one conferencing device designed to fit your meeting scenario, whilst perfectly fulfilling your needs for a powerful and scalable workspace.

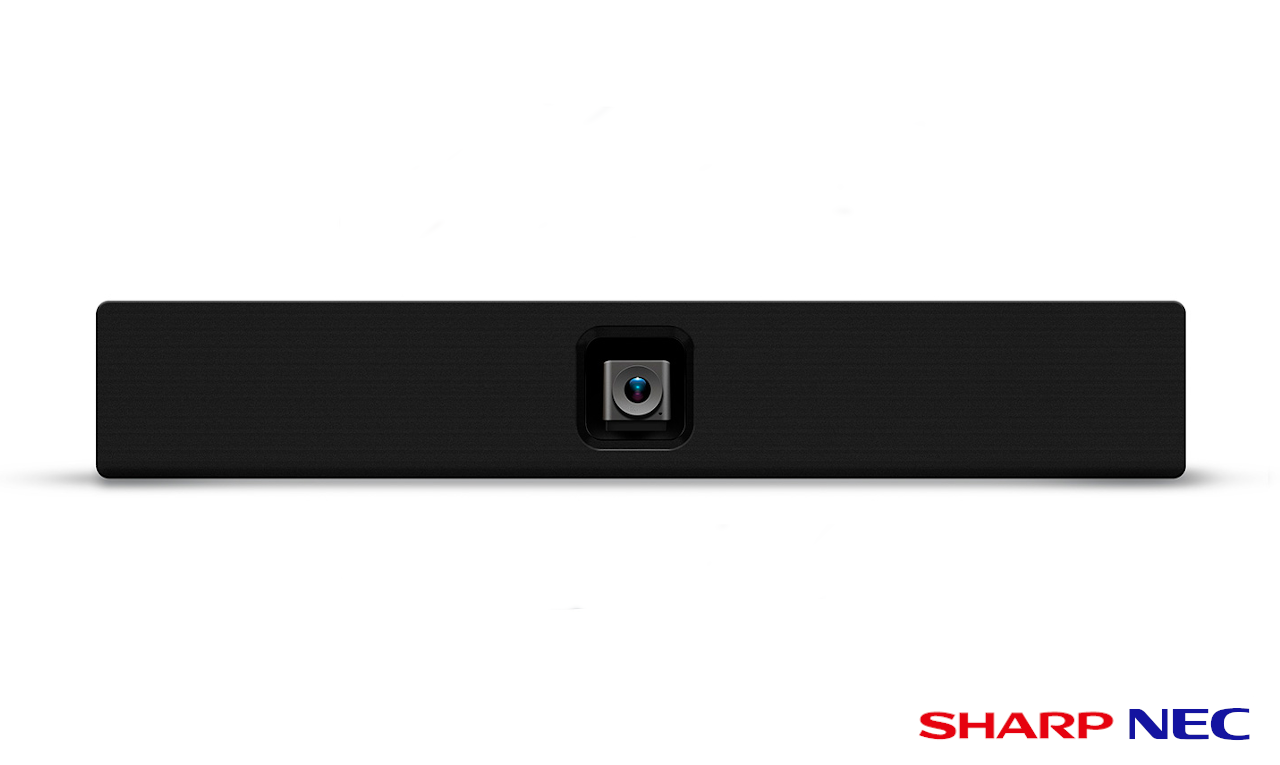

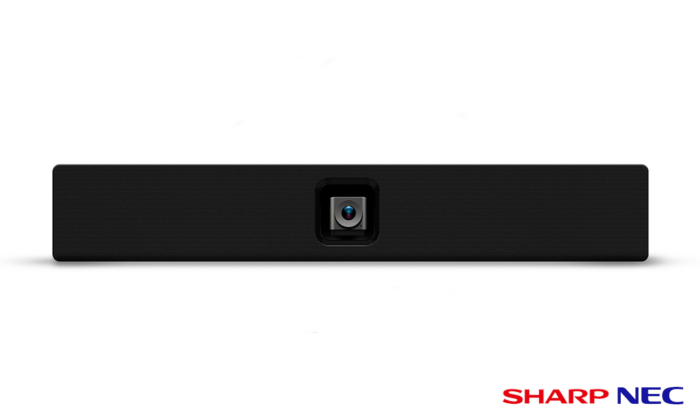

Sharp NEC Video Conference Soundbar – SP-ASCM-2
Call for availability
Call for availabilitySEND EMAIL QUERY
NEC Collaboration Soundbar: The universal conferencing solution for smaller meeting- and huddle rooms
Meeting rooms are evolving into multi-usage spaces. This collaboration solution is designed to fit your meeting scenario, whilst perfectly fulfilling your needs for a powerful and scalable workspace.
The NEC Collaboration Soundbar is the perfect solution for small meeting rooms and huddle spaces. Widen the objectives of your meeting and enhance your display with audio and video capability to be ready for conferencing and collaboration.
To lift up productivity and employee motivation, NEC provides corporate communication solutions for a seamless usability. From small meeting rooms up to multi-usage spaces equipped with NECs InfinityBoard, a steady look and feel is key to succeed in your business.
Delivering Genuine Benefits
Facilitate productive communication – all components necessary for efficient video conferencing are included: camera, microphone and speaker
Flexible configuration to fit your need – hardware set-up as of your requirements to meet your individual meeting room demand
Designed to just work – without driver installation, this is a real ready to go plug and play solution
Universal mounting approach – maximum installation flexibility with different brackets available: included wall mount or an optional VESA mount
The ultra-low distortion speakers deliver excellent speech intelligibility, whether using the active or passive variant.
To provide a crisp audio, the solid MDF cabinet effectively absorbs potential disturbances from vibrations.
The wide dispersion of the speakers extends the sweet spot to anywhere in the room, transmitting the spoken word with perfect clarity to the participants of web or telephone conferences and remote meetings.
Video Conference Camera & Microphones and Echo-Cancelling
Video Conferencing Camera
Encompass the entire meeting room with 120° viewing angle
Perfect viewing at any distance, whether standing in front or sitting at the back
Auto-adapts to any lighting condition
Microphones and Echo-Cancelling
Exceptional audio clarity in meeting environments with two built-in microphones, providing increased pick up quality via directional beamforming.
Maximised echo-free audio quality with integrated noiseand echo-cancelling system to filter out disruptive audio signals.
Maximum Input 40
Rated Speaker Impedance 8
Frequency Response Range 70 Hz to 15 kHz
Sound Pressure Level 82.1 dB (2.83 V)
Net Dimensions (W x H x D) 750 x 120 x 86 (excl. camera)
Net Weight 4.1
Packaging Gross Dimensions (W x H x D) 800 x 120 x 100 (incl. all components)
Packaging Gross Weight 5.1
Video Conference Camera
Product Name Huddly GO
Viewing Angle 150 diagonal, 120 horizontal, 92 vertical
Resolution 16 megapixel sensor
Output 720p 30fps
Aspect Ratio 16:9
Optic Digital Pan/Tilt/Zoom with 4x digital zoom
Driver Plug & Play driverless install
Connectivity SuperSpeed USB 3.0
Software Specification Spatio-temporal noise filtering, high-quality video scaling and dewarping, flicker elimination, robust automatic white balance, optical aberration correction, 3DNR, sensormodel based visual noise reduction
Sampling Frequency 32 KHz
Bandwidth 100 Hz – 16 KHz
Echo Cancelling 2 levels (aggressiveness); 3 levels (echo cancelling speed)
Controllable Lengths up to 220
Noise Supression Residual noise suppressed to the environment noise level
Preset Colour Filters 8 (output and speaker signal)
Levels and Boost Mic level 280 mV peak-to-peak; line level 2/4V peak-to-peak, add 6 dB boost
Output Power (stereo) 2 x 20 W (peak), 2 x 10 W (rms), 4 Ω
External Power Supply – 24V DC (typ.), 2A
Frequency Response 10 Hz to 50 kHz (+ 0/-3 dB)
Total Harmonic Distortion < 0.3%, 20Hz<f<20KHz. Pout<Pr/2 0.02% (typ) (PO = 5W, f = 1khz, 6,2 Ω resitive load)
Power Efficiency 85
Channel Separation 85
Idle Power Consumption <1
Input Impedance 10
Supported NEC Hardware MultiSync® C431, C501, C551, MultiSync® CBxxxQ (with OPS slot-in PC or external PC only)
Mounting Solutions Wall mounts included
Shipping Content Collaboration Soundbar with integrated amplifier, microphone and Huddly GO camera, 2m USB 3.0 cable, wall mount
Warranty 3 years
