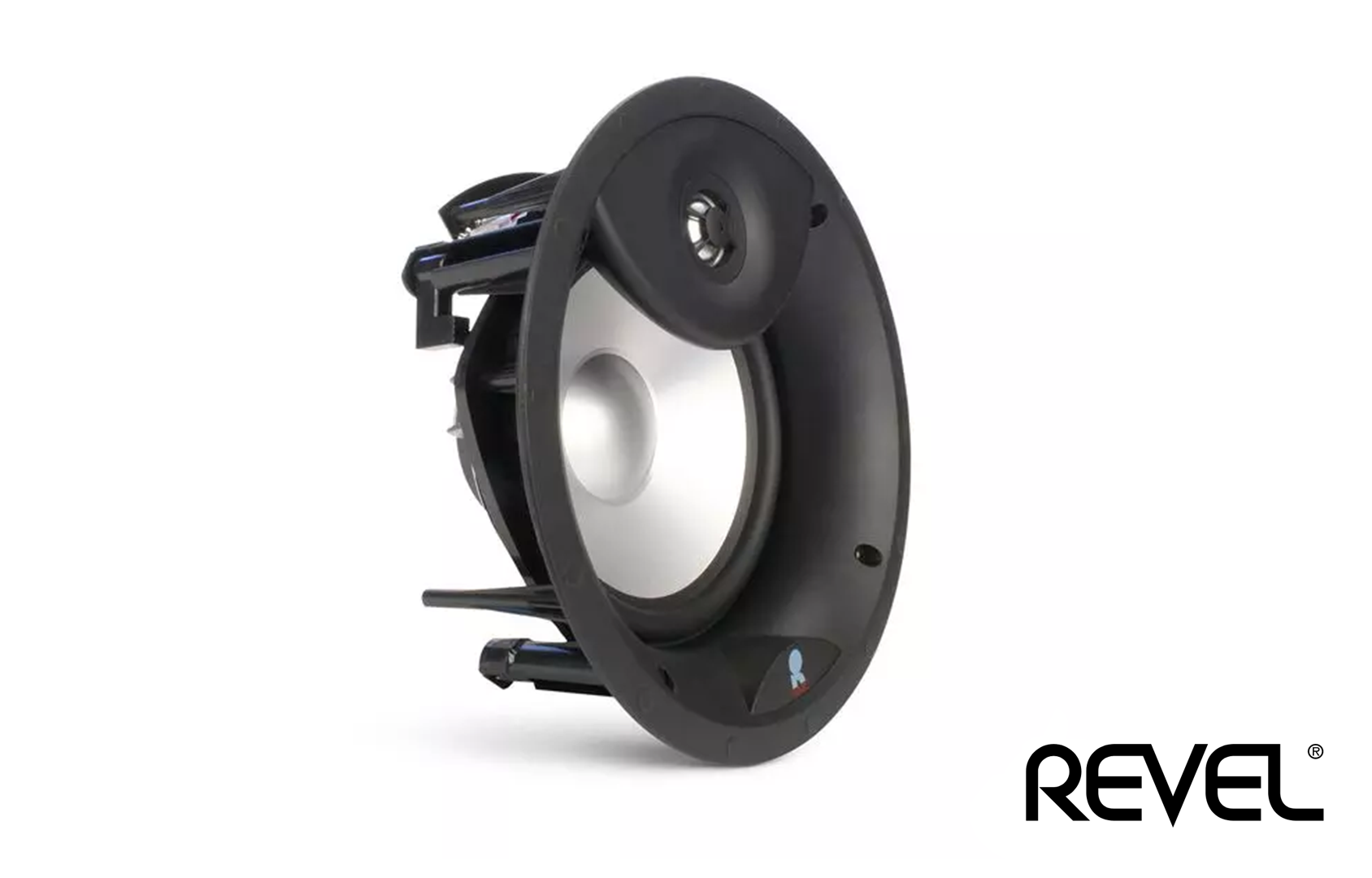

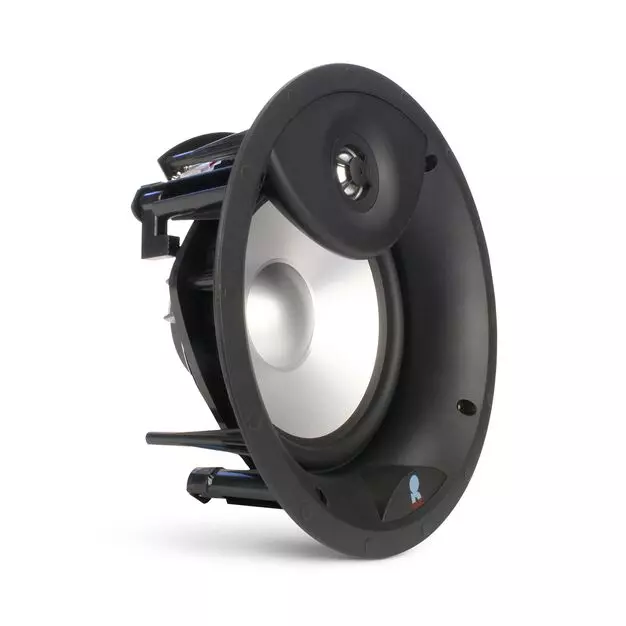

Revel 8″ In-ceiling Loudspeaker C283

245

In stock

Revel 8″ In-ceiling Loudspeaker- 1-inch (25mm) metal-dome tweeter with an integrated waveguide – 10 – 100 Watts RMS

In stock

Description

C283

8" In-ceiling Loudspeaker

Revel in-ceiling loudspeakers draw upon the same research, resources, and unique perspectives that put all our loudspeakers in a class by themselves. Each model offers a standard-setting low sonic coloration and freedom from distortion over a wide dynamic range.



Highlights

  • Long-throw woofers with rubber surrounds provide high output with low distortion
  • A 1-inch (25mm) metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis
  • A high-order crossover network delivers accurate timbre reproduction
  • Sleek look integrates easily into any decor

PROVEN SUPERIOR SOUND

All twelve in-ceiling loudspeaker models have undergone exclusive HARMAN double-blind listening tests, proving their sound quality superior to that of their competitors. The premium components of Revel in-ceiling loudspeakers include high-performance tweeters with waveguides, high-order crossovers and cast-frame drivers.

TWEETER WAVEGUIDE ASSEMBLY

High-frequencies are reproduced from minimum diffraction, acoustically optimized tweeter waveguide pods. Waveguides match the dispersion of the tweeter and woofer through the crossover region, resulting in smooth response over a wide listening area. The offset placement significantly reduces acoustic anomalies that occur with traditional coaxial or “bridge-mounted” tweeter in-ceiling speaker designs.

HIGH FREQUENCY AND BOUNDARY GAIN COMPENSATION

High Frequency (HF) level controls and Boundary Gain Compensation (BGC) controls are valuable features to optimize performance in a variety of applications. Both the 5- and 7-Series models have HF level control switches, and the 7-Series models have a BGC On/Off switch control. The HF level control helps adjust the sound for unusually damped or live rooms, while the BGC switch provides low-frequency compensation when the loudspeakers are installed close to walls.

C-2 INSTALLATION MECHANISM

This mounting method improves on traditional mechanisms by accommodating material up to two inches thick. As a result you get a firmer mechanical grip to minimize resonances.

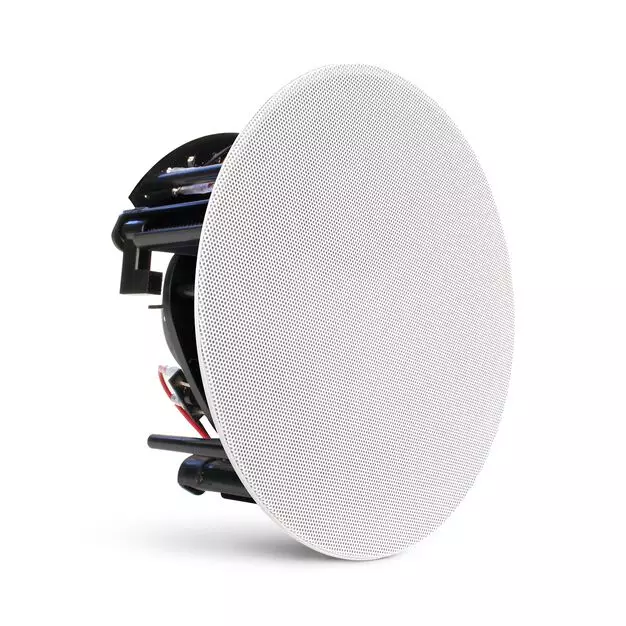

ZERO-BEZEL MAGNETIC GRILLES

The zero-bezel grilles provide an unobtrusive look that allows the product to blend in seamlessly with its surroundings. The ultra-thin design attaches magnetically and completely covers the speaker. The absence of a traditional bezel makes painting the grilles a simple task.

General Specifications

HeightCutout Size 9.625″ (244.5mm)
Weight3.9 lbs (1.8kg) / Shipping Weight 5.9 lbs (2.71kg)
Low Frequency Driver Components8″ Aluminum Cone, Cast-Polymer Frame Woofer
MountingMounting Depth 5″ (130mm)
Recommended Amplifier Power10 – 100 Watts RMS
Sensitivity87dB
High Frequency Driver Components1″ Aluminum-Dome Tweeter with Waveguide

Additional information

Brand

Revel

Speaker Type

Ceiling / Flush Mount, Background Speaker, Foreground/Fill Speakers
