Less than 7 cm deep. The Revel C363XC , 6.5” flush-mount speaker delivers true high-performance Revel sound in any location, hot, cold, damp, humid or wet. Can be used in marine applications.
Extra Slim – indoor / outdoor / marine ceiling speaker – Revel C363XC
Flush-mount Extreme Climate Loudspeaker

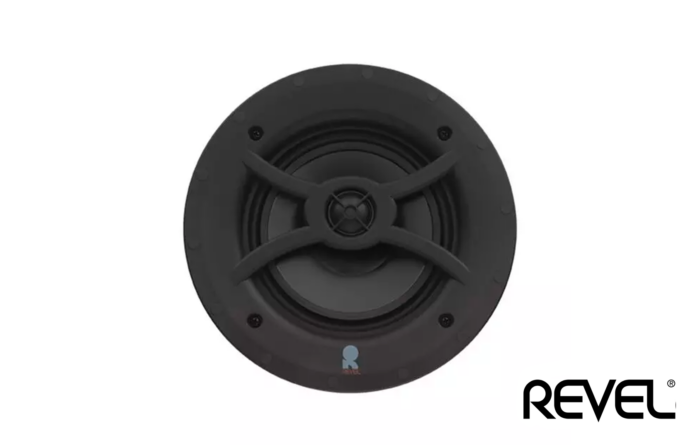

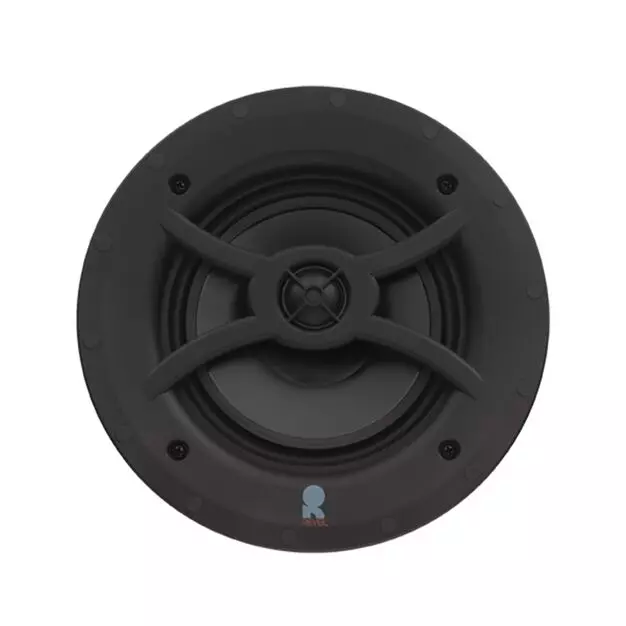

The Revel C363XC is a 6.5” extreme climate flush-mount loudspeaker. As part of the XC series they have been specifically engineered and rigorously tested to perform to Revel’s exacting standards in outdoor, damp, wet, or high-humidity and have been designed to withstand environmental abuses while not affecting performance. The C363XC is also resistant to corrosion from salt water and can be deployed in marine applications such as high-end yachts. The XC series flush mount loudspeakers are the first in a new range of extreme climate loudspeakers from Revel demonstrating that audiophile-caliber sound quality can be found in extreme climate applications.
- IP65 certified
- 6.5” black aluminum-cone, cast-polymer-frame woofer
- Require less than 2.8” mounting depth providing ideal installation solutions in applications where depth is a concern
- 1” aluminum dome black tweeters
- High-order crossover networks for clear, detailed sound, with a smooth tonal balance and extremely low distortion and coloration over a wider dynamic range
- Zero-bezel magnetic grilles for a modern design that provides an elegant and unobtrusive appearance
DESIGNED FOR TOUGH ENVIRONMENTS
XC flush-mount loudspeakers have been specifically engineered and rigorously tested to perform to Revel’s exacting standards under conditions that would make traditional architectural speakers wither. Rated to meet IP65 standards for dust and water resistance, XC models are guaranteed to perform in harsh conditions. Indoor locations such as showers and saunas and outdoor locations under eaves, and around patios and decks are perfect applications for XC flush-mount models. Their marine-grade components even make them suitable for yachts, power boats, and other marine vehicles where durability, high-performance sound, and stylish appearances are necessary. The shallow mounting depth required – less than 2.75-inches (70mm) – and extremely thin finished grille design allows them to fit into difficult locations where others cannot.
REVEL SOUND QUALITY
Revel loudspeakers are known for their outstanding sound quality and the XC models are no exception. Featuring superior materials including a 1-inch (25mm) Aluminum dome tweeter with phase ring and powerful cast-frame, Aluminum cone woofers, the XC models utilize advanced engineering and design to achieve the ultimate in performance for any given application. As with all Revel loudspeakers, the XC Series has been proven to perform in double-blind listening tests against the competition.
RATED TO PERFORM
Revel XC Series loudspeakers feature weatherized components and construction and meet IP65 (International Protection Rating) standards for solid materials and water ingress exposure. With the IP65 rating, they are fully protected against dust and water jets from all directions making them ideal for outdoor and marine applications.
|Weight||3.1 lb (1.41kg)|
|Included Accessories||Includes an extreme climate round zero-bezel magnetic grille|
|Nominal Impedance||8 ohms|
|Mounting depth||2.72″ (69.1mm) deep|
|Recommended Amplifier Power||10 – 100 Watts RMS (per channel)|
|Frequency Range||-3dB from 50-15kHz; -10dB from 36-18kHz|
|Dimensions (H x W x D)||Round grille finished dimension (dia.) 9.1″ (23.1cm) I Cutout dimensions (dia.) 8″ (20.3cm)|
|Dimensions||Round grille finished dimension (dia.) 9.1″ (23.1cm) I Cutout dimensions (dia.) 8″ (20.3cm)|
|Shipping weight||4.6 lb (2.1kg)|
Ceiling / Flush Mount, Water Resistant, Indoor/outdoor
