Revel 6 ½” In-Ceiling Loudspeaker – 1-inch (25mm) metal-dome tweeter with an integrated waveguide – high output with low distortion

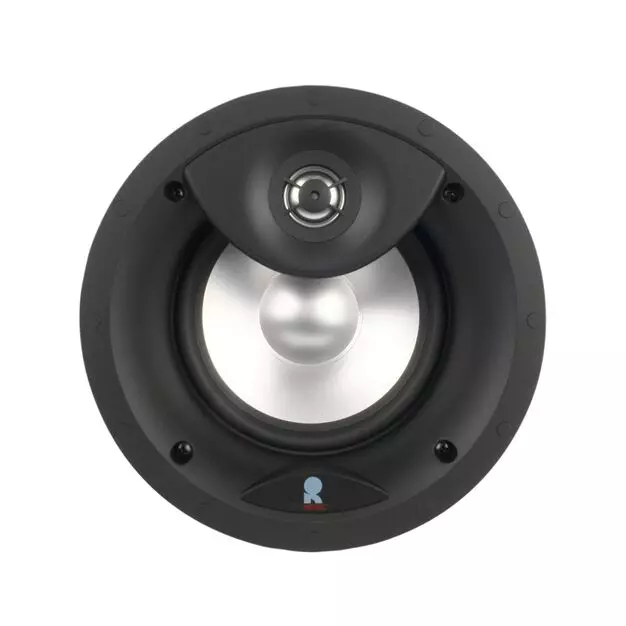

Revel 6 ½” In-Ceiling Loudspeaker C263
6 ½” In-Ceiling Loudspeaker
Since the first Revel® speakers in 1996, Revel products have stood at the forefront of loudspeaker design and performance. Revel in-ceiling loudspeakers draw upon the same research, resources and unique perspective that put all Revel loudspeakers in a class by themselves. Revel in-ceiling loudspeakers provide unparalleled value and are known for their standard-setting low sonic coloration and their freedom from distortion over an extraordinarily wide dynamic range.
- Long-throw woofers with rubber surrounds provide high output with low distortion
- A 1-inch (25mm) metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis
- A high-order crossover network delivers accurate timbre reproduction
- Boundary compensation switch (C783/C763) lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near a wall
- Three-position tweeter level control (C783/C763/C583/C563) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles
PROVEN SUPERIOR SOUND
All twelve in-ceiling loudspeaker models have undergone exclusive HARMAN double-blind listening tests, proving their sound quality superior to that of their competitors. The premium components of Revel in-ceiling loudspeakers include high-performance tweeters with waveguides, high-order crossovers and cast-frame drivers.

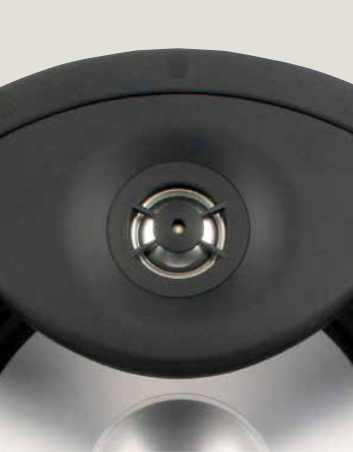

TWEETER WAVEGUIDE ASSEMBLY
High-frequencies are reproduced from minimum diffraction, acoustically optimized tweeter waveguide pods. Waveguides match the dispersion of the tweeter and woofer through the crossover region, resulting in smooth response over a wide listening area. The offset placement significantly reduces acoustic anomalies that occur with traditional coaxial or “bridge-mounted” tweeter in-ceiling speaker designs.

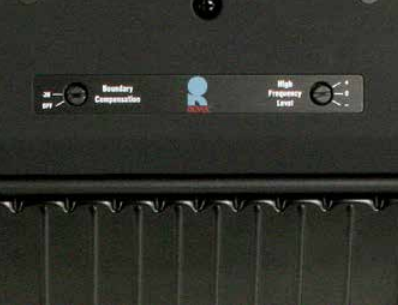

HIGH FREQUENCY AND BOUNDARY GAIN COMPENSATION
High Frequency (HF) level controls and Boundary Gain Compensation (BGC) controls are valuable features to optimize performance in a variety of applications. Both the 5- and 7-Series models have HF level control switches, and the 7-Series models have a BGC On/Off switch control. The HF level control helps adjust the sound for unusually damped or live rooms, while the BGC switch provides low-frequency compensation when the loudspeakers are installed close to walls.

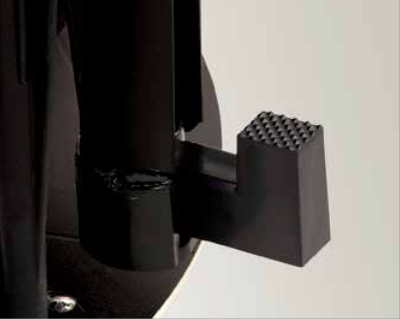

C-2 INSTALLATION MECHANISM
This mounting method improves on traditional mechanisms by accommodating material up to two inches thick. As a result you get a firmer mechanical grip to minimize resonances.

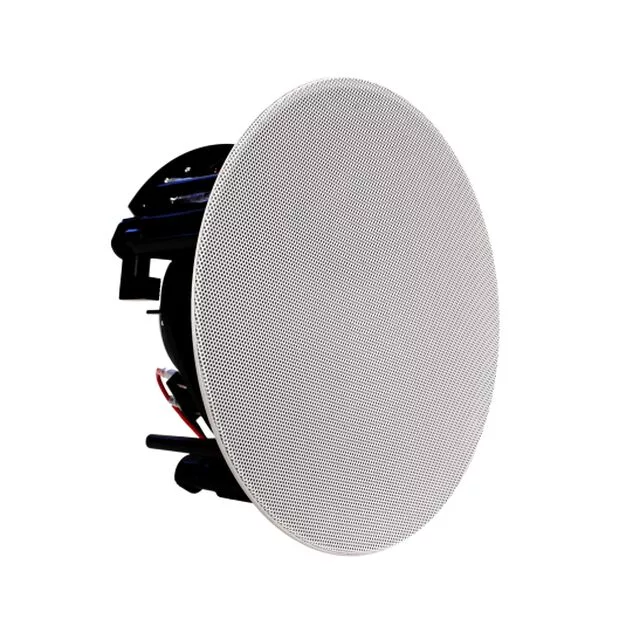

ZERO-BEZEL MAGNETIC GRILLES
The zero-bezel grilles provide an unobtrusive look that allows the product to blend in seamlessly with its surroundings. The ultra-thin design attaches magnetically and completely covers the speaker. The absence of a traditional bezel makes painting the grilles a simple task.
|Height||Cutout dimensions (dia.) 8” (20.3 cm) Square grille finished Height 9.1” (23.1 cm)|
|Width||Square grille finished Width 9.1” (23.1 cm)|
|Depth||Mounting Depth 4.8” (120mm)|
|Weight||3.1 lb (1.4 kg) / Shipping weight 4.6 lb (2.1 kg)|
|High Frequency Driver Components||1” Aluminum-Dome Tweeter with Waveguide|
|Low Frequency Extension||6-1/2” Aluminum Cone, Cast-Polymer Frame Woofer|
|Mounting||C-2 fastening mechanism • Compatible with wall material thickness range 0.5” – 2.0” (1.3 cm – 5.0 cm)|
|Recommended Amplifier Power||10 – 100 Watts RMS|
Ceiling / Flush Mount, Background Speaker, Foreground/Fill Speakers
