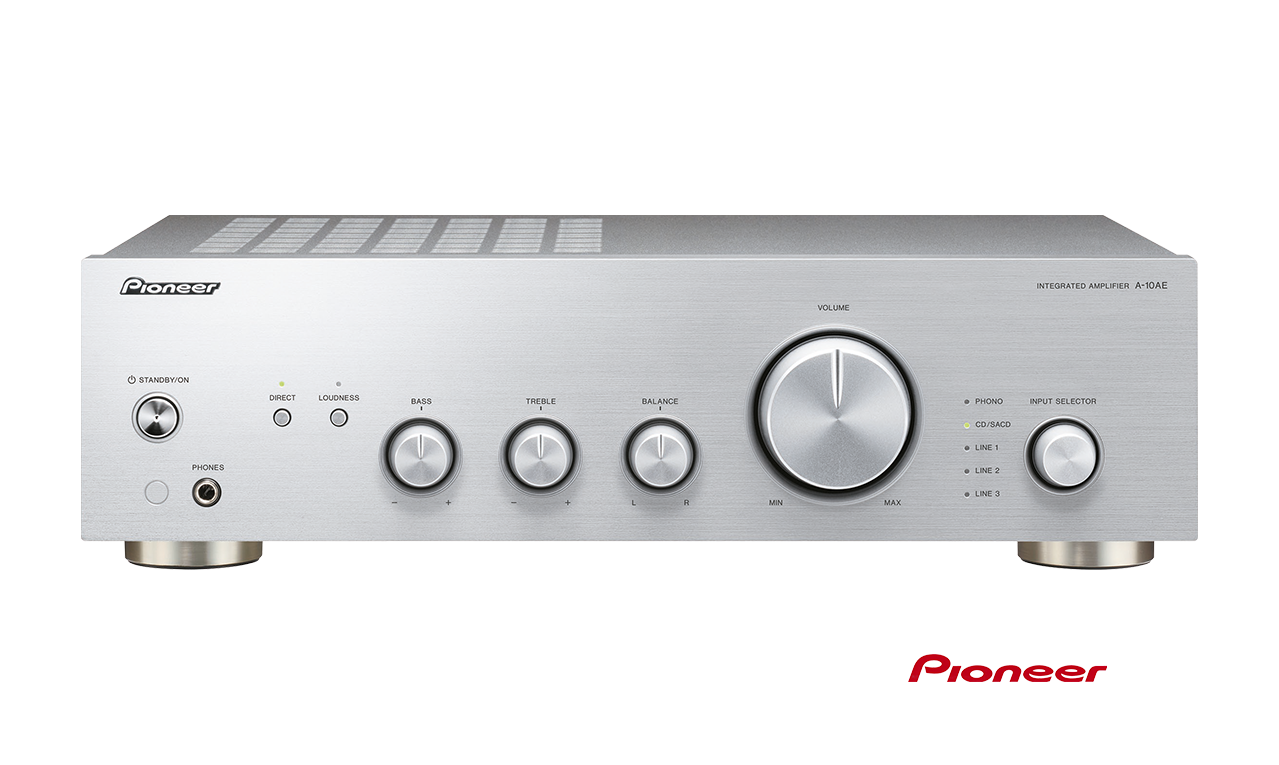

Pioneer A-10AE Integrated Amplifier Silver


Pioneer’s A-10AE integrated amp delivers overwhelming sound with high S/N ratio. Features include isolated power supply, Direct Function, and phono MM input for crisp, clear sound. 50 W.



Based on Pioneer’s Direct Energy Design concept, the A-10AE integrated amplifier pursues a high S/N ratio to create an overwhelming sound field rich with reality. Highlight features include an isolated power supply, Direct Function, and phono MM input, letting listeners enjoy crisp, clear sound close to the original performance.

Direct Energy Amplifier

Pioneer’s Direct Energy Design is based on the Direct Energy Concept—lossless transfer of energy from the amplifier to the speakers. Inheriting this philosophy, the latest integrated amplifiers feature optimized power supply/output circuit blocks, as well as parts layout. The unit reproduces clearer sound with reduced distortion.
The result is excellent signal transfer and a high S/N ratio, with the performance to bring out the best musical reproduction from the integrated amplifier.

Isolated Power Supply

The windings for the power amplifier, pre-amplifier, and controls are each separated inside the power transformer to prevent mutual noise interference.

Direct Function

The A-10AE features Direct Function, which bypasses other circuits except for the volume to offer a pure listening experience suitable for musical content. The function is not just a simple switching but is finely tuned to enhance the musicality.

Anti-Standing Wave Insulators

The Anti-Standing Wave Insulator features a special form with no parallel sides inside to prevent cavity resonance. This makes the sound localization, tone, and scale clearer, while also contributing to a seamless connection between the channels and improved response to quick sound.

Non-Magnetic Material Speaker Terminals

The speaker terminals use non-magnetic material, which is less susceptible to external noise, and transmits signals to the speakers at high purity.

Phono (MM) Input

The A-10AE is equipped with a phono input (MM) terminal, letting you connect a turntable for enjoying quality audio performance from vinyl records.

Auto Standby

The integrated amplifier automatically switches to standby mode after 20 minutes of no audio input or operation.



Direct Energy Design

Clean Ground Construction

Isolated Power Supply Circuits

Direct Function

Tone Control (Bass/Treble)

Balance Control


1.6 mm-Thick Rigid Steel Chassis

Auto Standby

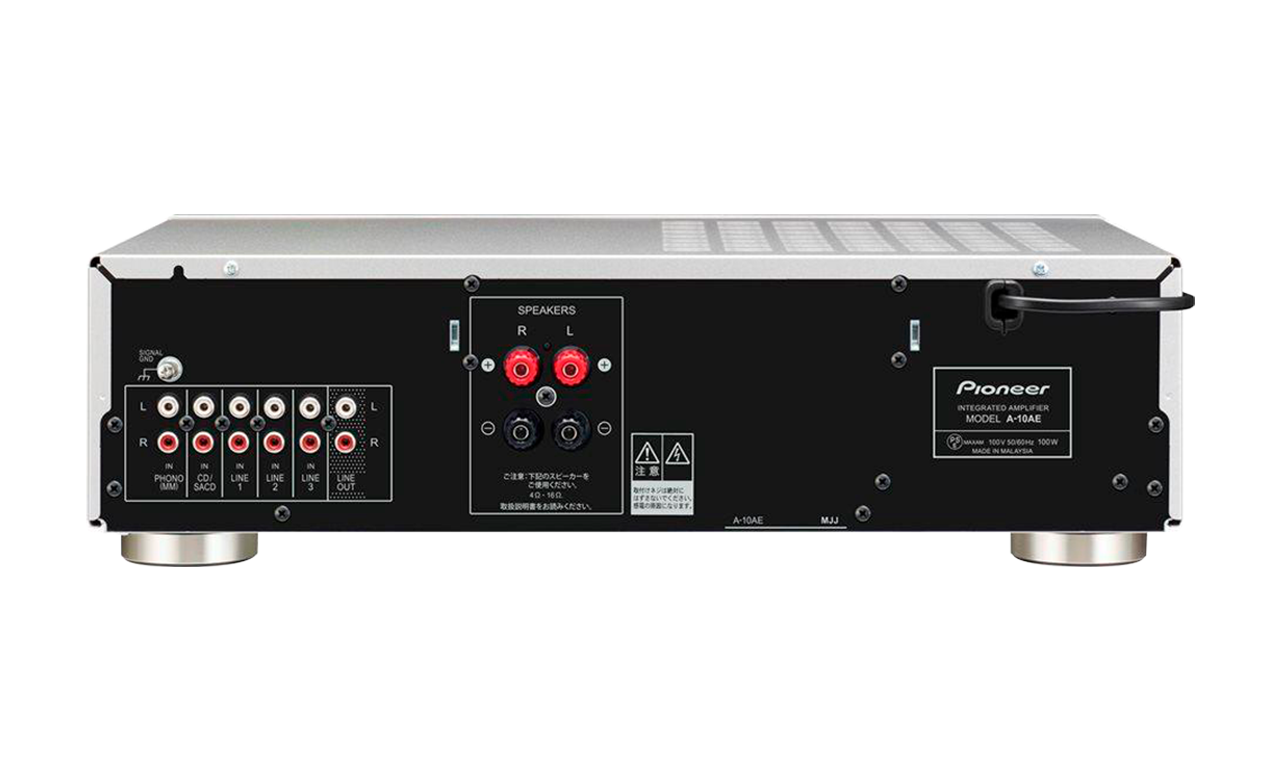

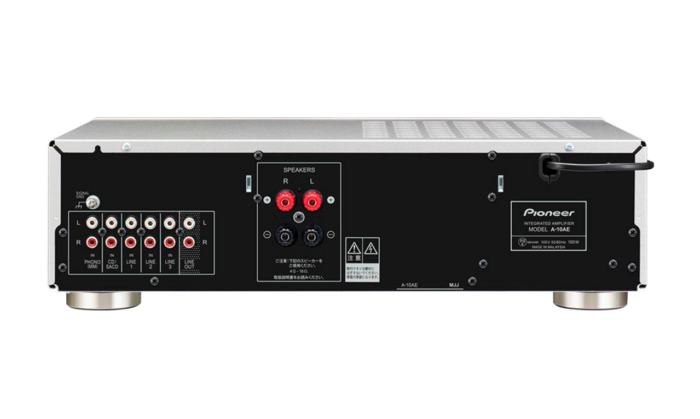

Analogue Audio Inputs: PHONO (MM), CD/SACD, LINE 1, LINE 2, LINE 3

Analogue Audio Output: LINE OUT

Phones Output


50 W + 50 W (20 Hz-20 kHz, THD 0.9 %,4 ohms, 2ch Driven)

30 W + 30 W (20 Hz-20 kHz, THD 0.7 %,8 ohms, 2ch Driven)

Guaranteed Speaker Impedance(2 Speaker Terminals): 4-16 ohms

Frequency Response: 10 Hz-100 kHz +1 dB/-3 dB

Signal-to-Noise Ratio (IHF-A) 103 dB(LINE In, SP Out), 78 dB (PHONO In,SP Out)

Power Requirements: AC 220-230 V,50/60 Hz

Power Consumption: 130 W

Power Consumption During Standby:0.2 W

Dimensions (W x H x D): 435 x 129 x 323 mm

Weight: 6.8 kg

Additional information





Amplifier Connectivity

Headphone Out, 2 Channel
