Panasonic 4K Ultra HD HDR Blu-Ray Smart DVD Player, USB for media, Super Multi-Format Playback MKV/ MP4/ FLAC/ MP3/ AAC/ ALAC/ DSD

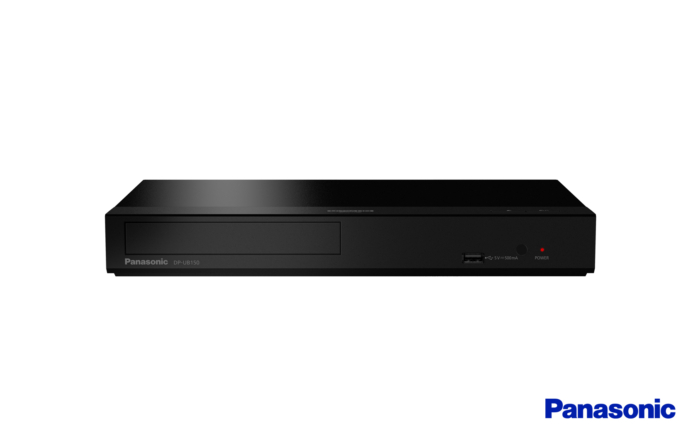

Panasonic DP-UB150EG-K Blu-ray player 4K Ultra HD HDR
|PLAYABLE DISCS||BD-ROM||Ultra HD Blu-ray/ FULL HD 3D/ BD-Video||yes|
|BD-RE/ BD-RE DL (Ver.3)||BDAV/ BDMV/ JPEG/ MPO||yes|
|MKV(H.264/ HEVC)/ MP4 (H.264/ HEVC), TS (MPEG-2 /H.264/ HEVC), PS(MPEG-2)||yes|
|FLAC/ WAV/ ALAC/ AIFF/ DSD/ WMA/ AAC/ MP3||yes|
|BD-R (Ver.1.3) / BD-R DL (Ver.2)||BDAV/ BDMV/ MKV/ JPEG/ MPO||yes|
|MP4 (H.264/ HEVC), TS (MPEG-2 /H.264/ HEVC), PS(MPEG-2)||yes|
|FLAC/ WAV/ ALAC/ AIFF/ DSD/ WMA/ AAC/ MP3||yes|
|DVD-R*1/ DVD-R DL*1/ DVD-RW*1||DVD-Video/ DVD Video Recording||yes|
|AVCHD/ MKV(H.264/ HEVC)||yes/ yes* (*DVD-R/ DVD-R DL)|
|MP4 (H.264/ HEVC), TS (MPEG-2 /H.264/ HEVC), PS(MPEG-2)||yes (DVD-R/ DVD-R DL)|
|FLAC/ WAV/ ALAC/ AIFF/ DSD/ WMA/ AAC/ MP3||yes (DVD-R/ DVD-R DL)|
|JPEG/ MPO||yes (DVD-R/ DVD-R DL)|
|+R*1/ +R DL*1/ +RW*1||Video/ AVCHD||yes|
|CD, CD-R/ -RW||CD-DA/ DTS-CD||yes|
|MKV(H.264/ HEVC)||yes (CD-R/ -RW)|
|MP4 (H.264/ HEVC), TS (MPEG-2 /H.264/ HEVC), PS(MPEG-2)||yes (CD-R/ -RW)|
|FLAC/ WAV/ ALAC/ AIFF/ WMA/ AAC/ MP3||yes (CD-R/ -RW)|
|JPEG/ MPO||yes (CD-R/ -RW)|
|AUDIO SYSTEM||Dolby Audio (Dolby Digital/ Dolby Digital Plus/ Dolby TrueHD)||yes (Decode and Bitstream Output*2)|
|DTS-HD Master Audio/ DTS-HD High Resolution Audio||yes (Decode and Bitstream Output*2)|
|Dolby Atoms/ DTS:X||yes (Bitstream Output*2)|
|FLAC||yes (Max. 192 kHz/ 24 bit)|
|WAV||yes (Max. 384 kHz/ 32 bit)|
|ALAC||yes (Max. 192 kHz/ 32 bit (2ch))|
|DSD (DFF, DSF)||yes (2.8 MHz (2ch/ 5.1ch), 5.6 MHz (2ch/ 5.1ch), 11.2 MHz (2ch))|
|AIFF||yes (Max. 384 kHz/ 32 bit (2ch))|
|Front||1 (USB 2.0 High Speed)|
|Playback||FLAC/ WAV/ ALAC/ AIFF/ DSD (DFF, DSF)/ WMA/ AAC/ MP3||yes|
|MKV(H.264/ HEVC)/ MP4 (H.264/ HEVC), TS (MPEG-2 /H.264/ HEVC)||yes|
|PS (MPEG-2) / AVCHD/ AVCHD 3D||yes|
|HIGH QUALITY PICTURE||4K Networking (4K Video*6 Playback/ 4K JPEG Playback*4)||yes|
|Hybrid Log Gamma(HLG)||yes|
|4K Up-scaling||60p/50p/ 4:4:4 (HDMI2.0)||yes*4*5|
|SMART FEATURE||Remote Control||yes (Simple)|
|HDAVI Control 5 (VIERA Link) / HDMI CEC||yes (HDMI CEC only)|
|External HDD Playback||yes*14|
|TERMINAL||HDMI Output||yes (1)|
|LAN (Ethernet) Terminal||yes (for Ultra HD Blu-ray, BD-Live™*15 and Firmware Update)|
|OTHERS||Video System||PAL/ NTSC|
|Power Supply||AC 220-240 V, 50 Hz|
|Power Consumption||Normal Use||12 W|
|Standby (Quick Start Off)-Network Standby Off||0.3 W|
|DIMENSIONS, WEIGHT||Dimensions (W x H x D)||320 x 46 x 193 mm *17|
|NOTIFICATION||NOTE||*1 Discs recorded and finalized on recording devices.|
*2 HDMI connections and compatible equipment (e.g. AV Receiver) required.
*3 Enabled by software update
*4 For 4K Up-scaling playback a TV with same resolution is required.
*5 For 4K/60p video, a high speed HDMI cable supporting 18 Gbps bandwidth is required.
*6 MP4(4K/25p,30p) bit rate up to 100 Mbps/resolution up to 3840×2160.
*7 Some network content services may not be available in your country.
*8 Ultra HD Blu-ray and Photo (JPG/ MPO) are not supported.
*9 This function is effective only when reproducing AVCHD data recorded with x.v.Color technology. The function cannot be used with BD-ROM or DVD-ROM discs. HDMI connection is required.
*10 File formats that are not supported by your Network Contents server (DLNA compatible server, etc.) cannot be played.
*11 CD sampling is done at 176.4/88.2 kHz.
*12 A device that supports the Mirroring function and Android™ ver. 4.2 or higher is required.
*13 Requires broadband Internet service.
*14 The external HDD with capacities of 4TB or less in processing NTFS/ FAT32 data is supported. Playback is not possible with some external hard disk drives.
*15 To enjoy content, you will need to insert a USB (1GB or more of free space/ sold separately). Requires broadband Internet service.
*16 The analog 2-channel output terminal can also be used as an analog 7.1-channel output terminal.
*17 Excluding the projecting parts.
Specifications are subject to change without notice. All numbers given here are approximate.
