NEC’s all-in-one collaboration boards, in three different sizes, UHD resolution & up to 20 touch points. Based on infrared touch technology with a rapid touch response.

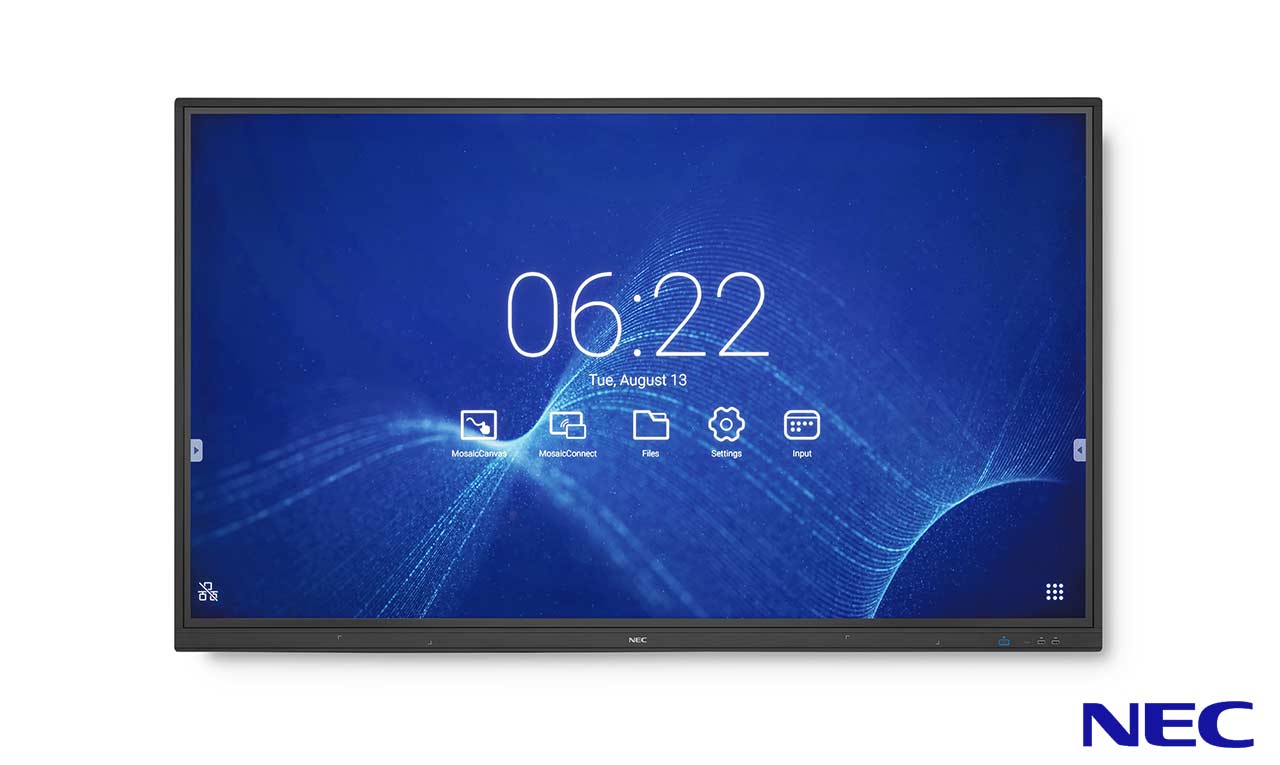

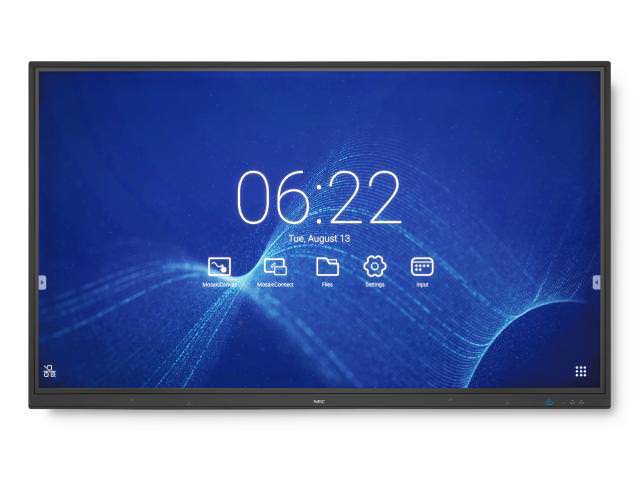

75″ Interactive Touch display – NEC MultiSync® CB751Q
€3,598
Description
LCD 75" Ultra-High Definition Large Format Touch Display
Description
Enter a world of interactive white-boarding

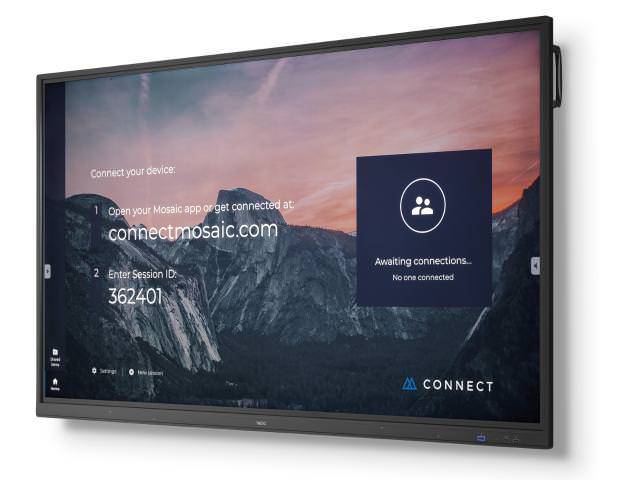

Upgrade your lectures and meetings with NEC’s all-in-one collaboration boards, in three different sizes, featuring UHD resolution and up to 20 touch points. Based on infrared touch technology the user experiences perfect usability with a rapid touch response. Business and educational sessions start-up instantly with built-in whiteboard and wireless screen sharing functionalities without any hidden costs. The embedded annotation tool lets you annotate over any content shown on the screen.
For more demanding applications, the OPS slot provides the opportunity to enhance the computing power. With sizes including 65’’, 75’’ and 86’’, the NEC CB Series offers the ideal solution for your meeting and class rooms.
All NEC CB Series displays come with three magnetic pens and a wall-mount fitting for easy installation.
Benefits
- Out-of-the-box collaboration – thanks to embedded computing with built-in annotation tools and wireless presentation capabilities.
- Multi-Touch – true multi-touch support with up to 20 simultaneous touch points.
- Protective Glass – premium toughened glass protects the security of the panel yet delivers a perfect touch experience with anti-glare coating to minimise reflections and fingerprints.
- Simple operation – with easy front access to USB ports and controls for major functionalities
- Ease of Use – enhance the display with an optional “Windows based” Slot-in-PC using the integrated Ultra High Resolution OPS option slot, thereby simplifying installations and reducing the points of failure.
- Cost Saving Device Management – save effort whilst managing all connected NEC devices from a centralised location by using the NaViSet Administrator 2 software tool.

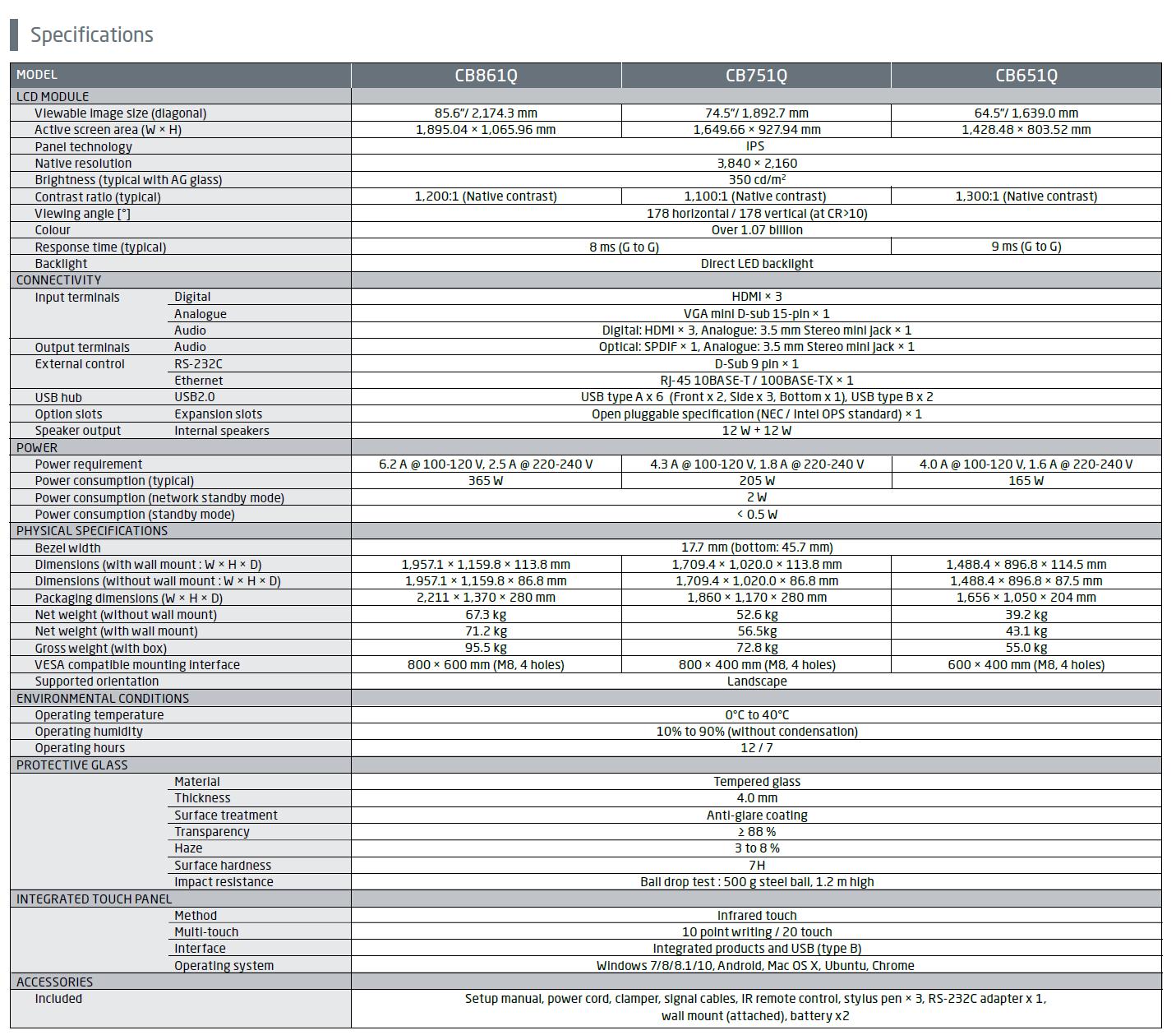

DISPLAY
Panel Technology IPS with Direct LED backlights
Active Screen Area (W x H) 1,649.7 x 927.9
Screen Size 75 / 189.3
Aspect Ratio 16:09
Pixel Pitch 0.4296
Brightness 350, 300 (shipment setting)
Contrast Ratio (typ.) 1100:01:00
Viewing Angle 178 / 178 (at contrast ratio > 10:1)
Colour Depth 1,073 (10bit)
Response Time (typ.) 8 (grey-to-grey)
Haze Level [%] 3
Supported Orientation Landscape
SYNCHRONISATION RATE
Horizontal Frequency 26 – 135
Vertical Frequency 23 – 86
RESOLUTION
Native Resolution 3840 x 2160
Supported Resolutions 4096 x 2016;3840 x 2160;1920 x 1080
Supported on HDMI only 4096 x 2016 (24 Hz);3840 x 2160 (60 Hz)
CONNECTIVITY
Input Video Analogue 1 x VGA
Input Video Digital 3 x HDMI
Input Audio Analogue 1 x 3,5 mm jack
Input Audio Digital 3 x HDMI
Input Control LAN 100Mbit; RS232
Input Data 2 x USB Type-B (Upstream); 6 x USB 2.0 (Downstream)
Output Audio Analogue 1 x 3,5 mm jack
Output Audio Digital 1 x SPDIF
Output Control LAN 100Mbit
OPEN MODULAR INTELLIGENCE
OPS Slot Slot Technology: Open pluggable specification (NEC / Intel OPS standard)
OPS Max. Current / Power Consumption 3.5 / 63
ELECTRICAL
Power Consumption Eco/max. 205 Eco (shipment setting), 430
Power Savings Mode < 0.5 (ECO Standby); < 2 (Networked Standby)
ENVIRONMENTAL CONDITIONS
Operating Temperature +0 to +40
Operating Humidity [%] 10 to 90
MECHANICAL
Dimensions (W x H x D) Without stand: 1,709.4 x 1,020 x 86.8
Weight Without stand: 52.6
Bezel Width 17.7 (left, right and top); 45.7 (bottom)
VESA Mounting 4 holes; 800 x 400 (FDMI); M8
GLASS
Thickness 4
Type Thermal-tempered, anti-glare coating
Light Transmission [%] 88 (+/- 1 %)
Reflection Rate [%] 4
Hardness 7
TOUCH
Touch Technology Infrared Touch
Number of Touches Real multi-touch up to 20 touches
Touch Method Finger; Gloves; Stylus (≥ 8 mm)
Supported Operating System Native Multi-Touch: Windows 7, Windows 8, Windows 10, Linux, Android; Default Mouse: Windows XP, Windows Vista, Mac OS X
Data Interface USB-HID
Accuracy < 2
EMBEDDED COMPUTING
Built-in Applications File Manager; Input Select; Setting; Web Browser; Whiteboard – Mosaic Canvas; Wireless Presentatiom – Mosaic Connect
System Memory 2G RAM
Internal Storage 16GB ROM
AVAILABLE OPTIONS
Accessories Trolley (PD02MHM, PD02MHA, PD03MHA); Wall mount (BalanceBox400-2; 1x standard wall mount included); Wireless LAN module NP05LM2 (Europe); Wireless LAN Module NP05LM4 (Russia)
OPS Slot HDBaseT receiver; Intel® Atom, Celeron and Core CPUs; OPS-2C Quad 3G SDI
GREEN FEATURES
Energy Efficiency Energy efficiency class: B
ADDITIONAL FEATURES
Special Characteristics AMX NetLinx Support; Crestron Connected Support; Crestron RoomView Support; DICOM Simulation; HDMI with UHD at 60 Hz; NaViSet Administrator 2; Scheduler
Colour Versions Black Front Bezel, Black Back Cabinet
Safety and Ergonomics BSMI; CE; EAC; EMC Class B; FCC; PSB; RCM; REACH; RoHS; SASO; UL/C-UL
Audio Integrated Speakers (2 x 12 W)
Shipping Content 3 x Stylus; HDMI Cable; Power Cable; Remote Control; USB cable; User Manual; VGA cable; Wall Mount
Warranty 3 years warranty incl. backlight
Operating Hours 12-Jul
Additional information
| Brand | NEC |
|---|
