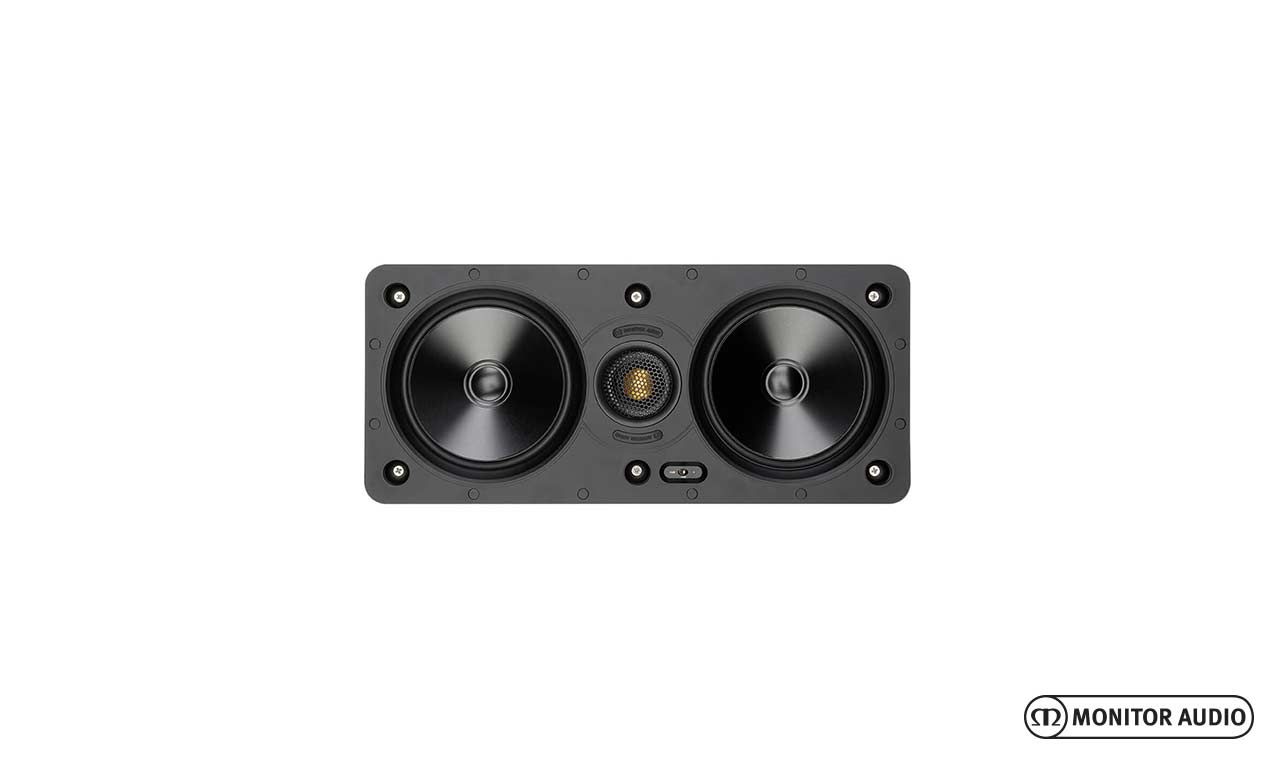

The 2-way W250-LCR in-wall model with 5-inch drivers features Monitor Audio’s C-CAM cones coupled with a pivoting version of our C-CAM Gold Dome tweeter.
Description
W250-LCR in-wall Speakers.
These in-wall models can be used vertically or horizontally: the ideal aspect for centre-channel applications in discreet home theatre systems. This model also provides high frequency level adjustment for super-fine audio tuning. Monitor Audio’s C-CAM Cones coupled with a pivoting version of our C-CAM Gold Dome tweeter.
This product is now available to use with home theatre design software, The CEDIA Designer.
Specifications
Frequency Response
60 Hz – 30 kHz
Nominal Impedance
8 ohms
Sensitivity (1W@1M)
88 dB
Maximum SPL
108 dBA
Power Handling (RMS)
100 W
Recommended Amplifier Requirements
30 – 100 W
Drive Unit Complement
2 x 5″ C-CAM cone bass driver
1 x 1″ (25 mm) C-CAM pivoting Gold Dome tweeter
Controls
High Frequency Level Switch (+3 dB / 0 dB / -3 dB)
Overall Dimensions (Including Grille (H x W x D))
177.4 x 385.2 mm (7 x 153/16″)
Overall Depth (Including Grille)
105 mm (41/8″)
Mounting Depth
100.2 mm (315/16″)
Cut-Out Dimensions
145 x 353 mm (53/4 x 137/8″)
Required Clearance for Doglegs in Centre Configuration 400 x 197 mm (15 3/4″ x 7 3/4″)
Fixing Type
Tri-Grip dog fixings
Construction Material
Mineral filled ABS, RoHS compliant
Weight
3.76 kg (8.3 lb)
Pre-Construction Bracket
WB5LCR Pre-Construction Bracket (Yellow)
Sold As
Single Unit
Additional information
| Brand | Monitor Audio |
|---|---|
| Speaker Type | In-Wall, Centre Speaker |
