Multiroom Amplifier with 4 zone Music Streamer – Monitor Audio

2,899

In stock (can be backordered)

The Monitor Audio Four Zone Music Streamer IMS-4 paired with the 12 channel power amplifier IA60-12 package deal. Allows various configurations including 2 rooms at 45w/ch and 2 rooms at 100w/ch.



In stock (can be backordered)

Description

Monitor Audio Package.

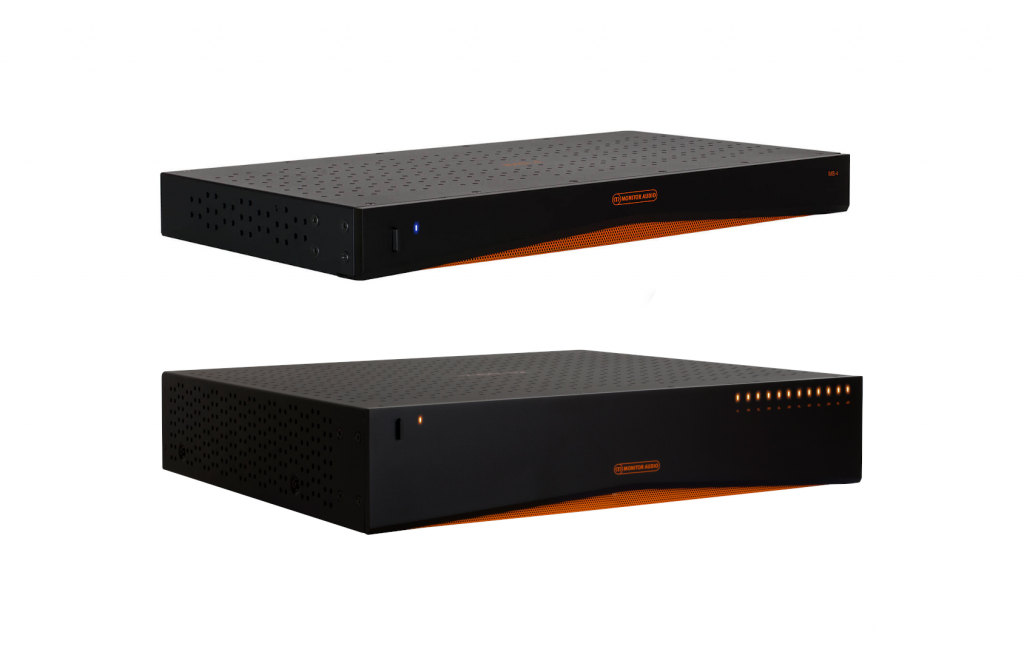

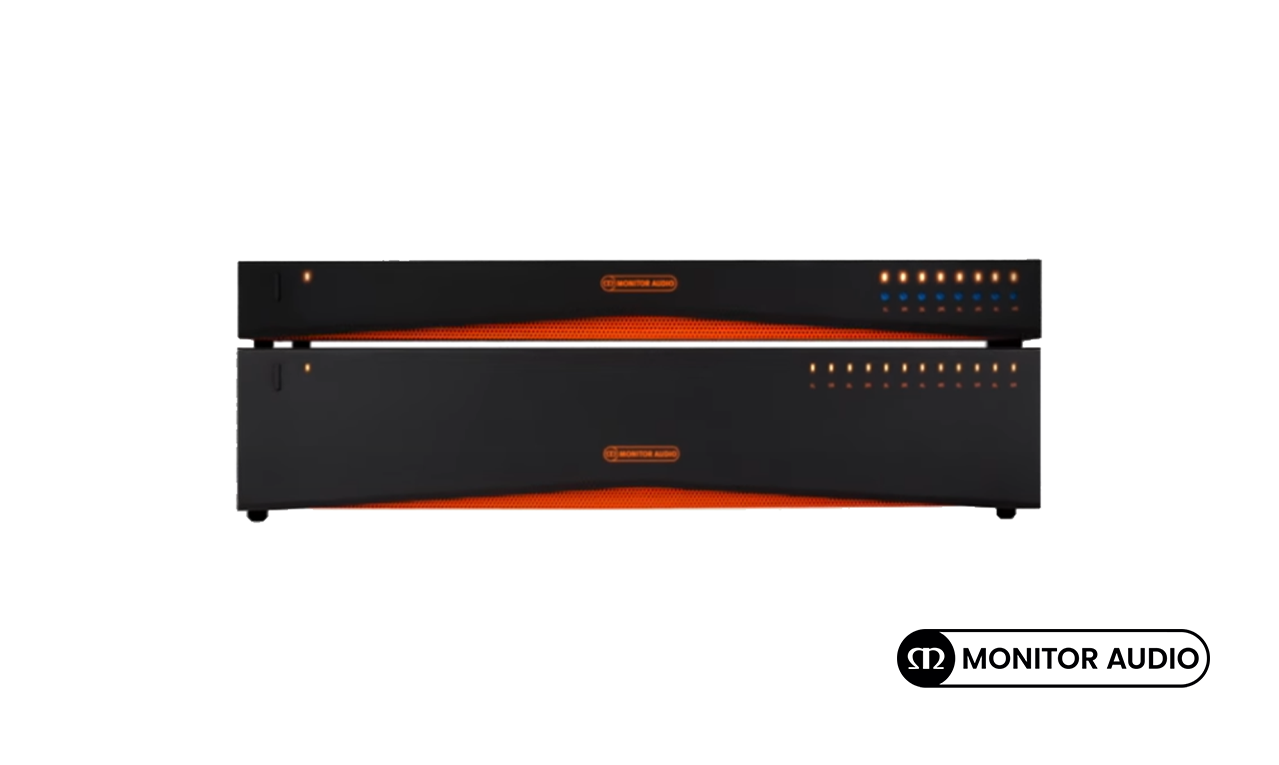

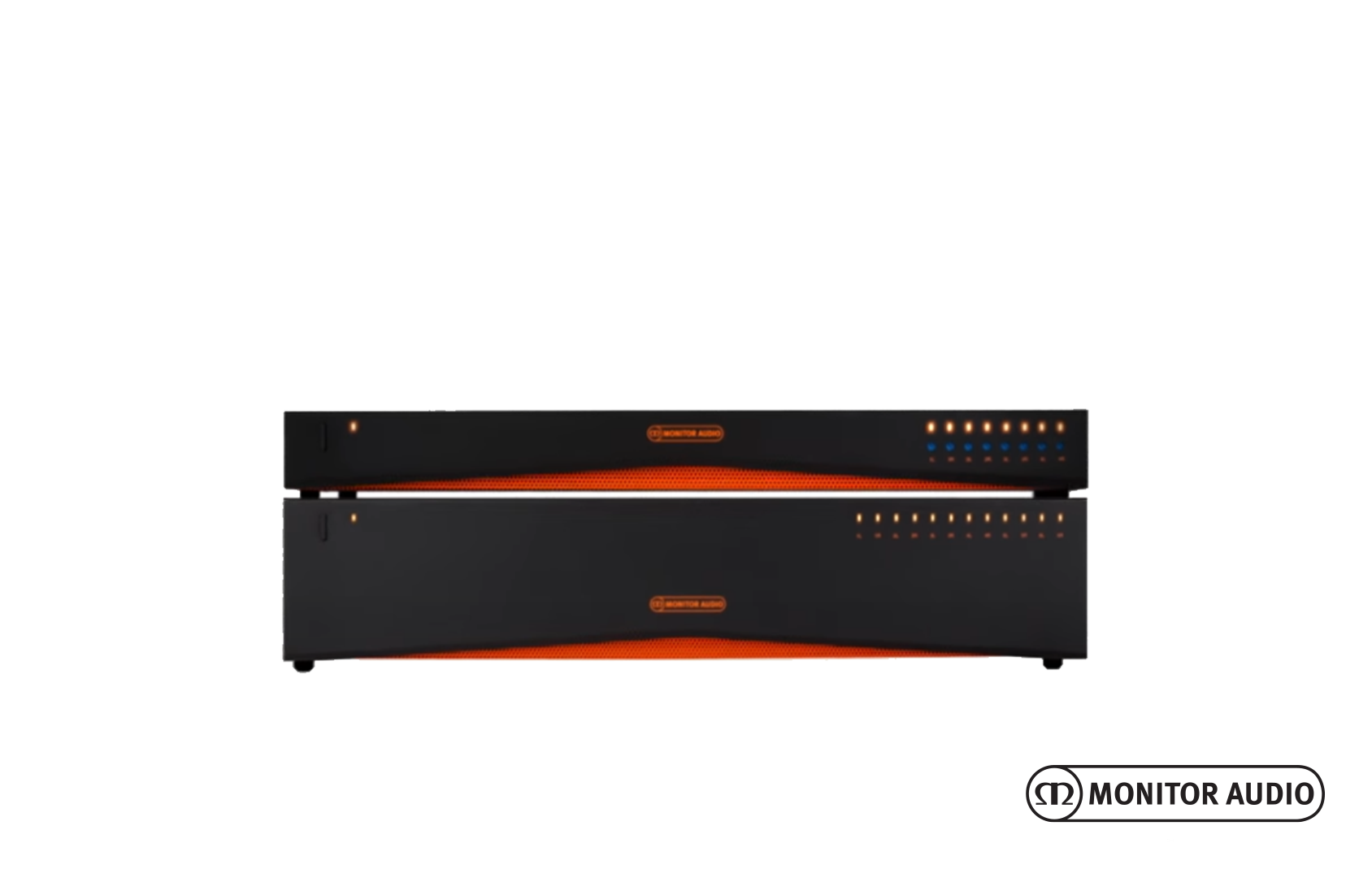

Monitor Audio Four Zone Music Streamer IMS-4 + Monitor Audio 12 channel power amplifier IA60-12

Monitor Audio Four Zone Music Streamer IMS-4

Stream lossless music as the artist intended

The IMS-4 music streamer is the latest addition to Monitor Audio’s range of superior custom install solutions. Its BluOS™ technology and controller app allow easy access to music libraries, streaming services and voice control using Alexa or Google Assistant.

The IMS-4 music streamer’s discreet design allows it to be easily incorporated into any custom installation project. And, its slimline form ensures that it occupies just 1U of rack space.

BluOS allows the IMS-4 to stream lossless music at a quality of up to 24-bit/192khz to 4 zones in a home network. Accessed through the app, or one of the many supported integrated control systems, the multiple IMS-4 streamers can be combined to provide up to 64 zones, with each zone able to play together in perfect sync.

It can also simultaneously play different streams to separate zones.

The IMS-4 can access millions of Master Quality Authenticated (MQA) recordings using BluOS technology to allow music to be heard exactly as the artist intended, anywhere in the home.

To power the music, the IMS-4 should be partnered with an installation amplifier such as our IA150-8C.

The IMS-4 can be integrated with Crestron, Control4 and RTI and is compatible with other BluOS enabled devices. Analogue and digital inputs allow the addition of a cable box or other non-network sources and to make them available in every zone.

The IMS-4 even includes a system interrupt to let doorbells and fire alarms be heard.


Monitor Audio IMS4 rear connections

Key Features

  • Featuring BluOS™ multi-room streaming technology
  • With four separate zones, different music can be streamed to four different rooms or areas
  • Allows streaming of Lossless music with MQA authentication
  • Integration with home automation services such as Crestron, Control4, RTI and other BluOS™ devices
  • Controllable using the BluOS™ Controller app for iOS, Android, MacOS and Windows
  • Compatible with Apple AirPlay 2

Specifications

IP Control BluOSTM

Channel Number / Rooms 4 Rooms

Maximum Input Voltage (RMS) 2.2 V

Signal to Noise Ratio 110 dBA

Rack Height 1U

Dimensions (Without Feet (H x W x D)) 43.1 x 438 x 236.1 mm (111/16 x 171/4 x 95/16″) Height (with feet) 45.1 mm (113/16″) Width (including rack brackets) 482 mm (19″)

Weight 2.8 kg (6 lb 3 oz)

IP Communication TCP/IP (RJ-45 10/1000 Base T)

Mains Operating Voltage 100 – 240 V 50/60 Hz

Standby Power Consumption <1 W

Networked Standby Power Consumption <6 W

Sold As Single Unit

Monitor Audio IA60-12 Power Amplifier

Monitor Audio IA60-12 Power Amplifier

From Monitor Audios’ line of distribution amplifiers, meticulously designed to satisfy the customer and the installer, the IA60-12 powers up to 12 channels (six stereo pairs) and is configurable to 1, 2, 3, 4, 5, 6, or 12 channels. Employing Hypex amplifier technology housed in a 2U case, we front-mount the power switch and the trigger input (– 3 – 30 V AC or DC) provides signal for additional amplifiers or other equipment.

This model offers Buss Inputs and A/B Loop Outputs – the Loop outputs are non-buffered, meaning that the maximum number of amplifiers that can be looped together will depend on the output capability of your source component. Smoothly delivering 60 watts per channel at 4 ohms, the IA60-12 lets you trust in Monitor Audio and delivers an audio engine ready to excel.



Technical Specifications

‘Connect’ IP Control N/A

Channel Number 12 (6 Stereo Pairs)

Power (W / Channel) | 4 ohms 60 W

Power (W / Channel) | 8 ohms 45 W

Power (W / Channel) | Bridge (8 ohms) 100 W (6CH)

Power (W / Channel) | 70V N/A

Input Impedance 20 K ohms

Output Impedance (Loop RCA) 600 ohms

Input Sensitivity 100 mV / 1 W, 700 mV – Full power

Maximum Input Voltage 2.9 V

Signal to Noise (SN:R) -100 dB (20 Hz – 20 kHz)

Frequency Response 5 Hz – 50 kHz

Total Harmonic Distortion THD + N@1 KHz 0.03%

Rack Height 2U

Dimensions (Excluding Feet (H x W x D)) 86.8 x 438 x 427 mm (37/16 x 171/4 x 1613/16″)

Dimensions (Including Feet (H x W x D)) 97.2 x 438 x 427 mm (313/16 x 171/4 x 1613/16″)

Width (including rack brackets) 482 mm (19″)

IP Communication N/A

Mains Operating Voltage 100 –120 V @ 60 Hz 220 – 240 V @ 50 Hz

Fuse Rating 10 A (T10AL ~ 250VAC)

Standby Power Consumption <0.5 W (green mode)

Networked Standby Power Consumption N/A

Weight 7.34 kg (16 lb 2 oz)

Sold As Single Unit



Additional information

Brand

Monitor Audio

Product Type

Multiroom Amplifier, Media Streamer, Power Amplifier

Amplifier Connectivity

Optical, Multiroom, Network Port, USB, 12 Channel
