Monitor Audio Monitor SoundFrame 3

395

In stock

SoundFrame 3 On-Wall is the most compact speaker of the three and it can be used on its own, as a rear to complement the SoundFrame 1 /2 On-Wall, or with a sub-woofer. Price is each. Not per pair.

Description

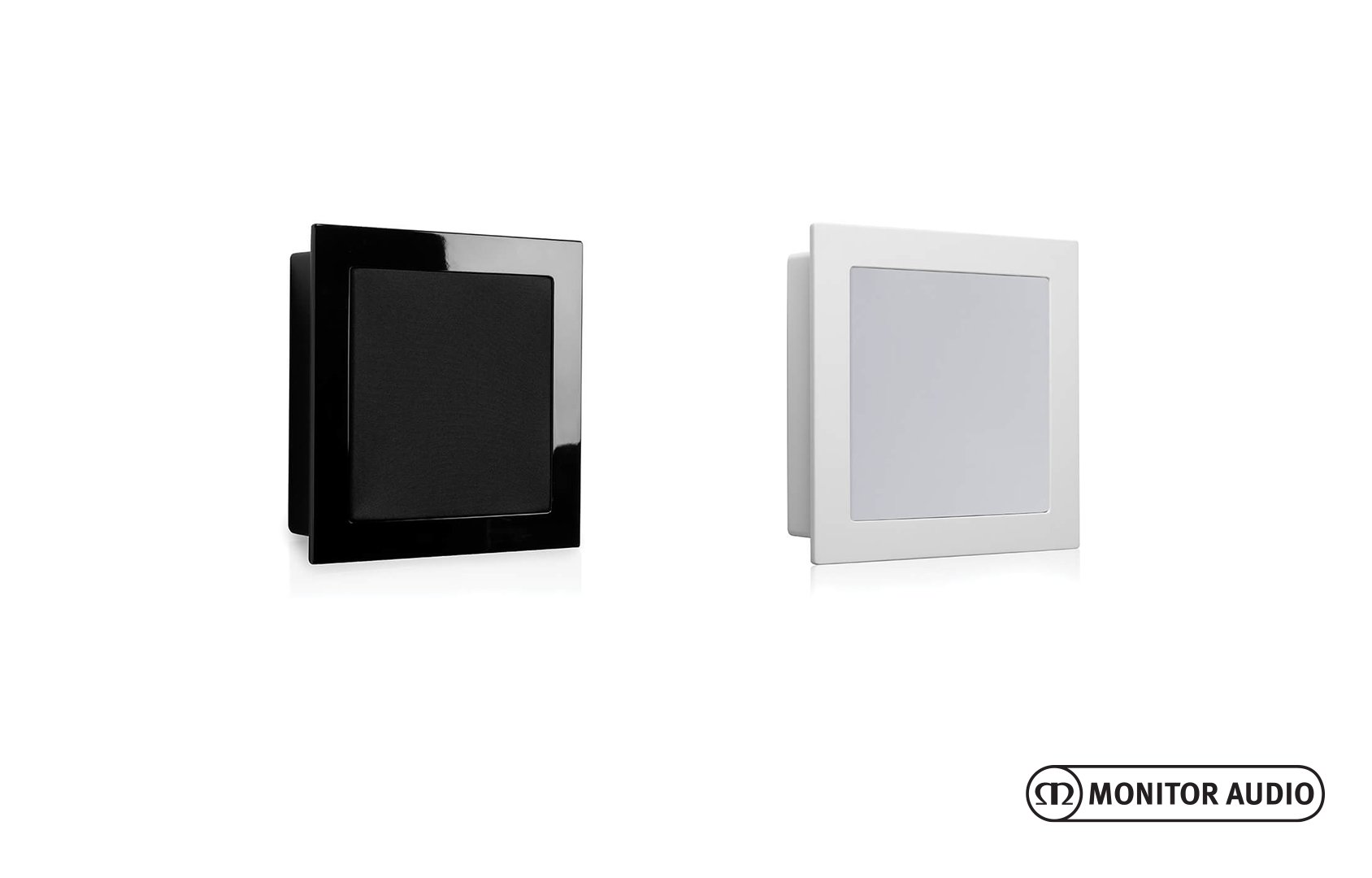

SoundFrame 3 On-Wall

The SoundFrame series consists of three sizes of speakers that complement any room. SoundFrame 3 On-Wall is the most compact speaker of the three and it can be used on its own, as a rear to complement the SoundFrame 1 On-Wall and SoundFrame 2 On-Wall, or with a sub-woofer.

Individual images for the grille cloths can be selected from our library or bespoke speakers can be created using your own high resolution photographs. The cabinet frames are available in high gloss white and high gloss black lacquer.

The SoundFrames can be fitted either in-wall or on-wall and with or without a frame using the Frameless grilles option.

The SoundFrame 3 On-Wall has a 2-way configuration with a pivoting 1-inch tweeter module and a 4-inch C-CAM driver.

SoundFrrame3_ProductImage

Technology

  • Quick and easy installation.
  • Slender 87 mm (3.5″) cabinet depth.
  • Choice of high gloss white or black lacquer frames.
  • SoundFrame 3: 2-way configuration: a pivoting 1 inch tweeter module with a 4-inch C-CAM driver.
  • High frequency attenuation +- 3 dB.
  • Ultra-discreet on-wall/in-wall AV/audio system, suitable for any interior.

Check out the Full SoundFrame Brochure​

Specifications

Frequency Response 75 Hz — 35 kHz

Sensitivity (1W@1M) 86 dB

System Configuration 2-Way

Drive Unit Complement 1 x 4″ C-CAM mid-range driver
1 x 1″ pivoting Gold Dome tweeter

Power Handling (RMS) 50 W

Maximum SPL
102.5 dBA

Recommended Amplifier Requirements
25 — 50 W

Bass Alignment
Ported Box

Nominal Impedance
8 ohms

Crossover Frequency
3.2 kHz

Dimensions (Including Frame (H x W x D))
289 x 289 x 77.5 mm (113/8 x 113/8 x 3″)

Depth From Wall
77.5 mm (3″)

Weight (packaged)
2.76 kg (6 lbs)

Sold As
Single Uni



Additional information

Brand

Monitor Audio

Colour

Black, White
