12” RST II C-CAM driver, 1000W Class-D amp, precise low freq control. 2” LCD, RCA/XLR in/out, daisy chain up to 4, Black/White options. 200 W.
Monitor Audio Anthra W12 Subwoofer
€2,450
In stock
In stock
Description
Anthra W10
Anthra W12
The W12 is the mid-sized model within the Anthra subwoofer series. It features a 12” (30 cm) Rigid Surface Technology II (RST II) C-CAM high-excursion driver powered by a Class-D 1,000 Watt amplifier, housed within a comprehensively internally braced, sealed-box cabinet.
Engineered to deliver impressive bass in medium and large spaces, the Anthra W12 subwoofer features a formidable 1,000 Watt Class-D amplifier driving a 12” (30 cm) Rigid Surface Technology II (RST II) C-CAM high-excursion driver. The W12 can be used on its own or linked with up to three other Anthra subwoofers for a truly immersive, ultra-dynamic listening experience.

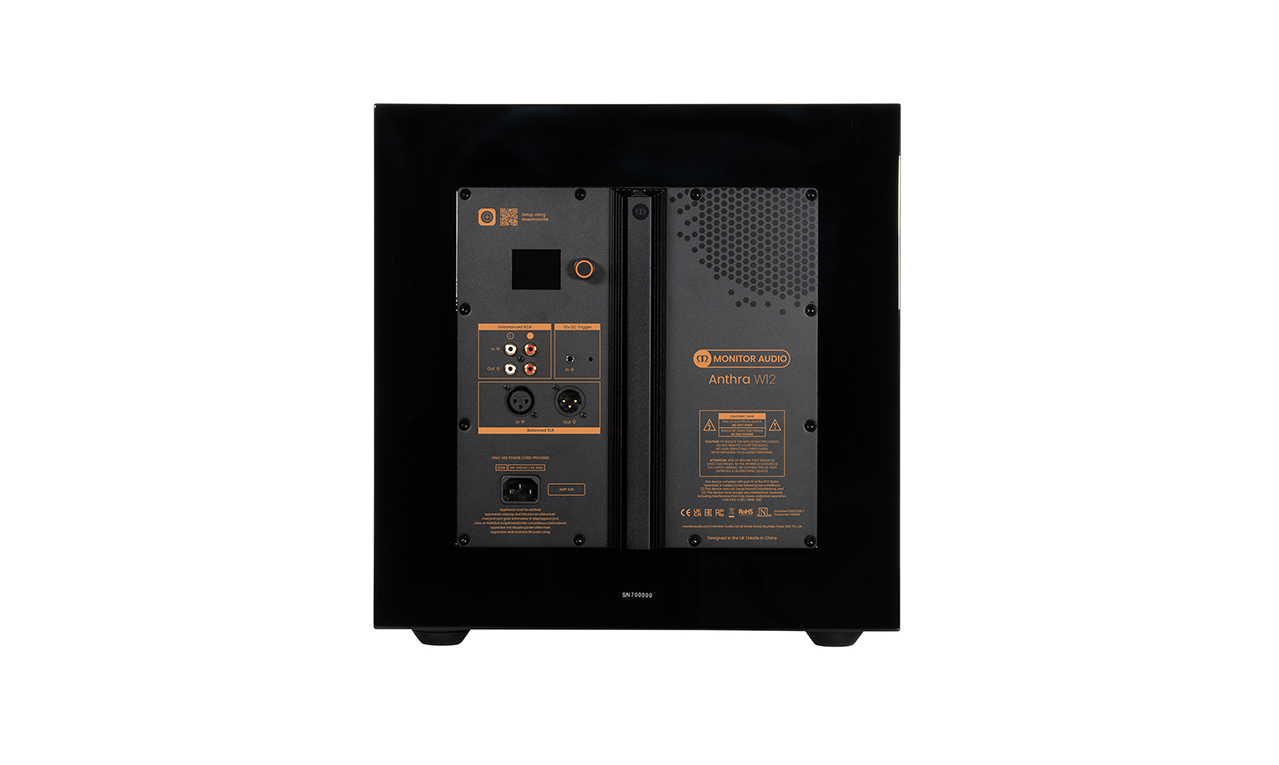

A full-color LCD display and rotatory dial are located on the back panel, to allow for basic subwoofer setup and EQ preset selection, while advanced features including DSP configuration and multi-sub connectivity setup are available via the MaestroUnite app.
Key Features
- 1 x 12” (30cm) Rigid Surface Technology II (RST II) and ceramic-coated aluminum magnesium (C-CAM) high-excursion driver for super-clean performance
- 1 x 1000 Watt Class-D amplifier ensures that the driver is working to its optimum performance level, no matter what the volume
- Massive motor assembles and longer round-wound voice coils, which are dual-layered and made of copper-coated aluminum wire (CCAW) for precise control at extremely low frequencies
- 2-inch full-color LCD display screen with rotary dial for menu selection and basic setup
- RCA inputs (left/right. The left Input is LFE)
- RCA outputs allow daisy chain of up to 4 Anthra subwoofers
- XLR inputs for professional installation connectivity option
- XLR outputs allow daisy chain of up to four Anthra subwoofers
- Available in Gloss Black and Satin White finishes
Specification
System Format
Active – Sealed Cabinet
Drive Unit Complement
1x 12″ (305 mm) High Linear-Excusion Triple Suspension Driver
Amplifier Classification
High-Efficiency Class-D
Lower Frequency Limit
-6dB @16Hz
Upper Frequency Limit
(LPF Off) -6dB @400Hz
Driver Excursion (pk-pk)
50 mm
DSP
28 Bit 50 MIPS Configuratable through MaestroUnite
Analogue Digital Conversion
Autoranging Input which combines a 10Vrms maximum input with low signal to noise for small signals
Amplifier Output Power, 240Vac
Instantaneous: 1700 W*
Continuous short-term: 900 W**
Amplifier Output Power, 120Vac
Instantaneous: 1325 W
Continuous short-term: 700 W
LED UI Control
Brightness, On-Off
Phase Control
0-360 Degrees measured at LPF Crossover
Low Pass Filter
20-200Hz LPF with Roll off Adjustable from -3 to -48dB/Oct
Custom EQ
Configurable through MaestroUnite;3 pre-defined EQ curves plus 3 custom EQ curves each with 8 band custom EQ supporting (Peaking, High Shelf, Low Shelf, High Pass)
Volume Level
Wide adjustable input gain to allow maximum output from a wide range of input signals
Inputs
Stereo Unbalanced RCA (or mono/LFE using only connector marked LFE)Mono/LFE Balanced XLR
Outputs
Stereo unbalanced outputs with unbuffered throughput from RCA Inputs
Mono/LFE Balanced XLR outputs with unbuffered throughput from XLR Input
Mains Input Voltage
Universal Mains, 85-265VAC
External Dimensions (without feet) (HxWxD)
374 x 374 x 374 mm
Power Consumption
200 W
Cabinet Construction
Braced 25 mm thick MDF with 36mm front baffle
Grille
Cloth covered magnetically attached Grilles
Weight
32.4 kg
* Maximum RMS output for an instantaneous signal
** Sinewave for 10 seconds
Additional information
| Brand | Monitor Audio |
|---|---|
| Colour | White |
