Monitor Audio CS160 ceiling speaker

220

In stock

Delivering great imaging and dynamics from a brilliantly compact design,  The CS160 has a 6-inch MMP II driver with a pivoting C-CAM Gold Dome tweeter.

In stock

Description

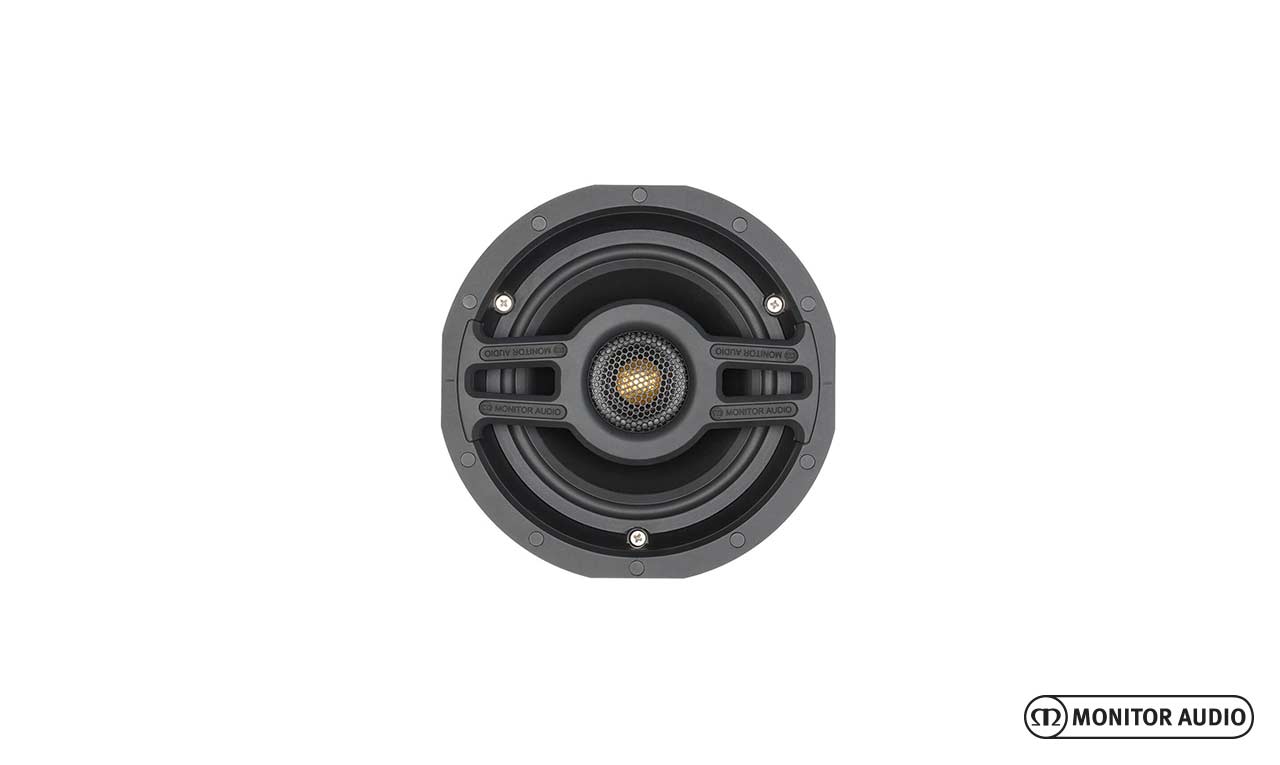

CS160 Slim Ceiling Speaker

Delivering great imaging and dynamics from a brilliantly compact design, the CS160 is perfect for high performance, ultra-discreet custom-installed systems.
The CS160 in-ceiling model couples a 6-inch MMP II driver with a pivoting C-CAM Gold Dome tweeter.

Please specify a round or square grille option when ordering.

This product is now available to use with home theatre design software, The CEDIA Designer.

Specifications

Frequency Response
60 Hz – 30 kHz

Nominal Impedance
6 ohms

Sensitivity (1W@1M)
88 dB

Maximum SPL
107.2 dBA

Power Handling (RMS)
70 W

Recommended Amplifier Requirements
15 – 70 W

Drive Unit Complement
1 x 6″ MMP II cone bass driver.
1 x 1″ (25 mm) C-CAM pivoting Gold Dome tweeter

Acoustic Configuration
2-way

Overall Dimensions (Including Grille (H x W))
Round: 204.2 mm (81/16″)
Square: 199.2 x 199.2 mm (713/16 x 713/16″)

Mounting Depth
99 mm (37/8”)

Cut-Out Hole Diameter
170 mm (611/16”)

Fixing Type
3 position Tri-Grip dog fixings

Connection
Gold plated ‘push’ type terminals

Grille Attachment
Magnetic

Construction Material
Mineral filled ABS, RoHS compliant

Weight
2.10 kg (4 lb 10 oz)

Pre-Construction Bracket
CB5 Pre-Construction Bracket (Blue)

Back Box
CCBOX-R | CMBOX-R

Sold As
Single Unit

Additional information

Brand

Monitor Audio

Speaker Type

Ceiling
