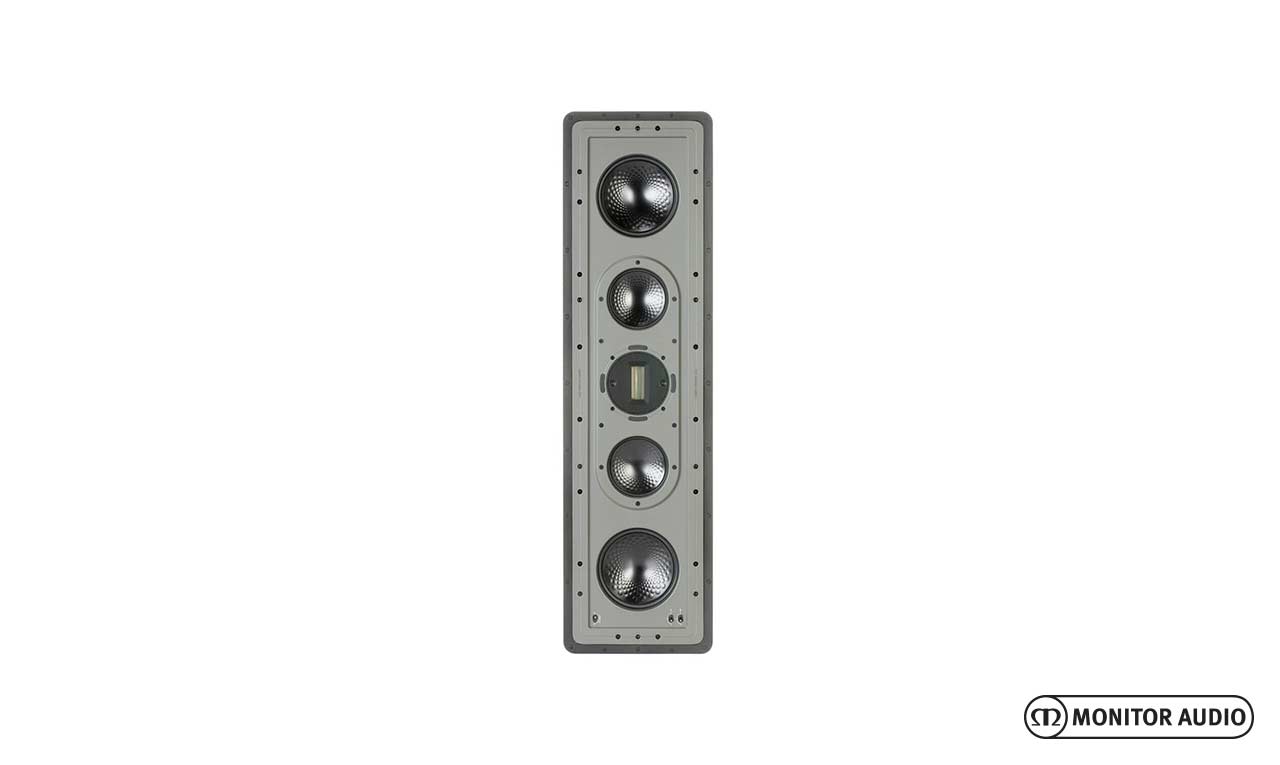

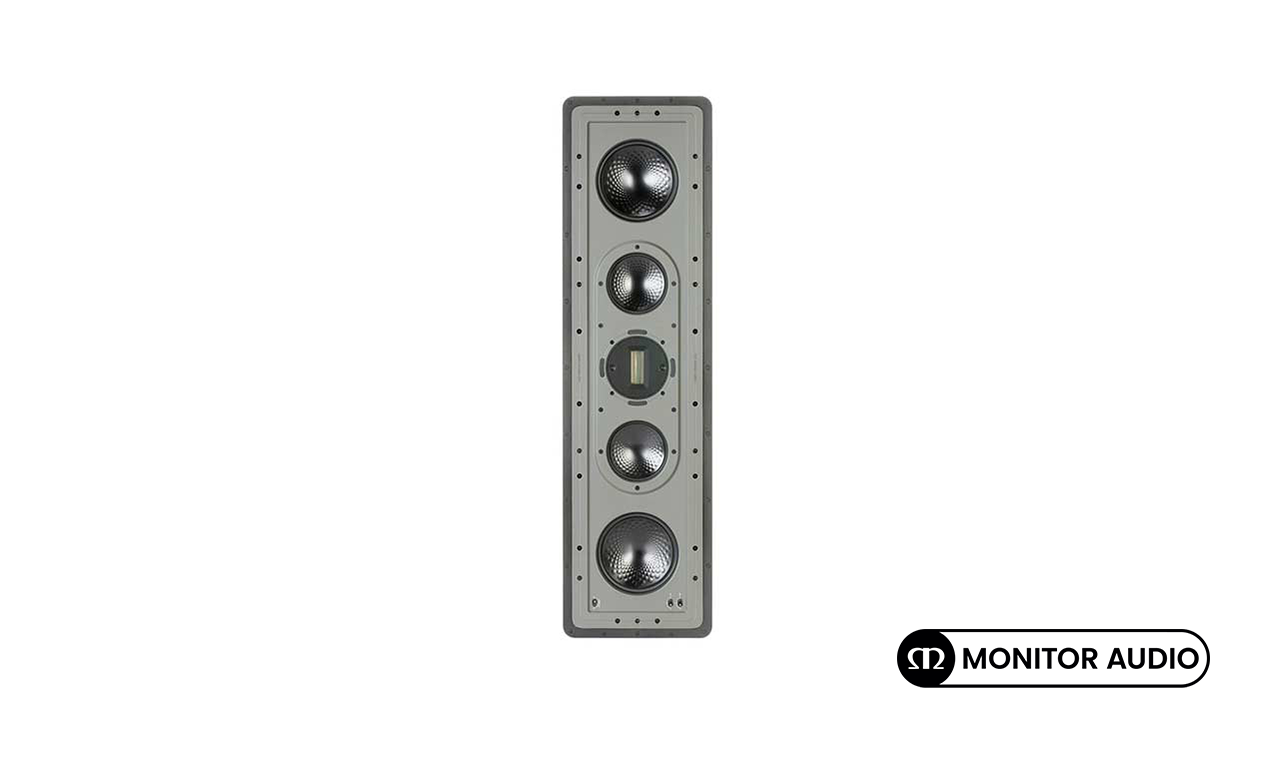

Monitor Audio CP-IW460X In-Wall L-C-R


high end flush mounting speaker for Left, Centre and Right channels – Dual 6.5″ bass drivers & twin 4″ mids, air motion ribbon tweeter, cast polymer cabinet & die-cast Aluminium baffle.




The luxury CP-IW260X and CP-IW460X in-wall speakers combine Monitor Audio’s latest drivers in compact three-way, five-driver configurations, built into closed-box designs to deliver optimum audio performance.

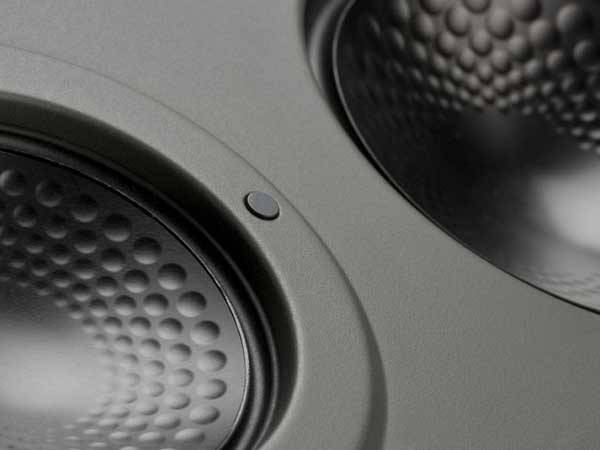

  • Dual 6.5” C-CAM bass drivers featuring RST ‘dimpled’ cone technology
  • Die-cast alloy bass driver chassis provides rigidity; results in punch bass and clean mid-range performance due to reduced transfer of vibrations
  • Dual 4” C-CAM mid-range drivers featuring RST ‘dimpled’ cone and underhung voice coil technologies
  • C-CAM Ribbon High Frequency transducer

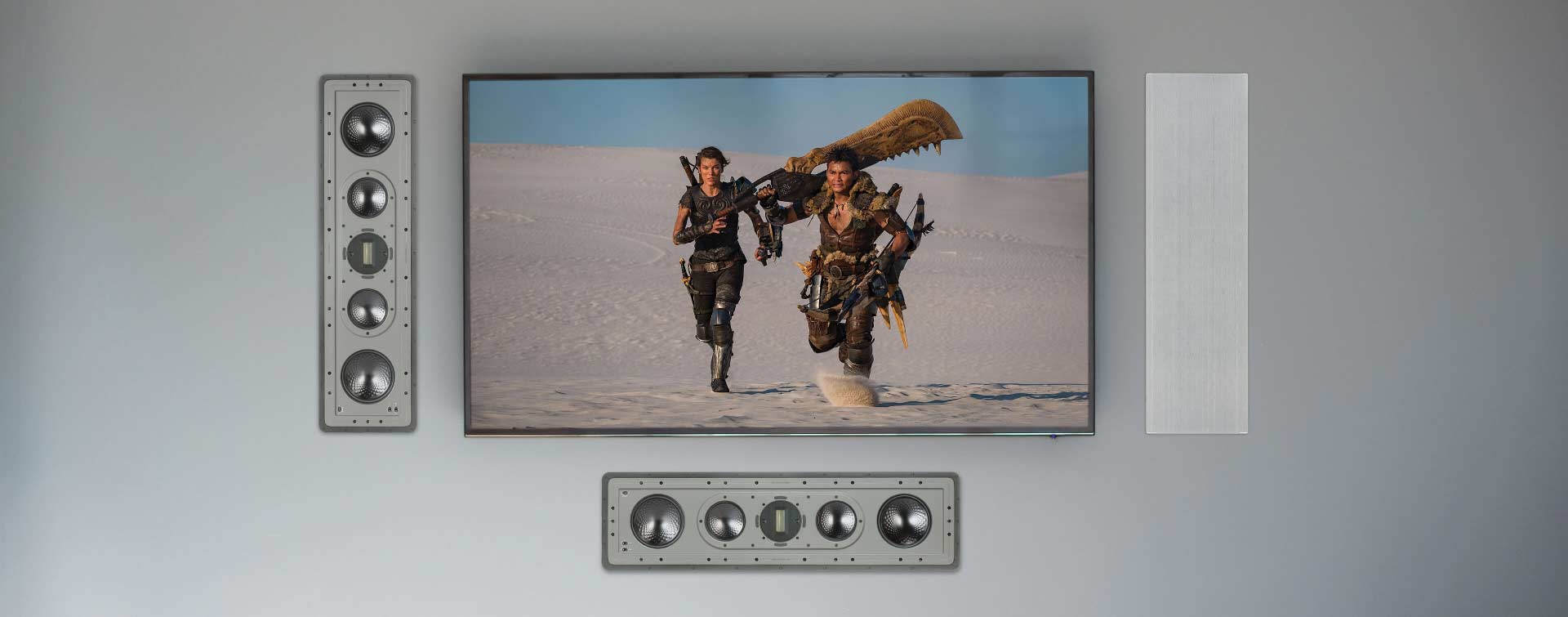

  • Innovative HF rotating system to facilitate portrait or landscape orientation
  • Integrated back-box to provide rear sound isolation resulting in ‘controlled performance’
  • Cast Polymer enclosure – designed to provide high degree of rigidity and acoustic damping properties
  • High overall efficiency and maximum SPL for powerful home theatre installations
  • High power handling
  • Three-way design in a symmetrical ‘B-M-T-M-B’ configuration
  • High-end crossover design – featuring low loss inductors and audiophile grade Polypropylene capacitors
  • Patented Tri-Grip fixing system is easier to install than conventional clamping systems providing three times the surface area and improved sealing
  • Trim-less, low profile magnetic grilles provide attractive, discreet visual aspect and easy installation and servicing

The CP-IW460X features Monitor Audio’s signature C-CAM (Ceramic-Coated Aluminium/Magnesium) cone material with RST (Rigid Surface Technology) deployed in dual 6.5″ bass drivers and twin 4″ mids astride a high frequency, air motion ribbon tweeter in a symmetrical ‘B-M-T-M-B’ configuration. All within a cast polymer cabinet with die-cast Aluminium baffle.

Important: Do not paint the CP-IW260X and CP-IW460X grilles, as spare scrims are not supplied.
This product is now available to use with home theatre design software, The CEDIA Designer.

Monitoraudio CP-IW460X


Frequency Response
50 Hz – 60 kHz (-6 dB typical in room response)

Nominal Impedance
6 ohms

Sensitivity (1W@1M)
89 dB

Maximum SPL
113.8 dBA

Power Handling (RMS)
150 W

Recommended Amplifier Requirements
60 – 150 W

Crossover Frequency
L.F – 500 Hz @ 12 dB/Octave M.F -500 Hz @ 12 dB/Octave. 3 kHz @ 18 dB/Octave H.F – 3 kHz @ 18 dB/Octave

Drive Unit Complement
2 x 6.5” C-CAM Bass drivers with RST cone technology
2 x 4” C-CAM Mid-range drivers with RST cone technology
1 x C-CAM H.F ribbon transducer

Adjustment Controls
Boundary Compensation (On/Off)
MF Level: +1/0/-1 (dB)
HF Level: +1/0/-1 (dB)

Overall Dimensions (H x W x D)
907 x 257 mm (353/4 x 101/8″)

Overall Depth (Including Grille)
102 mm (4″)

Cut-Out Dimensions
880 x 230 mm (3421/32 x 9″)

Mounting Depth
96 mm (33/4″)

Fixing Type
10 x Tri-Grip Dog leg fixings

Construction Material
Cast Polymer enclosure with die-cast Aluminium baffle (RoHS2 Compliant)

12.98 kg (28 lb 6 oz)

Pre-Construction Bracket
WB12 Pre-Construction Bracket (Green)

Sold As
Single Unit

Additional information


Monitor Audio

Speaker Type

In-Wall, Centre Speaker
