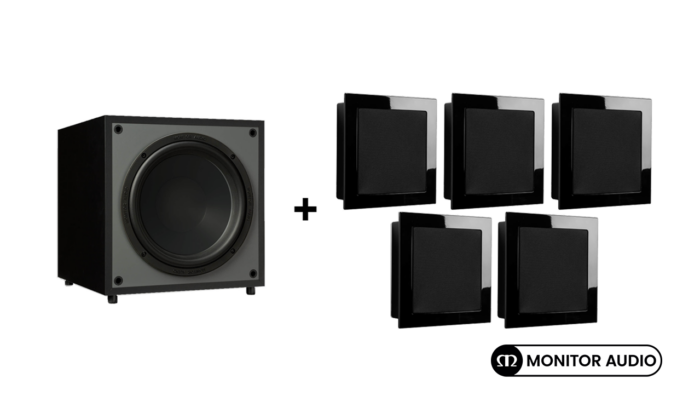

Monitor Audio 5.1 Package – 5 x Soundframe 3 + MRW-10 – Black

2,304

Five ultra slim, award winning wall mounting speakers for left, centre, right and surround, combined with a powerful yet compact 10″ subwoofer. also available in white

Description

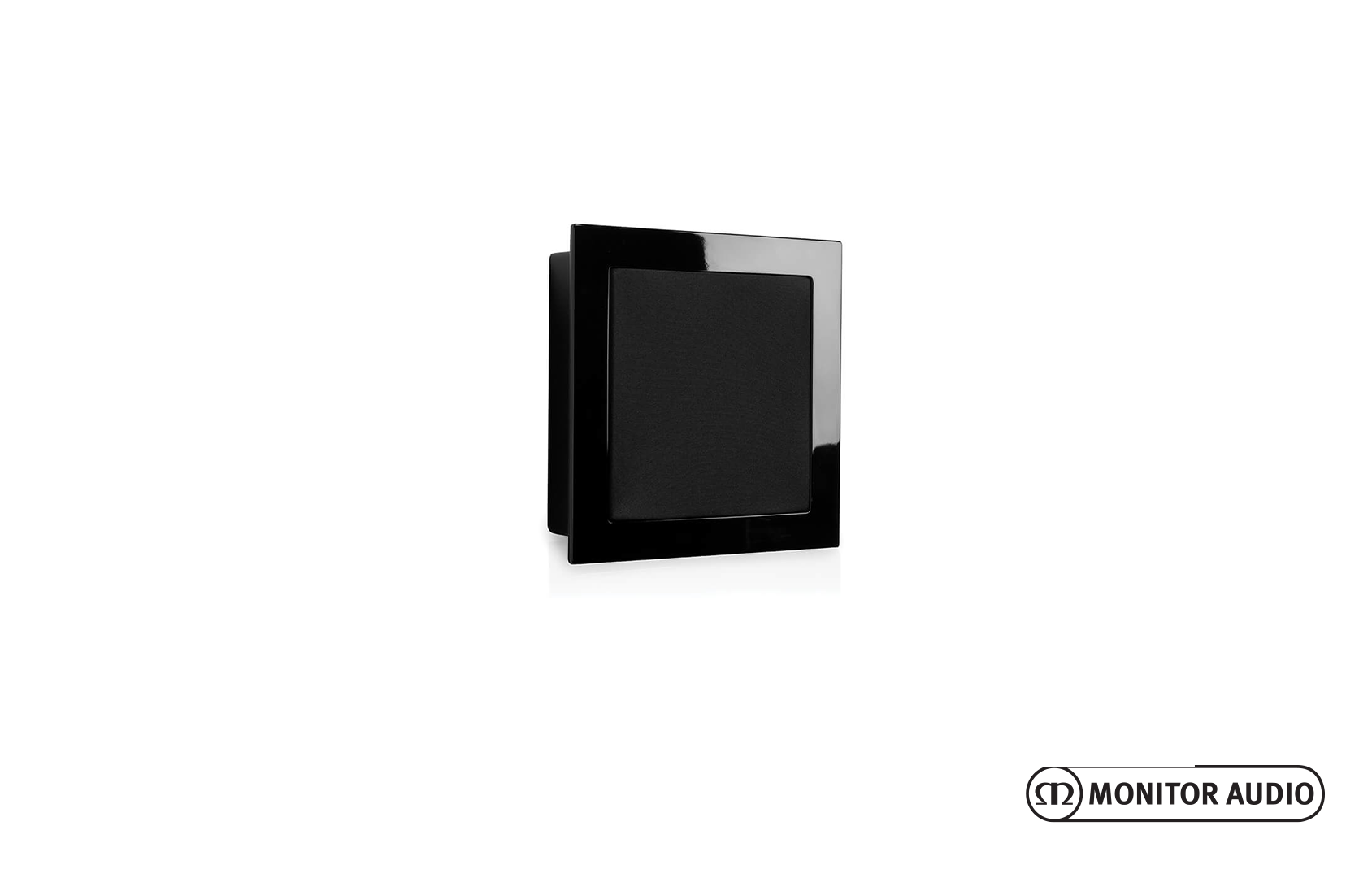

SoundFrame 3 On-Wall

The SoundFrame series consists of three sizes of speakers that complement any room. SoundFrame 3 On-Wall is the most compact speaker of the three and it can be used on its own, as a rear to complement the SoundFrame 1 On-Wall and SoundFrame 2 On-Wall, or with a sub-woofer.

The SoundFrame 3 On-Wall has a 2-way configuration with a pivoting 1-inch tweeter module and a 4-inch C-CAM driver.

Full SoundFrame Series Brochure​

SoundFrame 3 On-Wall Features

Key Features

  • Quick and easy installation.
  • Slender 87 mm (3.5″) cabinet depth.

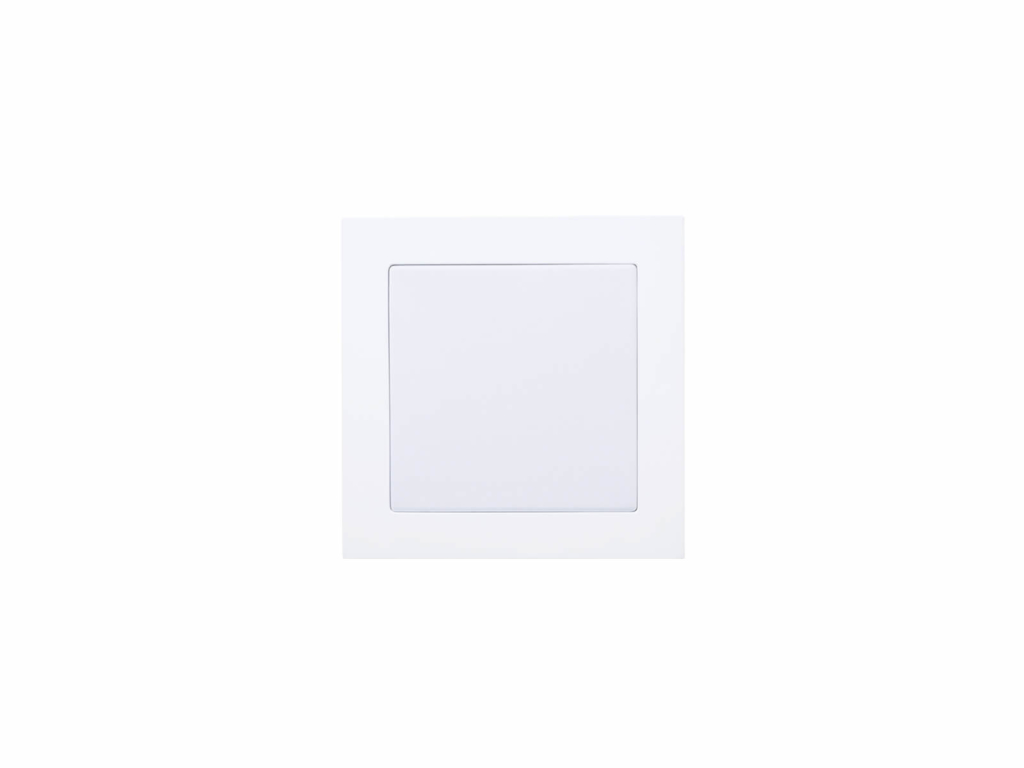

  • Choice of high gloss white or black lacquer frames.
  • SoundFrame 3: 2-way configuration: a pivoting 1-inch tweeter module with a 4-inch C-CAM driver.
  • High frequency attenuation +- 3 dB.
  • Ultra-discreet on-wall/in-wall AV/audio system, suitable for any interior.

Monitor MRW-10
Subwoofer

The Monitor MRW-10’s rigid cabinet is made from 18 mm thick MDF and accommodates a 10″ long-throw MMP II bass driver and a rear port that allows optimal output from the powerful onboard 100 W class D power amplifier.

The Monitor MRW-10 boasts an array of features dedicated to optimizing a home theatre system. There are three pre-set EQ mode settings (Music, Movie, Impact) to offer a level of adjustment for all rooms and tastes, and the controls use an advanced DSP based architecture to provide the ultimate in audio flexibility

Monitor MRW-10 Key Features

Key Features

  • 10″ MMP II long-throw subwoofer driver
  • Rigid MDF cabinet with rear porting
  • Powerful 100 W Class D power amplifier – high efficiency and punchy bass delivery
  • Switch-mode power supply, designed to deliver high continuous rating and provides the instantaneous delivery of high current when required
  • DSP processing with all control features and crossover performed in the digital domain
  • Three pre-set EQ mode settings. Music / Movie / Impact
  • 12 V trigger – provides switching control from AV amp, processor, or home automation control system
  • 18 mm thick MDF construction

Specifications

SoundFrame 3 On-Wall

Frequency Response
75 Hz — 35 kHz

Sensitivity (1W@1M)
86 dB

System Configuration
2-Way

Drive Unit Complement
1 x 4″ C-CAM mid-range driver
1 x 1″ pivoting Gold Dome tweeter

Power Handling (RMS)
50 W

Maximum SPL
102.5 dBA

Recommended Amplifier Requirements
25 — 50 W

Bass Alignment
Ported Box

Nominal Impedance
8 ohms

Crossover Frequency
3.2 kHz

Dimensions (Including Frame (H x W x D))
289 x 289 x 77.5 mm (113/8 x 113/8 x 3″)

Depth From Wall
77.5 mm (3″)

Weight (packaged)
2.76 kg (6 lbs)

Sold As
Single Unit

Monitor MRW-10

System Format
Rear ported bass reflex cabinet

Lower Frequency Limit
30 Hz (-6 dB)

Upper-Frequency Limit
Variable 50 – 120 Hz @ 24 dB/Octave

Amplifier Output
100 W RMS

Amplifier Classification
Class D with Switch mode PSU

Bass EQ Profiles
Music / Movie / Impact

Phase Control
0 – 180°

Auto-Sensing
>3.5 mV

Input Level Requirements
Standby after approximately 15 minutes if no signal is sensed

Drive Unit Complement
1 x 10″ MMP II long-throw driver

Input Impedance
>20 K ohms

Mains Input Voltage
110 – 120 Vac – 50 – 60 Hz
220 – 240 Vac – 50 – 60 Hz. Selectable

Fuse Specification
110 – 120 VAC – T4AL/250VAC
220 – 240 VAC – T4AL/250VAC

Connection
2 x Stereo RCA, 1 x LFE RCA connection
12 V trigger (3.5 mm mono mini-jack)

External Dimensions (Including Grille and Feet (H x W x D))
336 x 320 x 350.6 mm (131/4 x 125/8 x 1313/16“)

Standby Power Consumption
<0.5 W standby

Weight
10.54 kg (23 lb 4 oz)

Sold As
Single Unit

Full Monitor Series Brochure​

Additional information

Brand

Monitor Audio

System Configuration

5.1 Surround

Colour

Black
