Magnat Symbol X160 White Outdoor / indoor Speakers White

319

In stock

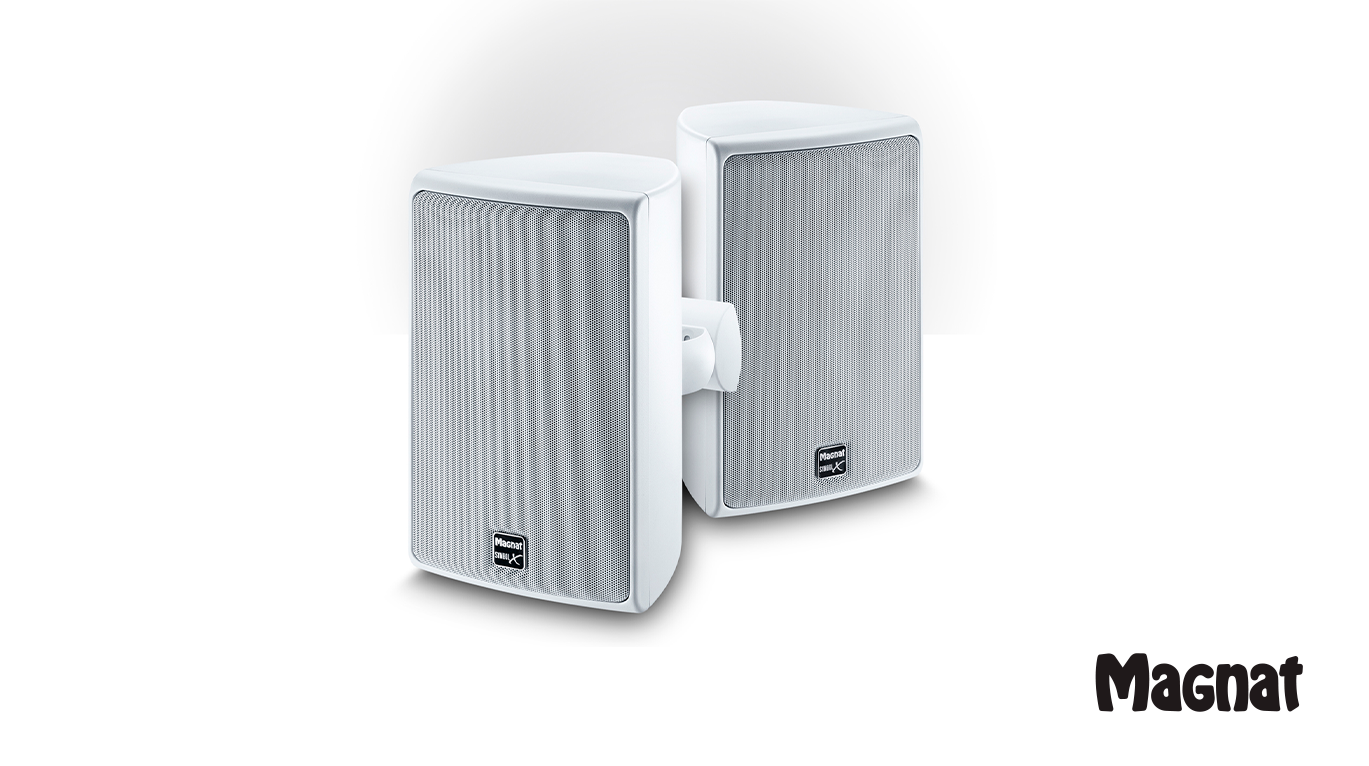

Pair of indoor/ outdoor speakers. IP rated for outdoor use, wall brackets included, also suitable as bookshelf speakers.

In stock

Description

Universal 2-way shelf speaker

The big sister of the X 130 is equipped with a 165 mm bass-midrange driver. With an extended bass range that delves down to 30 Hz and an upper cut-off frequency of 36,500 Hz, it ensures full music enjoyment regardless of whether it´s used as a monitor speaker directly on a workstation, or as a speaker in a hi-fi configuration on a shelf or sideboard. An efficiency level of 92 dB and a maximum load capacity of 220 watts ensure a high dynamic range. The dimensions, however, remain pleasantly compact: Measuring 186 mm wide and 310 mm high, it is hardly any bigger than an A4 sheet. A weight of 3.3 kg, however, gives you an idea of just how much technology is incorporated in the Symbol X 160.

Highlights

          CHASSIS
  • PET dome tweeter with powerful neodymium magnet system
  • High-performance woofer-midrange with polypropylene membrane and long-throw rubber surround
          CABINET
  • Solid low-resonance plastic housing
  • Integrated wall mounting device allows horizontal and vertical adjustment
  • Bass reflex design
  • IPX 5 certified, splash-proof
            HIGHLIGHTS
  • Speakers for professional and semiprofessional PA systems
  • Home-recording monitor speakers
  • Integrated wall mounting device, horizontally and vertically adjustable
  • Perfect sound and very high power handling
  • Indoor/Outdoor bookshelf speakers
  • Splash-proof by IPX5 standard, corrosion-resistant materials
           CROSSOVER
  • Dynamic overload protection
  • Elaborated phase and amplitude optimized crossover with high-quality components
  • High-quality connecting terminal with solid, gold-plated and capsulated screw connectors

Technical specifications

DRIVERS
  • 1 x 6.5” woofer- midrange
  •
  • 1 x 5.25” woofer- midrange,
POWER HANDLING (RMS/MAX.)
  • 110 / 220 Watts
IMPEDANCE
  • 4 – 8 Ohms
FREQUENCY RESPONSE
  • 30 – 36.500 Hz
CROSSOVER FREQUENCIES
  • 3.400 Hz
RECOMMENDED AMPLIFIER OUTPUT
  • 20 – 220 Watts

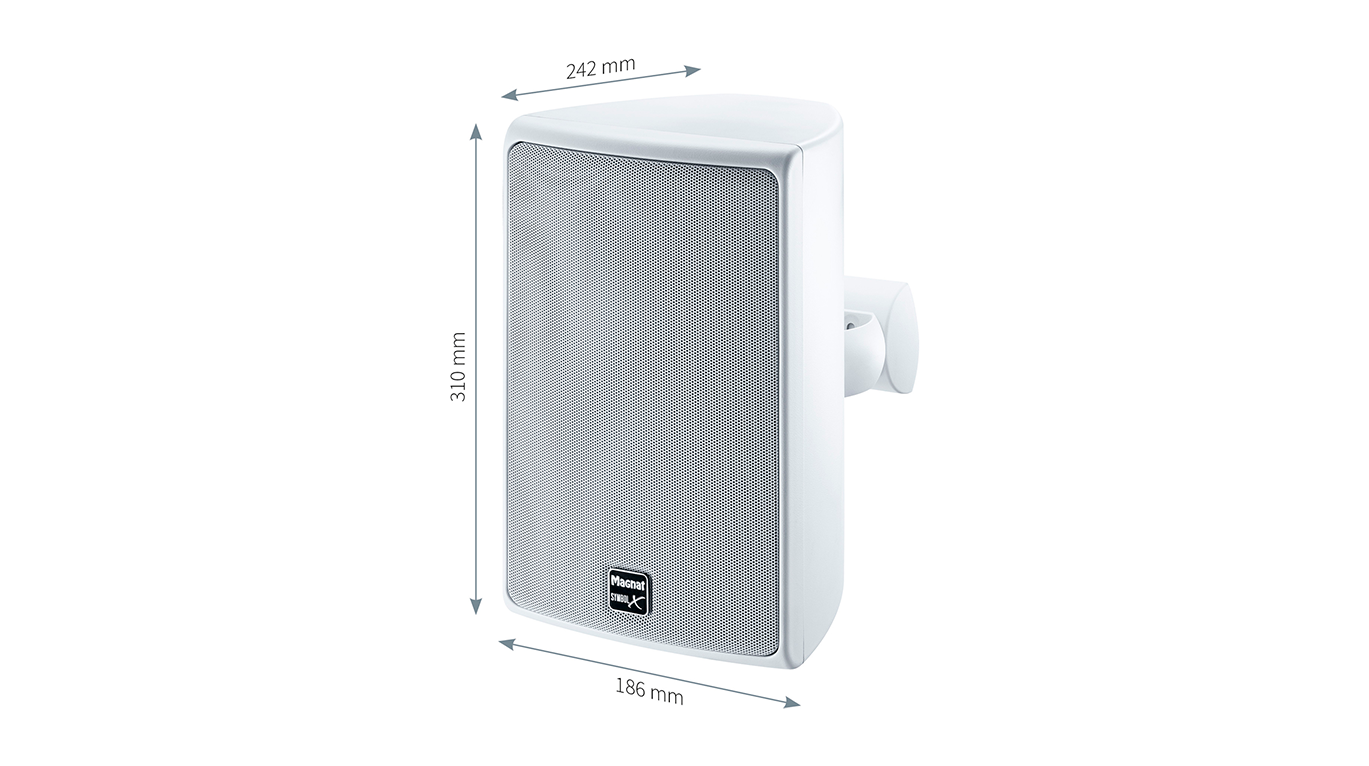

DIMENSIONS (WXHXD)
  • 186 x 310 x 242 mm (without wall mounting)
WEIGHT
  • 3.3 kg

Downloads

Additional information

Brand

Magnat

Speaker Type

Bookshelf / Wall-Mounted, Surface mount, Garden Loudspeaker, Water Resistant, Indoor/outdoor
