Slim but powerful center speaker with 4-way bass-midrange configuration, FE-Dynamics woofer and midrange driver with new phase-optimised dust dome and encapsulated gold-plated connection terminals
Slim Center Channel Speaker – Magnat Monitor S14C
Original price was: €249.€199Current price is: €199.
In stock
In stock
Description
2.5 way center speaker with 4-way bass-midrange configuration

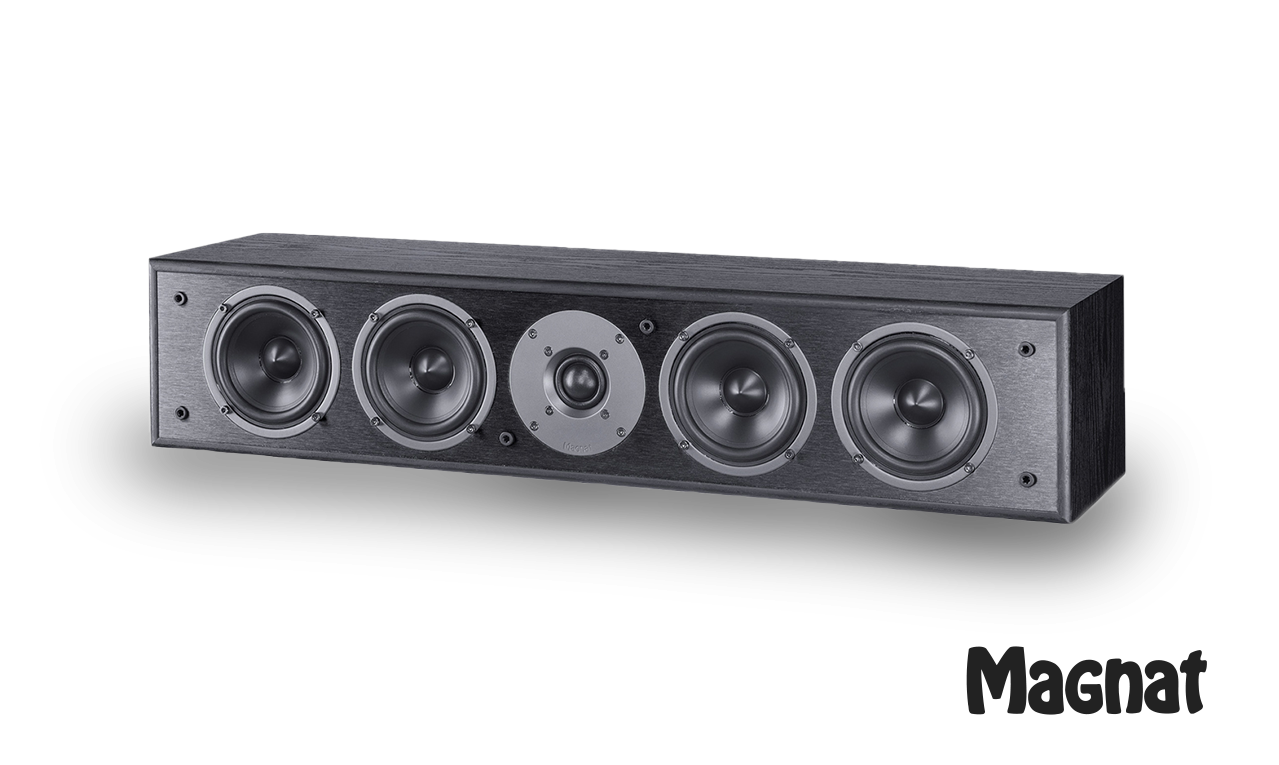

As home theater professionals know, the center speaker does most of the work during movie playback, because it is where the majority of the acoustic action takes place. Therefore, it makes more than sense to size the center speaker appropriately. And that’s what we did – more than adequately, in fact. The S 14 C has four drivers with a diameter of 110 mm. Two of them are used as pure woofers, the other two as mid-bass drivers. The tweeter range is also taken over here by the fabric dome with its 28 mm. Due to the sophisticated equipment, the
housing of the S 14 C could be very flat with a height of just 15 cm and therefore fits perfectly under almost any screen. The width of 70 and the depth of 19 cm, on the other hand, leave enough space for the installed drivers to develop properly. The result is a frequency response with a lower cutoff frequency of 38Hz. With a power handling of 100 watts or 200 watts peak power, no dynamic weaknesses are noticeable here, even in pure action movies.
Highlights
PRINCIPLE
- 2.5-way center speaker
CROSSOVER
- Phase- and amplitude-optimized crossover
- Connection terminal with gold-plated and encapsulated screw terminals
CHASSIS
- FE-Dynamics woofers and bass-midrange drivers with low partial vibration, coated paper cones, new phase-optimised dust caps and linearised magnet systems.
- Woofer and woofer-midrange drivers with sturdy, coated metal baskets
- Newly developed 28 mm tweeter with fabric composite dome tweeter, front panel with radiation-optimised sound path and powerful ferrite drive for excellent dynamics
CABINET
- Resonance-damping rubber feet

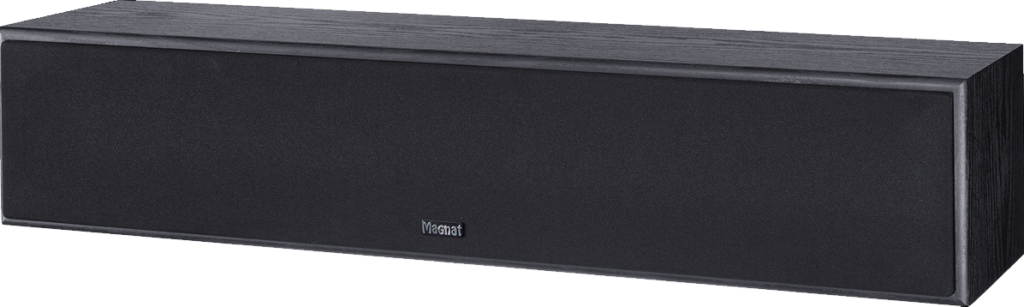

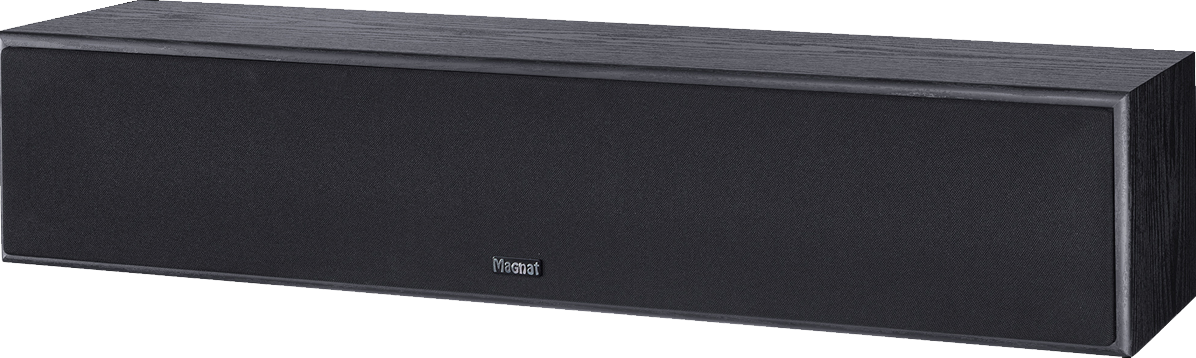

- Detachable front cover with acoustic cloth
- Solid low-resonance cabinet construction using E1-MDF panels
Technical specifications
PRINCIPLE
2.5-way center speaker
DRIVERS
2 x 4.5″ woofer 1.1″ dome-tweeter 2 x 4.5” woofer-midrange
POWER HANDLING (RMS/MAX.)
100 / 200 Watts
SENSITIVITY (2.8V/1M)
90 dB
IMPEDANCE
4 – 8 Ohms
FREQUENCY RESPONSE
38 – 38.000 Hz
CROSSOVER FREQUENCIES
500Hz, 2.700 Hz
RECOMMENDED AMPLIFIER OUTPUT
30 – 200 Watts
DIMENSIONS (WXHXD)
700 x 150 x 190 mm
WEIGHT
7 kg
Technical specifications
PRINCIPLE
2.5-way center speaker
DRIVERS
2 x 4.5″ woofer 1.1″ dome-tweeter 2 x 4.5” woofer-midrange
POWER HANDLING (RMS/MAX.)
100 / 200 Watts
SENSITIVITY (2.8V/1M)
90 dB
IMPEDANCE
4 – 8 Ohms
FREQUENCY RESPONSE
38 – 38.000 Hz
CROSSOVER FREQUENCIES
500Hz, 2.700 Hz
RECOMMENDED AMPLIFIER OUTPUT
30 – 200 Watts
DIMENSIONS (WXHXD)
700 x 150 x 190 mm
WEIGHT
7 kg
Technical specifications
PRINCIPLE
2.5-way center speaker
DRIVERS
2 x 4.5″ woofer 1.1″ dome-tweeter 2 x 4.5” woofer-midrange
POWER HANDLING (RMS/MAX.)
100 / 200 Watts
SENSITIVITY (2.8V/1M)
90 dB
IMPEDANCE
4 – 8 Ohms
FREQUENCY RESPONSE
38 – 38.000 Hz
CROSSOVER FREQUENCIES
500Hz, 2.700 Hz
RECOMMENDED AMPLIFIER OUTPUT
30 – 200 Watts
DIMENSIONS (WXHXD)
700 x 150 x 190 mm
WEIGHT
7 kg
Downloads
Additional information
| Brand | Magnat |
|---|---|
| Speaker Type | Centre Speaker |
