Magnat Monitor Reference 5A Speaker

799

In stock

Pair of floor standing speakers with built-in amplifier. Stream from your phone via Bluetooth. HDMI for TV, Phono turntable input, remote included.

In stock

Description

Magnat_Reference-Opener-5A

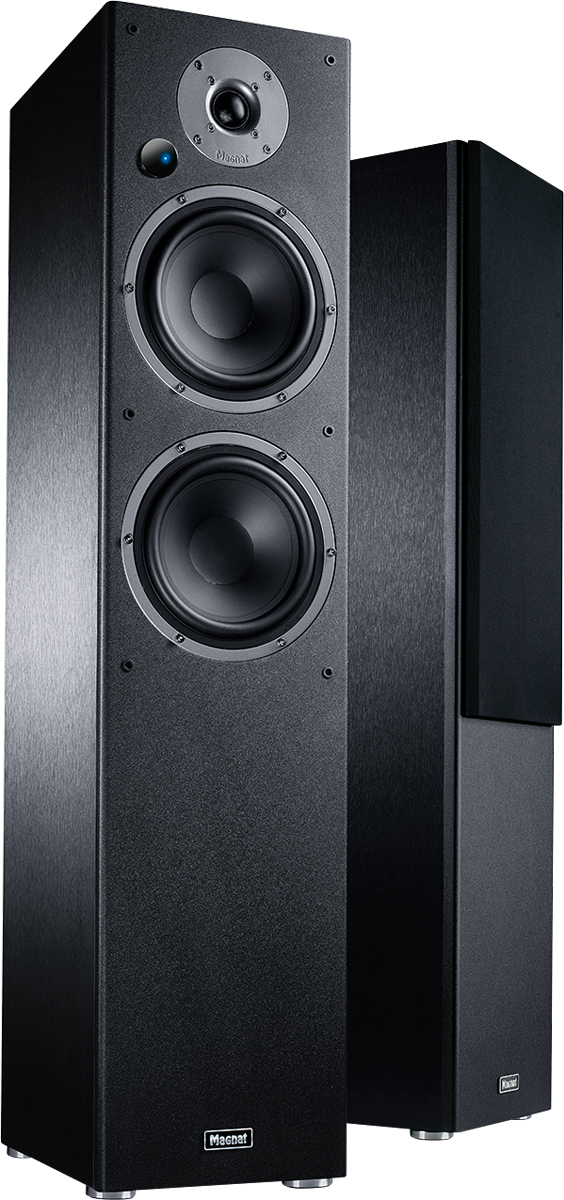

Magnat Monitor Reference 5A

2.5-WAY BASS REFLEX FLOORSTANDING SPEAKER WITH A FULLY-FLEDGED CONFIGURATION

  • Compact, powerful 2.5-way active speaker system
  • Integrated amplifier with 2 x 60 watts of continuous power or 2 x 120 watts of peak power
  • aptx® Bluetooth® input (version 5.0) for optimum sound reproduction
  • HDMI® input with ARC capability for playback of TV audio and all connected sources
  • Phono input for turntables with MM system
  • Solid housing for precise sound reproduction
Magnat_Reference-Detail-9
Magnat_Reference-Detail-8

2.5-way bass reflex floorstanding speaker with a fully-fledged configuration

Anyone who has ever wondered whether there are any multi-functional and fully active speakers in fully-fledged dimensions can now answer their question with a resounding yes. With the same front width as the 3A, the Monitor Reference 5A stands 908 mm tall, making it a full-size floorstanding speaker. This format leaves you in no doubt as to whether you have a real hi-fi system in front of you

Compact, but with a sound of a much larger model

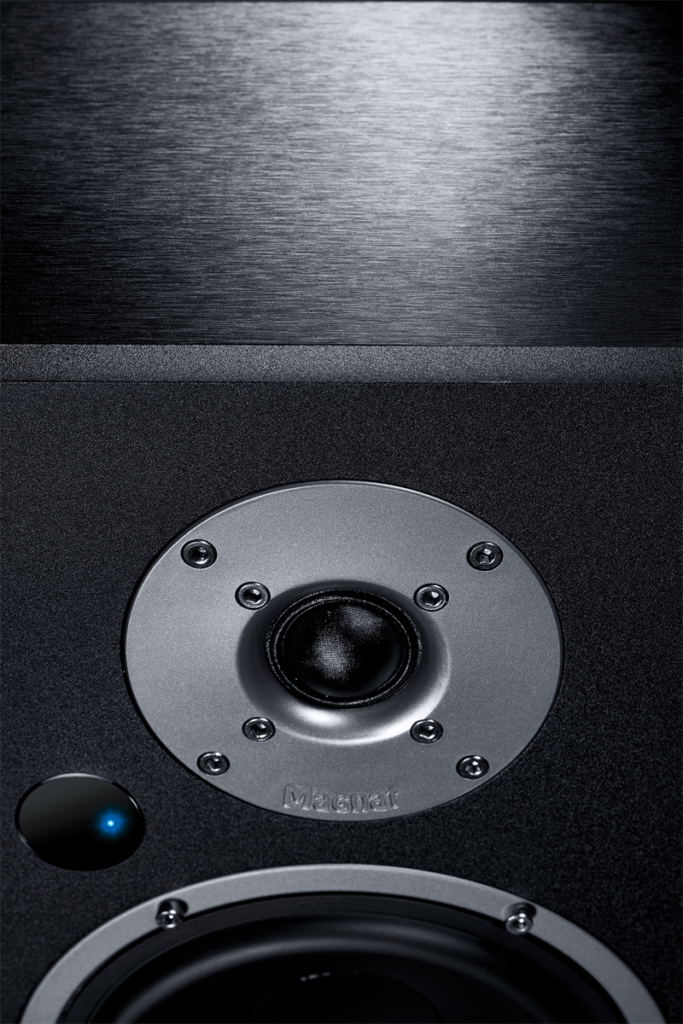

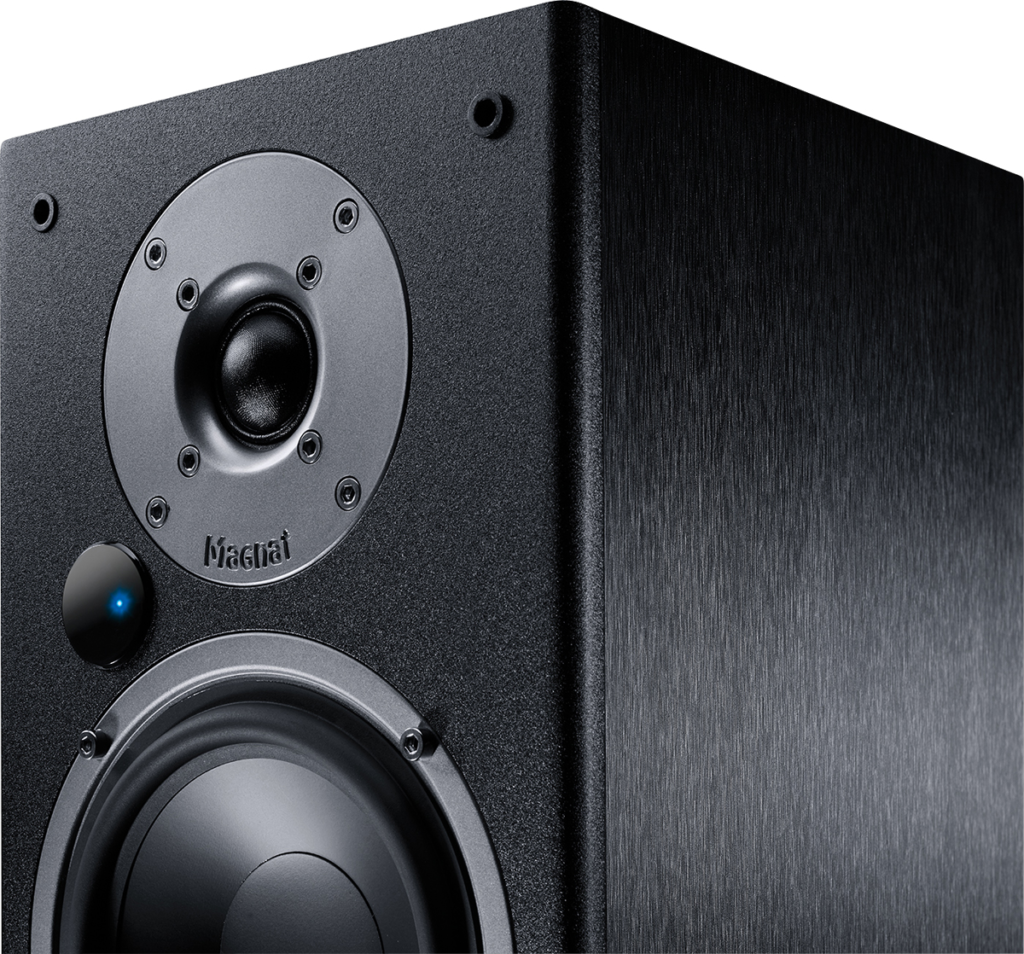

The tweeter dome measures 25 mm (like its siblings) and is driven by the tried and tested, powerful ferrite magnet. Underneath there are two 170 mm chassis. One caters for the all-important vocal range as a bass-midrange driver, while the

second is designed purely for reproducing the deep bass range. The use of materials really makes an impact here – the floorstanding speaker of the Monitor Reference series delves right down to a frequency of 28 Hz. Nevertheless, the 5A boasts a slim visual appearance and can therefore be set up in any living room environment.

There is even more amplifier power on board here: Each channel has 60 watts of continuous power (or 120 watts of peak power). An HDMI input, phono preamplifier, Bluetooth® with fast aptx® Low Latency capability, as well as analog and digital connections round off the configuration here as well. And we haven´t skimped on the material either: Weighing in at 14.7 and 13.8 kg (active and passive speaker respectively), the Monitor Reference is not unbearable, but it is still considerably sturdy.

Test Reviews

WHAT DO TRADE MAGAZINES SAY ABOUT THIS PRODUCT?

12/2021

“Fully-fledged configuration, attractively priced active/passive construction. Can
generate a loud volume and always sounds pleasantly clean, powerful and crisp
with good audibility.”

11/2021

The resolution, which is exceptionally
high for this price range, helps create an acoustic backdrop that gives audio
lovers pure, lasting listening pleasure. Bravo!”

Technical Specifications

Principle

Powered Bluetooth® stereo floorstanding speaker set 2.5-way bass reflex, active

Impedance

Powered

Power Handling (RMS/MAX.)

Active

Mains Voltage

100-240V

Drivers

1 x 1“ dome tweeter 6.5“ woofer 6.5“ woofer-midrange

Output Power (RMS/MAX.)

2 x 60 / 2 x 120 Watt , 2 x 60 / 2 x 120 Watt

Frequency Response

25 – 40.000 Hz

Crossover Frequencies

3.200 Hz

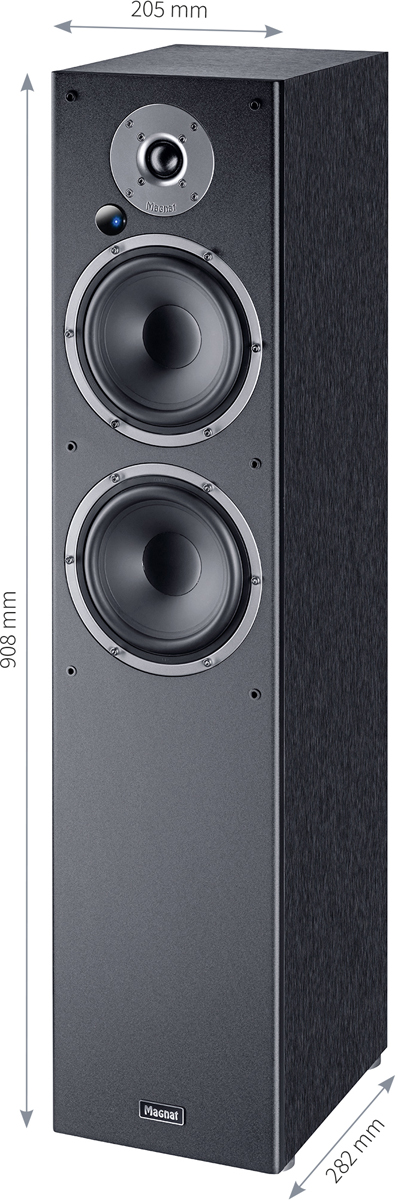

Dimensions (WXHXD)

205 x 908 x 282 mm

Weight

Active speaker: 14.7 kg, Passive Speaker: 13.8 kg

Cabinet Surface

Front panel: matt black / housing: black textured veneer

Highlights

Principle

  • Powered Bluetooth® stereo floorstanding speaker set
  • 2.5-way bass reflex, active

Amplifier & Connections

  • Bluetooth® input (version 5.0)
  •
  • Bluetooth® input (version 5.0) with aptX Low Latency, optimized for audio/video applications
  • HDMI® with ARC and CEC function (Speakers can be controlled via TV remote control)
  • The left passive speaker is connected to the right active speaker via a supplied cable

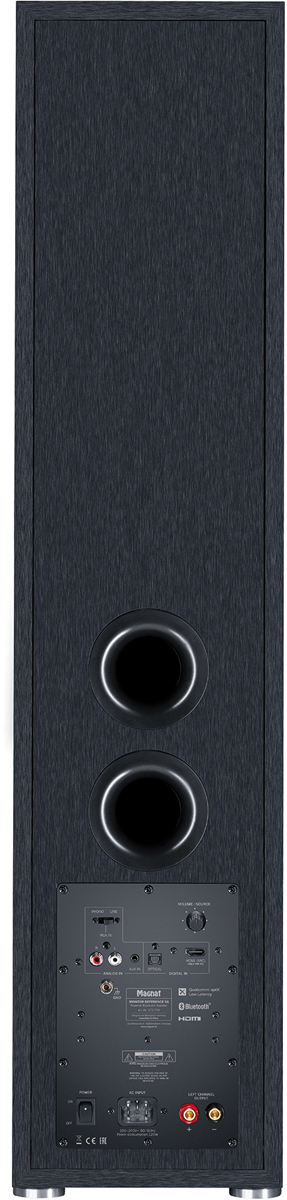

  • Control for volume and input selection at the rear panel
  • Optical digital input for direct connection of digital audio devices (e. g. TV)
  • Sampling rates of all digital inputs up to 24Bit/192kHz
  • Low standby power consumption (<0.5 watts) with auto standby function

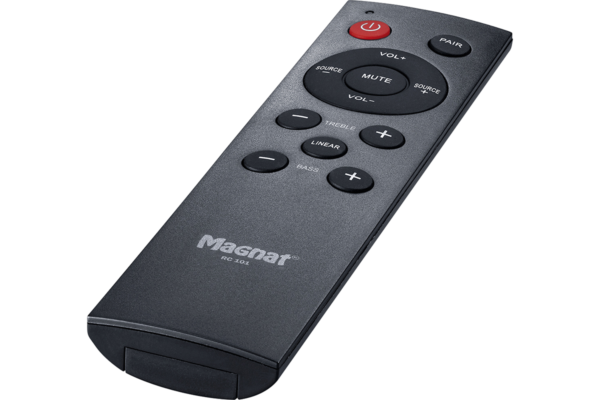

  • Complete control is ensured via the supplied remote control (incl. battery)
  • Additional 3.5 mm analogue stereo input for connecting portable audio devices
  • LED status indicator at the speaker front
  • Analogue stereo input (Cinch R/L) with switchable phono preamplifier for direct connection of a record player with magnet system (MM)


Chassis

  • 25 mm fmax tweeter with soundguide for optimised dispersion properties and powerful ferrite drive for excellent dynamics
  • FE-Dynamics woofer bass-midrange driver with low partial oscillation, coated paper cone and distortion optimized magnet system

Highlights

  • Numerous connection options for flexible and versatile use for smartphone via Bluetooth®, record player, TV via, HDMI® etc.
  • HDMI® with ARC and CEC function (Speakers can be controlled via TV remote control
  • Bluetooth® input (version 5.0) supports the aptX® high-end audio standard for high-quality playback from mobile devices
  • Integrated high-performance amplifier module, no additional amplifier is required
  • High-quality phono preamplifier for direct connection of a record player with MM magnet system

Crossover

  • Amplitude and phase-optimised crossover to meet the strict THX Ultra2 standard
  • High-quality terminal with solid gold-plated and capsulated screw connectors

Cabinet

  • Solid low-resonance cabinet construction using E1-MDF panels
  • Detachable front cover with acoustic cloth
  • Airflex port with rounded reflex opening for reducing wind noises
  • Elegant design with a high-quality black hairline finish
  • Resonance-damping rubber feed

Cabinet Surface

  • Front panel: matt black / housing: black textured venee

Additional information

Brand

Magnat

Speaker Type

Active Speaker, Floorstanding

Speaker Features

Bluetooth, Aux-In, with Remote, Optical In
