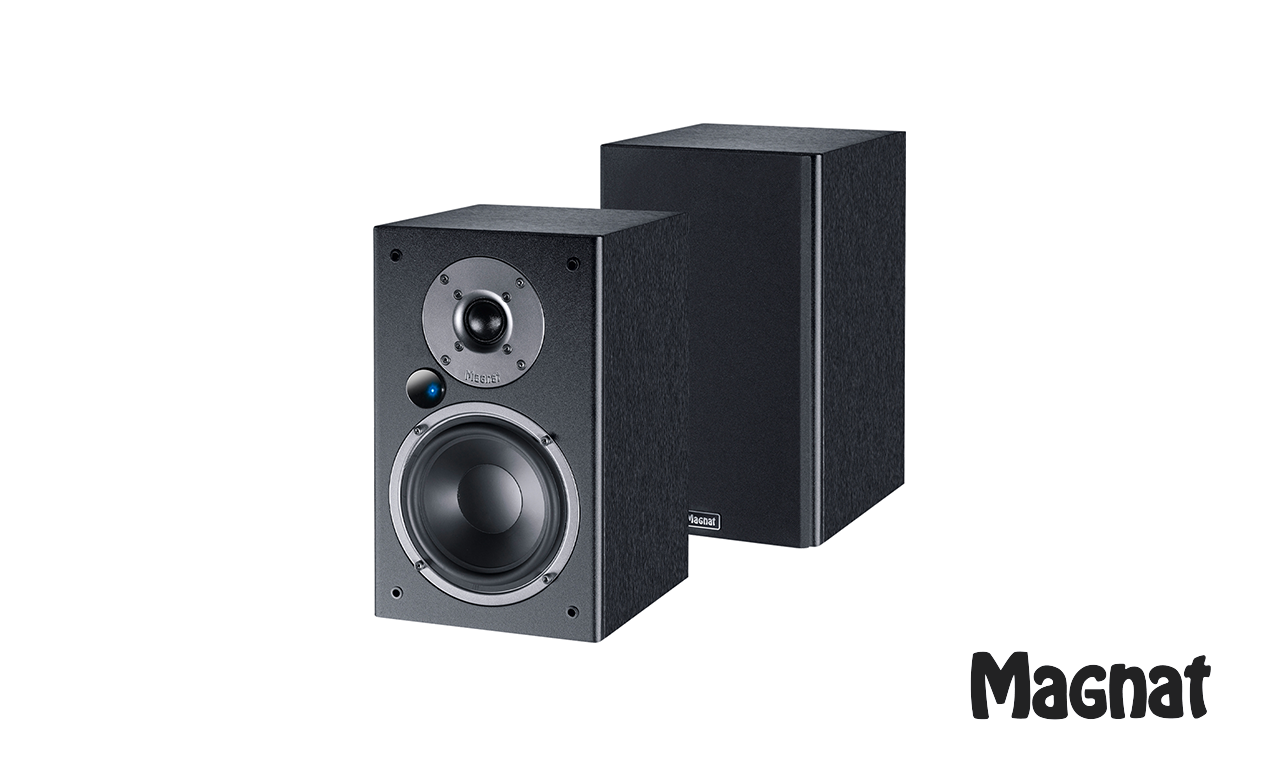

Magnat Monitor Reference 2A active speaker system


In stock

Sold as pairs. Compact, powerful 2-way speakers with built-in amplifier. HDMI® input with ARC capability for playback from TV, phono input for turntable, Bluetooth, remote control.

In stock



Magnat Monitor Reference 2A


  • Compact, powerful 2-way active speaker system
  • aptx® Bluetooth® input (version 5.0) for optimum sound reproduction
  • Integrated amplifier with 2 x 35 watts of continuous power (RMS) or 2 x 75 watts of peak power
  • HDMI® input with ARC capability for playback of TV audio and all connected sources
  • Phono input for turntables with MM system
  • Solid wooden housing for precise sound reproduction

The most compact version - a 2-way bass reflex speaker with complete active technology

Measuring just 175mm wide and 290mm tall, the Reference 2A monitor is slimmer than an A4 sheet of paper. Despite this, it still offers the full range of possibilities of this series. With aptx® Bluetooth® input (version 5.0), HDMI® input with ARC function, phono input and other analog and digital inputs, it quickly replaces a complete stereo system and, of course, also creates an excellent acoustic impression when used with a computer.

Compact, but with a sound of a much larger model

Although it shares a 25mm tweeter with its siblings, it also features a powerful 125mm mid-bass driver.

 It reaches up to a frequency of 38 Hz, which should be more than sufficient in many cases. At the other end of the frequency band, it reaches 40,000 Hz. As a result, the Reference 2A renders details incredibly accurately.

The integrated amplifier in the active speaker provides 2 x 35 watts of continuous power (RMS) or 2 x 75 watts of peak power. The elaborately equipped crossover sorts the music signal at 3,500 Hz. Because both amplifiers are housed in one speaker, you only need one outlet for power; the passive speaker simply connects to the active unit using the supplied cable.

Technical Specifications


2-way bass reflex, fully active



Power Handling (RMS/MAX.)


Mains Voltage

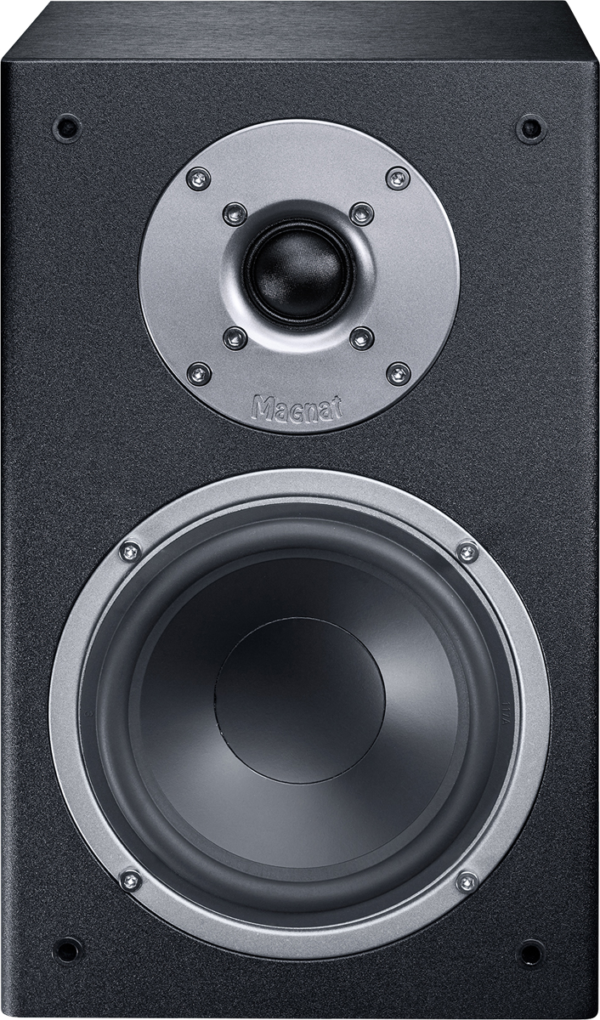

1 x 1” dome tweeter 5″ woofer- midrange

Output Power (RMS/MAX.)

2 x 35 / 2 x 75 W

Frequency Response

38 – 40.000 Hz, 38 – 40.000 Hz

Crossover Frequencies

3500 Hz

Dimensions (WXHXD)

175 x 290 x 205 mm, 175 x 290 x 205 mm


Active Speaker: 4,4 kg Passive speaker: 3.8 kg

Cabinet Surface

Front panel: matt black / housing: black textured veneer


Amplifier & Connections

• Bluetooth® input (version 5.0) with aptX Low Latency, optimized for audio/video applications

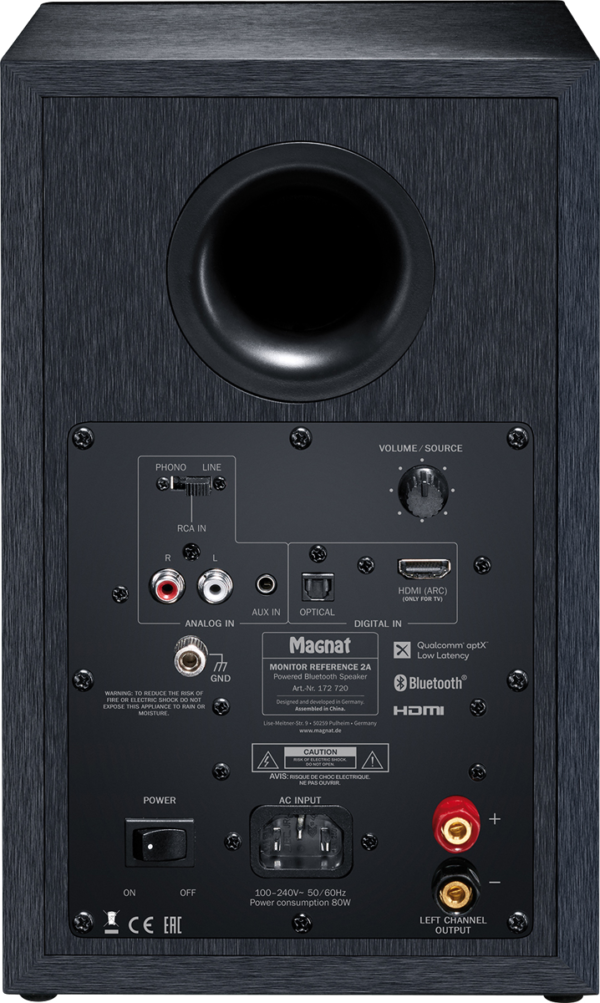

• Control for volume and input selection at the rear panel

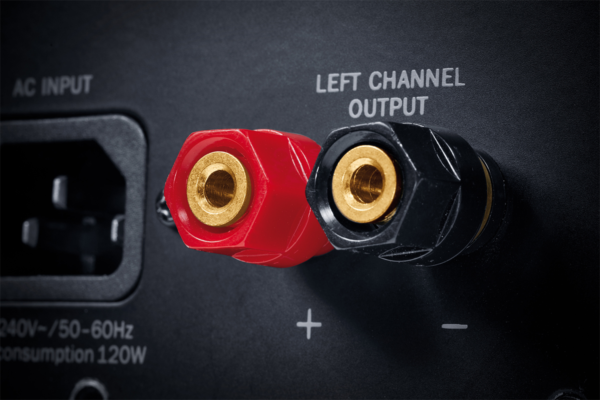

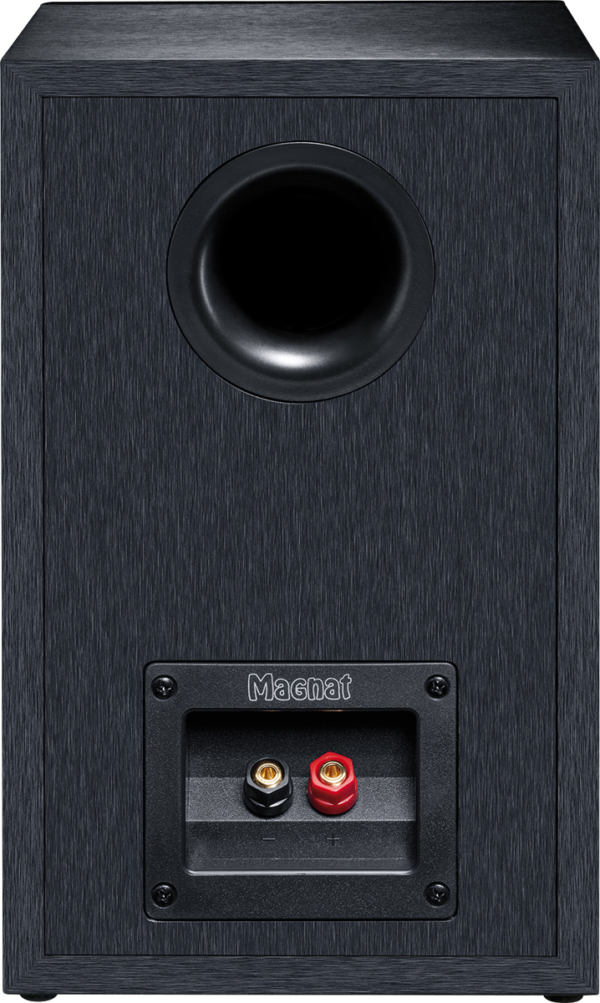

• The left passive speaker is connected to the right active speaker via a supplied cable
• Bluetooth® input (version 5.0)
• HDMI® with ARC and CEC function (Speakers can be controlled via TV remote control)
• Sampling rates of all digital inputs up to 24Bit/192kHz
• Optical digital input for direct connection of digital audio devices (e. g. TV)
• Complete control is ensured via the supplied remote control (incl. battery)
• Low standby power consumption (<0.5 watts) with auto standby function

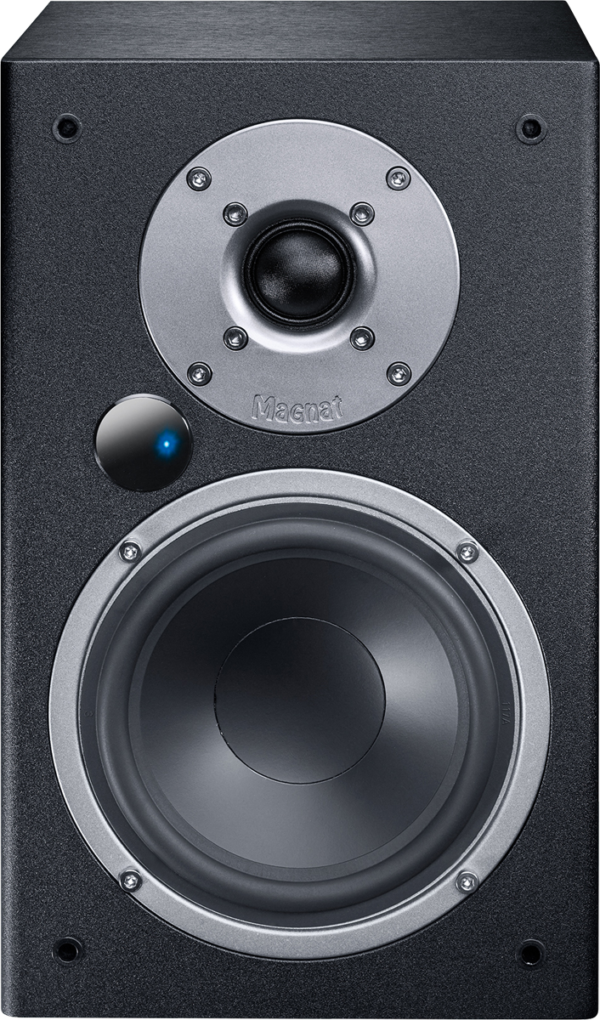

• LED status indicator at the speaker front

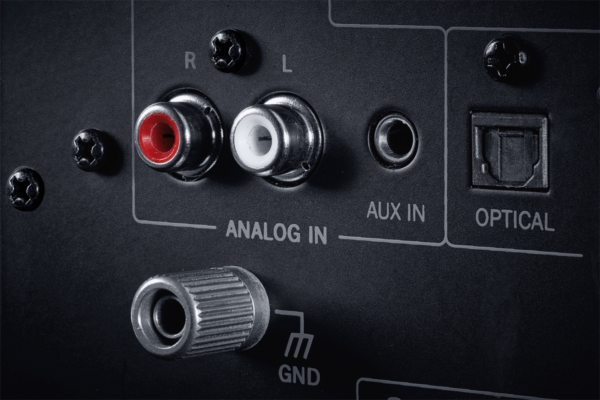

• Additional 3.5 mm analogue stereo input for connecting portable audio devices
• Analogue stereo input (Cinch R/L) with switchable phono preamplifier for direct connection of a record player with magnet system (MM)

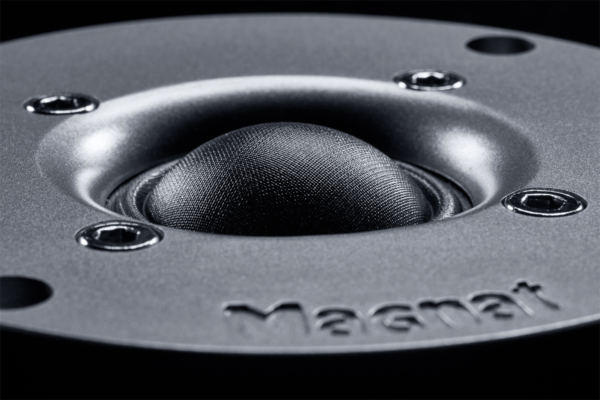

• 25 mm fmax tweeter with soundguide for optimised dispersion properties and powerful ferrite drive for excellent dynamics

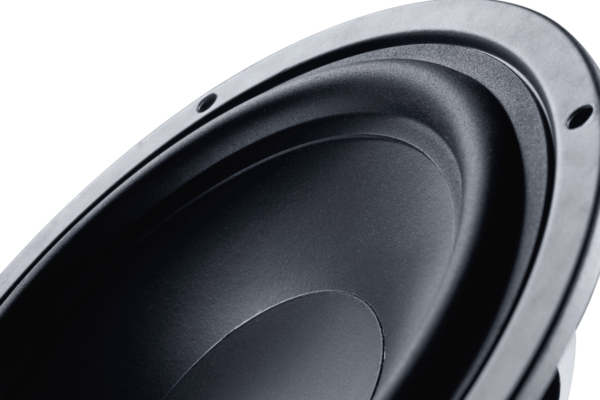

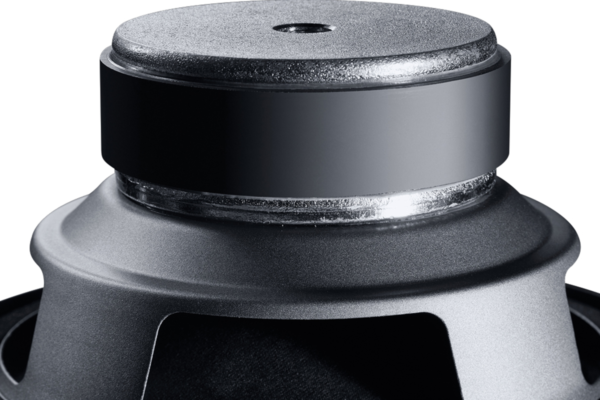

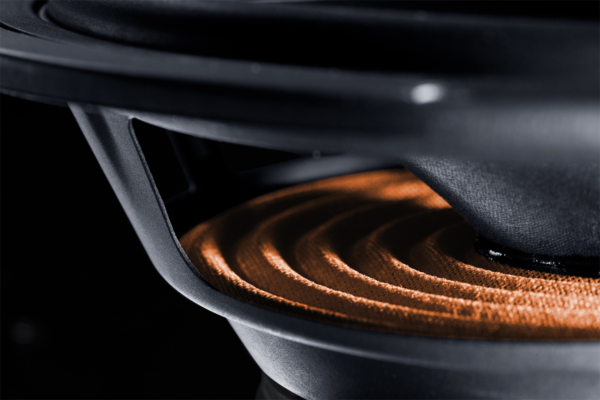

• FE-Dynamics bass-midrange driver with low partial oscillation, coated paper cone and distortion optimized magnet system


• Numerous connection options for flexible and versatile use for smartphone via Bluetooth®, record player, TV via, HDMI® etc.
• Bluetooth® input (version 5.0) supports the aptX® high-end audio standard for high-quality playback from mobile devices
• HDMI® with ARC and CEC function (Speakers can be controlled via TV remote control
• Powerful class D amplifier module with 2 x 35 watts RMS power
• High-quality phono preamplifier for direct connection of a record player with MM magnet system
• Integrated high-performance amplifier module, no additional amplifier is required


• Amplitude and phase-optimised crossover to meet the strict THX Ultra2 standard
• High-quality terminal with solid gold-plated and capsulated screw connectors

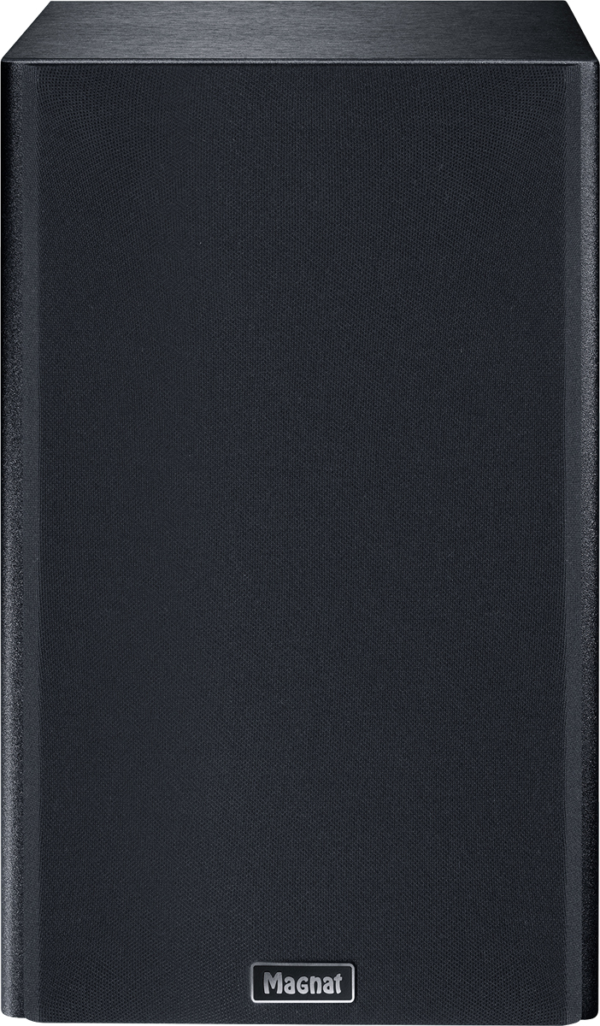

• Detachable front cover with acoustic cloth
• Airflex port with rounded reflex opening for reducing wind noises

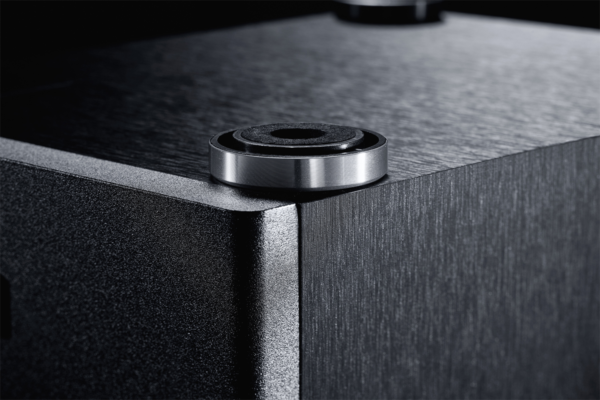

• Resonance-damping rubber feet
• Very solid low-resonance construction made of E1 MDF panels
• Elegant design with a high-quality black hairline finish

Cabinet Surface

Front panel: matt black / housing: black textured veneer


Additional information



Speaker Type

Active Speaker, Bookshelf / Wall-Mounted

Speaker Features

Bluetooth, Aux-In, with Remote, Optical In
