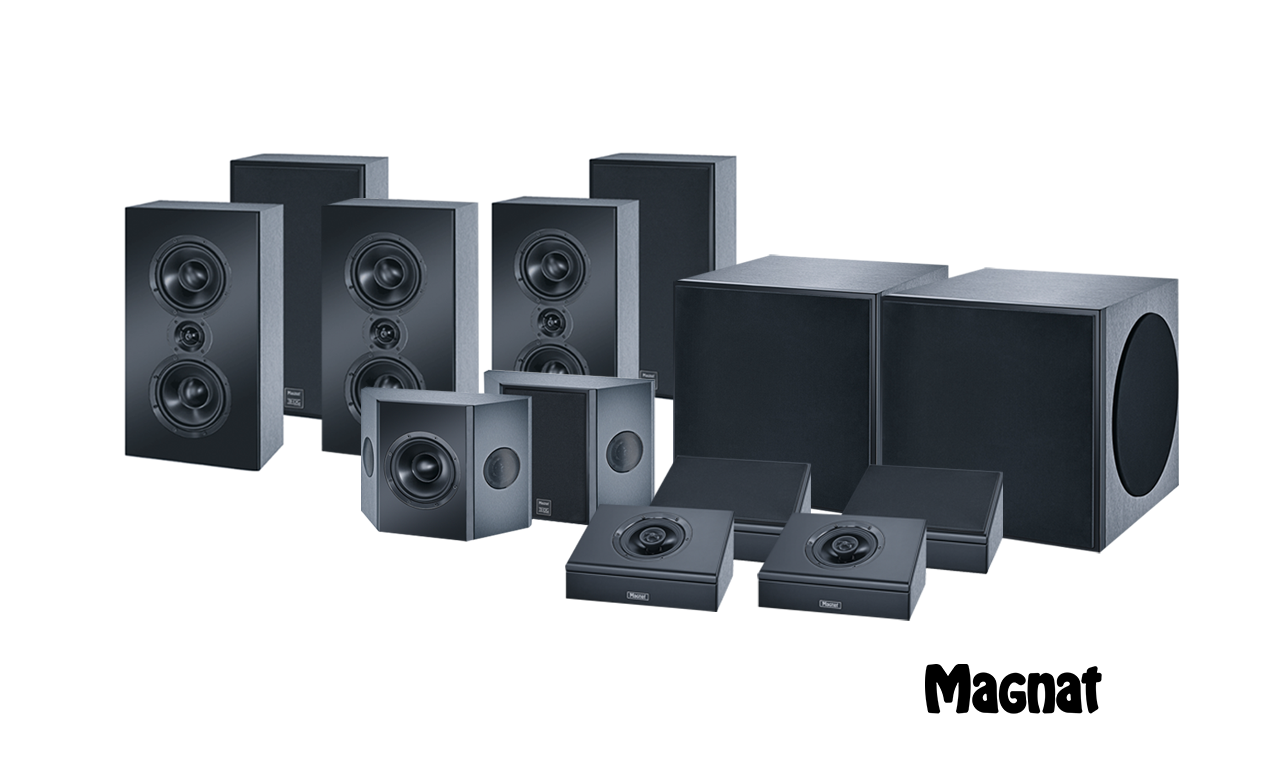

Magnat Cinema Ultra THX 7.2.4 Speaker Set


A 7.2.4 Home cinema system by Magnat. Consisting of a pair of RD 200-THX, 5 units of LCR 100-THX Speakers, Sub 300-THX, and two pairs of AEH 400-ATM. This is as compact, flexible and powerful in sound as THX Ultra2 gets


18 hertz and no end of acoustic pressure Certified by THX®

The Cinema Ultra Sub 300-THX subwoofer also amazed the THX engineers: It is the smallest woofer so far to have been awarded THX Ultra2™ certification. Here, too, the basis for the record is the very latest technology. The 32 cm high-performance driver is optimized for a large stroke and minimal distortions. For power right from the bottom – the Cinema Ultra Sub 300-THX goes all the way down to 18 Hertz! – the

subwoofer is supported by two passive radiators of the same size and appearance. Together with the newly developed 550 watt Class D power amp, they are located in a compact, extremely sturdy enclosure where the baffle alone, made of 45 mm thick MDF, effectively suppresses a lot of vibrations



SFT 05/2016


Video 04/2016 (5.1.2)



SFT 05/2016


04/2016 (5.1.2 SET)

Video 04/2016 (5.1.2)


Magnat Cinema Ultra LCR 100-THX Speaker

Horizontal or Vertica: The best thx front loudspeaker of its class

  • Perfection for home cinema enthusiasts thanks to THX Ultra 2 certificationq
  • The only front speaker in the world with THX Ultra 2 certification for both horizontal and vertical operation
  • Extremely large 42 mm high-performance dome tweeter with a wave guide front panel for ideal dispersion characteristics
  • Two exceptionally powerful 17 cm woofers for maximum dynamics, precision and performance
  • Extremely sturdy MDF cabinet with low-resonance 30 mm baffle

Horizontal or vertical: The best THX front loudspeaker of its class

Never before in the history of THX®: Despite the strict requirements regarding dispersion characteristics, the LCR 100-THX was granted the coveted THX Ultra2™ certification for both horizontal and upright operation. Two 17 cm subwoofers as well as the large tweeter cone ensure distortion-free levels up to beyond 110 decibels as well as outstanding purity of sound. The 42 mm tweeter cone runs in an optimally linear way from 1,500 – 27,500 hertz thanks to the installed horn (Waveguide) and sound distribution lens.

This helps the LCR 100-THX to achieve a level of efficiency far in excess of 90 decibels. In other words: Even smaller AV receivers make it possible to experience a great cinema feeling with Cinema Ultra. The enclosure of the LCR 100-THX is flat and is perfectly suitable for unobtrusive wall mounting via wall brackets and VESA fittings.


Magnat Cinema Ultra RD 200-THX Speaker


  • Outstanding surround sound in cinema quality thanks to the dipole design
  • Outstanding surround sound in cinema quality thanks to the dipole design
  • Two high-performance 42 mm dome tweeters in dipole configuration for authentic surround sound
  • Extremely powerful 17 cm woofer for punchy, dynamic surround sound reproduction
  • Flat trapezoid cabinet for practical wall mounting

High power performance with great spatial representation

One of the 42 mm tweeter cones is located on each sloping side at the centre of the powerful 17 cm subwoofers: The Cinema Ultra RD 200-THX follows the ideal structure of classic dipole speakers. The two tweeters are – as stipulated by THX® – connected together with reversed polarity to produce a diffuse, very three-dimensional soundscape. Because our cone operates in an extremely wide band, the Cinema Ultra RD 200-THX creates this desired diffuse sound field from as low as 1500 hertz. Despite its small size and

 moderate overall depth of just 16 centimetres, the effect speaker is capable of impressive sound levels – an important factor for the best cinema sound. And optimum installation is also child´s play thanks to the large number of wall-mounting options, including VESA brackets.

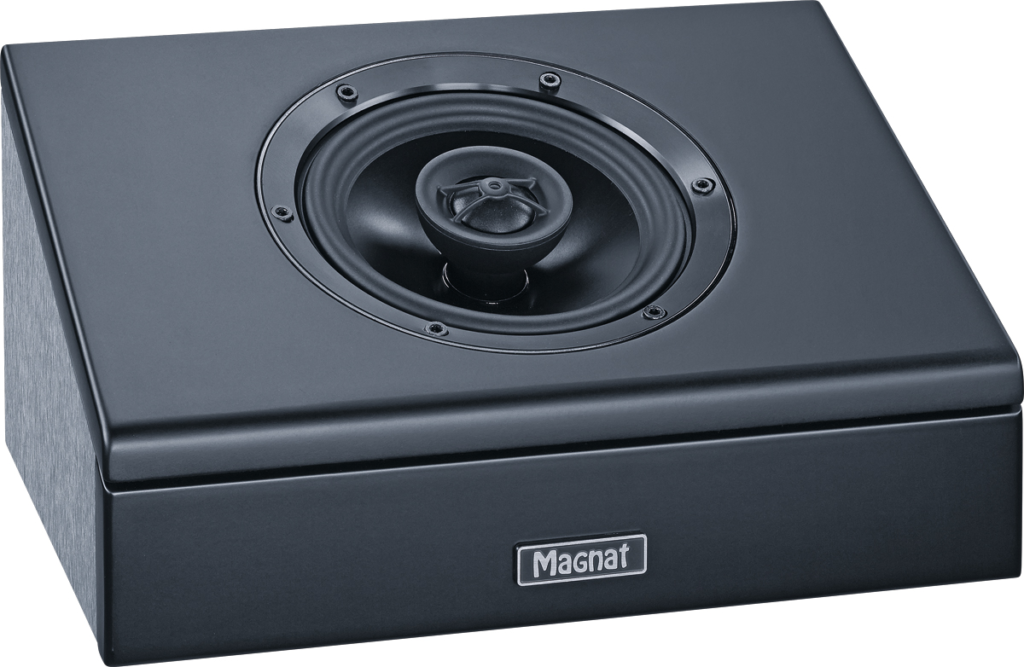

Magnat Cinema Ultra AEH 400-ATM


  • Extends a home cinema system to include the third dimension for a perfect surround sound experience
  • Compacter, efficient add-on speaker with a large number of application options
  • High-performance coaxial driver with 13 cm woofer and 25 mm dome tweeter
  • Can be used as a Dolby Atmos-certified add-on speaker on LCR 100-THX or as an overhead speaker on the wall or ceiling
  • Switchable crossover for optimum sound with any application

Dolby also imposes extremely strict requirements to ensure that the demanding multi-channel procedure can generate perfect reproduction. The dispersion characteristics and position of the add-on loudspeakers are important. A subwoofer with an integrated tweeter, a so-called coaxial driver, is the best option here. The Cinema Ultra AEH 400-ATM is a coax with a 13 cm bass plus 25 mm tweeter cone and is a perfect fit, in terms of both external appearance and installation depth, on top of an LCR 100-THX – which is also where it should be according to the Dolby guidelines.

For those cases where home cinema fans prefer to mount the excellent sounding AEH 400-ATM on the wall or ceiling, we have, instead of the frequency response optimised for ceiling reflection as stipulated by Dolby, included a second crossover for linear reproduction which can be activated via a toggle switch.
