Price is per unit. indoor/outdoor 8″ subwoofer, surface-mount, 150W continuous power, 38Hz–200Hz. Features Tractrix Hyperfold Port for low distortion yet powerful bass.

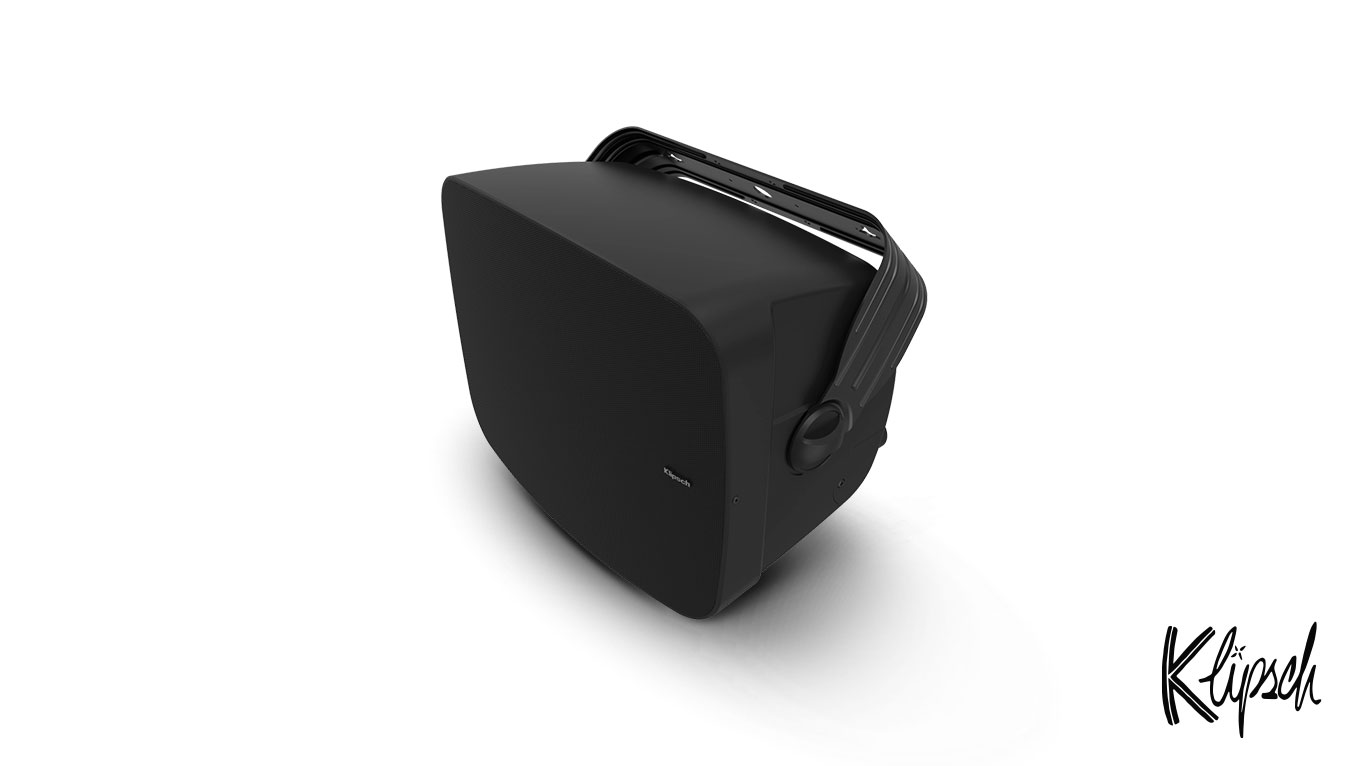

Klipsch PSM-800-SW-T 8 – Black – Subwoofer Indoor/Outdoor
Original price was: €649.€549Current price is: €549.
In stock
In stock
Description
Key Product Features
| • More bass, less space with the all-new Tractrix® Hyperfold Port™ |
| • IPX6 Rated for commercial environments |
| • Multiple tap settings |
| • Set screws on grille |
| • Engineered for music reinforcement applications |
| • Phoenix Connector for simplified installation |
| • Five Year Warranty |
More Bass, Less Space With The All-New Tractrix® Hyperfold Port™
Klipsch is all about high efficiency, low distortion. Building upon that legacy, we’re introducing the all-new patented Tractrix® Hyperfold Port™ engineered to extend port length for maximum bass power via proprietary five-step folded design. Its increased airflow eliminates chuffing and port noise while providing a greater dispersion pattern for larger coverage areas.
IPX6 Rated For Commercial Enviroments
Perfect for indoor and outdoor commercial installations around the globe, the Klipsch PSM-800-SW-T is IPX6 Rated. Your clients will rest easy knowing their new speakers will be water-resistant and rainproof for the most challenging commercial environments.
Multiple Tap Settings
There is also a bypass position that allows normal 8 ohm operation for installations that do not require a transformer.
Set Screws On Grills
The included set screws on each grille ensures a secure fit between the speaker and grille, while making sure the grilles stay on the enclosures regardless of the environment.
Engineered For Music Reinforcement Applications
These unobtrusive, easy-to-install loudspeakers feature a transformer-less design for 70V/100V distributed-line systems with two wattage settings. Since transformers severely limit a subwoofer’s capabilities, this unique design is the perfect solution when building a great sounding commercial system.
Phoenix Connector for Simplified Installation
The PSM-800-SW-T employ a phoenix connector for quick and intuitive connection.
Technical Specs
Frequency Response | 38Hz-200kHz +/- 4dB, 30Hz -10dB |
| Power Handling2 | 150 watts (25.4V) 40Hz-200Hz (600 watts peak) |
| Calc. Max. Cont. Output3 | 107dB |
| Ssensitivity4 | 88dB |
| Nominal Impedance | 8 ohms 4.2 ohms at 36Hz minimum |
| Transducers | 8″ woofer Part #1072158 |
| Enclosure Material | All Weather ABS Plastic, Paintable |
| Enclosure Tuning | Vented via 3 folded TRACTRIX ports |
| Input Connectors | 4 pin euro block |
| Transformer Taps” | 70V: 70W, 35W 100V: 70W, 35W Bypass position: 8 ohms nominal |
| Overall Width | 15.5″ |
| Overall Height | 12″ |
| Overall Depth | 9.31″ |
| Overall Depth / Bracket | 11.12″ |
| Weight | 15.75 lbs (7.15kg) |
Additional information
| Brand | Klipsch |
|---|---|
| Speaker Type | Indoor/outdoor |
| Product Colours | Black |
