The SSW-4 features dual 8-inch (200mm) low-profile woofers mounted in a heavily-braced molded baffle and an MDF Enclosure that installs into standard 2×4 wood frame wall construction.
Description
JBL SSW-4
Dual 8” (200mm) In-wall Passive Subwoofer
The SSW-4 is an in-wall subwoofer system designed to deliver powerful and accurate low-frequency responses while remaining hidden from view. It features dual 8-inch (200mm) low-profile woofers mounted in a heavily-braced molded baffle and an MDF Enclosure that installs into standard 2×4 wood frame wall construction. The SSW-4 delivers solid performance in small to medium rooms.
JBL SSW-4 Features
- DUAL 8″ (200MM) LOW-PROFILE, METAL CONE WOOFERS
- MOLDED BAFFLE WITH INTEGRATED MDF ENCLOSURE AND ISOLATION MOUNTING SYSTEM
DESIGNED TO FIT STANDARD 2X4-INCH WOOD FRAME CONSTRUCTION

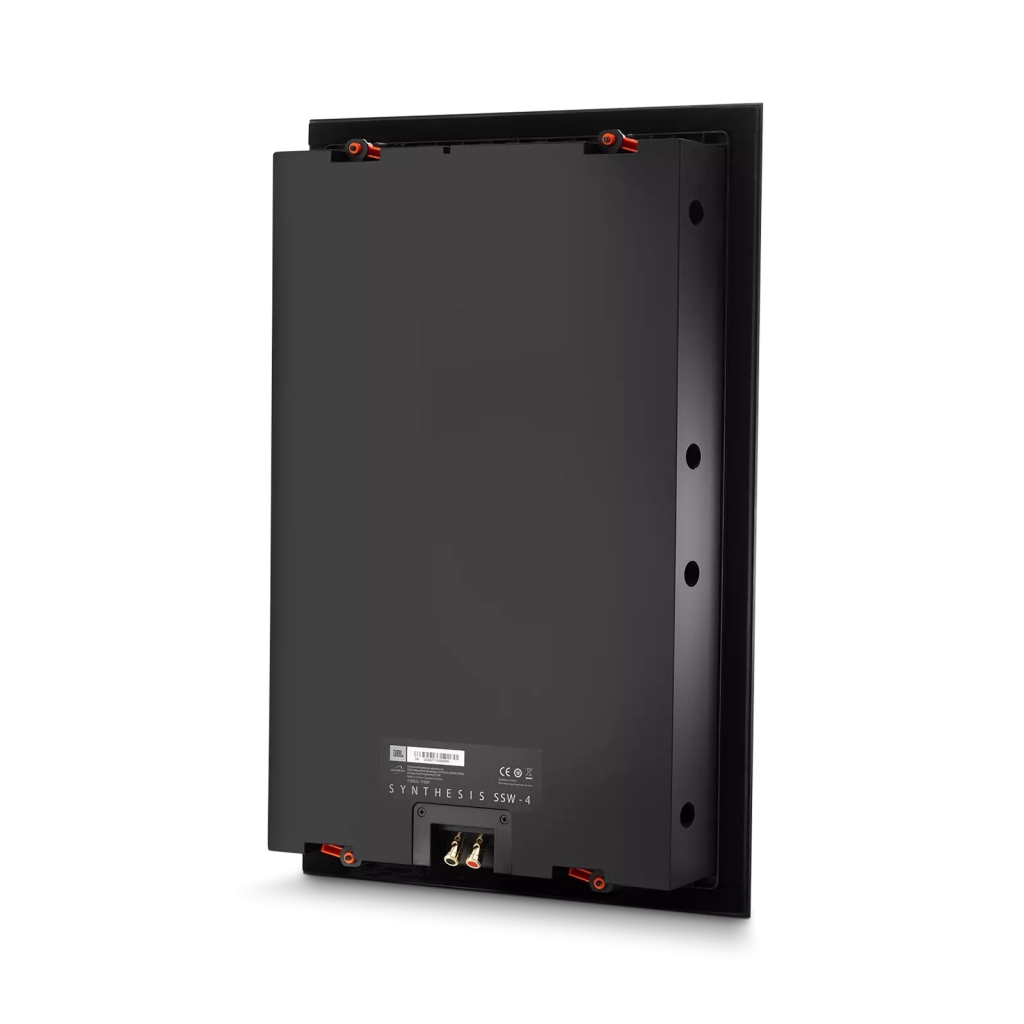

GOLD-PLATED SPRING-LOADED BINDING POST INPUT TERMINALS

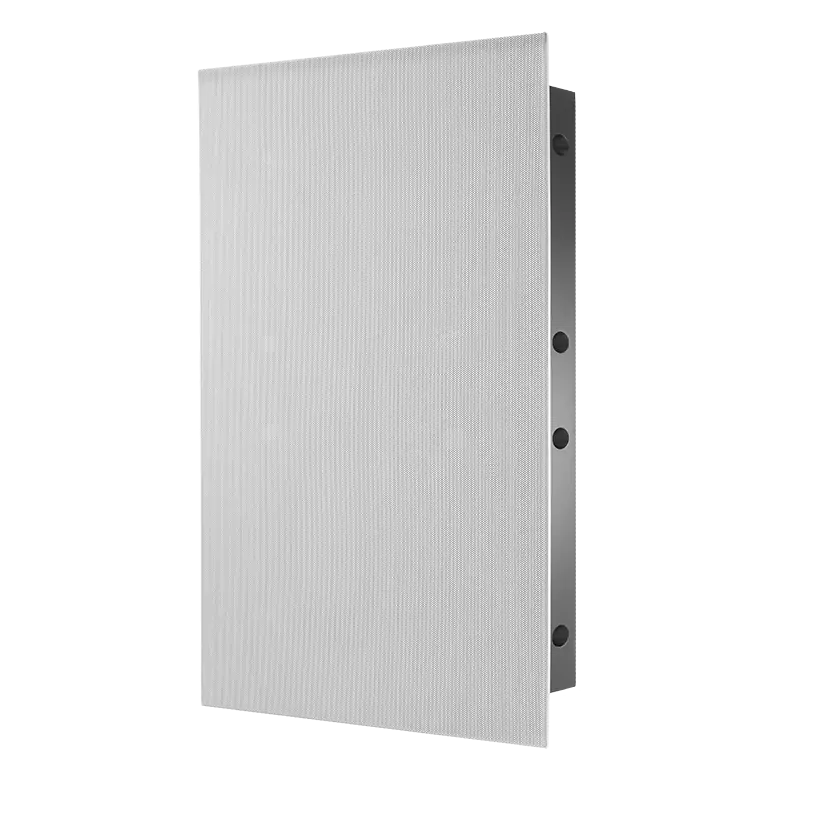

ZERO-BEZEL, MAGNETICALLY-ATTACHED PAINTABLE GRILLE
General Specifications
| Sensitivity | (2.83V/1m) Variable using the SA1000 |
| Required Amplifier | JBL Synthesis SDA-8300 (Connect up to eight SSW-4 Subwoofers with each SDA-8300 Amplifier) |
| Recommended Amplifier | JBL Synthesis SDA 8300 |
| Height | 25.375” (645mm) |
| Depth | 4” (102mm) |
| Frequency Response | 36Hz – 150Hz (-6dB) |
| Nominal Impedance | 8 Ohms |
| Mounting Cutout Size (H x W) | 23-1/2″ x 14-1/2″ |
| Width | 16.5” (419mm) |
| Weight | 28.4 lbs (12.9kg) |
Additional information
| Brand | JBL |
|---|---|
| Speaker Type | Subwoofer |
