The SSW-3 features dual 10-inch (250mm) cast-frame woofers mounted in a heavily-braced Sonoglass molded baffle and an MDF Enclosure that installs into standard 2×6 wood frame wall construction.
Description
JBL SSW-3
Dual 10" (250mm) Passive In-Wall Subwoofer
The SSW-3 is an in-wall subwoofer system designed to deliver powerful and accurate low-frequency responses while remaining hidden from view. It features dual 10-inch (250mm) cast-frame woofers mounted in a heavily-braced Sonoglass molded baffle and an MDF Enclosure that installs into standard 2×6 wood frame wall construction. The SSW-3 delivers solid performance in medium to large rooms.
JBL SSW-3 Features
- DUAL 10″ (250MM) CAST-FRAME, COMPOSITE CONE WOOFERS WITH 2.5-INCH (63MM) VOICE COILS
- SONOGLASS® BAFFLE WITH INTEGRATED MDF ENCLOSURE AND ISOLATION MOUNTING SYSTEM
- DESIGNED TO FIT STANDARD 2X6-INCH WOOD FRAME CONSTRUCTION

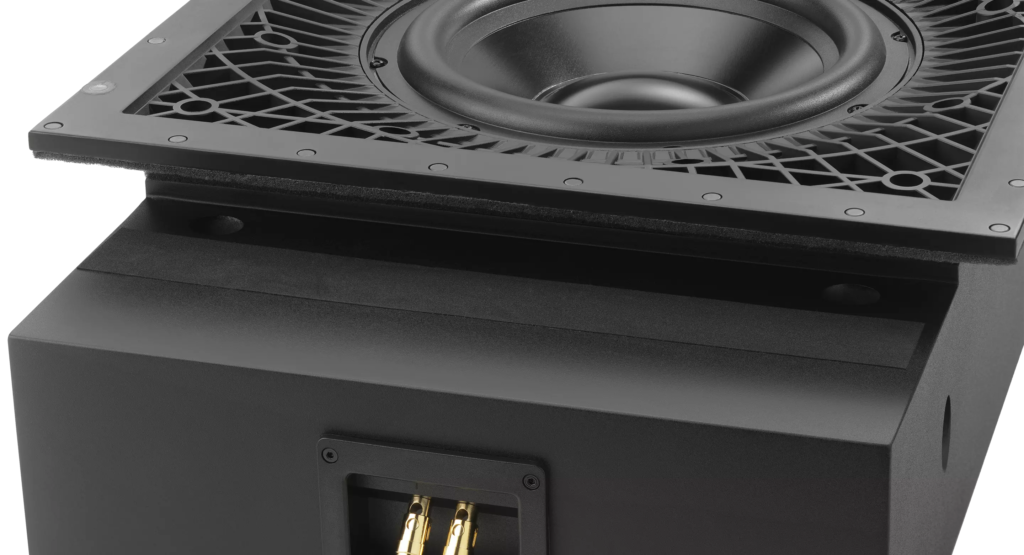

GOLD-PLATED SPRING-LOADED BINDING POST INPUT TERMINALS

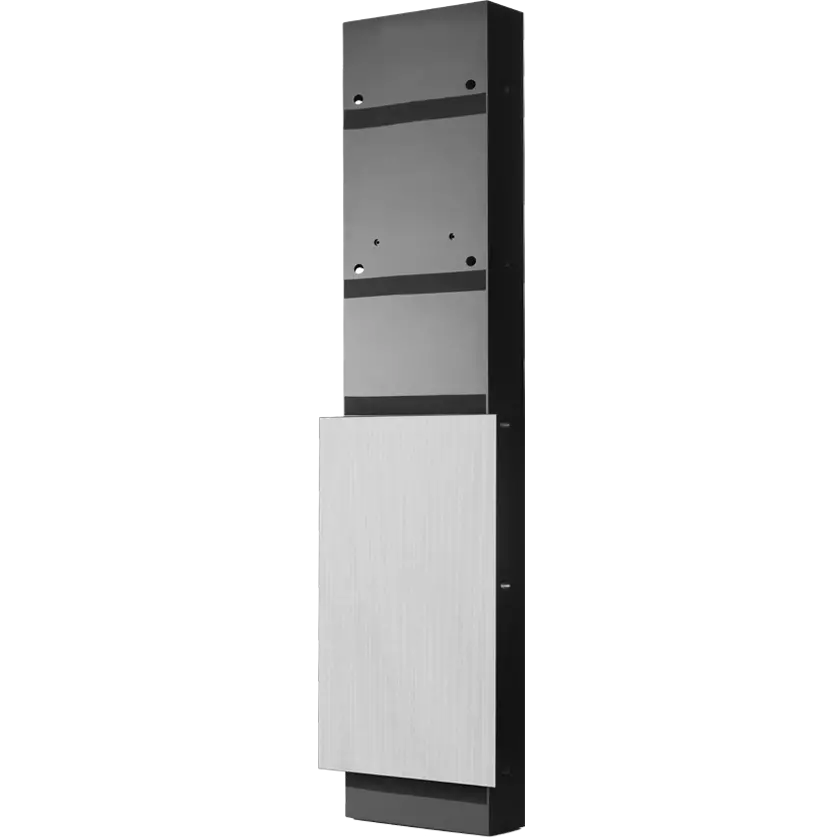

ZERO-BEZEL, MAGNETICALLY-ATTACHED PAINTABLE GRILLE
General Specifications
| Speaker Type | Dual 10” (250mm) Passive In-wall Subwoofer |
| Recommended Amplifier Power | 600 Watts RMS |
| Sensitivity | 88dB (2.83V/1m), both woofers driven |
| Mounting Cutout Size (W x H) | 15.5” x 66” (393.7 x 1676.4mm) |
| Weight | 81 lbs (36.75kg) per speaker |
| Frequency Response | 20Hz – 150Hz (-6dB) |
| Impedance | 4 Ohms nominal |
| Back Box Enclosure Dimensions (H x W x D) | 64” x 14” x 5.1” (1626 x 356 x 130mm) |
| Grille Size (W x H x D) | 16.89” x 28.425” x 0.375” (429 x 722 x 9.53mm) |
Additional information
| Brand | JBL |
|---|---|
| Speaker Type | Subwoofer |
