The SDA-2200 is a high-performance 2-channel Class G power amplifier designed to deliver audiophile performance and incredibly powerful dynamics. Each channel is rated to deliver 200W into 8 ohms and 400W into 4 ohms
Description

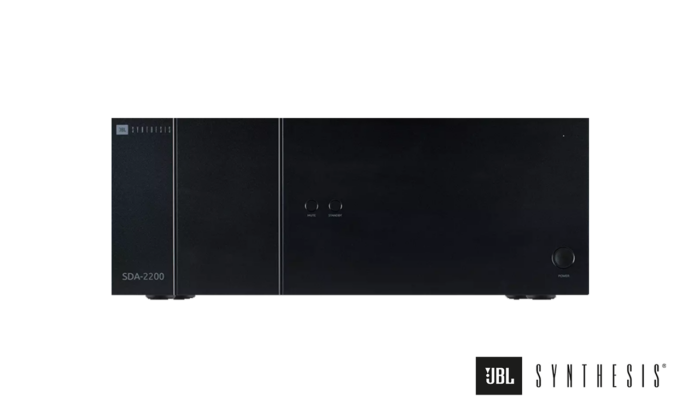

JBL SDA-2200
2-Channel Bridgeable Class G Amplifier
The SDA-2200 is a high-performance 2-channel Class G power amplifier designed to deliver audiophile performance and incredibly powerful dynamics. Each channel is rated to deliver 200W into 8 ohms and 400W into 4 ohms, plus the amplifier can be bridged to deliver 1,100W into a 4-ohm load. This combination of high power and low distortion makes this the ideal solution for LCR and surround loudspeakers in JBL Synthesis immersive audio systems. DANTE digital audio networking allows connection of the SDA-2200 to a compatible DANTE-enabled surround processor via just a single Ethernet cable and full external control allows for complete and easy system integration.
JBL SDA-2200 Features

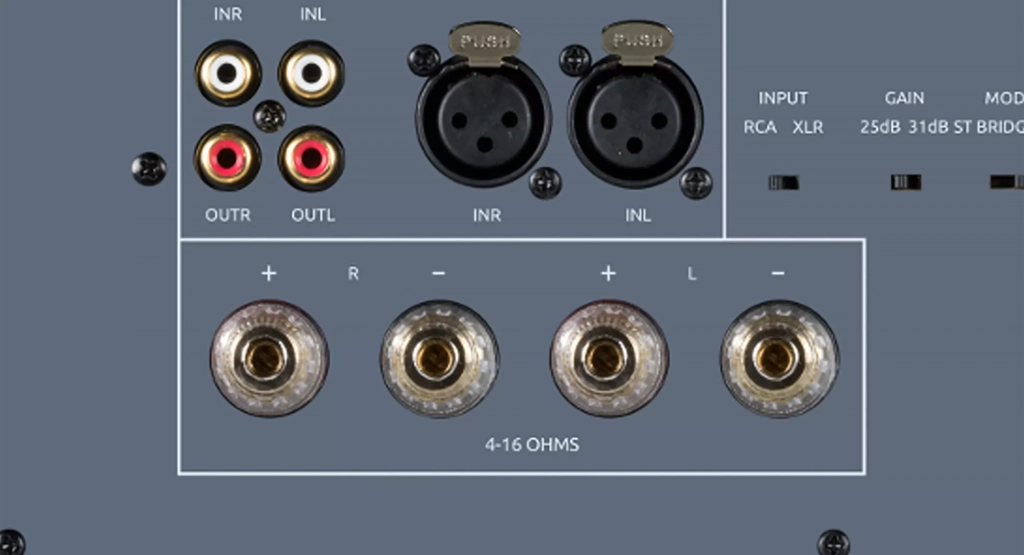

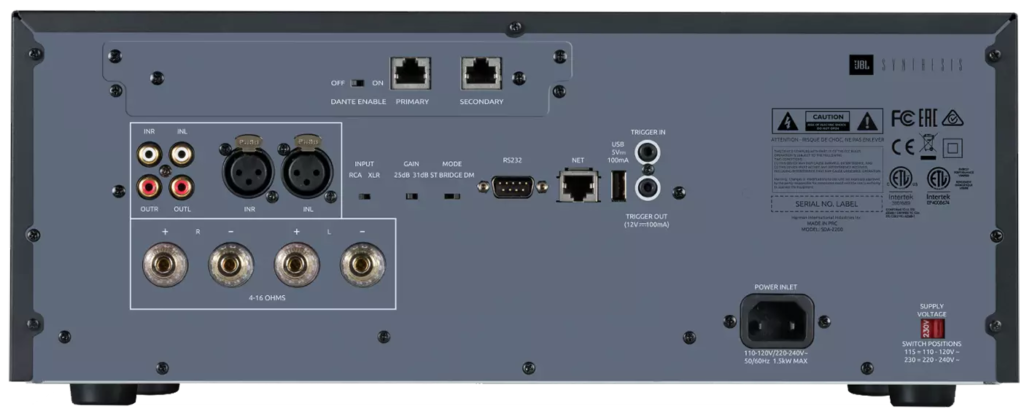

- BALANCED AND UNBALANCED ANALOG INPUTS VIA XLR AND RCA CONNECTORS
- DANTEâ„¢ DIGITAL AUDIO NETWORKING
- 12V TRIGGER, IP AND RS-232 THIRD-PARTY CONTROL
200WPC INTO 8 OHMS, 1,100W INTO 4 OHMS BRIDGED
BINDING POST SPEAKER TERMINALS
General Specifications
| Two channels driven, 4Ω / 8Ω, 20Hz – 20kHz | 380W / 225W |
| Harmonic distortion, 80% power, 8Ω at 1kHz | 0.001% |
| Signal/Noise ratio (A-wtd) 50W / 8Ω | 110dB |
| Frequency response | 20 – 20kHz +/-0.05dB |
| Maximum power consumption | 1.5kW |
| Weight (net) | 18kg |
| One channel driven, 8Ω bridged mode, 20-20kHz | 790W |
| Input sensitivity 200W / 8Ω | 1.15V RMS (RCA Type), 2.3V RMS (XLR Type) |
| Input impedance | 10kΩ |
| Mains voltage | 110–120V or 220–240V, 50–60Hz |
| Dimensions W x H x D (including feet, control knob and speaker terminals) | 433 x 425 x 177mm |
| Weight (gross) | 19.7kg |
Additional information
| Brand | JBL |
|---|---|
| Amplifier Connectivity | HDMI, Network Port, USB, 2 Channel |
