JBL Studio 6 In Wall 6″ HDI Speaker

539

In stock

The JBL Studio 6 66LCR features a 6-1/2″ woofer with a High Definition Imaging (HDI) waveguide and 1″ high-frequency compression driver for tight, clean bass and smooth, dynamic highs.

In stock

Description

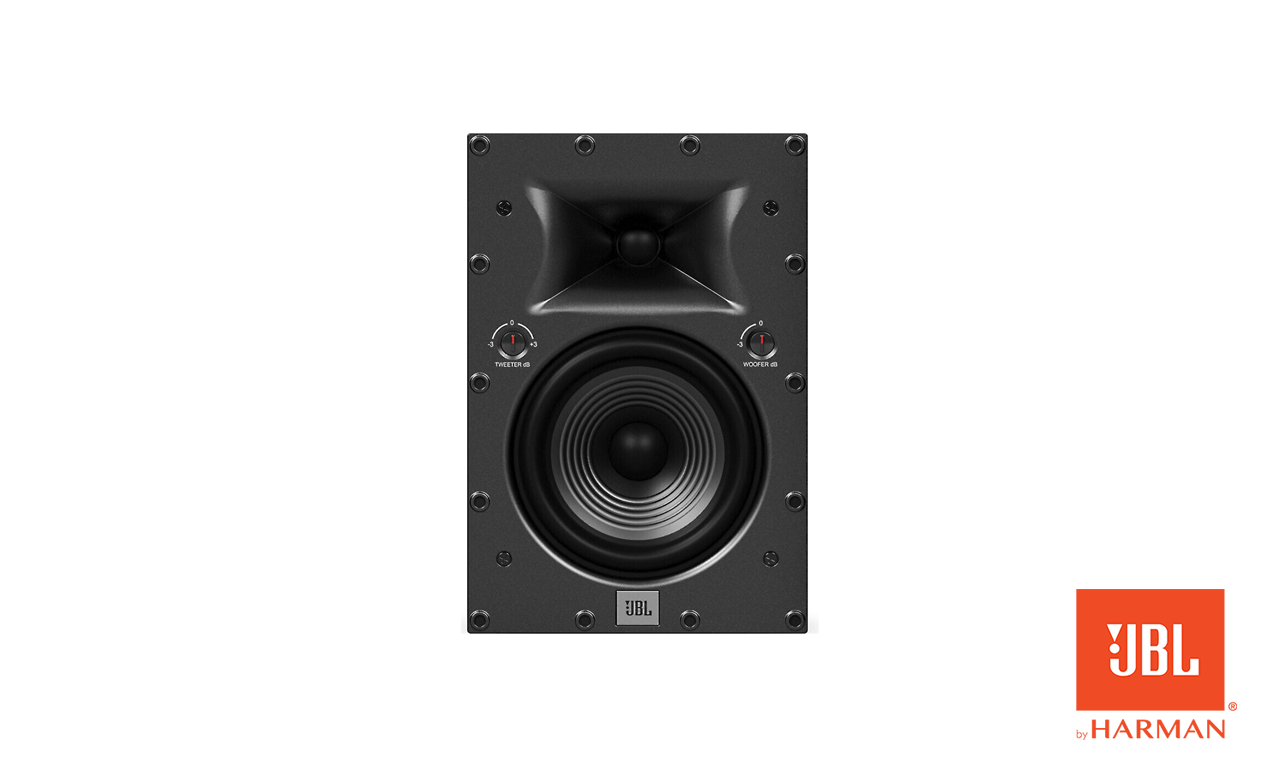

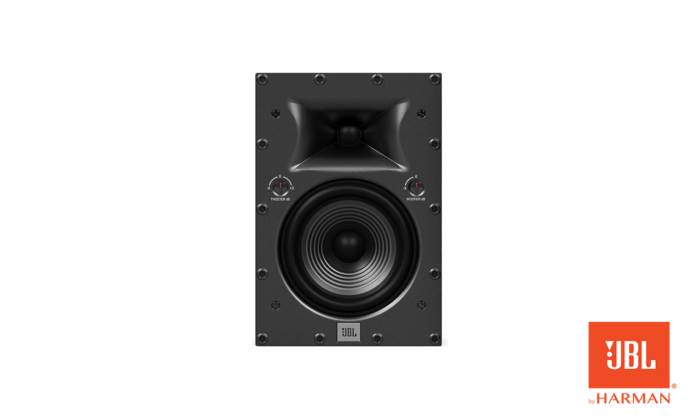

JBL Studio 6 In Wall 6" HDI Speaker

In-wall speaker

Stealthy, articulate sound

If you’re planning a custom-installed audio system, check out JBL’s Studio 6 Architectural 6IW. This high-quality in-wall speaker produces engaging sound without taking up any floor space.

Use a pair of the Studio 6 Architectural 6IWs for a stealthy in-wall stereo system, or as the left- and right-channel speakers in a JBL surround sound system.

Adjust the sound to your space

This speaker pairs a 6-1/2″ woofer with a High Definition Imaging (HDI) waveguide and 1″ high-frequency compression driver for tight, clean bass and smooth, dynamic highs.

Independent level-control knobs for the tweeter and woofer on the front baffle let you adjust output to ideally suit your room’s acoustics.

Born from JBL’s storied audio heritage

JBL famously pioneered horn-loaded compression drivers in speaker arrays at large concert venues — they’re able to fill space with clear sound in a way a standard dome tweeter can’t.

The cornerstone of the Studio 6 Series’ distinctive sound is JBL’s 1″ compression driver mated to a High-Definition Imaging (HDI) horn. The proprietary design helps this speaker deliver crystal-clear high frequencies throughout your room.

JBL Studio 6 In-Wall 6" HDI Speaker Features

  • ideal for use in a custom-installed home theatre or in-wall stereo music system
  • 6-1/2″ Polyplas® woofer
  • High Definition Imaging (HDI) waveguide with 2414H-1 1″ high-frequency compression driver
  • independent tweeter and woofer level controls on the front baffle
    • tweeter: ±3dB
    • woofer: 0/-3dB
  • frequency response: 45-20,000 Hz
  • recommended amplifier power: 25-125 watts
  • nominal impedance: 6 ohms
  • sensitivity: 91 dB
  • includes zero-bezel paintable magnetic grille

Dimensions

  • cutout dimensions: 7-1/8″W x 10-13/16″H
  • overall dimensions: 8-1/4″W x 12″H
  • mounting depth: 3-3/4″

Additional information

Brand

JBL

Speaker Type

In-Wall
