JBL Stage XD-5 Outdoor Loudspeaker

Original price was: €519.Current price is: €499.

Featuring a 5.25″ (130mm) Polypropylene Graphite Filled Cone Woofer and a 1” (25mm) Aluminum tweeter with an acoustic lens and HDI™ waveguide. IP Rated Loudspeaker

Description

Stage XD-5

2-way 5.25" Waterproof Loudspeaker

Stage XD-5

Featuring a 5.25″ (130mm) Polypropylene Graphite Filled Cone Woofer and a 1” (25mm) Aluminum tweeter with an acoustic lens and HDI™ waveguide, the Stage XD-5 all-weather speaker is perfect for an outdoor location when protection from the weather is a requirement. Stylish design and mounting flexibility make it equally at home indoors in a variety of applications. Elements including acoustic lens tweeters, and patented High-Definition Imaging (HDItm) waveguide geometry have been incorporated into the design to ensure that the sound is clear and accurate.

IP67 Waterproof rating provides protection from the harshest of outdoor conditions

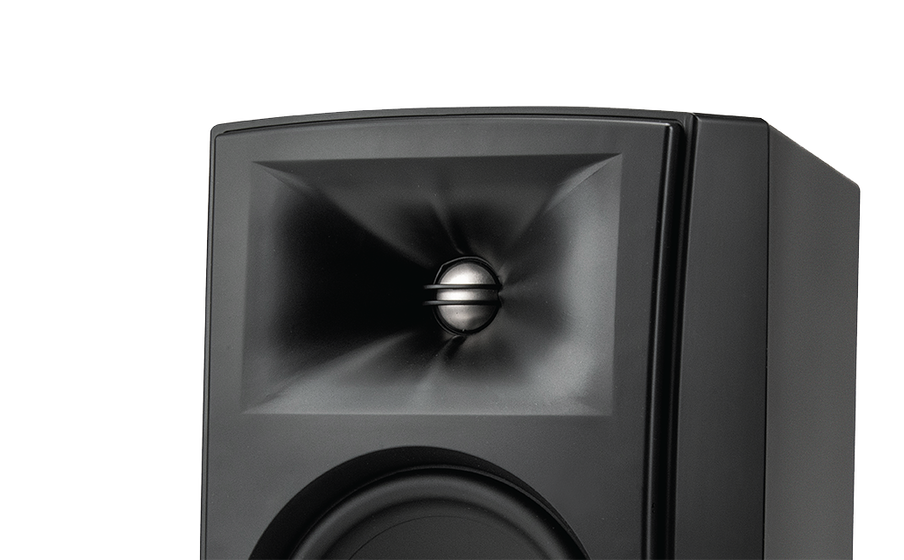

High-Definition Imaging (HDI™) waveguide with optimized geometry for smooth dispersion and low distortion

Included wall-mount bracket allows for easy installation and angle adjustment

POLYPROPELENE GRAPHITE FILLED CONE WOOFER

ZERO BEZEL MAGNETICALLY ATTACHED GRILLS

ROTATABLE LOGO FOR HORIZONTAL AND VERTICAL APPLICATIONS

General Specifications

Product Type
2-way 5.25″ (130mm) Indoor/Outdoor All Weather Loudspeaker
Weatherproof Rating
IP67
High Frequency Transducer
1″ (25mm) Aluminum dome with High-Definition Imaging (HDI™) waveguide
Low Frequency Transducer
5.25″ (130mm) Polypropylene Graphite Filled Cone Woofer
Nominal Impedance
6ohms
Sensitivity (2.83V@1m)
86dB
Recommended Amplifier Power
20-100W RMS
Frequency Response (-6dB On-Axis)
75Hz-25kHz
Crossover Frequency
2500K
Operating Temperature
 -35° C to 75° C

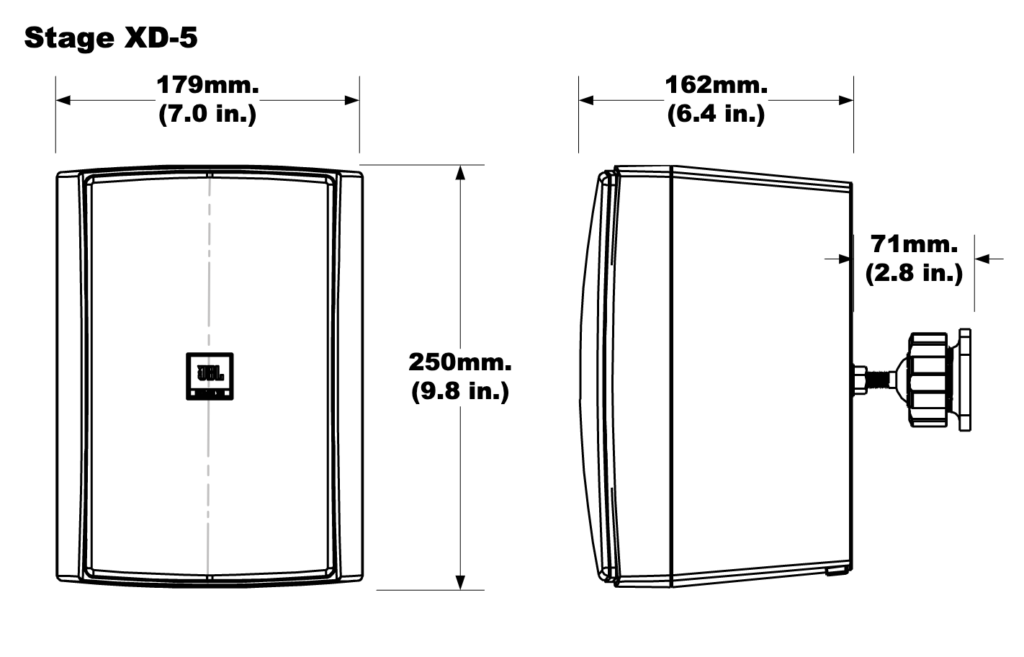

Dimensions HxWxD: 9.84in (249.9mm) x 7.17in (182.1mm) x 6.37in (161.8mm)
Product Weight
2.3lbs (5kg)
Wall Mount Extension
2.8in (71mm)
Beauty Carton Dimensions (HxWxD)
12.6in (320mm) x 16.38in (416mm) X 10.08in (256mm)
Beauty Carton Weight
2.5lbs (5.5kg)
Beauty Carton Quantity
1pr
Master Carton Dimensions (HxWxD)
13.39in (340mm) x 31.02in (788mm) X 16.93in (430mm)
Master Carton Weight
7.7lbs (17kg)
Master Carton Quantity
3pr

Additional information

Brand

JBL

Speaker Type

Surface mount, Water Resistant

Colour

Black, White
