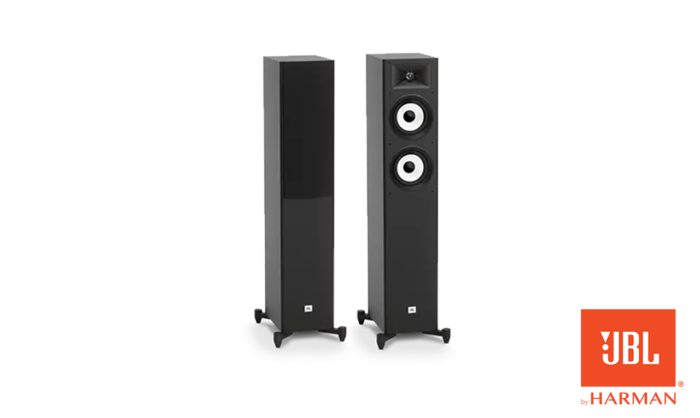

JBL Stage A170


In stock

The JBL Stage A170 features a 2 ½-way design with patented High-Definition Imaging waveguide, 1-inch (25mm) Aluminium dome tweeter, and dual 5.25-inch (133mm) Polycellulose woofers for signature JBL bass.

In stock


2 x 5.25-inch (133mm) Polycellulose Low-Frequency Woofer

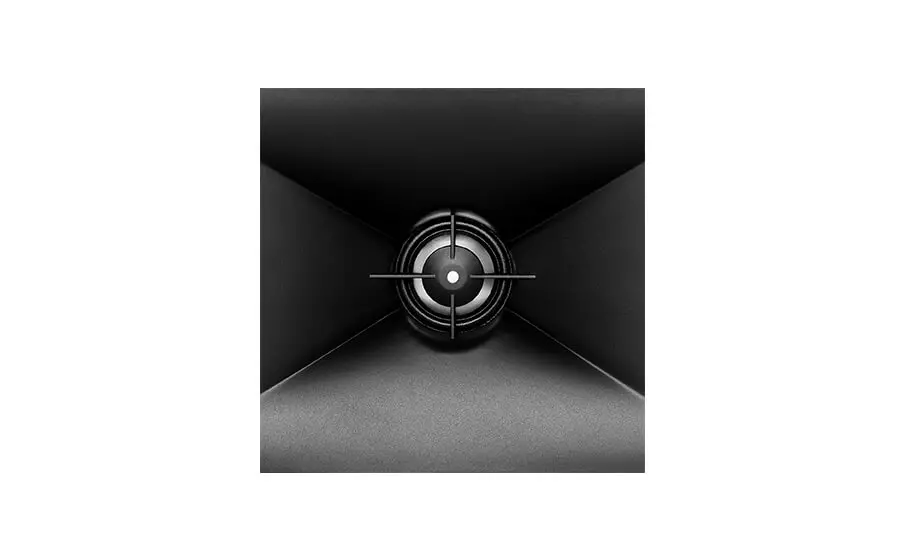

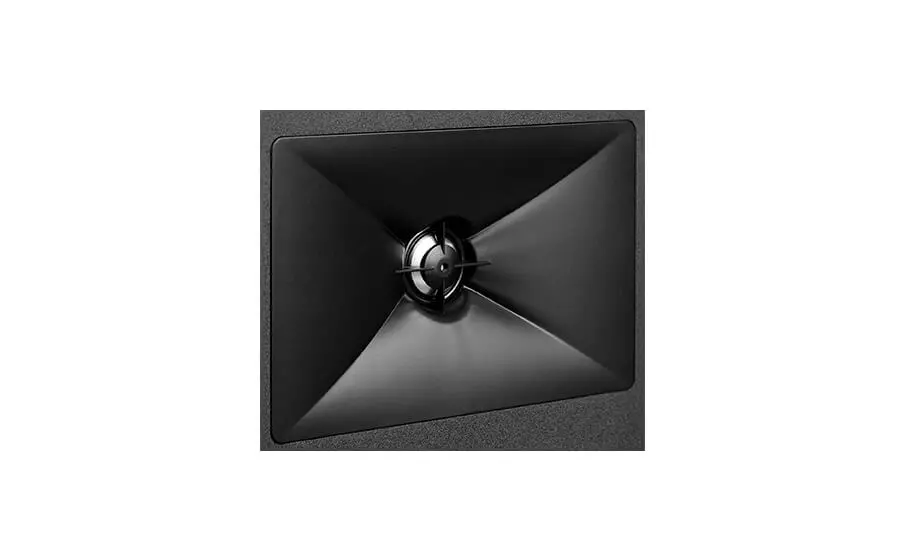

New High Definition Imaging (HDI) Waveguide

1-inch (25mm) Aluminum Dome Tweeter

JBL A170

Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the Stage A170 is the most compact floor-standing loudspeaker of the JBL Stage Series. The narrow footprint features a 2 ½-way design with patented High-Definition Imaging (HDI™) waveguide geometry, 1-inch (25mm) Aluminum dome tweeter, and dual 8-inch (200mm) Polycellulose cone woofers for signature JBL bass.

Priced as pair

2.5 way, dual 5.25″, 1″ aluminum tweeter floor standing loudspeakerYes
2 x 5.25″ (133mm) Polycellulose Low-Frequency WooferYes
New High Definition Imaging (HDI) WaveguideYes
1” (25mm) Aluminum Dome TweeterYes
Recommended Amplifier Power – 20 – 200W
Frequency Response – 44Hz – 40kHz
Sensitivity – 89dB @ 1M, 2.83V
Nominal Impedance6 Ohms
Crossover Frequencies – 1.8kHz, 2.8kHz

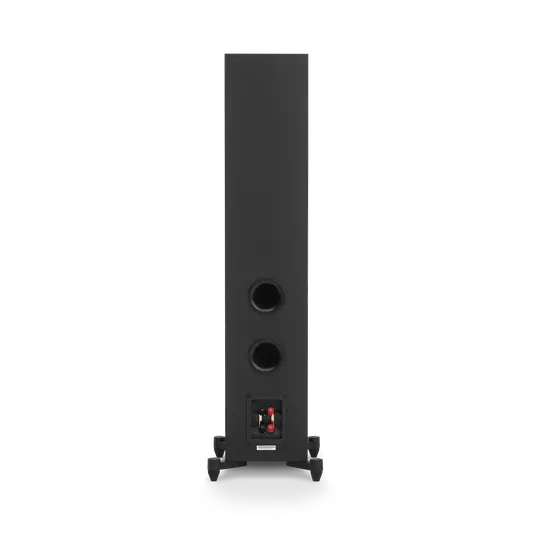

Enclosure Type – Bass-Reflex via Rear-Firing Tuned Port
Dimensions (W x D x H) – 190 x 255 x 930mm
Weight (each) – 31.61 lbs (14.34kg)
  • 1 x JBL Stage A170 Floor Standing Loudspeaker
  • 4 x Outriggers
  • 8 x Screws for Outriggers
  • 4 x Floor Spikes
  • 4 x Rubber Feet
  • 1 x Owner’s Manual
  • 1 x Warranty Card
