The angled design of the Stage 280CSA allows for accurate aiming of the 8″ (200mm) Polycellulose cone woofer and 1″ (25mm) Aluminum dome tweeter with acoustic lens waveguide towards the listening area. A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen. Elements including baffles with acoustic smoothing and acoustic lens tweeters have been incorporated into the design to ensure that the sound is clear and accurate.
JBL Stage 280CSA – Ceiling Speaker
€270
In stock
In stock
Description
Stage 280CSA
Angled Baffle allows for accurate aiming towards the listening area
1″ (25mm) Aluminum dome
with acoustic lens waveguide
8″ (200mm) Polycellulose cone woofer
Features
Rigid baffle design with acoustic
smoothing for improved
transducer integration

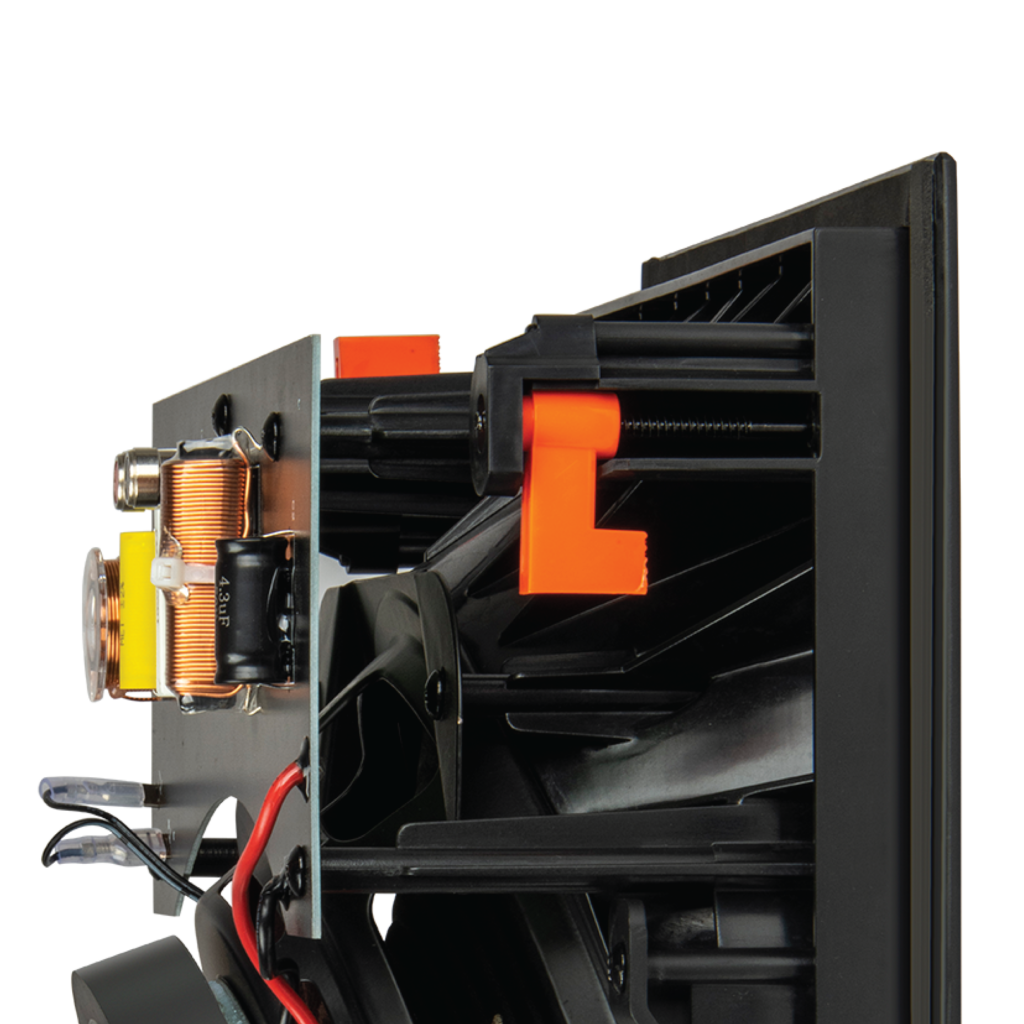

XL-2 installation system
compatible with up to 2" (50mm)
thick wall/ceiling material.

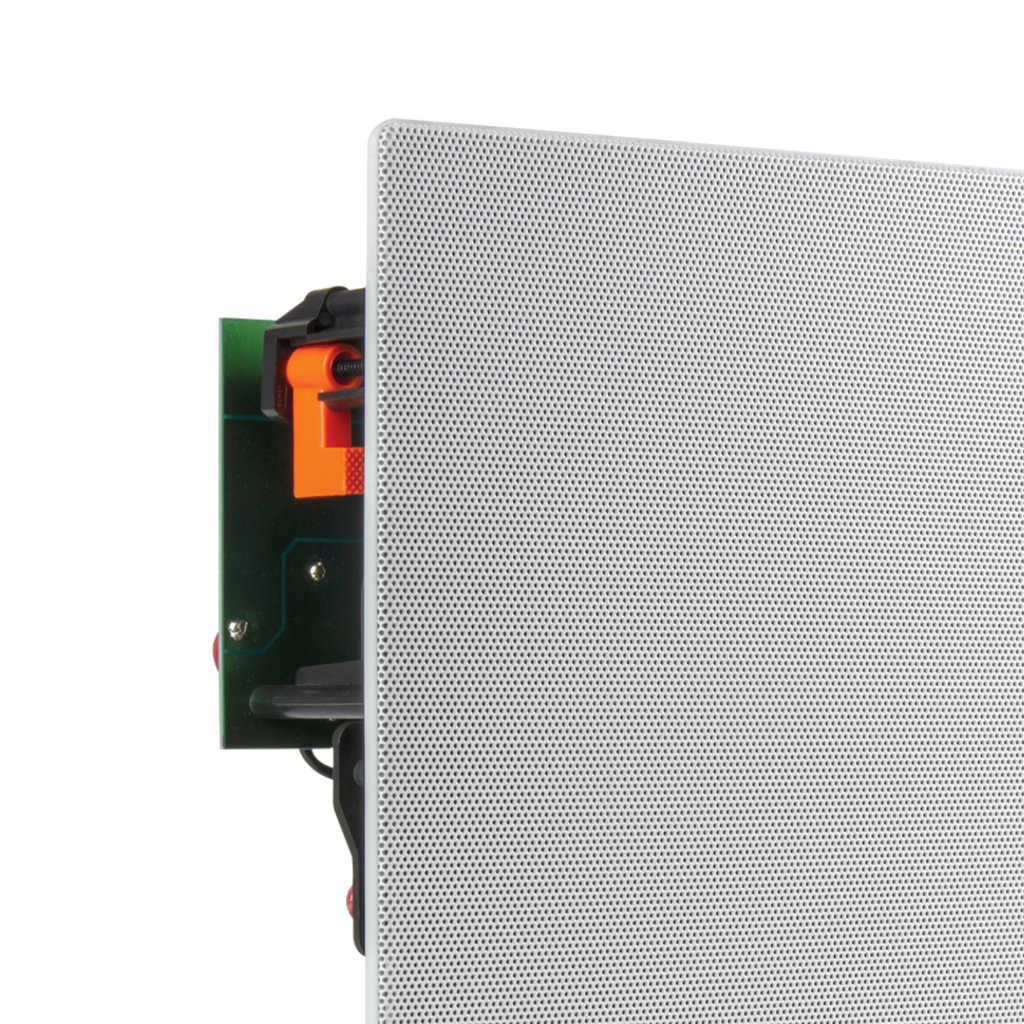

Zero bezel metal grille installs
flush to wall or ceiling for a clean,
inconspicuous appearance
Specs
| High Frequency Transducer | 1″ (25mm) Aluminum dome with Acoustic Lens |
| Low Frequency Transducer | 8″ (200mm) Polycellulose cone woofer |
| Recommended Amplifier Power (Full Range) | 20-120W RMS |
| Frequency Response | 90dB |
| Nominal Impedance | 8ohm |
| Crossover Frequency | 2900Hz |
| Inputs | Nickel-plated spring-loaded connectors |
| Grille Dimensions | H 11.4in (289mm) x W 11.4in (289mm) |
| Cutout Dimensions | H 10.2in (260mm) x W 10.2in (260mm) |
| Mounting Depth | 5.4in (138mm) |
| Product Weight (Kg) | 2.9Kg |
| Shipping Carton Dimensions | L 13.6in (346mm) x W 13.6in (346mm) x H 6.5in (166mm) |
| Shipping Carton Weight | 8.42lbs (3.82Kg) |
Additional information
| Brand | JBL |
|---|---|
| Speaker Type | Ceiling, In-Wall |
