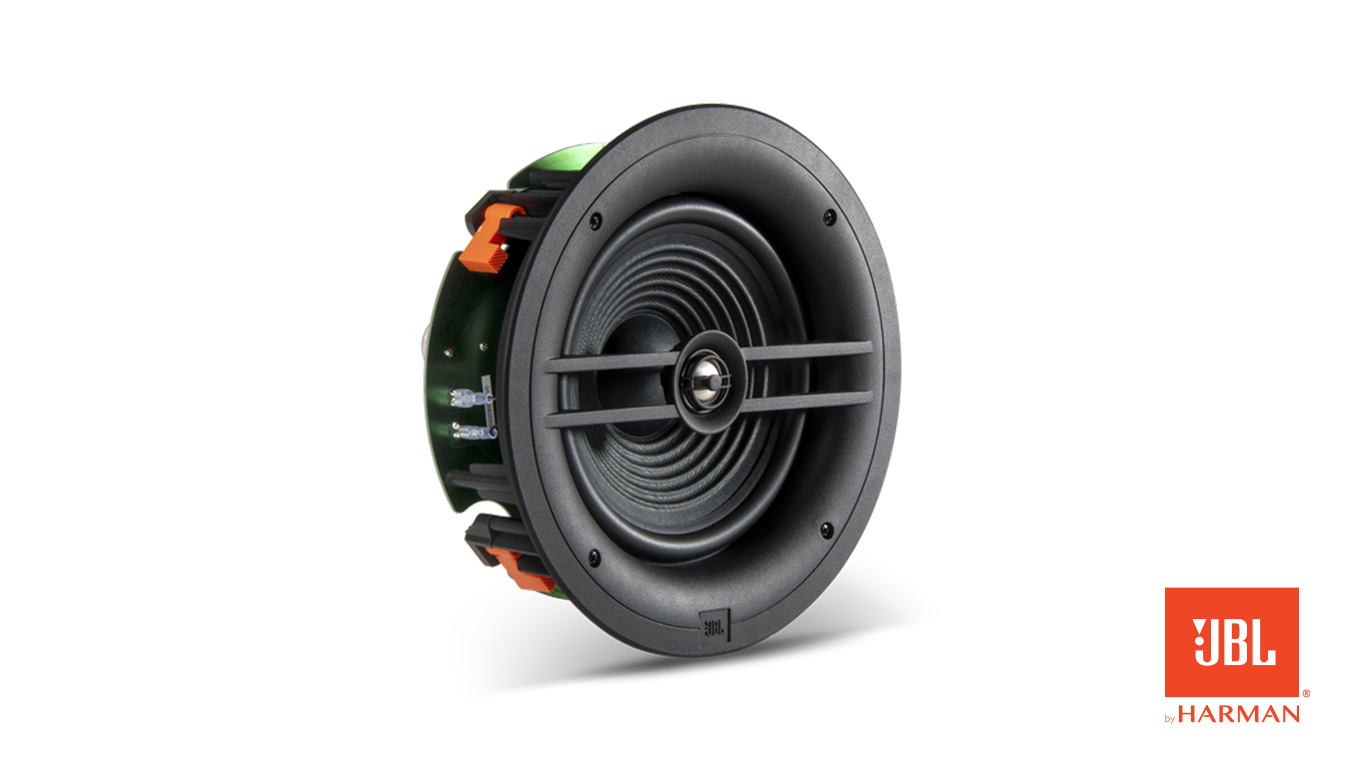

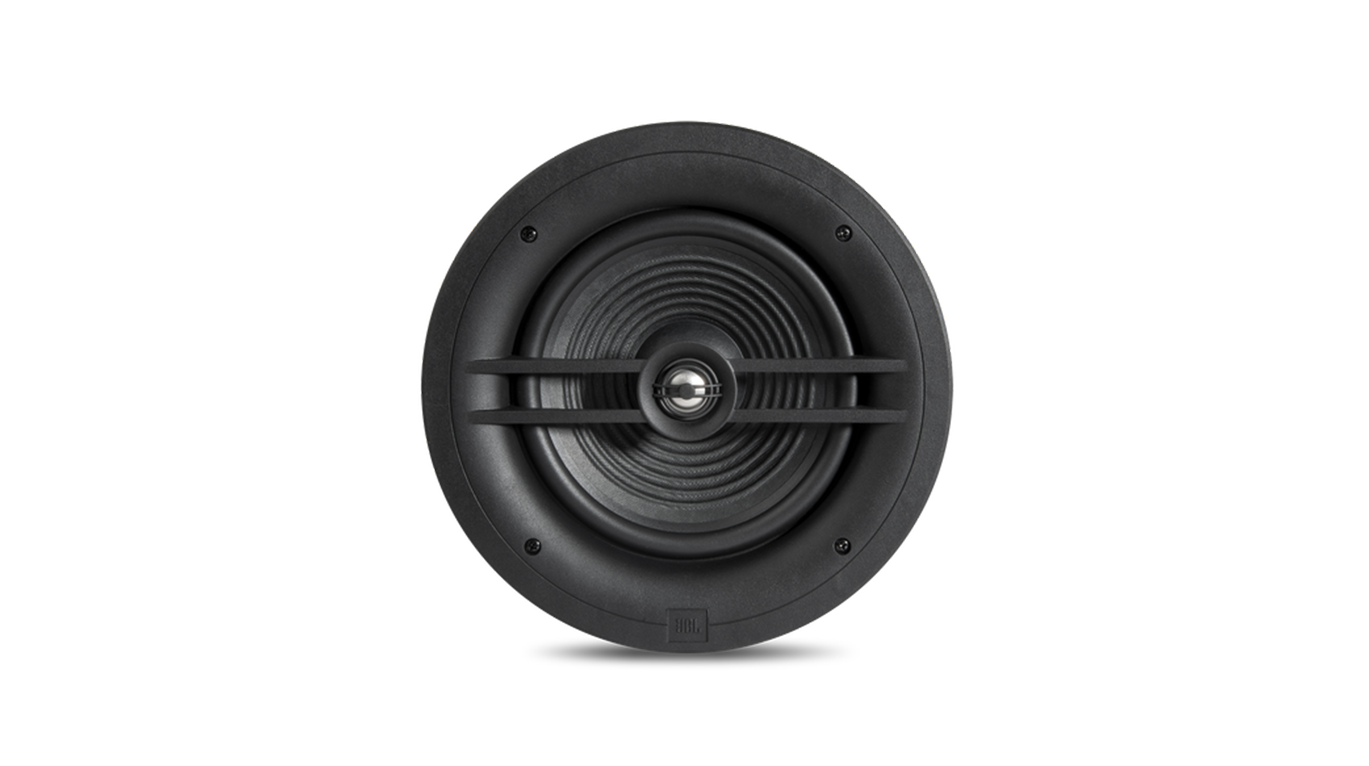

JBL Stage 280C Ceiling Speaker

270

In stock

The Stage 280C has an 8″ (200mm) Polycellulose cone woofer and 1″ (25mm) Aluminum dome tweeter with an acoustic lens waveguide.

In stock

Description

Description

The Stage 280C has an 8″ (200mm) Polycellulose cone woofer and 1″ (25mm) Aluminum dome tweeter with an acoustic lens waveguide. A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen. Elements including baffles with acoustic smoothing and acoustic lens tweeters have been incorporated into the design to ensure that the sound is clear and accurate.

Stage 280C

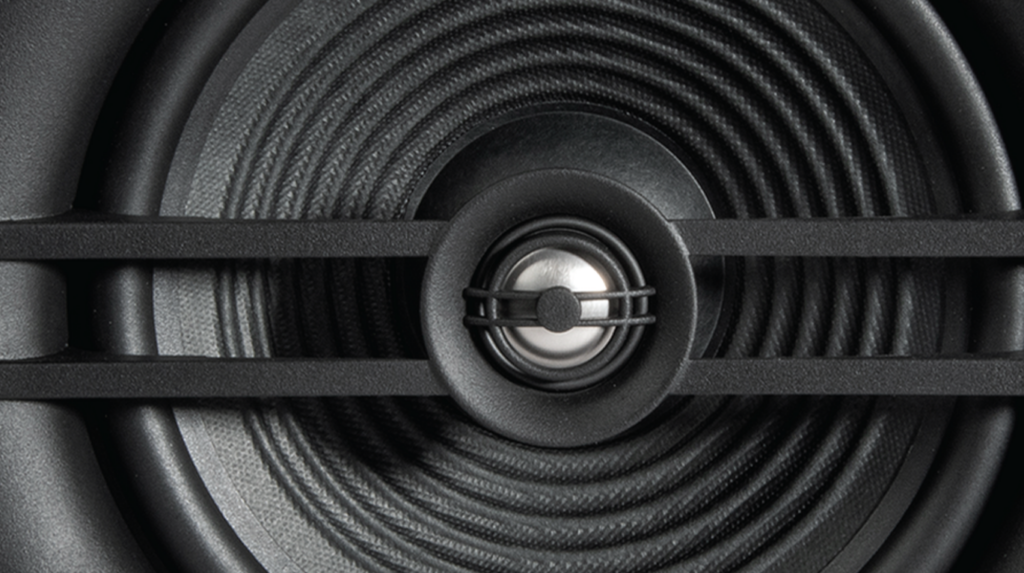

1″ (25mm) Aluminum dome with acoustic lens waveguide
8″ (200mm) Polycellulose cone woofer

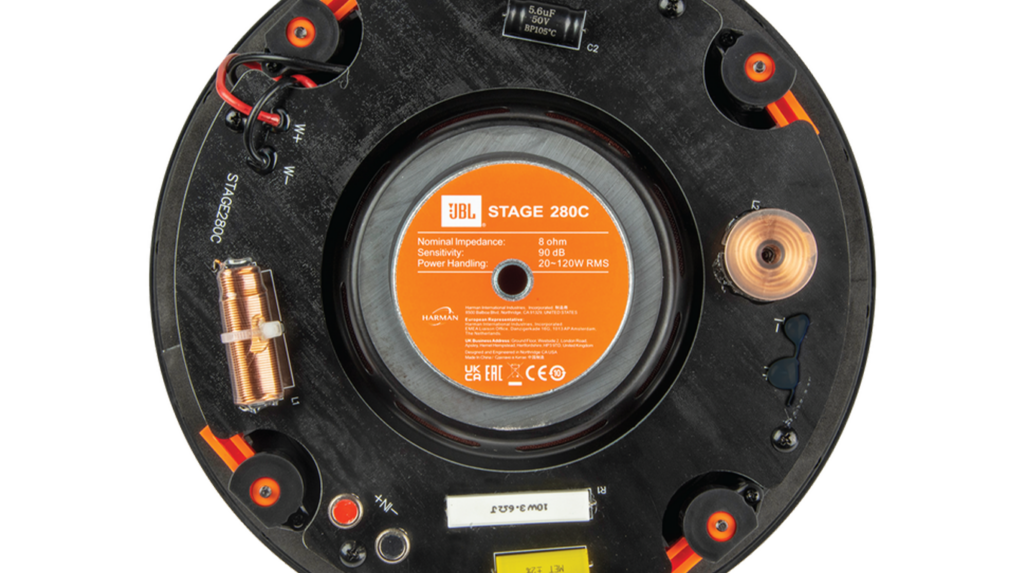

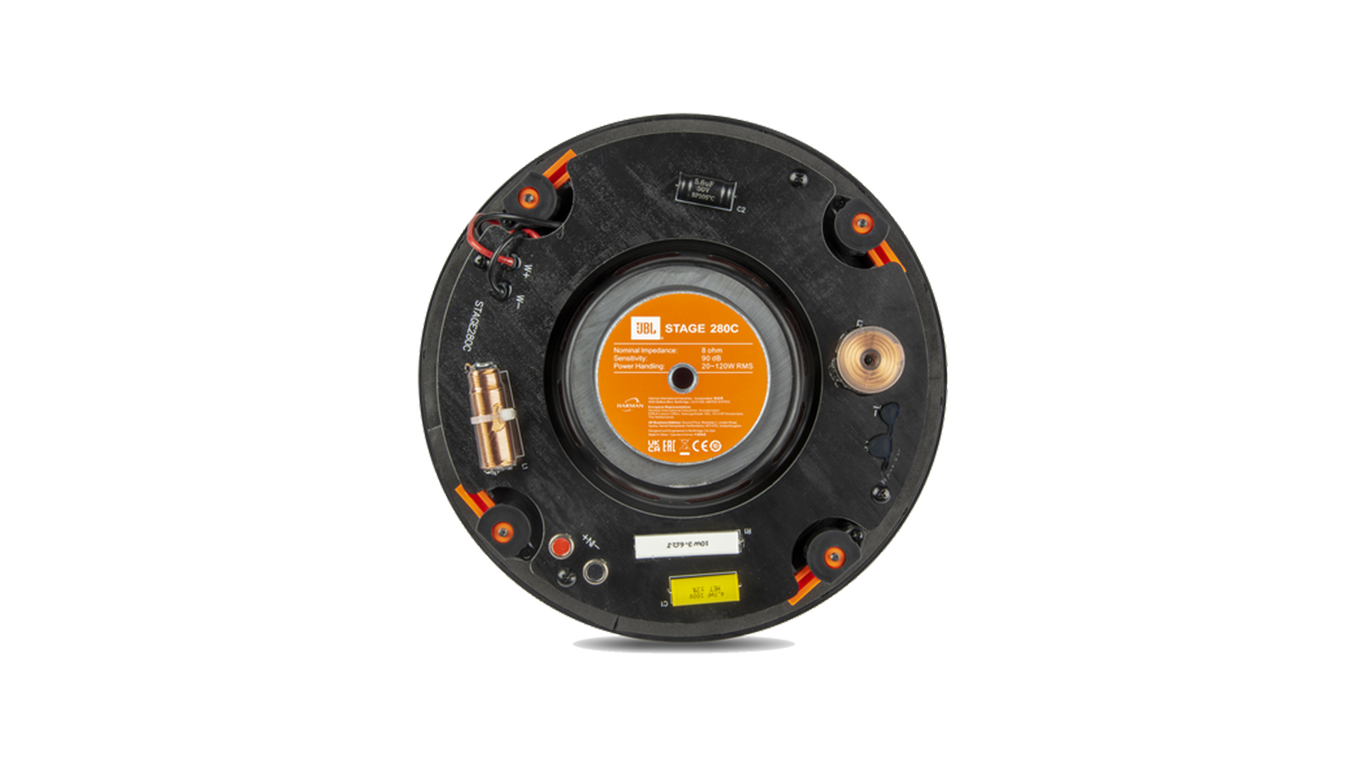

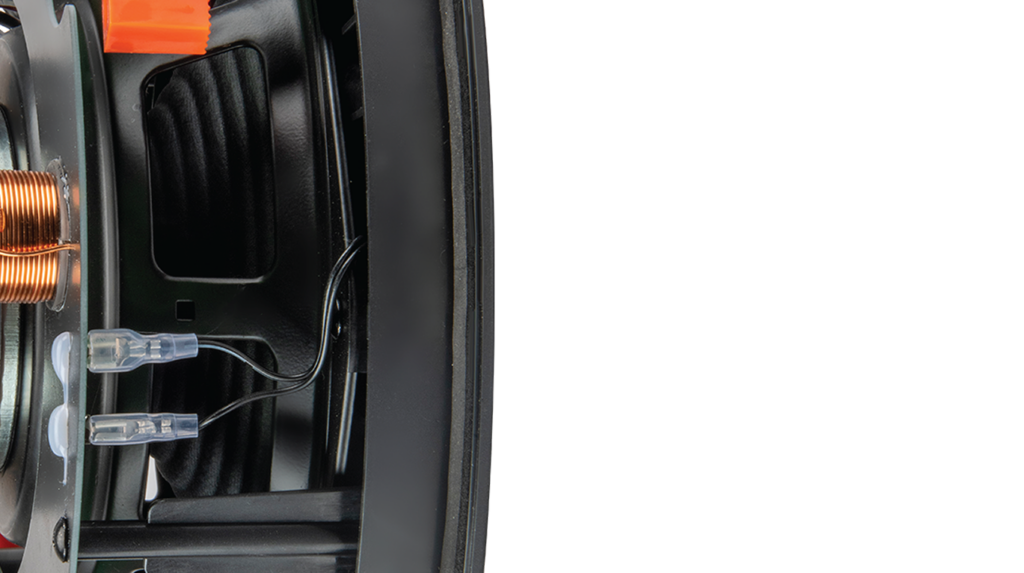

Premium air-core inductors and mylar cap capacitor crossover network components ensure that sound remains dynamic at all listening levels.

Features

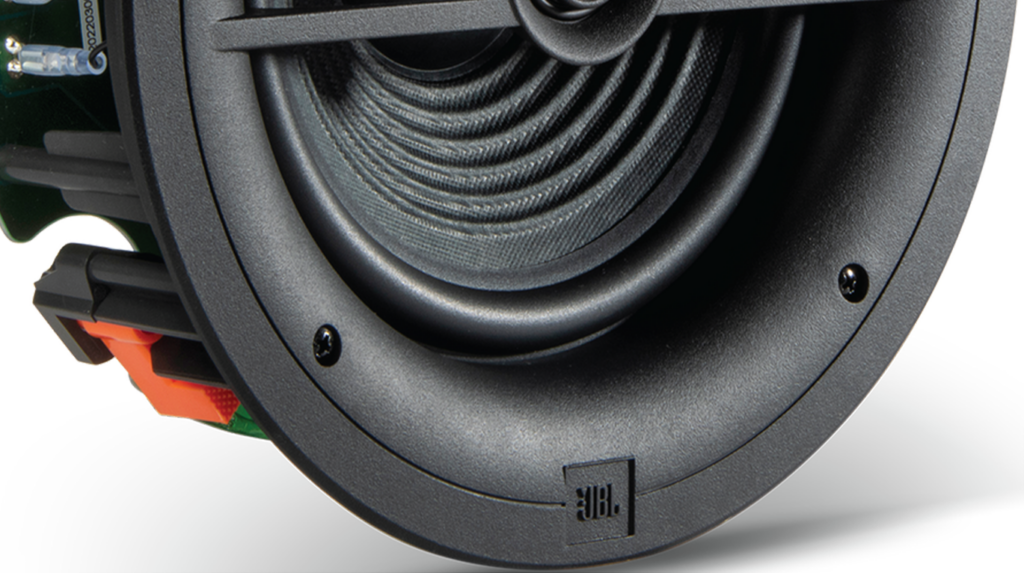

Rigid baffle design with acoustic smoothing for improved transducer integration

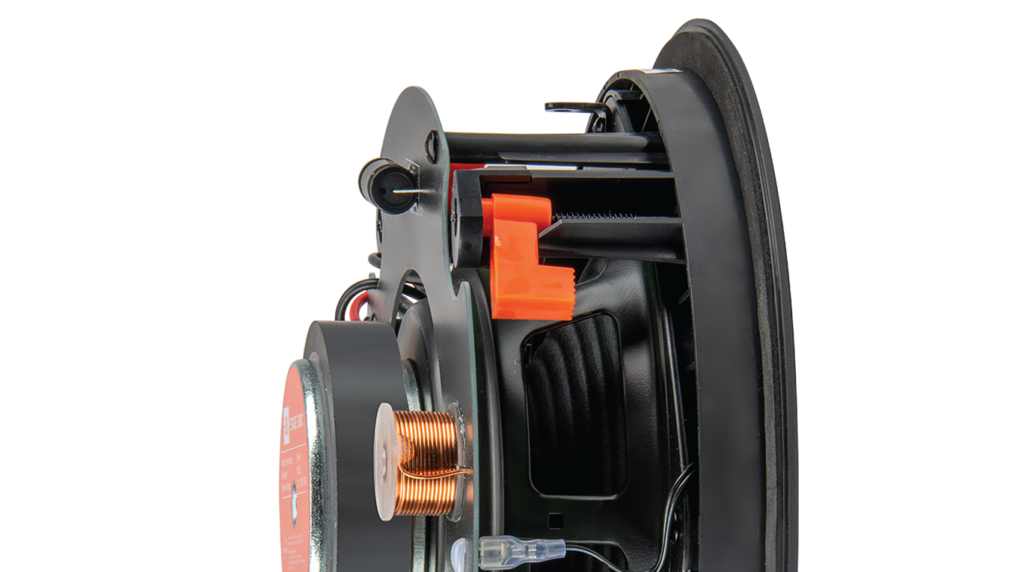

XL-2 installation system compatible with up to 2″ (50mm) thick wall/ceiling material

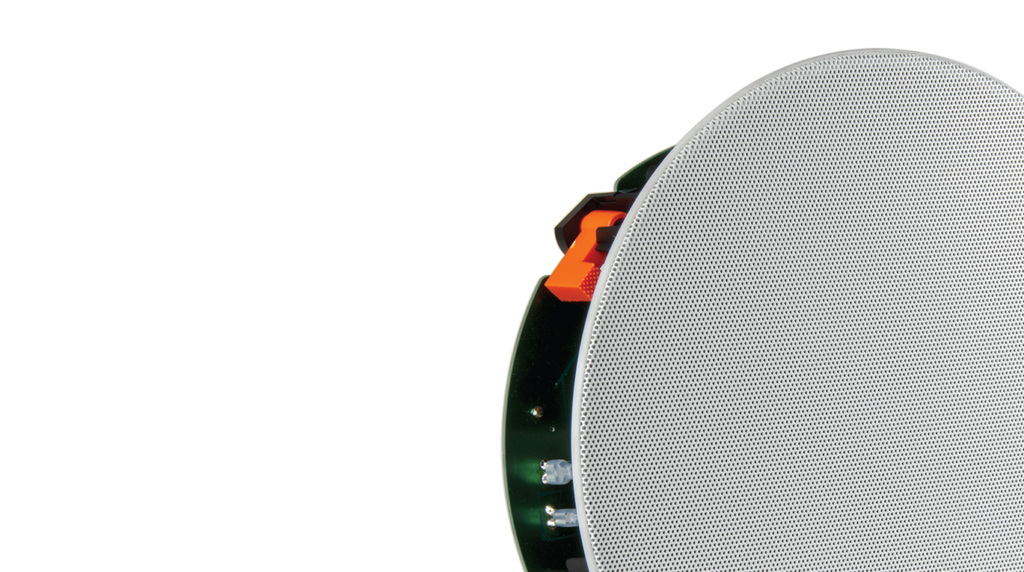

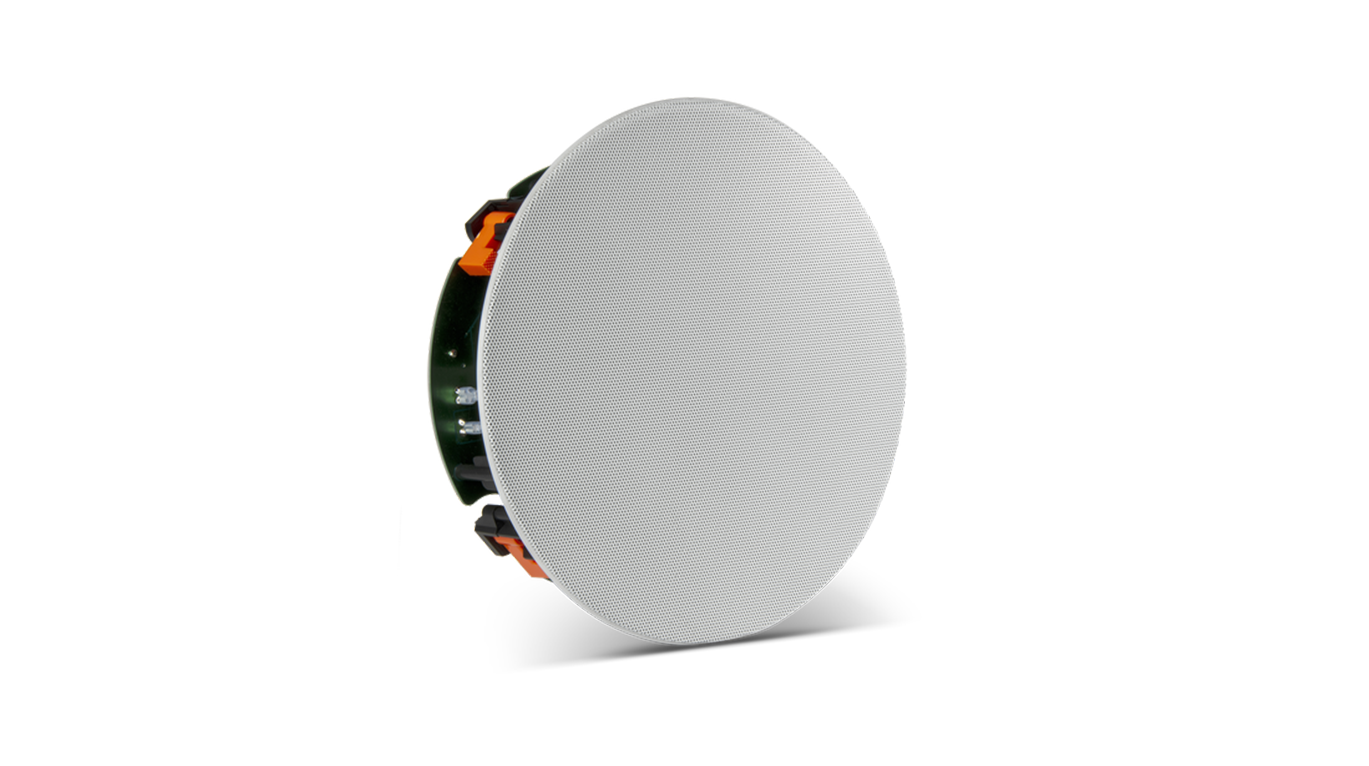

Zero bezel metal grille installs flush to wall or ceiling for a clean, inconspicuous appearance

Specs

High Frequency Transducer1″ (25mm) Aluminum dome with Acoustic Lens
Low Frequency Transducer8″ (200mm) Polycellulose cone woofer
Recommended Amplifier Power (Full Range)20-120W RMS
Frequency Response42Hz-25kHz (-6dB on-axis)
Sensitivity (2.83V@1m)90dB
Nominal Impedance8ohm
Crossover Frequency3400Hz
InputsNickel-plated spring-loaded connectors
Grille DimensionsDia 10.8in (275mm)
Cutout DimensionsDia 9.6in (244mm)
Mounting Depth4.3in (108mm)
Product Weight (Kg)2.2Kg
Shipping Carton DimensionsL 12.7in (322mm) x W 12.7in (322mm) x H 5.6in (142mm)
Shipping Carton Weight6.97lbs (3.16Kg)

Additional information

Brand

JBL

Speaker Type

In-Ceiling
