JBL Stage 260CSA – Ceiling Speaker

179

In stock

The angled design of the Stage 260CSA allows for accurate aiming of the 6.5″ (165mm) Polycellulose cone woofer and 1″ (25mm) Aluminum dome tweeter with acoustic lens waveguide towards the listening area. A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen. Elements including baffles with acoustic smoothing and acoustic lens tweeters have been incorporated into the design to ensure that the sound is clear and accurate.

In stock

Description

Stage 260CSA

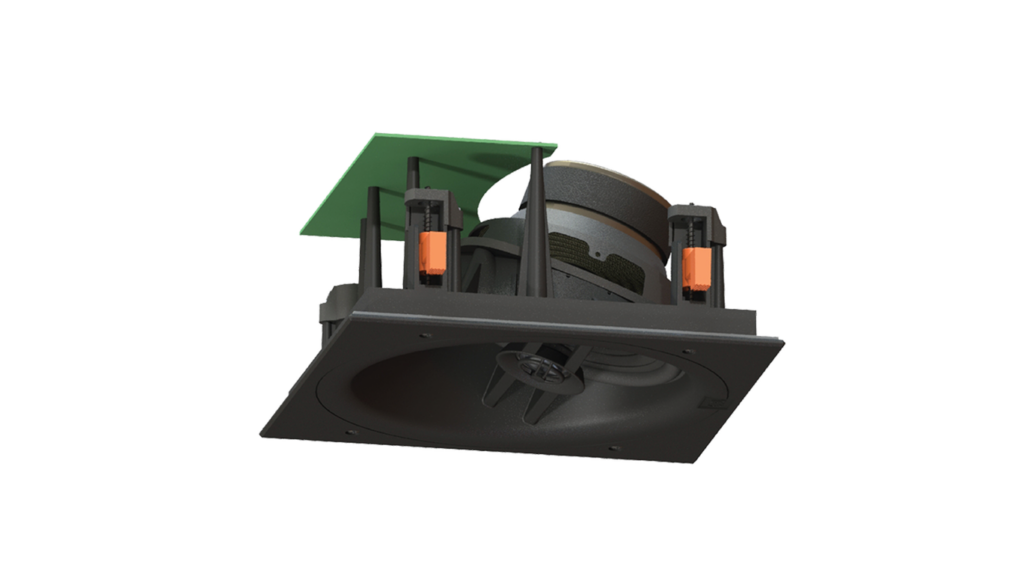

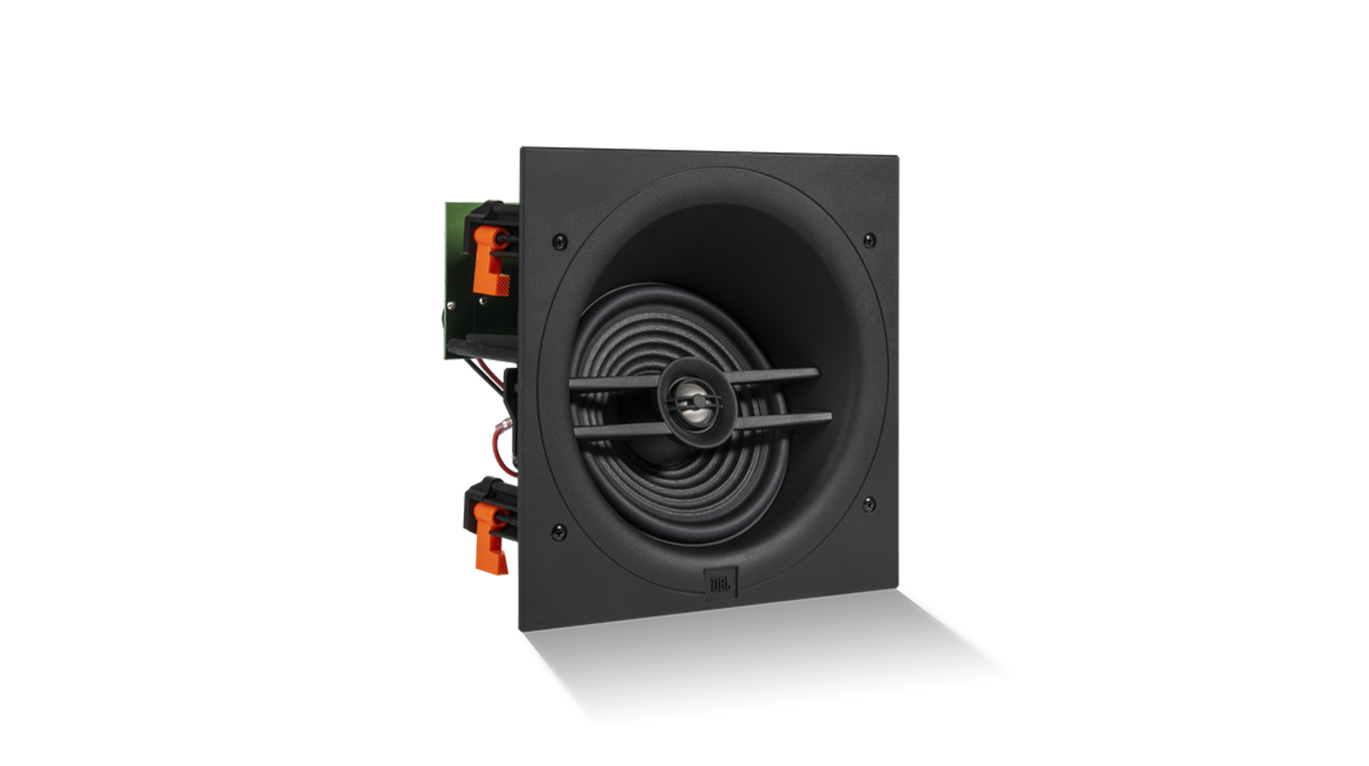

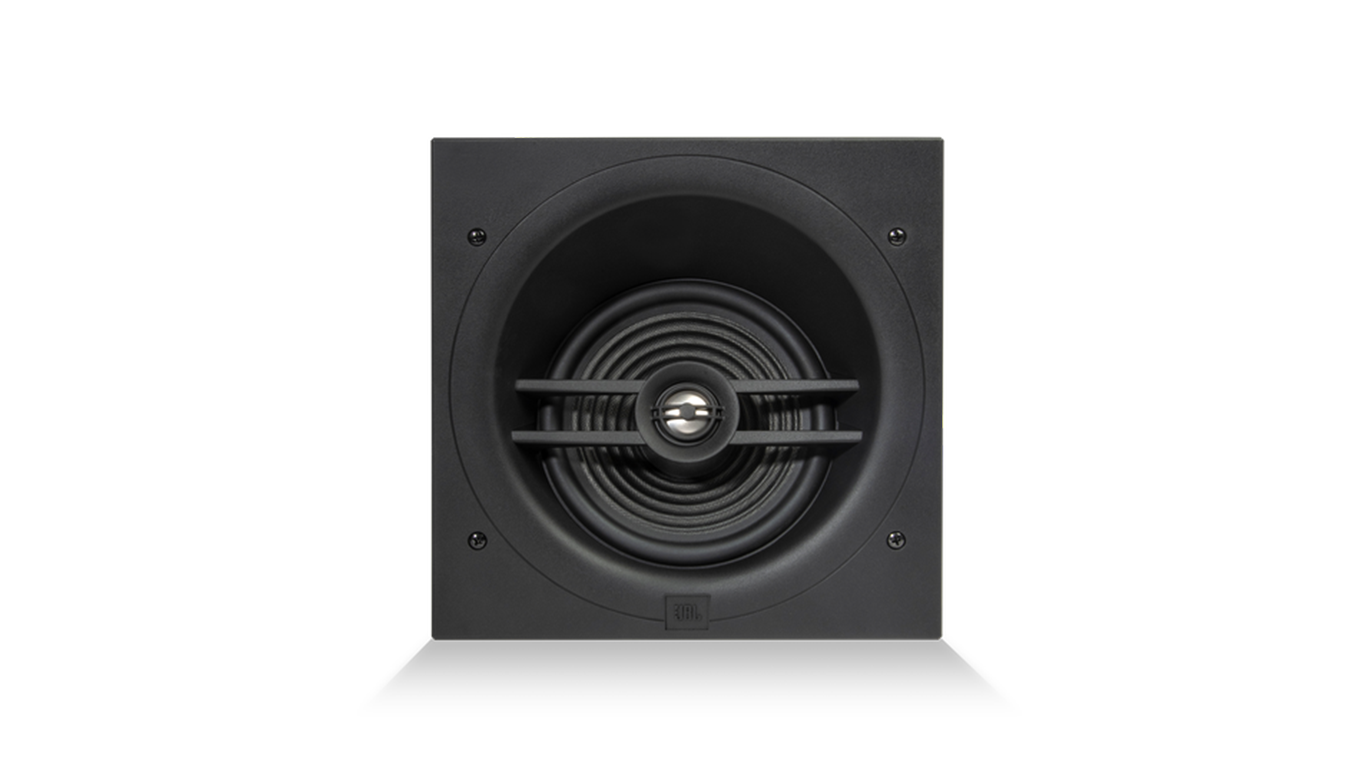

Angled Baffle allows for accurate aiming towards the listening area

1″ (25mm) Aluminum dome
with acoustic lens waveguide

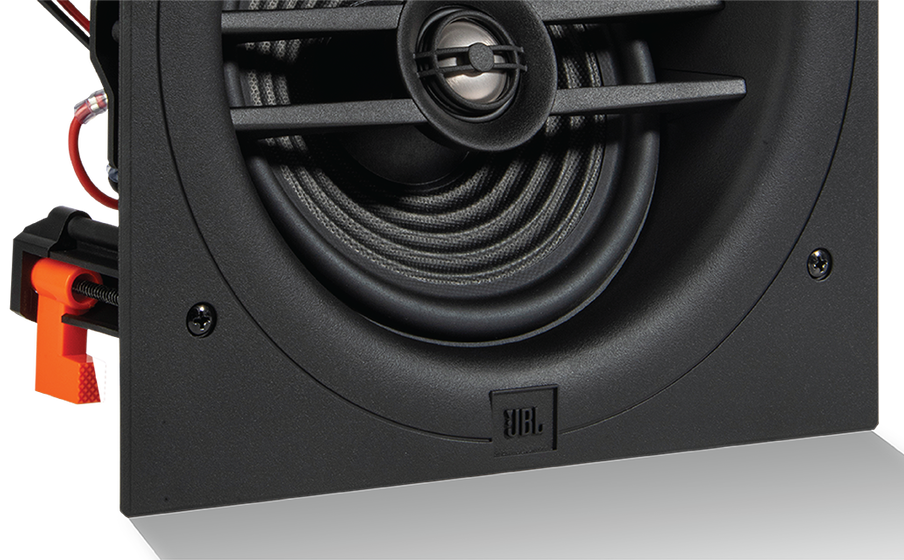

6.5″ (165mm)
Polycellulose cone woofer

Features

Rigid baffle design with acoustic
smoothing for improved
transducer integration

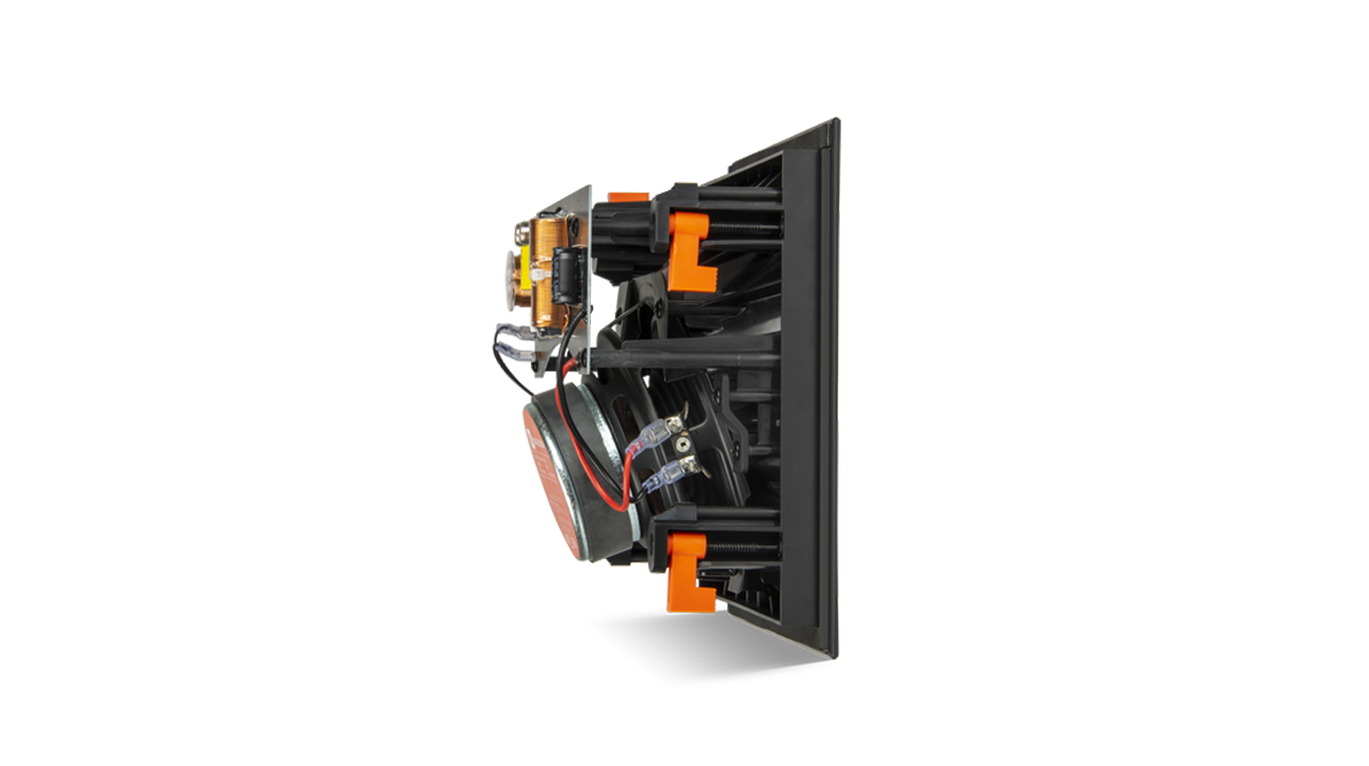

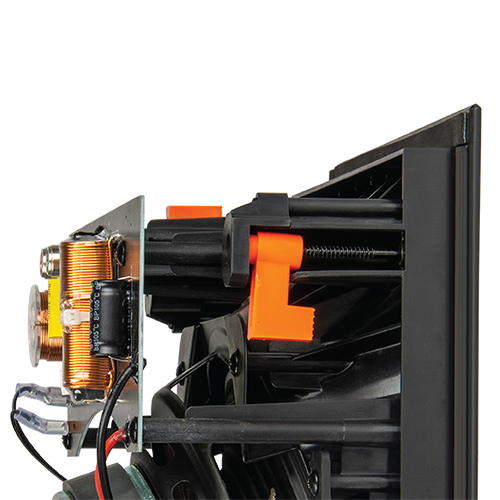

XL-2 installation system
compatible with up to 2" (50mm)
thick wall/ceiling material.

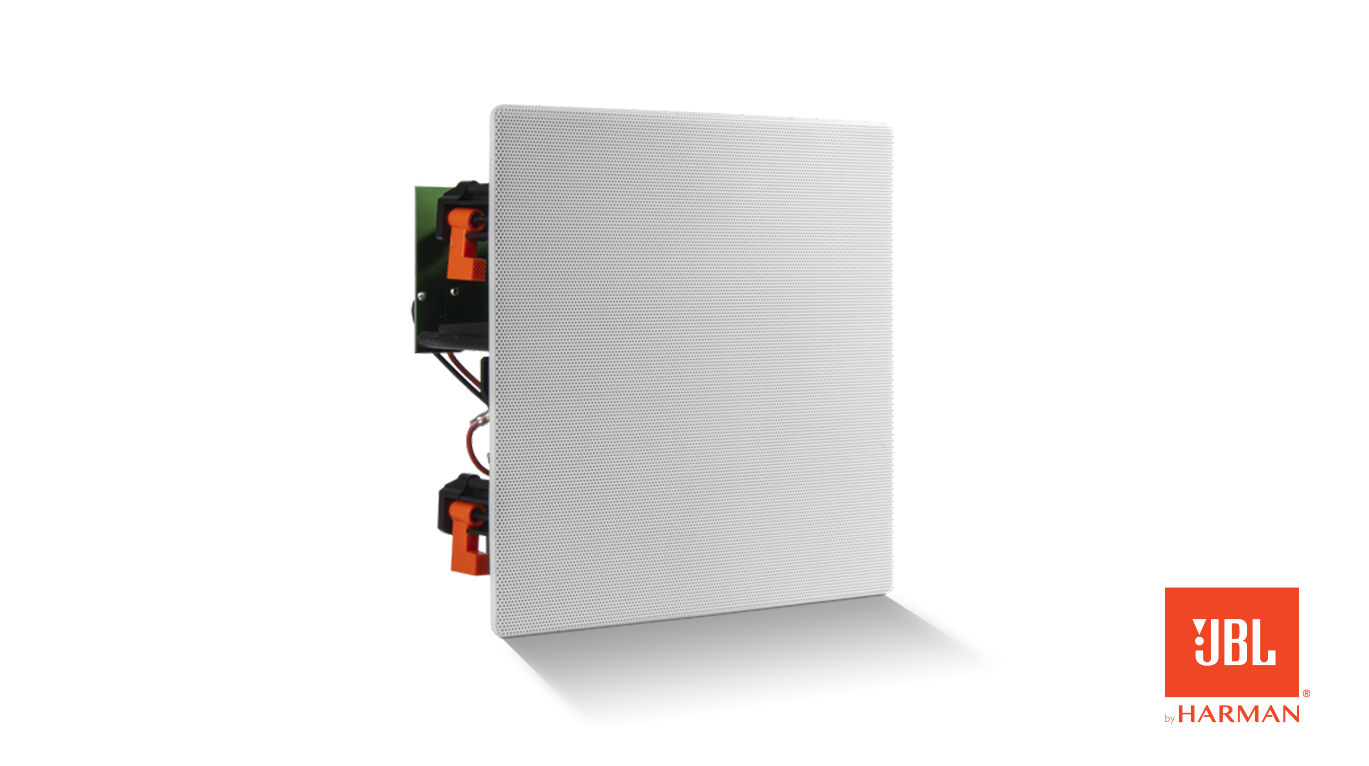

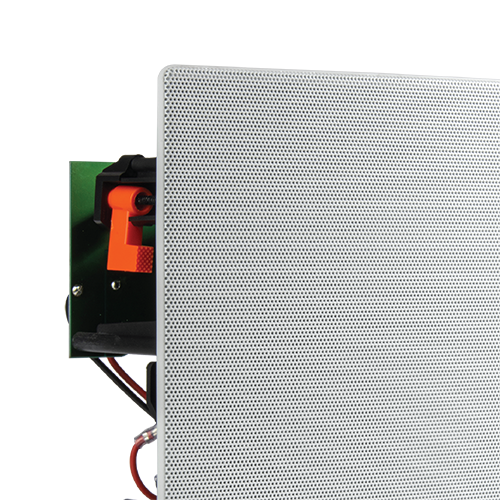

Zero bezel metal grille installs
flush to wall or ceiling for a clean,
inconspicuous appearance

Specs

High Frequency Transducer1″ (25mm) Aluminum dome with Acoustic Lens
Low Frequency Transducer6.5″ (165mm) Polycellulose cone woofer
Recommended Amplifier Power (Full Range)20-100W RMS
Frequency Response50Hz-25kHz (-6dB on-axis)
Sensitivity (2.83V@1m)87dB
Nominal Impedance8ohm

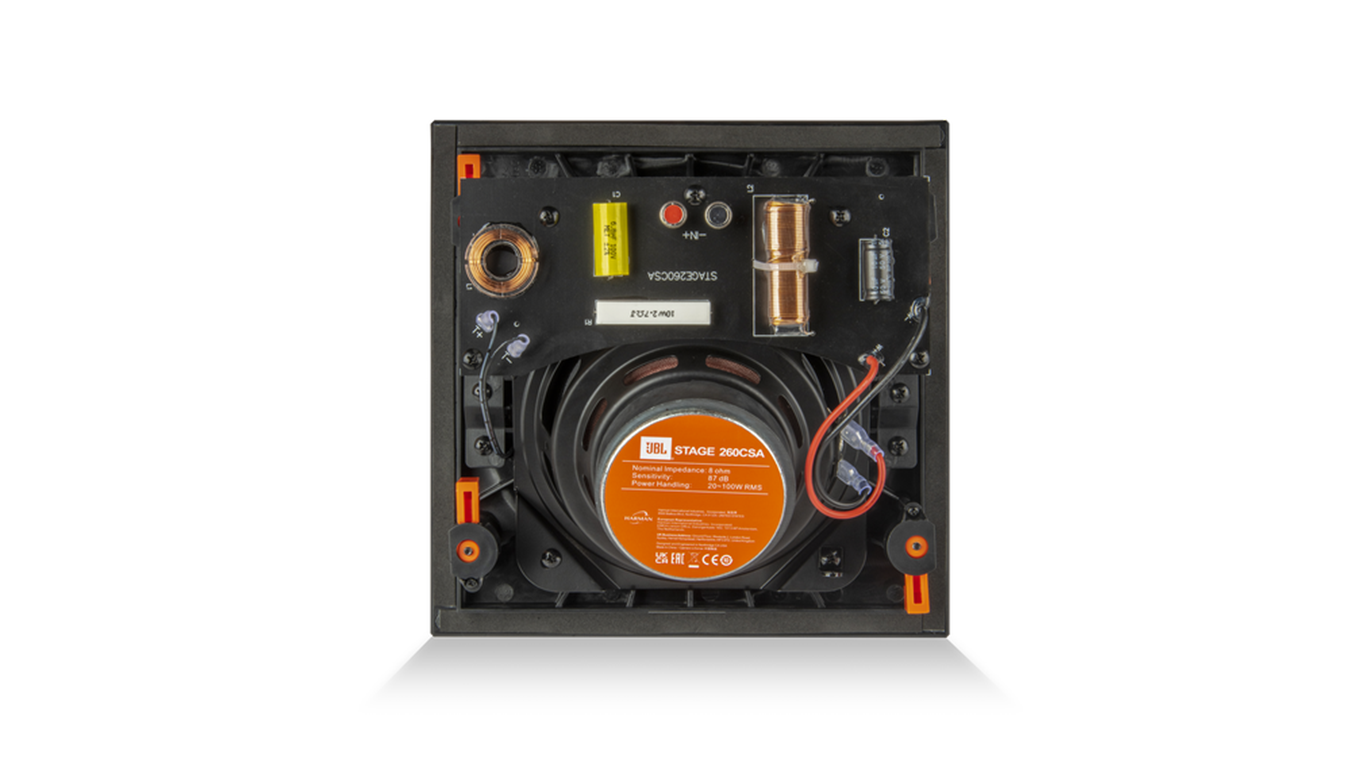

Crossover Frequency2800Hz
InputsNickel-plated spring-loaded connectors
Grille DimensionsH 9.8in (248mm) x W 9.8in (248mm)
Cutout DimensionsH 8.6in (219mm) x W 8.6in (219mm)
Mounting Depth5in (127mm)
Product Weight (Kg)2.2Kg
Shipping Carton DimensionsL 12in (306mm) x W 12in (306mm) x H 6.2in (158mm)
Shipping Carton Weight6.66lbs (3.02Kg)

Additional information

Brand

JBL

Speaker Type

In-Ceiling
