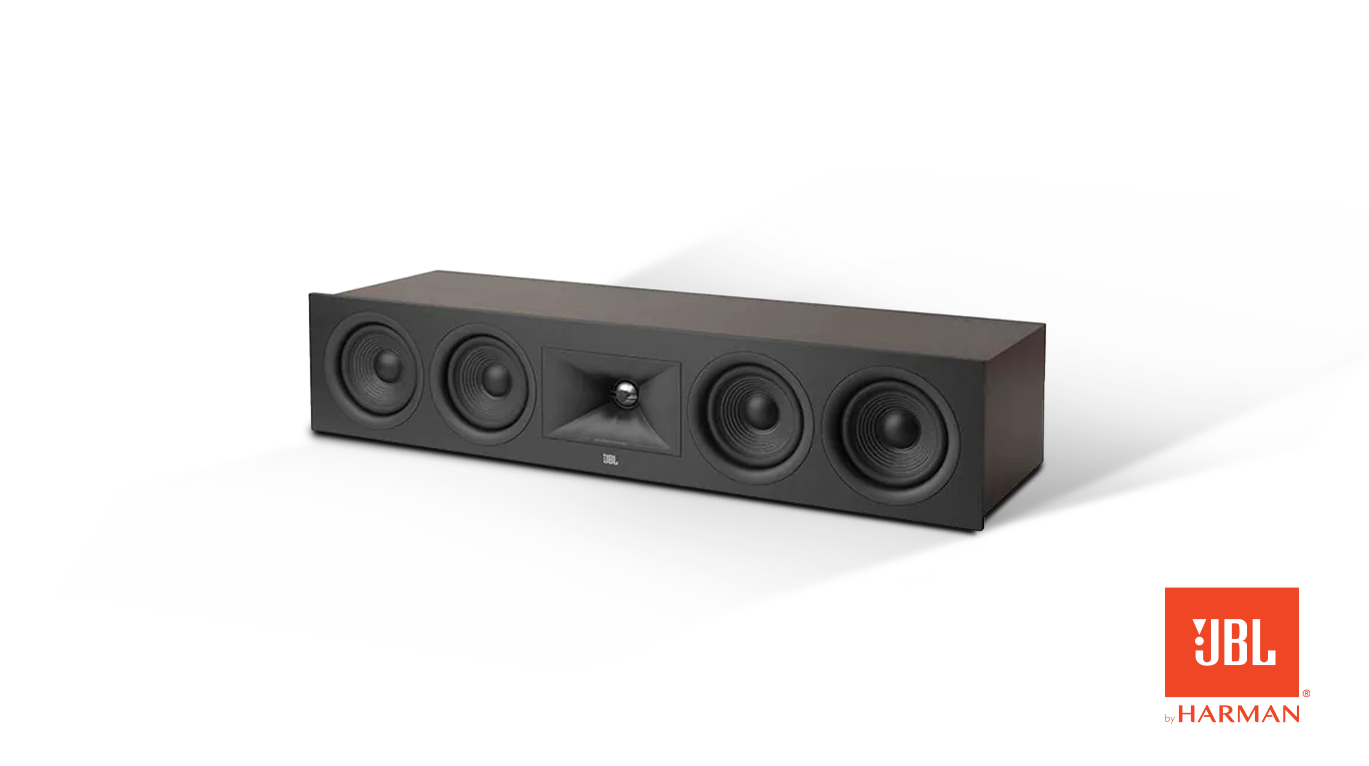

The Stage 245C centre speaker features a 2.5 way way design with Next Generation patented High Definition Imaging (HDI™) waveguide geometry, 1 inch (25mm) Anodised Aluminium dome tweeter, and quad 4.5-inch (114mm) Polycellulose cone woofers providing JBL’s signature bass.

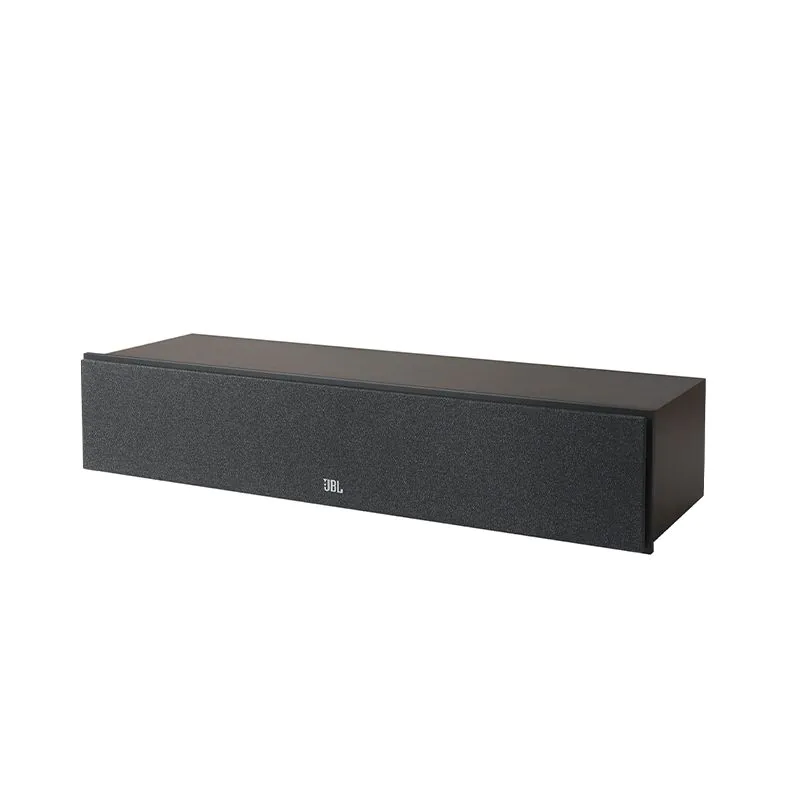

JBL Stage 245C Center Channel
€499
In stock
In stock
Description
QUAD 4.5-INCH (114MM) POLYCELLULOSE RIBBED CONE WOOFERS
Each speaker in the Stage 2 series features Polycellulose ribbed cone woofers. This pure pulp cone has a proprietary mix of other materials added to improve its rigidity and the ribs echo legendary JBL designs. These woofers produce deep, accurate, room filling bass.
1-INCH (25MM) ANODIZED ALUMINUM TWEETER IN A NEXT GENERATION HDI™ WAVEGUIDE
Through intense research of previous waveguide designs, JBL has developed a new complex geometry that improves directivity, reduced diffraction, and an overall neutral frequency response both on and off axis. The Stage 2 HDI Horn is coupled to an anodized aluminum dome tweeter to enhance efficiency and dynamics.
PRECISION 2.5-WAY CROSSOVER
The 245C center channel model features a unique two and a half-way crossover design. This unique design crosses over the top woofer right below the tweeter’s output, while the other woofer is crossed over at a lower frequency. This creates a dynamic mid-range but both woofers still extend as deep as they can go for powerful bass. This produces cohesive balanced output with a robust low end that can be both heard and felt.
Product Overview
Designed and engineered in JBLs world-famous Acoustic Engineering Centre of Excellence in Northridge, California, Stage 245C is a centre channel loudspeaker perfectly matched with the entire Stage series. This loudspeaker features a 2.5-way way design with Next Generation patented High-Definition Imaging (HDI™) waveguide geometry, 1-inch (25mm) Anodized Aluminium dome tweeter, and quad 4.5-inch (114mm) Polycellulose cone woofers that provides deep, signature JBL bass.
Key Features
• Quad 4.5-inch (114mm) Polycellulose Ribbed Cone Woofers
• Precision 2.5-Way Crossover
• Next Generation HDI™ Horn
• 1-inch (25mm) Anodized Aluminium Tweeter
• Dual Rear-Firing Tuned Ports
• 5-Way Binding Posts
Description
2.5-Way Quad 4.5-inch (114mm) Center Channel Loudspeaker
Designed and engineered at our world-famous Acoustic Engineering Center of Excellence in Northridge, California, the Stage 245C is a center channel loudspeaker and is voiced to blend seamlessly with Stage 2 floorstanding mains, bookshelf mains, or even In-wall mains. This loudspeaker features a 2.5-way way design with Next Generation patented High-Definition Imaging (HDI™) waveguide geometry, 1-inch (25mm) Anodized Aluminum dome tweeter, and quad 4.5-inch (114mm) Polycellulose ribbed cone woofers that provides deep, signature JBL bass.
| Type | Center Channel Loudpseaker System |
| Low Frequency Driver | Quad 4.5-inch (114m) Polycellulose Ribbed Cone |
| High Frequency Driver | 1-inch (25mm) Anodized Aluminum |
| Waveguide | Next Generation HDI™ |
| Recommended Amplifier Power | 20-150W |
| Frequency Response ± 6dB | 55Hz-25kHz |
| Sensitivity @ 1M, 2.83V | 91dB |
| Nominal Impedance | 6 Ohms |
| Crossover Frequencies | 1.3kHz/2.0kHz |
| Enclosure Tuning | Bass Reflex via Dual Rear-Firing Tuned Ports |
| Finish | Espresso or Latte |
| Dimensions (HxWxD) | 10.7in x 6.9in x 8.5in (272mm x 175mm x 217mm) |
| Product Weight | 26.4 lbs. (12.0kg) |
| Shipping Weight | 32.2 lbs. (14.7kg) |
| Shipping Units of Measure | Each |
Additional information
| Brand | JBL |
|---|---|
| Speaker Type | Centre Speaker |
