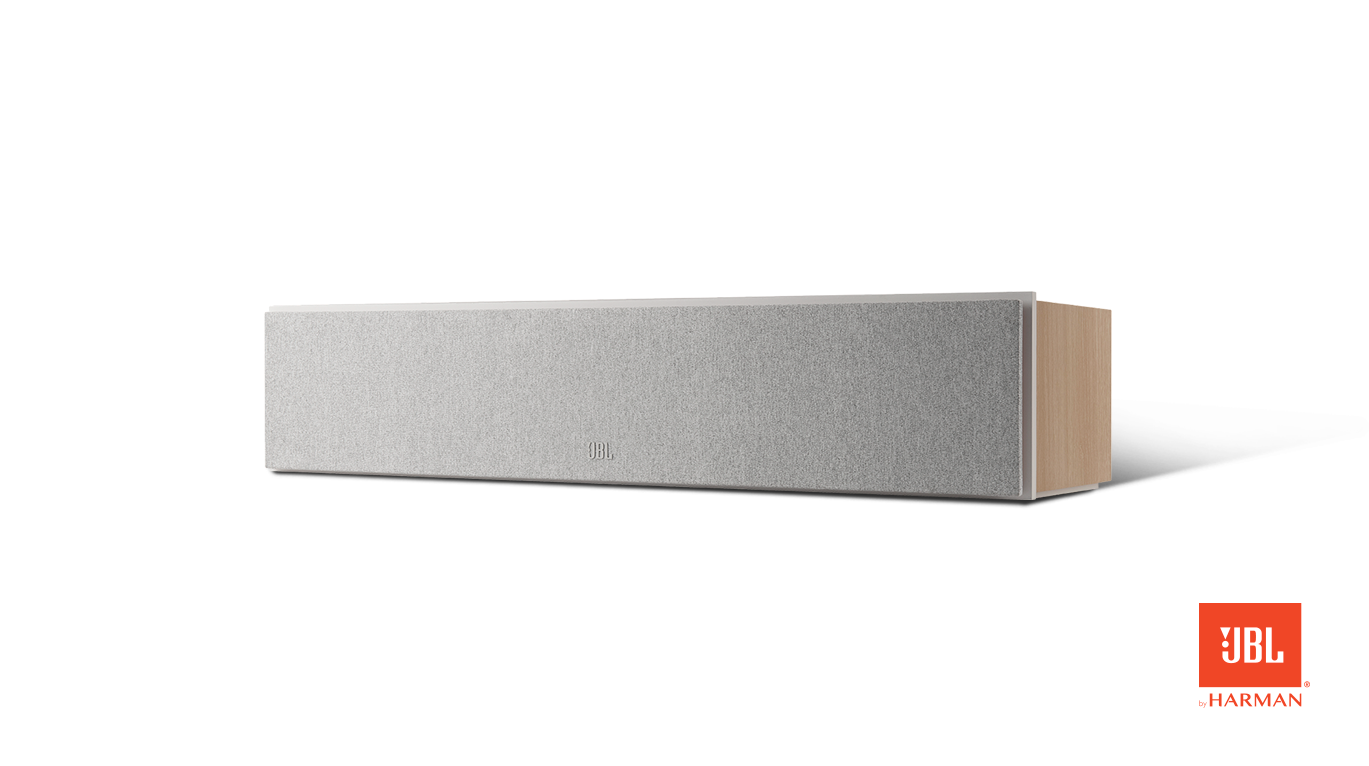

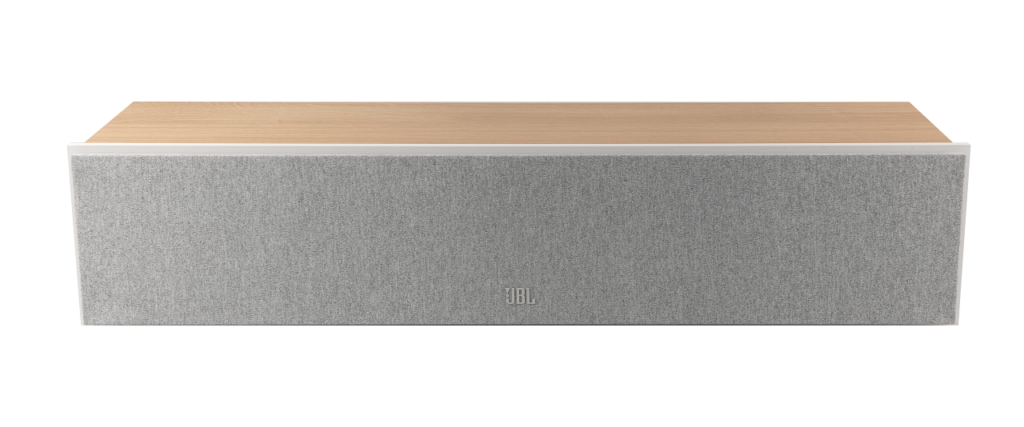

JBL Stage 245C Center Channel White

499

In stock

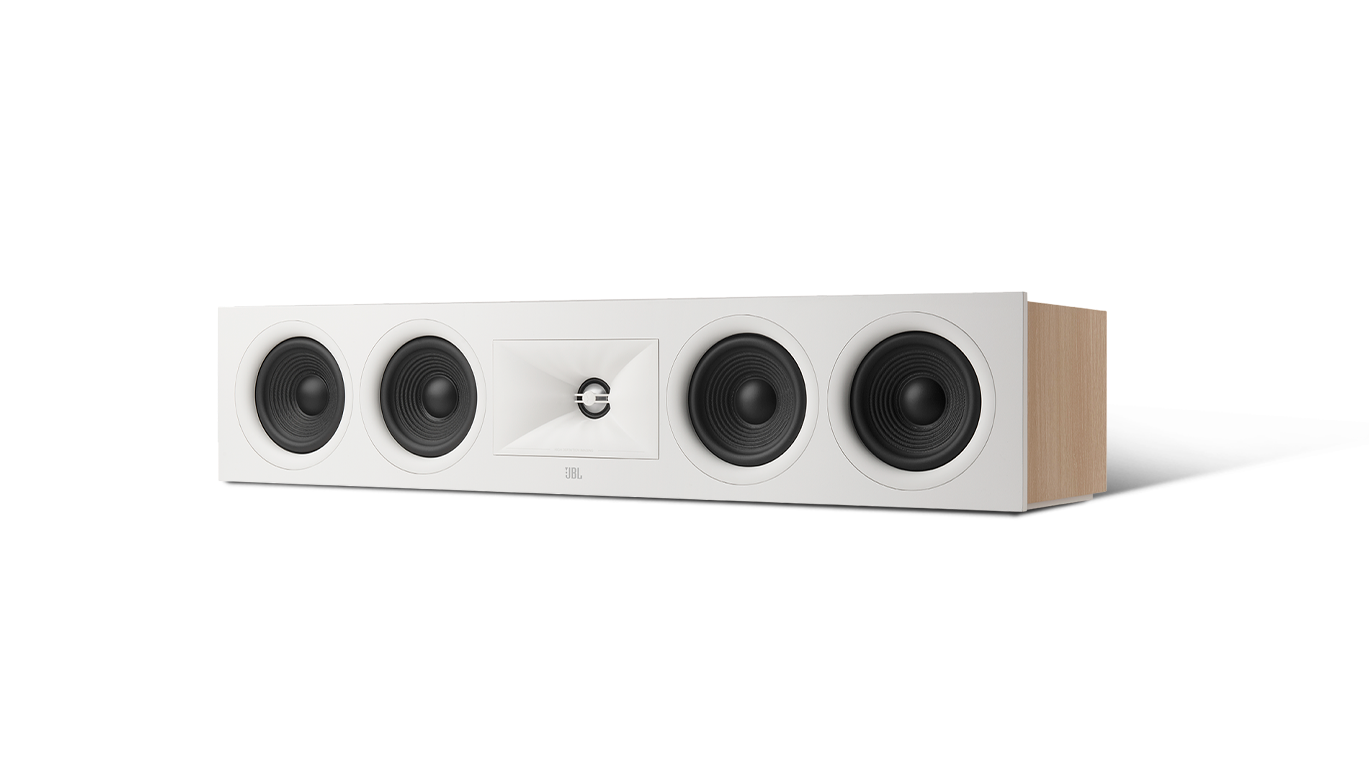

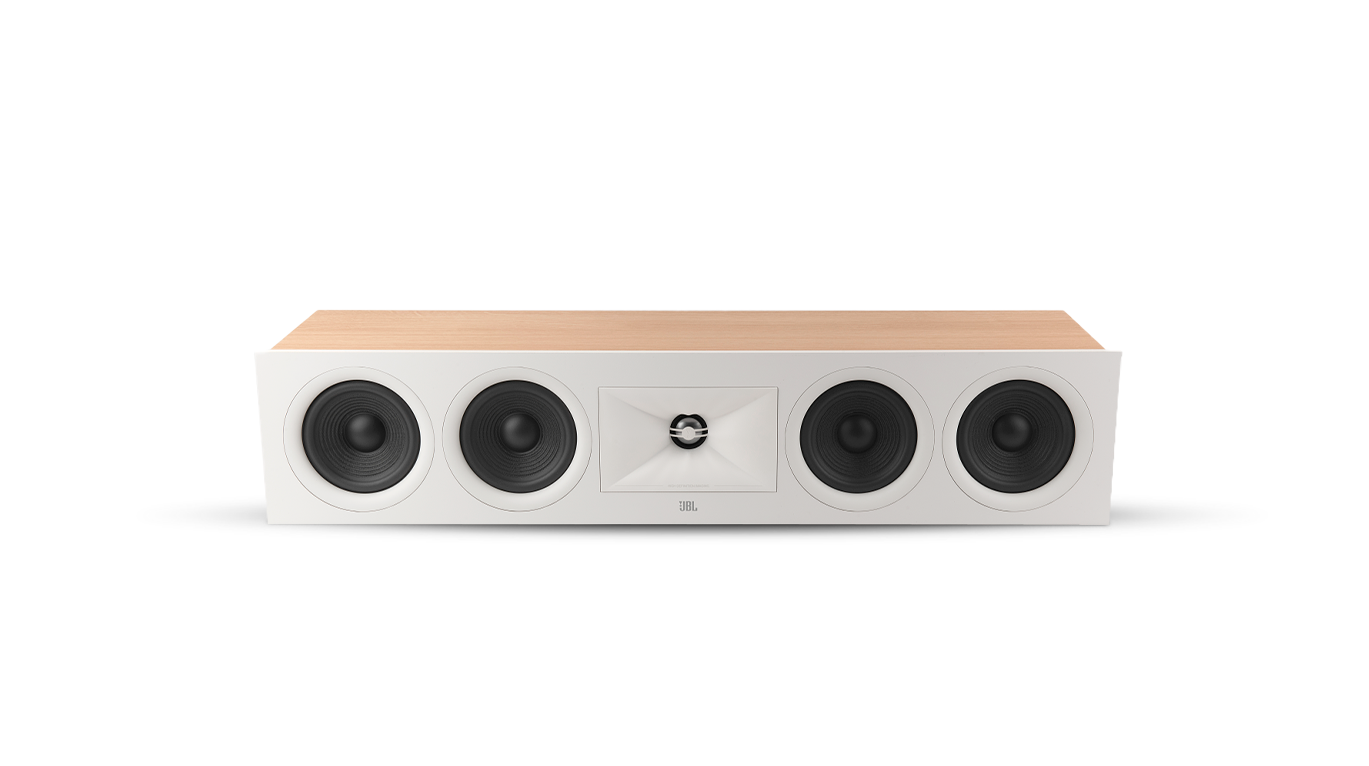

The Stage 245C centre speaker features a 2.5 way way design with Next Generation patented High Definition Imaging (HDI™) waveguide geometry, 1 inch (25mm) Anodised Aluminium dome tweeter, and quad 4.5-inch (114mm) Polycellulose cone woofers providing JBL’s signature bass.

In stock

Description

1-INCH (25MM) ANODIZED ALUMINUM TWEETER IN A NEXT GENERATION HDI™ WAVEGUIDE

Through intense research of previous waveguide designs, JBL has developed a new complex geometry that improves directivity, reduced diffraction, and an overall neutral frequency response both on and off axis. The Stage 2 HDI Horn is coupled to an anodized aluminum dome tweeter to enhance efficiency and dynamics.

PRECISION 2.5-WAY CROSSOVER

The 245C center channel model features a unique two and a half-way crossover design. This unique design crosses over the top woofer right below the tweeter’s output, while the other woofer is crossed over at a lower frequency. This creates a dynamic mid-range but both woofers still extend as deep as they can go for powerful bass. This produces cohesive balanced output with a robust low end that can be both heard and felt.

Description

2.5-Way Quad 4.5-inch (114mm) Center Channel Loudspeaker

Designed and engineered at our world-famous Acoustic Engineering Center of Excellence in Northridge, California, the Stage 245C is a center channel loudspeaker and is voiced to blend seamlessly with Stage 2 floorstanding mains, bookshelf mains, or even In-wall mains. This loudspeaker features a 2.5-way way design with Next Generation patented High-Definition Imaging (HDI™) waveguide geometry, 1-inch (25mm) Anodized Aluminum dome tweeter, and quad 4.5-inch (114mm) Polycellulose ribbed cone woofers that provides deep, signature JBL bass.

General Specifications

Type
Center Channel Loudspeaker System

Low Frequency Driver
Quad 4.5-inch (114mm) Polycellulose Ribbed Cone

High Frequency Driver
1-inch (25mm) Anodized Aluminum

Waveguide
Next Generation HDI™

Recommended Amplifier Power
20-150W

Frequency Response ± 6dB
55Hz-25kHz

Sensitivity @ 1M, 2.83V
91dB

Nominal Impedance
6 Ohms

Crossover Frequencies
1.3kHz/2.0Khz

Enclosure Tuning

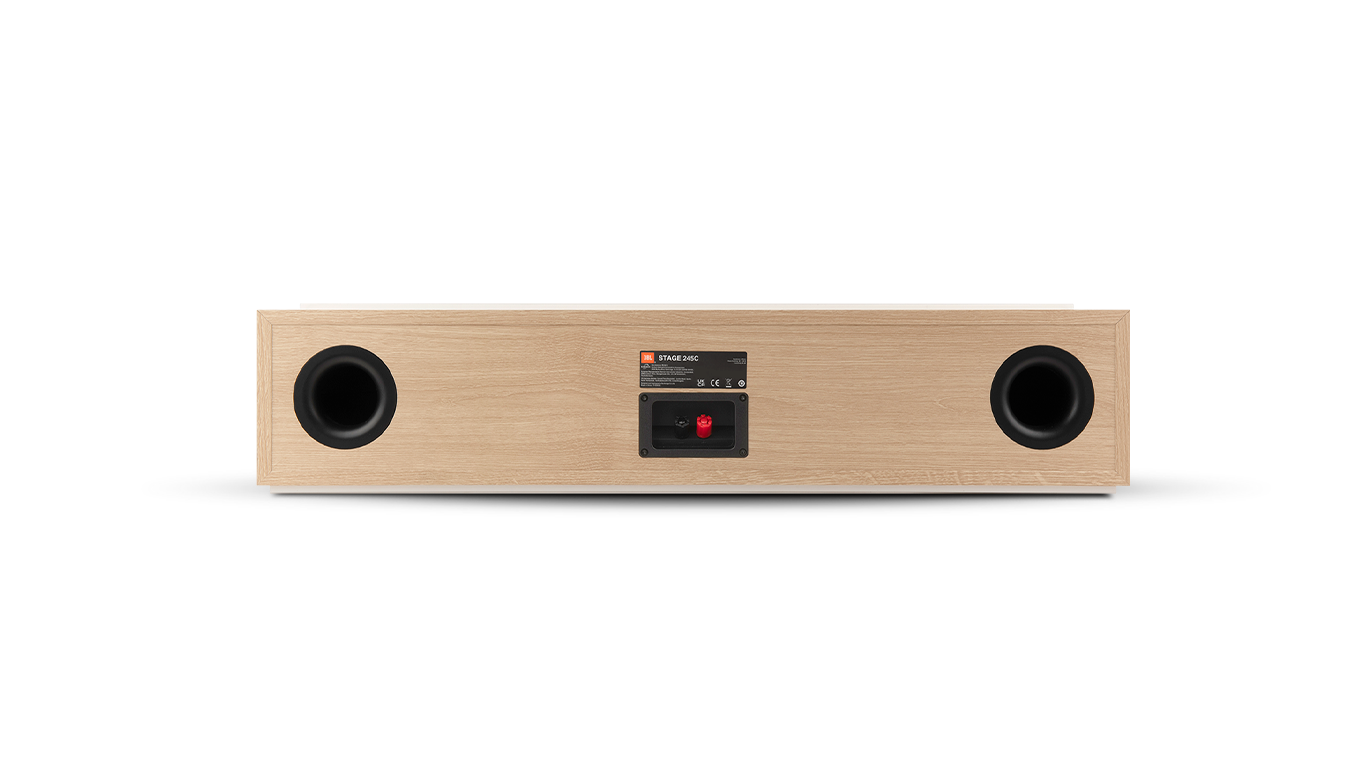

Bass Reflex via Dual Rear-Firing Tuned Ports

Finish
Espresso or Latte


Dimensions

Dimensions (HxWxD)

Weight11.3lb
10.7in x 6.9in x 8.5in (272mm x 175mm x 217mm)

Product Weight
26.4lbs. (12.0kg)

Shipping Weight
32.4lbs. (14.7kg)

Shipping Units of Measure
Each

Additional information

Brand

JBL

Speaker Type

Centre Speaker
