Price is for a pair. JBL’s Stage 240H is a compact multi-purpose loudspeaker suitable for surround or elevation channel use with the flip of a switch.

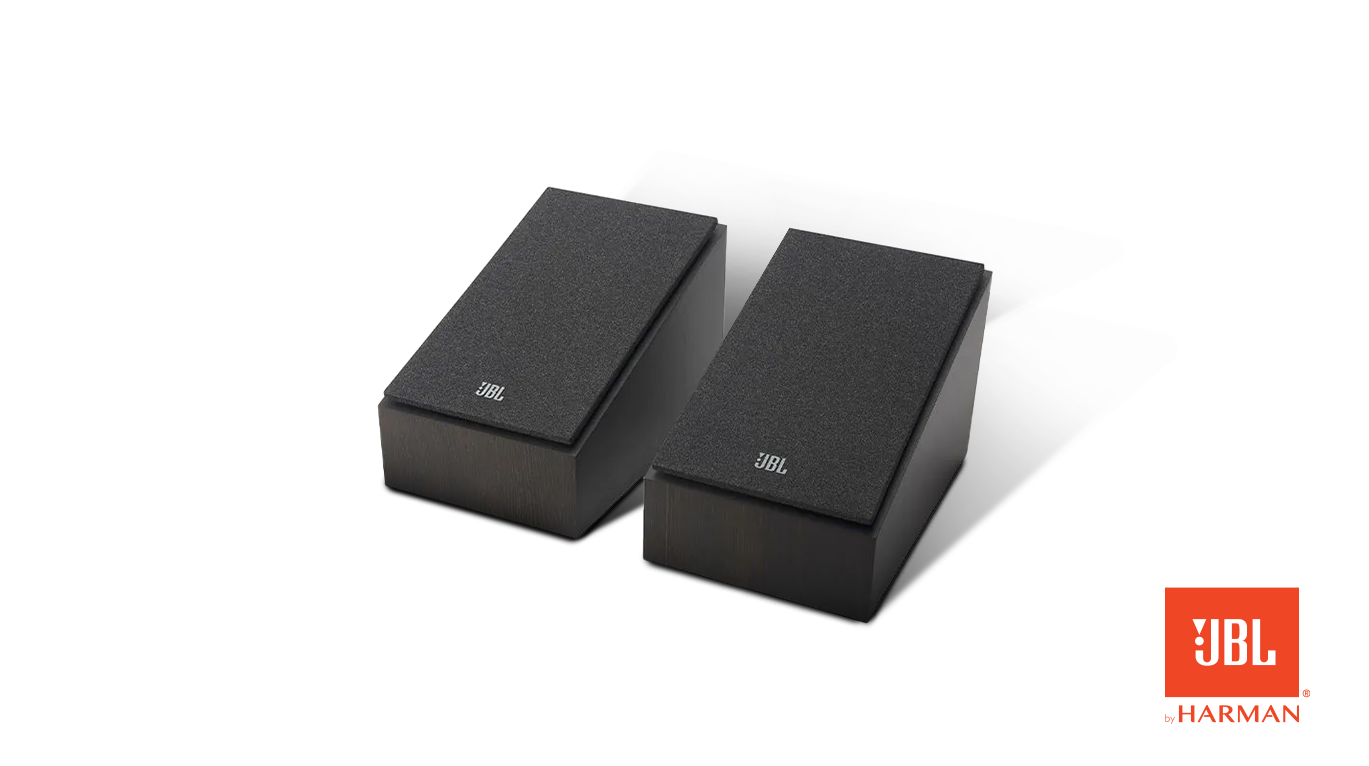

JBL Stage 240H Surround Sound speaker
Original price was: €550.€495Current price is: €495.
In stock
In stock
Description
DOLBY ATMOS® HEIGHT MODULE COMPATIBLE WITH STAGE 280F AND 260F
The 240H Dolby Atmos enabled height modules are outfitted with the same woofer and horn from the 240B bookshelf model. They are easily connected via binding posts on the top back of both floorstanding models, or surround channels that can be mounted on the wall or ceiling.
4.5-INCH (114MM) POLYCELLULOSE RIBBED CONE WOOFER
Each speaker in the Stage 2 series features Polycellulose ribbed cone woofers. This pure pulp cone has a proprietary mix of other materials added to improve its rigidity and the ribs echo legendary JBL designs. These woofers produce deep, accurate, room filling bass.
1-INCH (25MM) ANODIZED ALUMINUM TWEETER IN A NEXT GENERATION HDI™ WAVEGUIDE
Through intense research of previous waveguide designs, JBL has developed a new complex geometry that improves directivity, reduced diffraction, and an overall neutral frequency response both on and off axis. The Stage 2 HDI Horn is coupled to an anodized aluminum dome tweeter to enhance efficiency and dynamics. This new design offers a neutral frequency response both on and off axis.
Product Overview
Designed and engineered in JBLs world-famous Acoustic Engineering Centre of Excellence in Northridge, California, Stage 240H is a compact multi-purpose loudspeaker suitable for surround or elevation channel use. With the flip of a switch, it is a Dolby Atmos-enabled add-on, or a wall-mounted elevation or surround loudspeaker. The 240H features a 2-way way design with Next Generation patented High-Definition Imaging (HDI™) waveguide geometry, 1-inch (25mm) Anodized Aluminium dome tweeter, and a 4.5-inch (114mm) Polycellulose cone woofer that provides deep, signature JBL bass.
Key Features
• 4.5-inch (114mm) Polycellulose Ribbed Cone Woofer
• Precision 2-Way Crossover
• Next Generation HDI™ Horn
• 1-inch (25mm) Anodized Aluminum Tweeter
• Switchable Modes (Dolby Atmos® or Surround/Height)
• Integrated Wall Mount Bracket
• ¼-20 Insert for Aftermarket Mounts
• 5-Way Binding Posts
• Anti-Slip Pad
Description
2-Way 4.5-inch (114mm) Dolby Atmos® Surround Sound Loudspeaker
Designed and engineered at our world-famous Acoustic Engineering Center of Excellence in Northridge, California, the 240H compact multi-purpose speaker is a truly flexible Stage 2 speaker. With the flip of a switch, it can be set as a Dolby Atmos enabled add-on, or a wall mounted elevation or surround loudspeaker. The 240H features a 2-way way design with Next Generation patented High-Definition Imaging (HDI™) waveguide geometry, 1-inch (25mm) Anodized Aluminum dome tweeter, and a 4.5-inch (114mm) Polycellulose ribbed cone woofer.
| Type | Dolby Atmos® Surround Sound Loudspeaker System |
| Low Frequency Driver | 4.5-inch (114mm) Polycellulose Ribbed Cone |
| High Frequency Driver | 1-inch (25mm) Anodised Aluminium |
| Waveguide | Next Generation HDI™ |
| Recommended Amplifier Power | 20-150W |
| Frequency Response ± 6dB | 85Hz-25kHz |
| Sensitivity @ 1M, 2.83V | 87dB |
| Nominal Impedance | 6 Ohms |
| Crossover Frequencies | 1.6Khz |
| Enclosure Tuning | Sealed |
| Finish | Espresso or Latte |
| Dimensions (HxWxD) | 6.9in x 7.1in x 10.6in (176mm x 180mm x 270mm) |
| Product Weight | 7.6 lbs. (3.5 kg) |
| Shipping Weight | 18.8 lbs.(8.5kg) |
| Shipping Units of Measure | Pair |
Additional information
| Brand | JBL |
|---|---|
| Speaker Type | Dolby Atmos Speakers, Surround Speaker |
