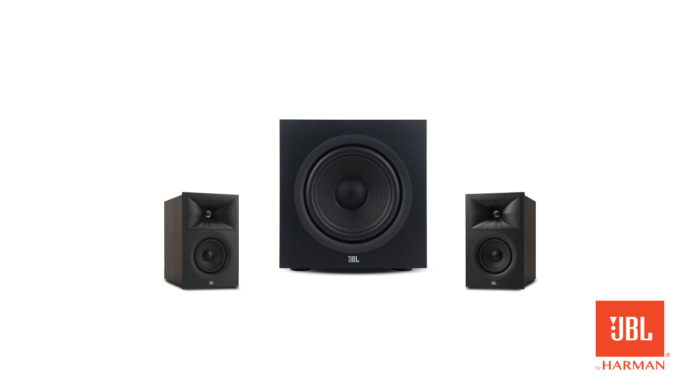

A 2.1 system that includes 2 powerful JBL Stage 240B Bookshelf speakers and a JBL Stage 200p subwoofer that delivers crisp, clear high and deep resonant bass.
Description

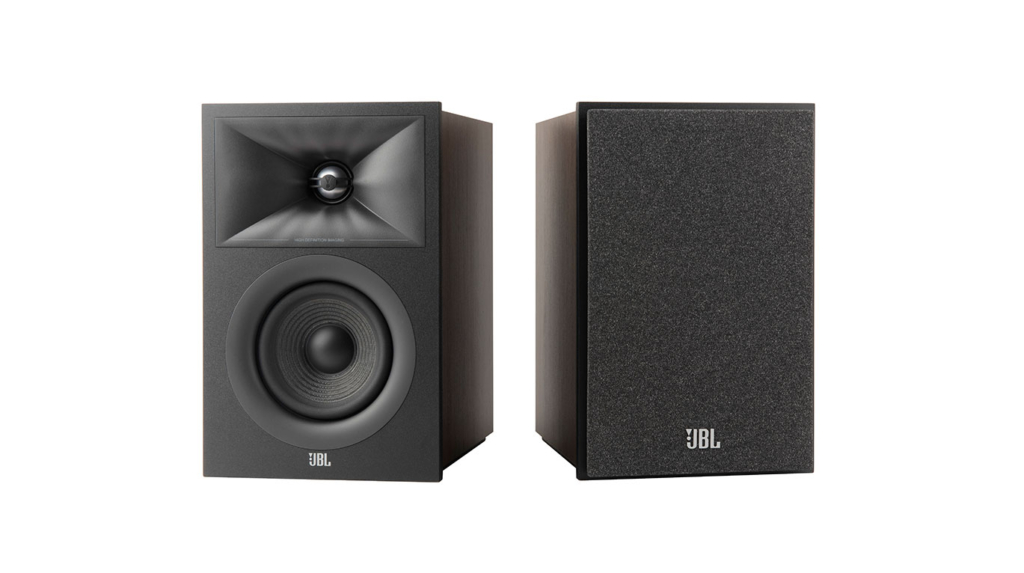

JBL Stage 240B Bookshelf Speakers
Product Overview
Designed and engineered in JBLs world-famous Acoustic Engineering Centre of Excellence in Northridge, California, Stage 240B is the smallest bookshelf loudspeaker of the new JBL Stage Series. This loudspeaker features a 2-way design with Next Generation patented High-Definition Imaging (HDI™) waveguide geometry, 1-inch (25mm) Anodized Aluminium dome tweeter, and a 4.5-inch (114mm) Polycellulose cone woofer that provides deep, signature JBL bass.
Key Features
• 4.5-inch (114mm) Polycellulose Ribbed Cone Woofer
• Precision 2-Way Crossover
• Next Generation HDI™ Horn
• 1-inch (25mm) Anodized Aluminium Tweeter
• 5-Way Binding Posts
• Integrated Wall Mount Bracket
• ¼-20 Insert for Aftermarket Mounts
• Anti-Slip Pads
| Type | Bookshelf Loudspeaker System |
| Low Frequency Driver | 4.5-inch (114mm) Polycellulose Ribbed Cone |
| High Frequency Driver | 1-inch (25mm) Anodised Aluminium |
| Waveguide | Next Generation HDI™ |
| Recommended Amplifier Power | 20-125W |
| Frequency Response ± 6dB | 53Hz-25kHz |
| Sensitivity @ 1M, 2.83V | 85dB |
| Nominal Impedance | 6 Ohms |
| Crossover Frequencies | 1.4Khz |
| Enclosure Tuning | Bass Reflex via Rear-Firing Tuned Port |
| Finish | Espresso or Latte |
| Dimensions (HxWxD) | 10.7in x 6.9in x 8.5in (272mm x 175mm x 217mm) |
| Product Weight | 10.1 lbs. (4.6 kg) |
| Shipping Weight | 22.9 lbs. (10.4kg) |
| Shipping Units of Measure | Pair |
JBL Stage 200p Subwoofer
Product Overview
Designed and engineered in JBLs world-famous Acoustic Engineering Center of Excellence in Northridge, California, Stage 200P is a 300W powered subwoofer perfectly matched with the entire Stage series. This subwoofer features a front-firing high excursion 10-inch (250mm) Polycellulose low-frequency woofer with dual rear firing tuned ports that provides deep, powerful, signature JBL bass. A full complement of controls provides for easy system integration.
Key Features
• 10-inch (250mm) Polycellulose Ribbed Cone Low-Frequency Woofer
• 150W RMS (300W Dynamic)
• Dual Rear-Firing Tuned Ports
• Crossover, Level and Phase Control
10-INCH (250MM) POLYCELLULOSE RIBBED CONE LOW-FREQUENCY WOOFER
Each speaker in the Stage 2 series features Polycellulose ribbed cone woofers. This pure pulp cone has a proprietary mix of other materials added to improve its rigidity and the ribs echo legendary JBL designs. These woofers produce deep, accurate, room filling bass.
150-WATTS RMS AMPLIFIER (300 WATTS PEAK POWER)
The built-in high-performance 300-watt amplifier provides impactful and memorable sound quality deserving of the JBL name. The 200P can be placed anywhere in the room and connects to your AVR to create a stereo or multi-channel home theater system with impactful bass and unprecedented performance.
BASS-REFLEX DESIGN WITH DUAL REAR-FIRING FLARED PORTS
The Bass-Reflex design of the 200P use dual rear-firing flared ports. This new flared design reduces the velocity of the air when exiting the speaker cabinet, eliminating any chuffing or coloration of output.
| Type | Powered Subwoofer |
| Low Frequency Driver | 10-inch Polycellulose Ribbed High Excursion |
| Amplifier Power | 150W RMS (300W Dynamic) |
| Frequency Response ± 6dB | 28Hz-150Hz |
| Crossover Frequencies | 50Hz-150Hz (variable) 24dB/octave |
| Controls | 35Hz-150Hz |
| Controls | Auto Power, Crossover, Level, Phase |
| Inputs | One (1) Line-Level LFE Input |
| Enclosure Tuning | Bass-Reflex via Dual Rear-Firing Tuned Ports |
| Power Requirements | 120V, 60Hz (US) 220-230V, 50/60Hz (EU) |
| Power Consumption | <0.5W (standby) / 205W/1.6A (max – 230V) / 205W/3.15A (max – 120V) |
| Finish | Espresso or Latte |
| Dimensions (HxWxD) | 14.2in x 13.8in x 15.2in (361mm x 350mm x 385mm) |
| Product Weight | 31.8 lbs. (14.4 kg) |
| Shipping Weight | 40.3lbs. (18.3kg) |
Additional information
| Brand | JBL |
|---|---|
| Speaker Type | Bookshelf / Wall-Mounted, Subwoofer |
