Speaker Type

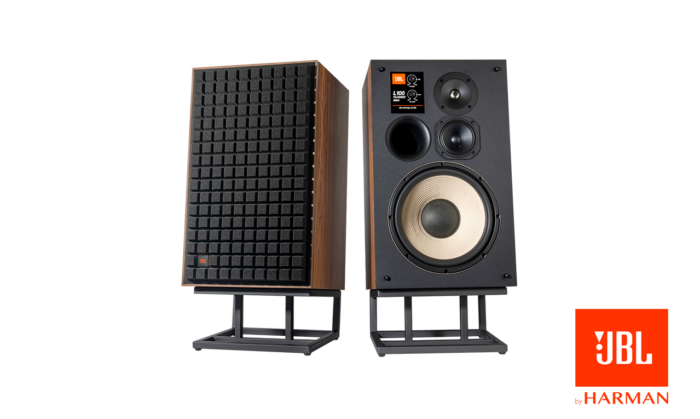

12-inch (300mm) 3-way Bookshelf Loudspeaker
Low Frequency Driver
12-inch (300mm) cast-frame Pure Pulp cone woofer with Dual Spider (JW300SW-8)
Mid Frequency Driver
5.25-inch (130mm) Polymer-coated Pure Pulp cone (JM125PC-8)
High-Frequency Driver
1-inch (25 mm) Titanium dome tweeter mated to acoustic lens and waveguide (JT025Ti2-4)
Recommended Amplifier Power
25-200 Watts RMS
Impedance
4 ohms
Sensitivity (2.83V/1m)
90dB
Frequency Response
40Hz-40kHz (-6dB)
Crossover Frequencies
450Hz, 3.5kHz
Finish
Natural Walnut veneer with Black, Orange, or Blue Quadrex Foam Grille
Dimensions With Grille (HxWxD)
25.3-inch x 15.4-inch x 14.4-inch
Controls
Attenuators for MF and HF level control
Connector Type
Dual sets of Gold-plated Binding Posts
Product Weight ea
63 lb (28.6 kg) each
Shipping Weight ea
73 lb (33.1 kg) each
Shipping Units of Measure
Single Speaker
Recommended Stand Height
7in (180mm)
Recommended Stand
JBL JS-120 or JS-150 (Sold Separately)
