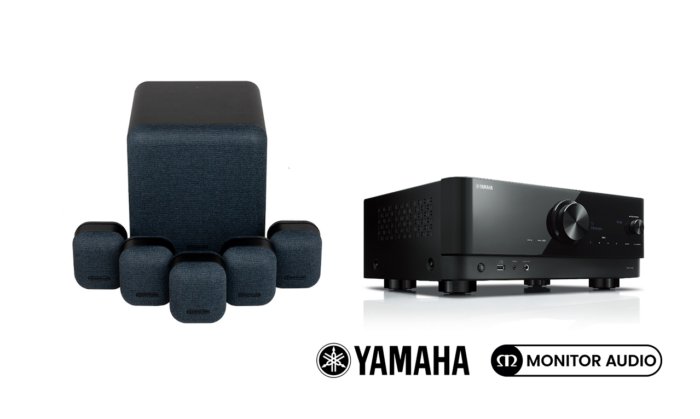

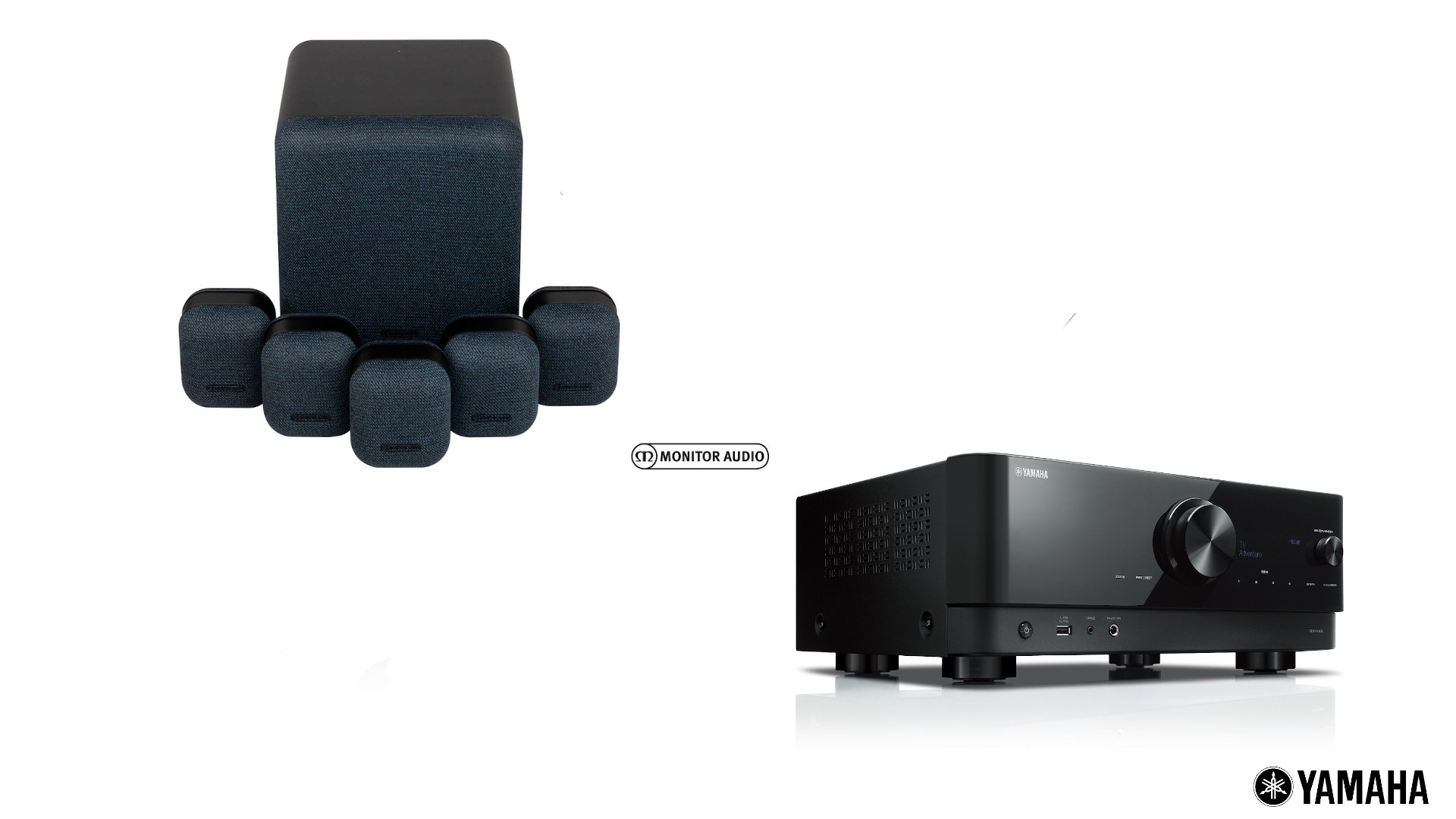

Package includes Yamaha RX-V4ABL 5.1 Channel AV Receiver & Monitor Audio Mass 5.1 speaker package in midnight blue / black
Home Cinema Package – Monitor Audio Mass 5.1 – Midnight Blue / Black + Yamaha RX-V4ABL
Designed to deliver full-scale audio fidelity from compact, stylish speakers and a discreet subwoofer, MASS combines all Monitor Audio’s award-winning expertise with sophisticated looks. The result is a new level of performance for music, gaming and movie sound alike.
MASS is quick and easy to set up and delivers genuinely enthralling surround sound excitement in a compact design, making any room feel like a state-of-the-art concert hall or cinema. Music lovers, movie fans and gamers will all revel MASS’s ability to put them in the middle of the action, bringing incredible levels of immersion to their favourite songs, films and games. All the clarity, all the drama, all the 360-degree thrills – and a new acoustic experience – are there to be enjoyed.
Hollywood knows its soundtracks are just as big a part of the cinema experience as its pictures – and, thanks to MASS, you can enjoy your own full-on home cinema surround sound experience without breaking the bank or compromising the look of your room. Despite its size, MASS is capable of dynamic, room-filling sound with all the punch and drive the biggest Hollywood blockbusters demand. With perfect clarity to build the tension in quieter scenes, hair-raising attack when the going gets explosive, and incredible effects placement to keep you at the heart of the story, MASS brings you the authentic cinema experience.
If you want to properly immerse yourself in your gaming experience, there’s no better way than MASS to put you right in the thick of the action. Gaming is hugely enhanced by accurate placement of effects, seamless panning right around the 360-degree soundfield and, thanks to the Subwoofer, incredible low-frequency presence. No matter if your favourite games rely on the roar of the crowd, the rattle of the guns or the tension-packed near-silence of a spooky alien planet, MASS gives you more of what you need. Enjoy every gaming scenario like never before and take your experience to an entirely different level.
Whether you like to listen in stereo or prefer a multi-channel mix, MASS has the talent to bring your favourite music to life. Thanks to the beautifully engineered integration between the Satellites and the Subwoofer, MASS is a thrilling listen from the deepest bass notes to the crispest treble. Incredible stereo imaging puts your favourite singer on the centre of the stage, while the combination of MMP II driver technology and soft dome tweeter in each Satellite gives each instrument extraordinarily faithful and convincing tonality. Fast, controlled and, above all, deep bass from the Subwoofer makes MASS as powerful and punchy a listen as it is subtle and detailed. It’s the speaker system your music has been waiting for.
Two-way, sealed cabinet, tuned for wide dispersion and optimal integration with MASS Subwoofer Rigid, braced and fibre-reinforced cabinet Custom-weave cloth finish, unique to Monitor Audio Compact design, with point-source acoustic alignment for precise audio focus and response 31/2″ (89 mm) Mid-Bass driver featuring; – MMP II (Metal Matrix Polymer) cone technology – Advanced FEA simulation used to optimise the cone & motor unit performance 3/4″ (19 mm) soft dome tweeter with thermal protection Integrated stand-mount point and wall bracket (compatible with MASM bracket) Rear cover concealing binding posts
Compact, sealed enclosure with braced 15 mm MDF construction and rigid 18 mm MDF baffle Custom-weave cloth finish grille 8″ (203 mm) long-throw driver with MMP II cone 120 W Class-D amplification for efficient, powerful performance Digital Sound Processing DSP providing accurate filter characteristics Advanced limiters guarantee controlled, authentic sound 3 pre-set modes (‘Music’, ‘Movie’, ‘Impact’) for superlative acoustics

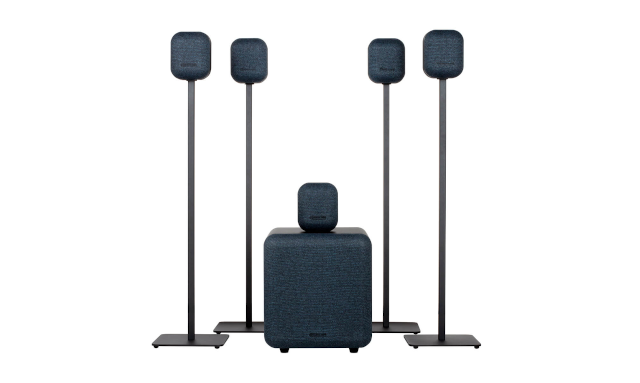

MASS Stand (Optional)
The new MASS stand is designed to reinforce the contemporary look of the MASS range and enable the MASS Satellite to perform at the perfect height. It features a precision-cut steel base and pole, an integrated bracket to allow easy speaker attachment, and a cable management system to conceal the speaker cable. .

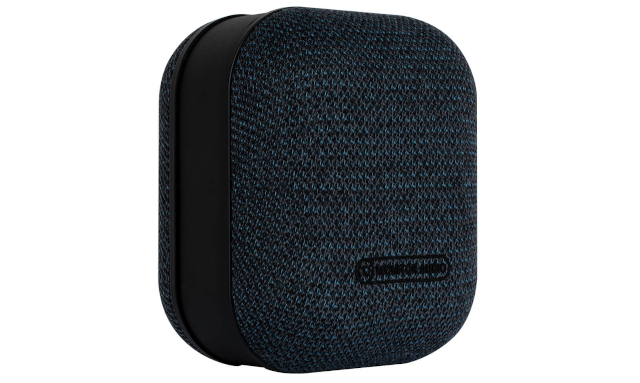

System Format 2-Way
Frequency Response (-6 dB) 105 – 34,000 Hz
Sensitivity (1W@1M) 80 dB
Nominal Impedance 8 ohms
Minimum Impedance 4.4 ohms @ 300 Hz
Maximum SPL 98 dB (Pair)
Power Handling (RMS) 30 W
Power Handling (RMS) With Amplifier Crossover (150 Hz) 70 W
Recommended Amplifier Requirements 25 – 100 W
Bass Alignment Sealed Enclosure
Crossover Frequency 3.0 kHz
Drive Unit Complement 1 x 31/2″ (89 mm)
MMP II Mid-Bass Driver 1 x 3/4″ (19 mm)
Soft Dome Tweeter
External Dimensions (Including Grille and Terminals (H x W x D)) 147 x 122 x 107 mm (513/16 x 413/16 x 43/16″)
Weight (each) 1.12 kg (2 lb 8 oz)
Sold As Single Unit

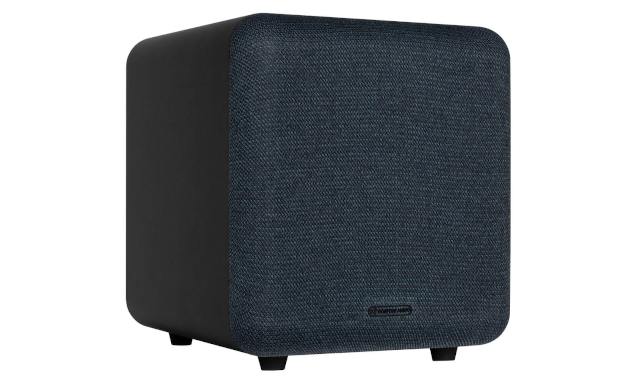

System Format Sealed cabinet, 15 mm MDF construction with 18 mm base and front baffle Internally braced with sealed amplifier compartment
Lower Frequency Limit -3 dB @ 35 Hz / -10 dB @ 30 Hz (Free Field)
Default preset: Music, -3 dB @ 34 Hz / -10 dB @ 25 Hz (In Room)
Upper Frequency Limit -6 dB @ 150 Hz
Drive Unit Complement 1 x 8″ (200 mm)
MMP II subwoofer driver featuring a 2″ long throw voice coil
Linear Driver Excursion 15 mm Peak to Peak
Amplifier Output 120 W
Amplifier Classification Class D with high current Switch mode power supply (SMPSU)
Phase Control 0 Degrees & 180 Degree pure Invert
Low Pass Filter Alignment 2nd order (12 dB/Octave), from 50 Hz to 150 Hz
Auto Sensing Input Requirements Line Level >3 mV
Auto Standby feature after 20 minutes
Audio Input/Outputs LFE unbalanced input RCA Stereo unbalanced inputs RCA
Connection 12 V
Trigger in (3.5 mm mono mini-jack, 4v threshold)
Electrical Certifications CE / CB/ ETL / Fcc / CCC/ ErP (Energy saving compliant)
Mains Input Voltage 100 – 240 Vac, 50/60 Hz
Power Consumption Maximum 130 W, Standby <0.5 W (ErP compliance)
Fuse Type 20 mm T8AL 250VAC
External Dimensions (Including Amp, Drivers and Terminals (H x W x D)) 340 x 320 x 350 mm (133/8 x 125/8 x 133/4″)
External Dimensions (Including Amp, Drivers, Terminals and Feet (H x W x D)) 359 x 320 x 350 mm (141/8 x 125/8 x 133/4″)
Weight (unpacked) 10.2 kg (22 lb 8 oz)
Enter the world of home theatre with the V4A. This AV receiver will completely transform how you listen and watch at home. Plus, plenty of features means plenty of choices on how to enjoy your entertainment.
V4A – 5.2 ch AV receiver with CINEMA DSP 3D, HDMI™ 4-in/1-out, wireless surround. 5.2 Channel powerful surround sound Wi-Fi, Bluetooth®, AirPlay 2, Spotify Connect and MusicCast multi-room audio Dedicated gaming function(ALLM,VRR,QMS,QFT) via FW update Voice control with Alexa and Google Assistant devices. *Availability varies by region MusicCast Surround capable – add MusicCast 20 or MusicCast 50 speakers to create wireless surround sound HD Audio with CINEMA DSP 3D YPAO™ sound optimisation
CINEMA DSP 3D – Incorporates extensive sound field data from world famous concert halls and music clubs to reproduce big theatre acoustics within the walls of your home.
Music Enhancer – Restores compressed audio so it sounds the way it was intended to be heard.
High Slew Rate Amplifier – Responds to rapid changes in input level for precise and stable signal transmission.
MOVIES AND GAMES LIKE NEVER BEFORE
HDR10+* – Provides deeper contrast and more realistic images that stay true to the creators’ intent.
4K/120Hz* – Enables a higher refresh rate, giving you a smoother and more realistic viewing experience.
Gaming-dedicated Functions (ALLM,VRR,QMS,QFT)* – Ensures seamless motion and transitions to enhance your performance.
HDMI Multiple Input with Latest Technology* – Multiple HDMI input will equally support the latest HDMI technology to allow next-gen gaming consoles can be connected at the same time.
*These functions are available via future update.
SIMPLE TO SET UP, SIMPLE TO USE
MusicCast App – Explore the power of multi-room audio, access your sources and streaming devices, and control your AV receiver, all through your smartphone.
AV Setup Guide App – Offers expert guidance through installation, cable connections, and various other settings.
Voice Control Systems – Works with Alexa and Google Assistant, so your AV receiver is always at your command. Through AirPlay 2, you can stream your music via voice control operation Siri from Apple iOS device. *Availability varies by region.
MADE FOR YOUR ROOM
YPAO™ – Analyzes room acoustics and calibrates audio accordingly to optimize the sound for your space.
Compatible with Wireless Rear Speaker – Gives you the freedom to arrange your rear speakers wirelessly to suit your home décor.
Impressive Design – An iconic design built for performance, style, and ease.
Immerse Yourself in the Sound
CINEMA DSP 3D
This unique Yamaha proprietary sound field creation technology, was created by combining measured sound field data with digital signal processing. Yamaha collected sound field data from famous concert halls and music clubs around the world, utilising its wealth of experience in the fields of concert hall design, public address and mixing. By digitizing that vast trove of information and incorporating it into dedicated LSI devices, it effectively reproduces the spaces of those concert halls on home equipment. Immerse yourself in the astounding realism of your movies, and enter a world of profound theatre sound.
Advantage of High Slew Rate Amplifier
It would contribute a precise signal transmission, especially suitable for high resolution audio signal. Generally high slew rate amplifier causes unstable signal transmission, Yamaha’s newly design circuit achieves high slew rate with stable signal transmission.
Compressed Music Enhancer
When music is encoded into a digitally compressed format like MP3, the frequency response suffers. Yamaha’s Compressed Music Enhancer employs sophisticated digital signal processing using exclusive algorithms to restore what was lost, so the music always sounds the way it should.
HDR10+ signals not only dynamic range (the ratio of light to dark) of video content on a scene-by-scene (or even frame-by-frame) basis, it also provides, in a small amount of metadata, the scene characteristics between bright and dark so that important detail can remain. This enables displays to reproduce images more realistically, adhering to the creator’s intent. *This function is available via future update.
4K/120Hz enables ultra-fast motion UHD images to be crisp and razor sharp; allowing high-performance gaming, sport and action movies to benefit significantly. *This function is available via future update.
Enhanced gaming and media features ensure an added level of smooth and seamless motion and transitions for gaming, movies and video. They include: Auto Low Latency Mode (ALLM) allows enables the ideal latency setting to automatically be set allowing for smooth, lag-free and uninterrupted viewing and interactivity. Variable Refresh Rate (VRR) reduces or eliminates lag, stutter and frame tearing for more fluid and detailed gameplay. Quick Media Switching (QMS) for movies and video eliminates the delay that can result in blank frames before content is displayed. Quick Frame Transport (QFT) reduces latency for smoother no-lag gaming, and real-time interactive virtual reality. *This function is available via future update.
AV Setup Guide App for Initial Setup
No worries, no confusion. Use this special app to receive expert set up assistance for your AV receiver and source devices. It even guides you through various other settings such as speaker connections, TV and source device connections and power amplifier assignments.
Easy Operation by MusicCast App
Use your smartphone or tablet together with the MusicCast CONTROLLER app to operate the AVR and change settings quickly and easily. The same Controller app functions as a remote control for all your MusicCast-compatible devices as well as full multi-room audio controls.
Voice Control (Alexa, Google Assistant)
Touch or voice control – the choice is yours. Intuitively control a single MusicCast product or an entire whole-of-home system with ease using Alexa or Google Assistant and hear your home come alive. *Availability of voice command control via Amazon Alexa and Google Assistant varies by region. *A third party device is required to initiate voice commands.
YPAO (Yamaha Parametric room Acoustic Optimizer) analyses the room acoustics and your system, then precisely adjusts various audio parameters to provide the best sound for your room. Simply by placing the supplied microphone at your listening position and switching YPAO on, the system is automatically calibrated for optimum performance in your home theatre room.
Compatible with Wireless Rear Speaker
Combine this AV receiver with the MusicCast 50 or MusicCast 20 wireless streaming speaker and enjoy the amazing convenience of creating a home theater with wireless surround sound. What’s more, you get stunningly realistic sound with a clean, clutter-free setup. Easily turn your current living room into a special entertainment environment where you can fully enjoy movies and music.
Impressive and Powerful Design Concept
Yamaha’s bold streamlined chassis emanates the key aspects of Home Entertainment Control. The iconic design with refined aggression focuses on performance and seamless accessibility. A harmony that exudes elegance, function and supremacy in construction.
SCENE Buttons with the Ability to Preset Songs and Stations
There are four SCENE buttons. You can preset them for different inputs, as well as a sound field program, Music Enhancer, HDMI output and more. The inputs can be set to specific sources, such as an FM or Internet radio station, a station on a streaming service, a USB device or a song on a PC or NAS (network). Once you have set the buttons, simply press one on the main unit or the remote control to power on the receiver and hear your desired music. The buttons can be re-set at any time.
Multi-room Audio – MusicCast
Imagine sharing all the music you love throughout the home – no matter the format. From your favourite vinyl to AirPlay®, Bluetooth® to music streaming services* and even sound from your TV, MusicCast has it covered. Additionally, all MusicCast products are designed with sound quality at the front of mind. High-res formats including Apple Lossless (ALAC) up to 96 kHz, WAV, FLAC and AIFF up to 192 kHz are supported. *Music streaming service availability varies by region.
“Hey Siri. Play music in the kitchen and living room.” AirPlay 2 adds the ability to stream Apple Music and other streaming services to multiple MusicCast devices throughout your home. Easily control it from your iPhone or iPad, link it with a HomePod, or simply utilize voice control and ask Siri fto assist.
Explore a world of music with music streaming services* built-in. Synchronizing your playlists and tracks from your smart phone or computer to the AV receiver, music streaming services make it impossibly easy to either listen to your favorites or discover new music. *Music streaming service availability varies by region.
Unlock the full potential of your 4K content. Enhanced Audio Return Channel (also known as eARC) is the next generation of ARC – available in the industry-leading AV receivers from Yamaha. eARC delivers full-resolution, multi-channel audio formats such as Dolby® TrueHD and DTS-HD® through your existing HDMI connection, giving you the most realistic surround sound experience for immersing yourself in your favorite movies and moments.
Rated Output Power (1kHz, 1ch driven) 115 W (6 ohms, 0.9% THD)
Rated Output Power (20Hz-20kHz, 2ch driven) 80 W (6 ohms, 0.06% THD)
Maximum Effective Output Power (1kHz, 1ch driven) 145 W (6 ohms, 10% THD)
High Slew Rate Amplifier Yes
Surround Sound Processing
CINEMA DSP Yes
DSP Programs 17
Dialog Level Adjustment Yes
Virtual Presence Speaker Yes
Virtual Surround Back Speaker N/A
Dialogue Lift N/A
SILENT CINEMA / Virtual CINEMA DSP Yes
Dolby Atmos N/A
Dolby Atmos Height Virturalizer N/A
Dolby TrueHD Yes
Dolby Digital Plus Yes
Dolby Surround N/A
DTS-HD Master Audio Yes
File Format MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC: up to 192 kHz / 24-bit, WAV / AIFF: up to 192 kHz / 32-bit, DSD: up to 11.2 MHz
Pure Direct Yes
Compressed Music Enhancer Yes
High-resolution Music Enhancer N/A
YPAO multi-point measurement N/A
YPAO Volume N/A
Adaptive DRC (Dynamic Range Control) Yes
Initial Volume & Maximum Volume Setting Yes
A.R.T. Wedge N/A
Bi-amp capability Yes
Audio Delay Yes (0-500 ms)
DA Converter 384 kHz / 32-bit BB PCM5101A
HDMI eARC Yes
HDMI Audio Return Channel Yes
HDMI Pass-through 8K60B, 4K120AB (via future update)
HDMI Up-scaling Yes up to 4k
HDMI Up-conversion N/A
Dolby Vision Yes
HDR 10+VRR/ALLM/QMS/QFT Yes (via future update)
Video adjustment Yes (via future update)
MusicCast Surround Yes
HDMI Input/Output 4/1
HDMI CEC Yes
USB Input Yes
Network Port Yes
Wi-Fi Yes (2.4 / 5 GHz)
AirPlay 2 Yes
Bluetooth Yes (SBC/AAC)
Front AV Input USB
Digital Audio Input/Output: 1/0
OpticalDigital Audio Input/Output: 1/0
CoaxialAnalog Audio Input/Output 3/0
Phono Input N/A
XLR Terminal N/A
Component Video Input/Output N/A
Composite Video Input/Output N/A
Headphone Output 1
FM/AM Tuner Yes (Availability varies by region.)
DAB Tuner Yes (Availability varies by region.)
On-screen display Graphical User Interface
SCENE Yes (4 sets)
App Control Yes (iPhone / iPad / Android phone / tablet)
Web Browser Control N/A
Remote Control Unit Yes
Standby Power Consumption (IR only) 0.1W
Auto Power Standby Yes
ECO mode Yes
Dimensions (W x H x D) 435 W x 171H x 377D mm (with antenna up:435 W x 245 H x 377 D mm);17-1/8″W x 6-3/4″H x 14-7/8″D (with antenna up:17-1/8″W x 9-5/8″H x 14-7/8″D)
Weight 8.8 kg; 19.4 lbs.
Monitor Audio, Yamaha
Bluetooth, Optical, HDMI, Sub Pre-Out, Network Port, DAB+, Headphone Out, FM
