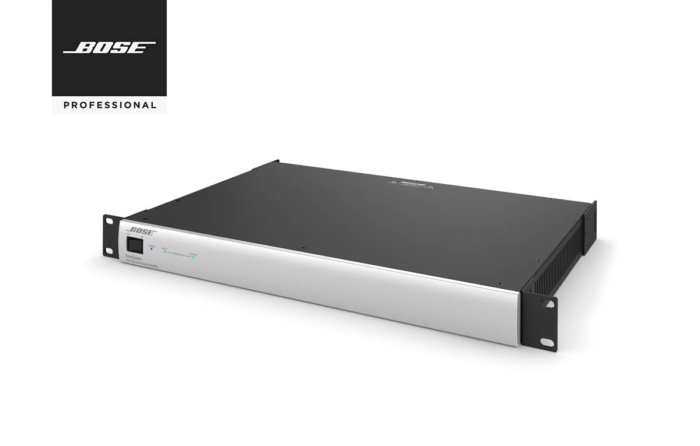

The Bose® FreeSpace® ZA 2120-LZA zone amplifier is designed to provide basic amplification and sound system expansion when using front-end Bose products.
Reliable 2 x 120 W Class-D amplification optimized for low-impedance applications
Description

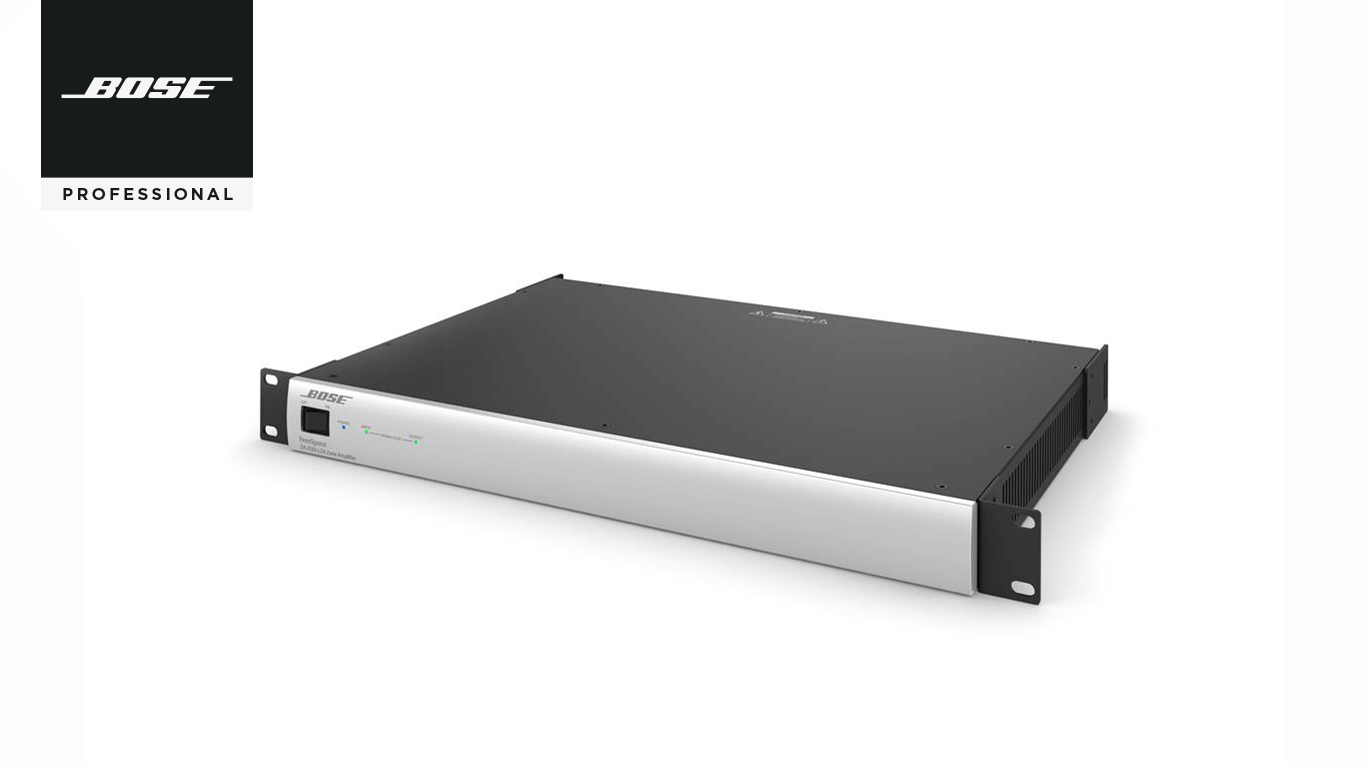

Bose FreeSpace ZA 2120-LZA Zone Amplifier – Doneo Malta
The Bose® FreeSpace® ZA 2120-LZA zone amplifier is designed to provide basic amplification and sound system expansion when using front-end Bose products such as FreeSpace® integrated zone amplifiers and ControlSpace® engineered sound processors. With the inclusion of AmpLink, up to 8 digital audio channels can be sent to the amp from a Bose DSP via a shielded CAT 5 cable.
Features
AmpLink transports up to 8 uncompressed, near zero latency, digital audio channels between Bose DSPs and the ZA 2120-LZA via shielded CAT 5 cable. The amp also supports a THRU path for daisy-chaining digital audio to other Bose AmpLink products at a distance of up to 10 m between products
Remote option for volume control eliminates the need for bulky, inefficient, and sound-altering in-line volume controls
Expansion-ready connectivity with FreeSpace® IZA amplifiers and ControlSpace® engineered sound processors when additional sources and loudspeaker processing is required
Intuitive feature setup enables the amplifier to be configured without a PC for input, output and automatic standby options
Auto-Standby feature allows the amplifier to consume less power when not in use
Remote muting allows the amplifier to be muted via a centralized control system
Applications
- Retail stores
- Restaurants and bars
- Hospitality venues
- Conference centers
- Schools
- Auxiliary zones
Specs
Technical Summary
THD+N
≤ 0.5 % (at rated power)
Amplifier Power
2 x 120 W @ 4 Ω, 2 x 60 W @ 8 Ω
Frequency Response
20 Hz – 20 kHz (+0/–3 dB, @ 1 W reference 1 kHz)
Dynamic Range
88 dB
Input Channels
Analog: 1 unbalanced, 1 balanced
AmpLink: 8 digital
Additional information
| Brand | Bose |
|---|---|
| Amplifier Connectivity | Multiroom |
