Fonestar WA-4100 USB/SD/MP3 wall amplifier

319

In stock

Fonestar 100w RMS wall power amplifier with USB/SD/MP3 player

In stock

SKU: WA4100  Category: Tag:

Description

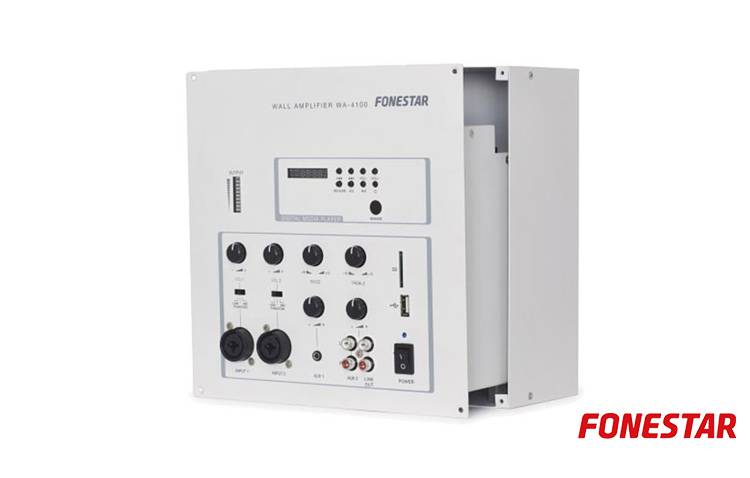

Fonestar WA-4100 100w RMS wall amplifier with USB/SD/MP3 player

Wall amplifier for surface or flush mounting.  Surface box to make installation and connection easier with Class D amplifier circuit.  This Amplifier has switched power supply source plus USB/SD player for MP3 files.  Comes also with remote control for MP3 player.

  • POWER 150 W maximum, 100 W RMS
  • RESPONSE Microphones: 80-15,000 Hz, Aux: 45-18,000 Hz
  • DISTORTION Harmonic: <1% at 1 kHz
  • INPUTS 2 balanced mics./lines, combo (XLR and 6.3 mm jack), 600 Ω 3 mV and 47,000 Ω 100 mV, switchable 1 stereo aux, 3.5 mm jack, 47,000 Ω 300 mV 1 stereo aux, 2 x RCA, 47,000 Ω 300 mV
  • OUTPUTS 1 line out, 2 x RCA, 1 V
  • FUNCTIONS USB/SD/MP3 player for memory of up to 16 GB
  • LED indicators for the output signal level
  • CONTROLS FOR TONE Bass: ±10 dB at 100 Hz Treble: ±10 dB at 10,000 Hz Volume: inputs 1 and 2, aux 1 and 2 and USB/SD/MP3 player
  • PHANTOM 15 V
  • IMPEDANCE 4 to 16 Ω, 2 parallel outputs, screw terminals and banana plugs
  • POWER SUPPLY 230/115 V AC, 180 W maximum
  • COLOUR White (RAL 9002)
  • DIMENSIONS Total: 237 x 239 x 102 mm depth Insert: 215 x 182 x 91 mm depth
  • WEIGHT 3.4 kg

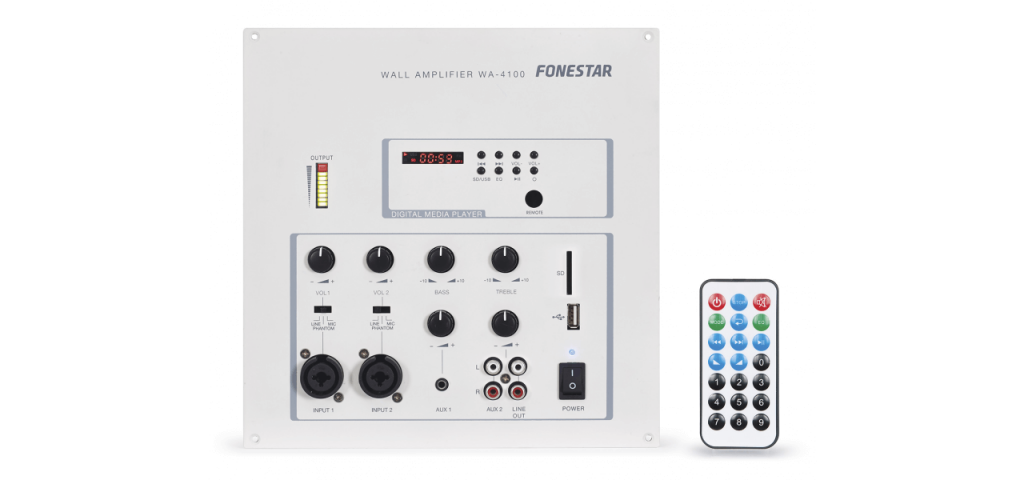

WA4100

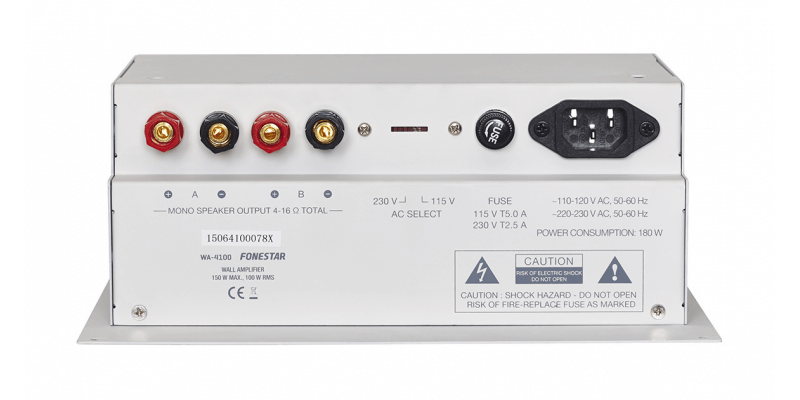

WA4100 BACK

Additional information

Brand

Fonestar

Prod-Type

Amplifiers
