A sound reinforcement speaker equipped with a 100 V line transformer and low impedance. Leveraging our profound expertise in the sound industry, FONESTAR introduces SONORA.

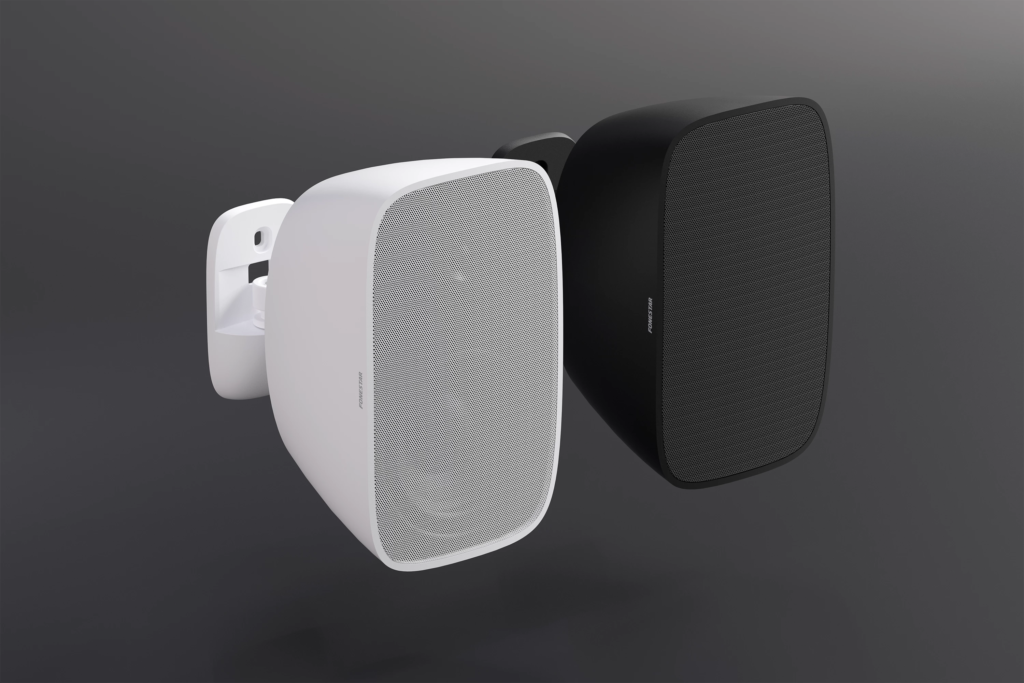

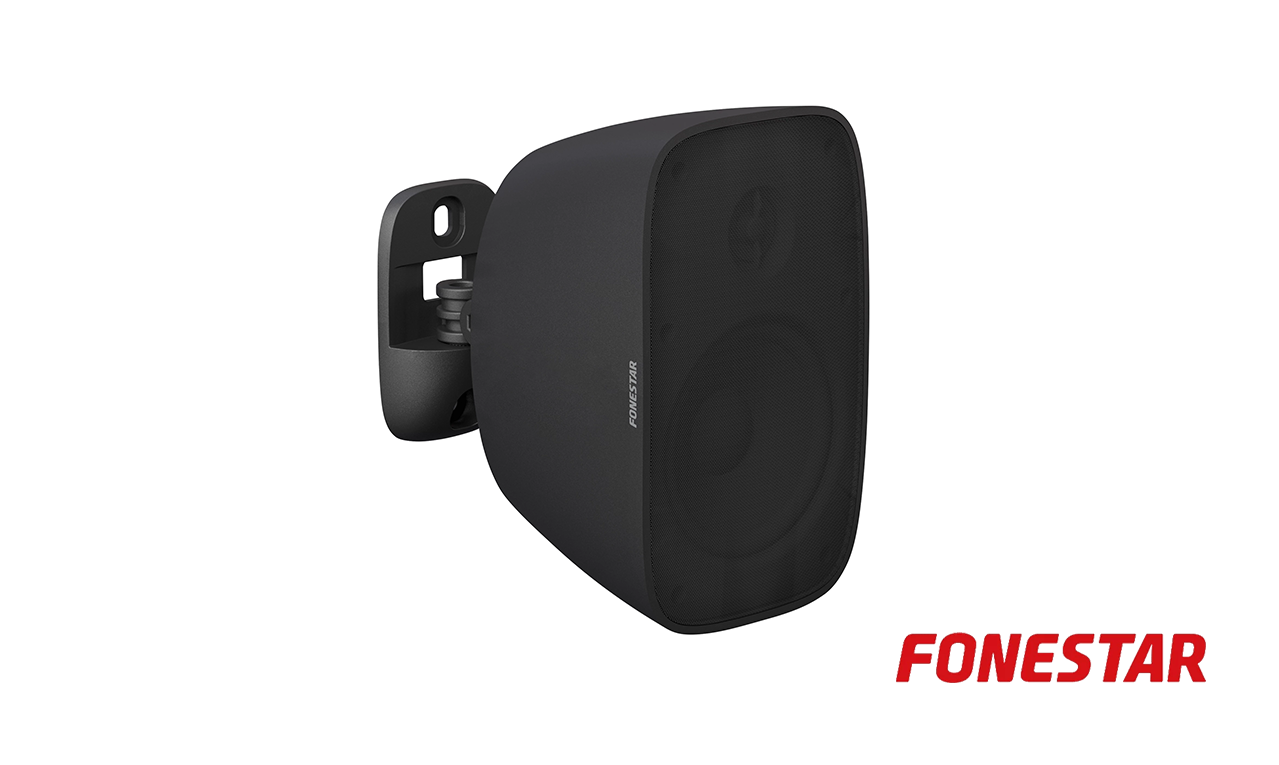

Fonestar Sonora 6TN 100V Surface Speaker
€129
In stock
In stock
Description
✅ Crisp, distortion-free sound
✅ Excellent finish and elegant design
✅ IP-66 protection and salt fog
✅ Quick and easy installation
HOSTELRY
EDUCATION
HOTELS
ALL SECTORS
Sound reinforcement loudspeaker with 100 V line transformer and low impedance.
Based on our extensive experience in the sound sector, FONESTAR has created SONORA.
SONORA is a series of speakers specially designed for PA, musical, and background sound applications.
Its excellent finish and elegant design allow perfect integration in any space.
They are fully prepared for outdoor use as they feature an aluminum grille and protection against water (IP-66) and marine environments.
Besides, SONORA delivers high sound quality with clear, distortion-free sound.
They include all the necessary accessories for easy and quick installation: weatherproofed adjustable fixing mount, stainless steel screws, and steel safety cable.
For public address and ambient sound applications in public places such as restaurants, cafés, supermarkets, shopping centers, etc.
| FEATURES: | Low impedance loudspeaker with 100 V line transformer. Suitable for outdoor use, waterproof and rustproof materials. |
| POWER: | 100 W max., 60 W RMS |
| SPEAKERS: | 1 x 6″ polypropylene woofer 1 x 1″ tweeter |
| RESPONSE: | 75-20,000 Hz |
| IMPEDANCE: | 60 W RMS@100 V (165 Ω) 30 W RMS@100 V (330 Ω) 15 W RMS@100 V (660 Ω) 7.5 W RMS@100 V (1,320 Ω) Low Z: 8 Ω |
| SENSITIVITY: | 84 dB @ 1 W/1 m |
| MAXIMUM SOUND PRESSURE: | 98 dB @ max. W/1 m |
| COVERAGE ANGLE: | H/V: 150º/150º @500Hz, 150º/120º@1kHz, 100º/50º@2kHz, 175º/175º@4kHz (-6 dB) |
| PROTECTIONS: | IP-66 in compliance with EN 60529 IEC 60068-2-11 Enviromental Test (Salt mist) |
| MATERIAL: | ABS Aluminium mesh grille Weather-resistant mount Stainless steel screws |
| SWITCH: | W selector in high Z and low Z |
| CONNECTORS: | Euroblock input and output for cable cross-section 0.25 – 2.5 mm². |
| TMEPERATURE RANGE: | -10ºC ~ 60ºC |
| COLOUR: | Black (RAL 9005) |
| DIMENSIONS: | Loudspeaker: 199 x 322 x 181 mm depth Mount wall plate: 102 x 165 mm Loudspeaker with mount: 284 mm depth |
| WEIGHT: | 3 kg |
| ACCESSORIES: | Adjustable mounting bracket ± 60º in all directions. Steel safety cable |
DOCUMENTATION
Additional information
| Brand | Fonestar |
|---|---|
| Speaker Type | Surface mount, 100 Volt |
