Fonestar SONORA-4TB PA loudspeaker, designed for PA and background sound applications. The excellent finish and elegant design allow for perfect integration into any space.

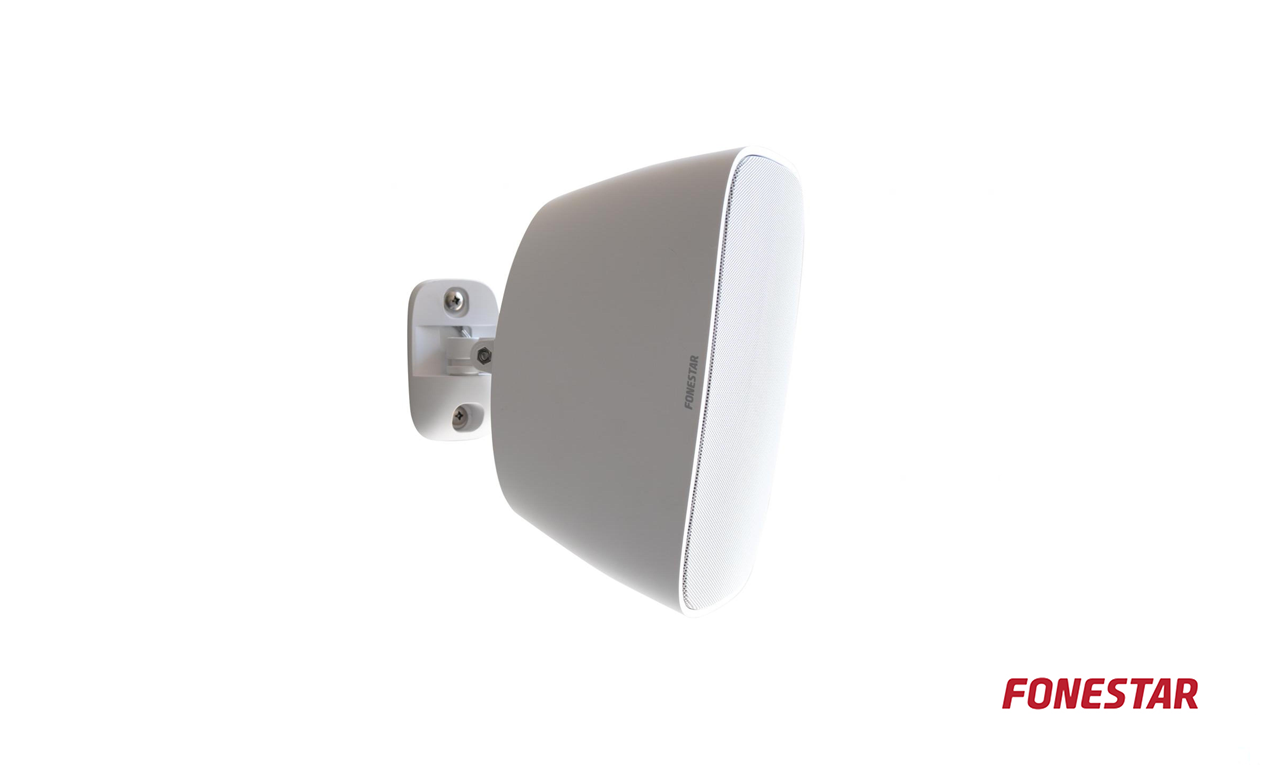

Fonestar SONORA-4TB PA loudspeaker – White

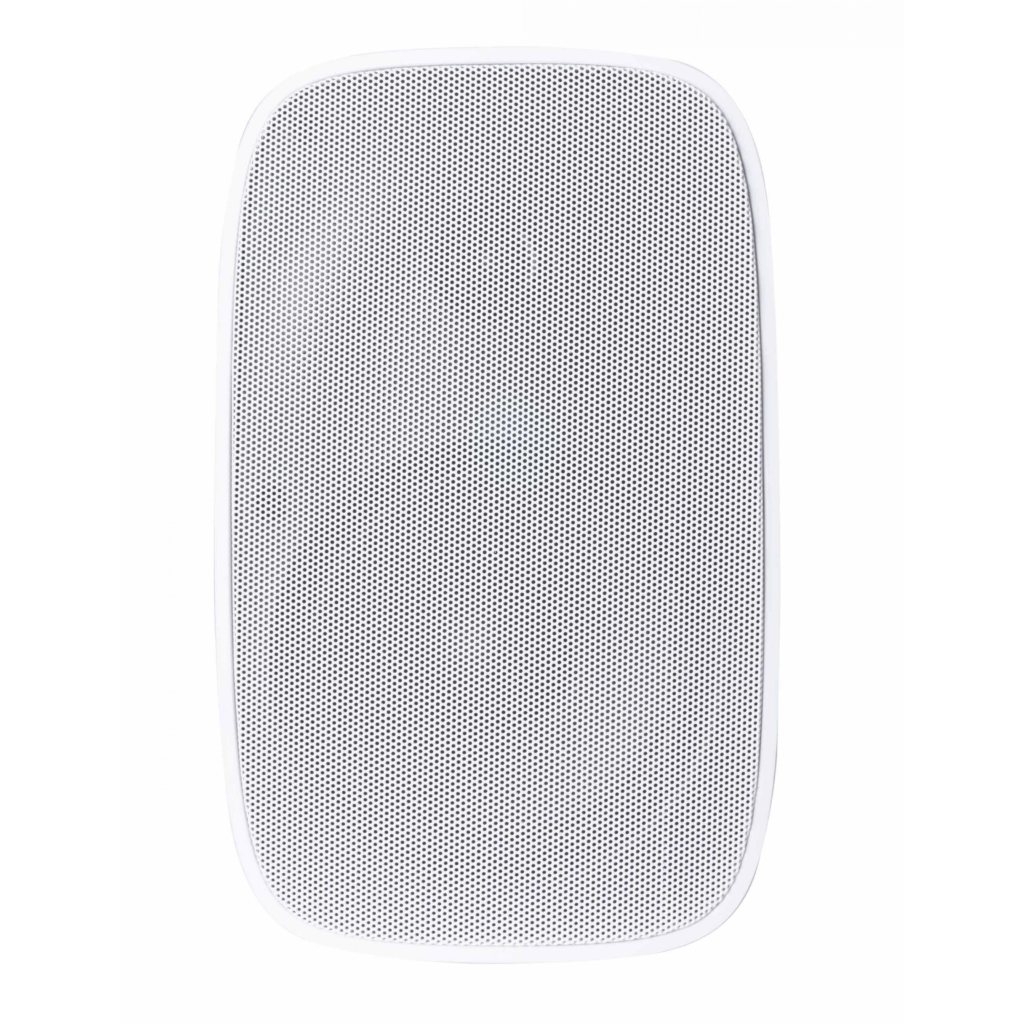

Based on our extensive experience in the sound sector, FONESTAR has created SONORA. SONORA is a series of loudspeakers especially designed for PA and background sound applications. The excellent finish and elegant design allow for perfect integration into any space. These speakers are fully suited for outdoor use as they have an aluminium grille and protection against water (IP-66) and marine environments. In addition, SONORA provides excellent sound quality with crystal-clear, distortion-free sound. All the necessary accessories for quick and easy installation are included: an adjustable mounting bracket with weather treatment, stainless steel screws, and a steel safety cable. APPLICATIONS For PA and background sound applications in public places such as restaurants, cafes, supermarkets, shopping malls, etc. TECHNICAL DATA 30/15/7.5/3.75 W RMS@100 V and low Z: 8 Ω Loudspeakers 1 x 4” polypropylene woofer 1 x 1″ tweeter Response 120-20,000 Hz Sensitivity 84 dB at 1 W/1 m Protection IP-66
Low-impedance loudspeaker with 100 V line transformer.
Prepared for outdoor use, waterproof and rustproof materials.
60 W max., 30 W RMS
1 x 4″ polypropylene woofer
1 x 1” tweeter
30 W RMS@100 V (333 Ω)
15 W RMS@100 V (667 Ω)
7.5 W RMS@100 V (1,333 Ω)
3.75 W RMS@100 V (2,667 Ω)
Low Z: 8 Ω
84 dB @ 1 W/1 m
73 dB @ 1 W/4 m
MAXIMUM SOUND PRESSURE
98 dB @ max. W/1 m
87 dB @ max. W/4 m
270º@500Hz, 130º@1kHz, 85º@2kHz, 70º@4kHz (-6 dB)
IEC 60068-2-11 Environmental test (Salt mist)
Mount with weathering treatment
Stainless steel screws

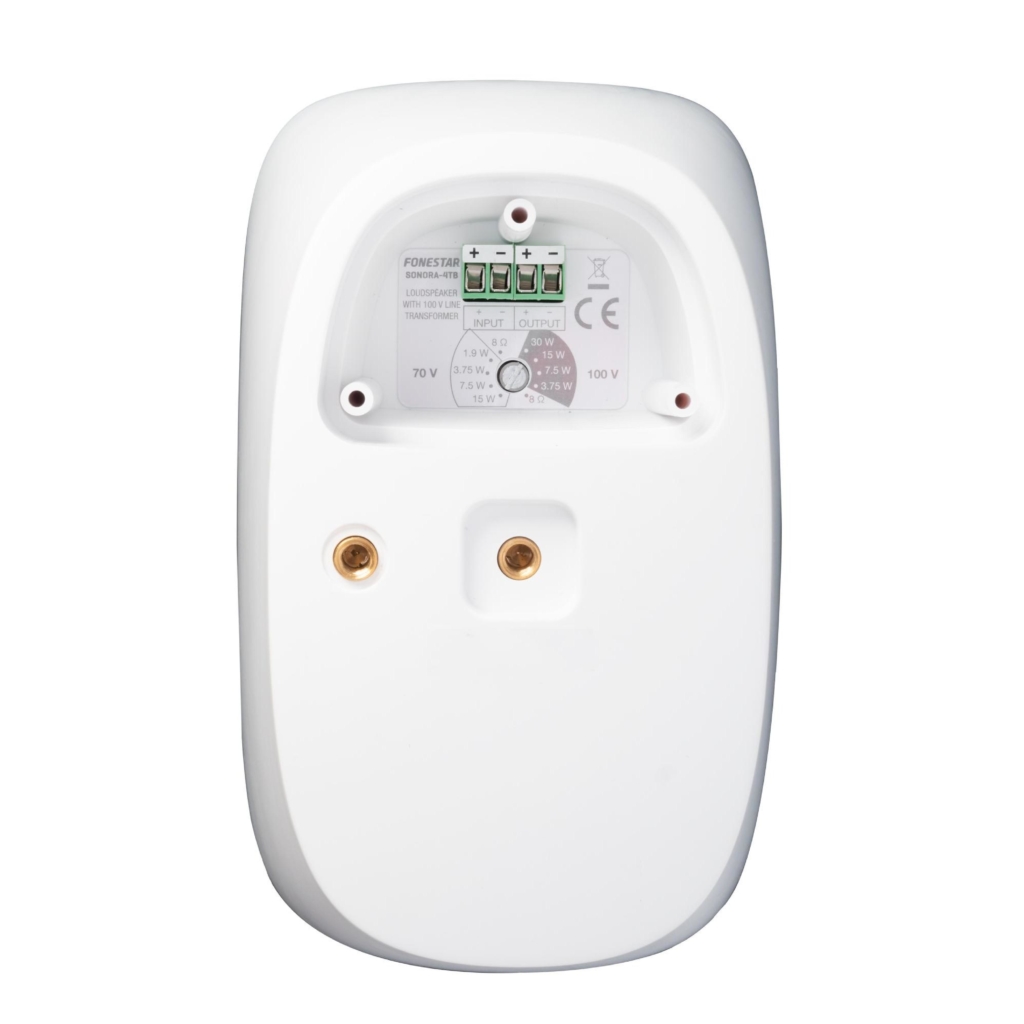

W selector in high Z and low Z
Euroblock for cable 0.25 – 2.5 mm2 cross-section
-10ºC to 60ºC
125 x 202 x 125 mm depth

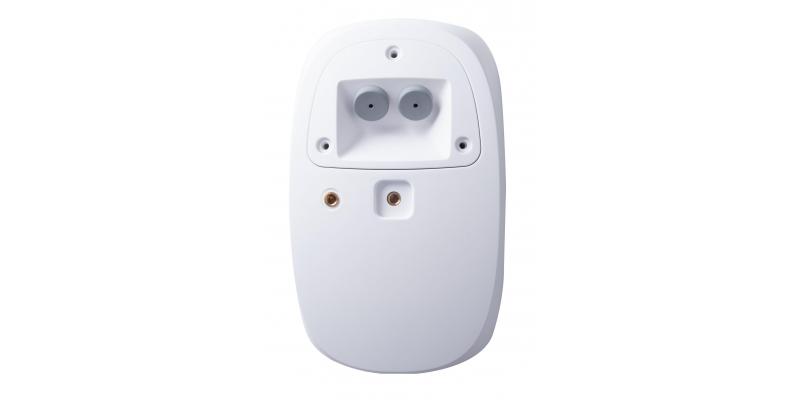

Adjustable mounting bracket ± 60º in all directions.
Steel safety cable
