Top sound tool, reliable, 100V/low impedance. Versatile player: Bluetooth, FM, USB. Auto-play. 2 zones, adjustable volume. User-friendly, sleek. Fits budget. Secure, durable, low maintenance. Ideal for PA, commercial music.
FONESTAR PROX-60Z PA AMP
€399
In stock
In stock
Description
✅ Output zones with volume control and Off
✅ Bluetooth/USB/FM player
✅ High performance, low maintenance
SPORTS FACILITIES
ALL SECTORS
EDUCATION
FACTORIES

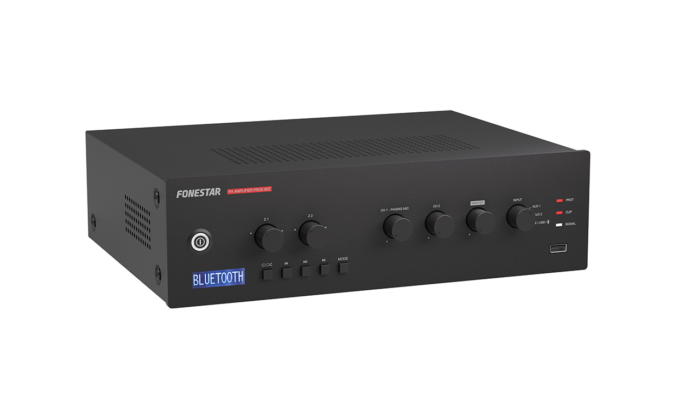

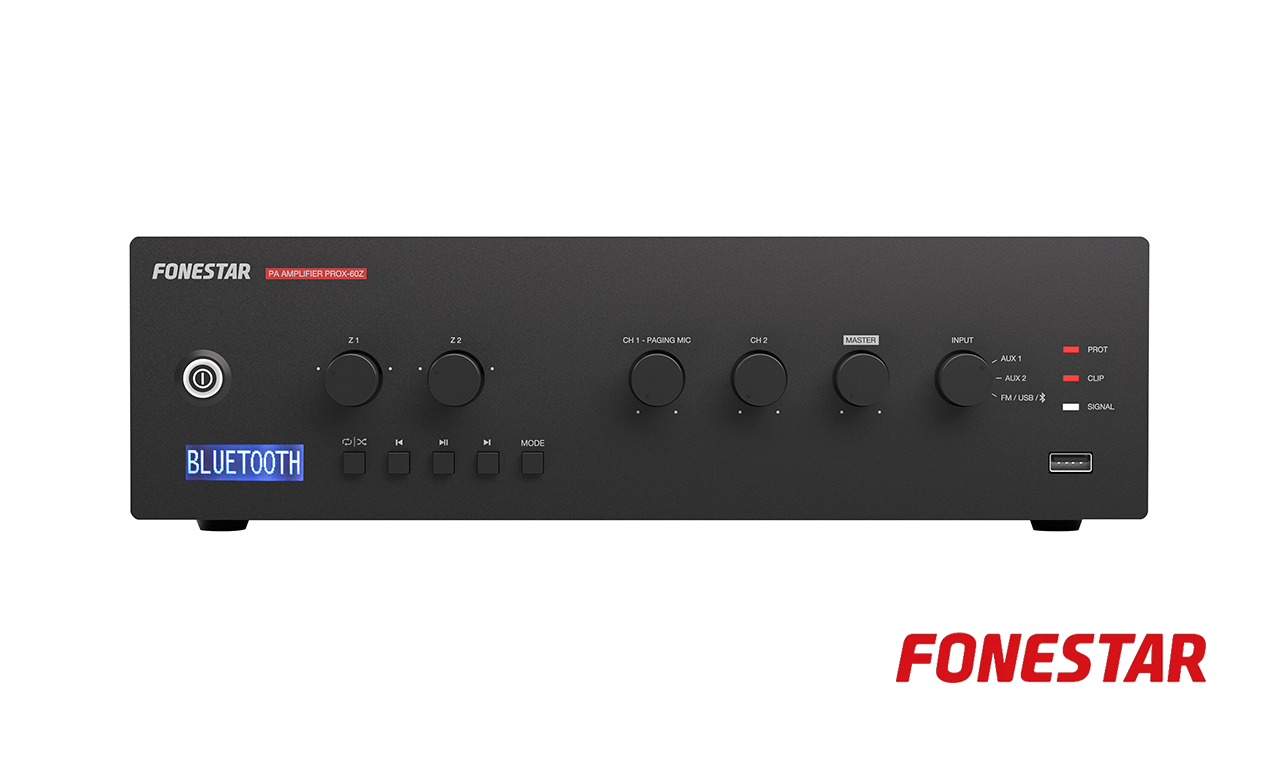

Public address amplifier with Bluetooth®/USB/FM player and speaker zone selector.
The best sound reinforcement tool for spaces.
Reliable for long working hours.
Distributed audio for public address installations with 100 V loudspeakers, also with low impedance output.
Versatile player for background music. Bluetooth, FM, and USB memory player. With automatic play function when turning on.
It has 2 zone outputs with volume control for different music levels per zone.
Easy handling for the user and a current and discreet design.
A solution that adapts to any budget.
Safe and durable connections with low maintenance.
Perfect for public address and piped music systems with 100V or low impedance line speakers. Commercial premises, educational centers, monuments, exhibitions, bars, restaurants, etc.
| CHARACTERISTICS: | Public address amplifier Bluetooth/USB/FM player. Microphone inputs with mix, gain, and priority level control. Input priorities by the signal level. tone controls. 100 V and 4 Ω outputs. 2 output zones with volume control and Off. |
| POWER: | 60W RMS |
| ANSWER: | 60-20,000Hz (-10dB) |
| DISTORTION: | THD+N: < 1% @ 1kHz |
| SIGNAL/NOISE RATIO: | >77dB |
| PROTECTIONS: | Over-current, DC and short-circuit at the output |
| TICKETS: | CH 1 mic/line balanced with 48V Phantom. Combo connector (XLR + 6.3mm) and euro block. CH 2 mic/line balanced with 48V Phantom. Euro block connector. Mic signal level: 6 mV RMS (-44 dBV) / 600 Ω Line signal level: 250 mV RMS (-12 dBV) / 100k Ω 2 AUX. 2 x RCA and euro block connector. Signal level 300 mV RMS (-10 dBV) / 47,000 Ω 1 emergency. Euro block connector. Speaker line signal level 100 V 1 Mute (Emergency Priority) by contact closure. euroblock connector |

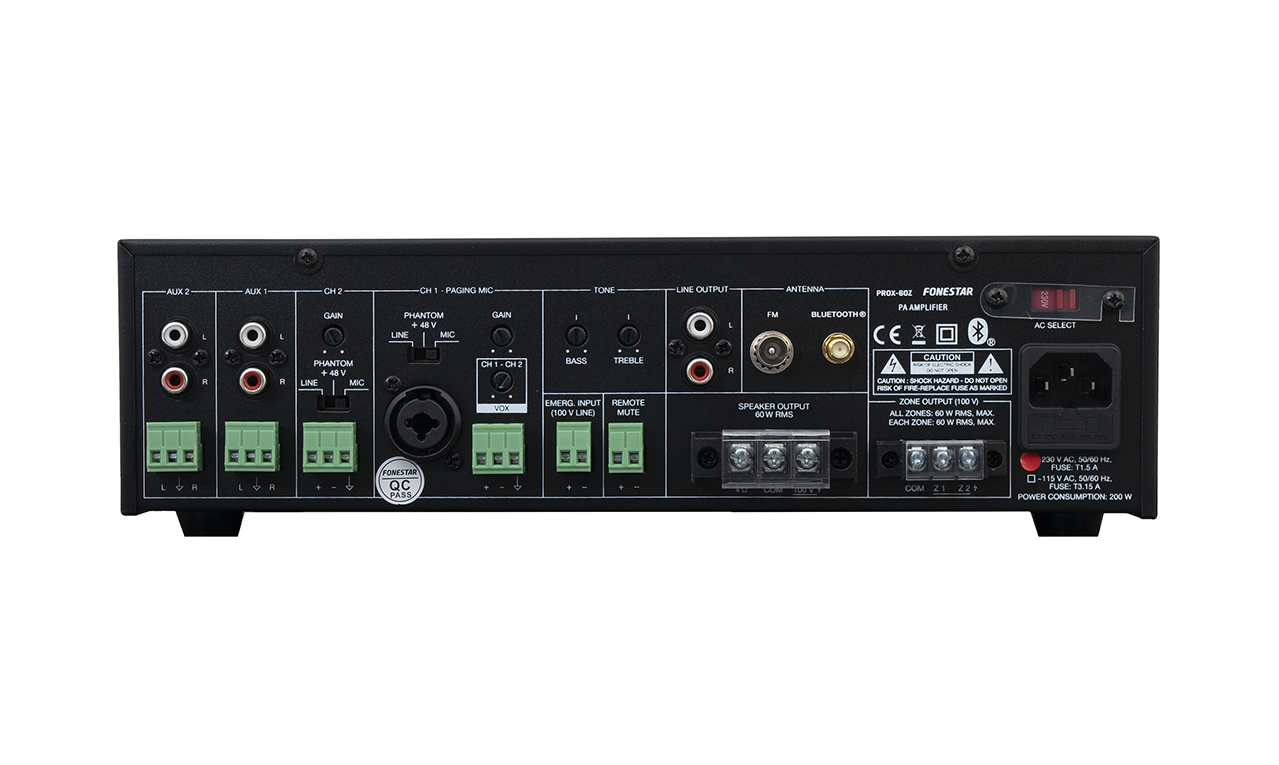

| DEPARTURES: | 1 line. 2 x RCA connector. Signal level 1.25 V RMS (+2 dBV) 100 V or 4 Ω speaker output, or 2 100 V speaker zones with 5-position volume selector and OFF. Screw terminal connector |
| IMPEDANCE: | 4 Ω and 100 V line (166 Ω) |
| FUNCTIONS: | Input priority (Voice over VOX inputs): 100 V Emergency input with maximum priority, attenuates the rest of the inputs Mute by contact closure, attenuates all inputs except the 100 V Emergency input. Channel 1 with priority over other inputs, selectable level. Channel 2 with priority over auxiliary inputs, selectable level Other functions: Indicator lights for power on, protection, signal peak, and output signal Induction cooling without fan |
| PLAYER: | Bluetooth/USB/FM player for background music playback Supported MP3 and WAV files Maximum USB memory capacity 64 GB Autoplay starts playback automatically when turned on Memory of the last selected mode Memory of playback mode (random, repeat) |
| CONTROLS: | Microphone volume Mic/line/phantom selector Master volume Auxiliary or player input selector Zone volume Tone: bass and treble (+/- 10 dB 100 Hz and 10k Hz) Microphone gain Priority activation signal level (VOX ) |
| TEMPERATURE: | Operation: 0º ~ 40ºC |
| MAXIMUM HUMIDITY: | 95% |
| FEEDING: | 230/115 V AC 50-60 Hz, 200 W Fuse AC 230 V 1.5 A / 115 V 3.15A |
| MEASURES: | 320 x 94 x 281 mm depth |
| WEIGHT: | 5kg |
| ACCESSORIES: | FM antenna Bluetooth antenna Power cord |
DOCUMENTATION
Additional information
| Brand | Fonestar |
|---|---|
| Amplifier Connectivity | Bluetooth, USB, FM |
