PA amplifier with Bluetooth/USB/FM player and speaker zone selector. The best tool for sound coverage of areas. Reliable for long working days. POWER: 240 W RMS.

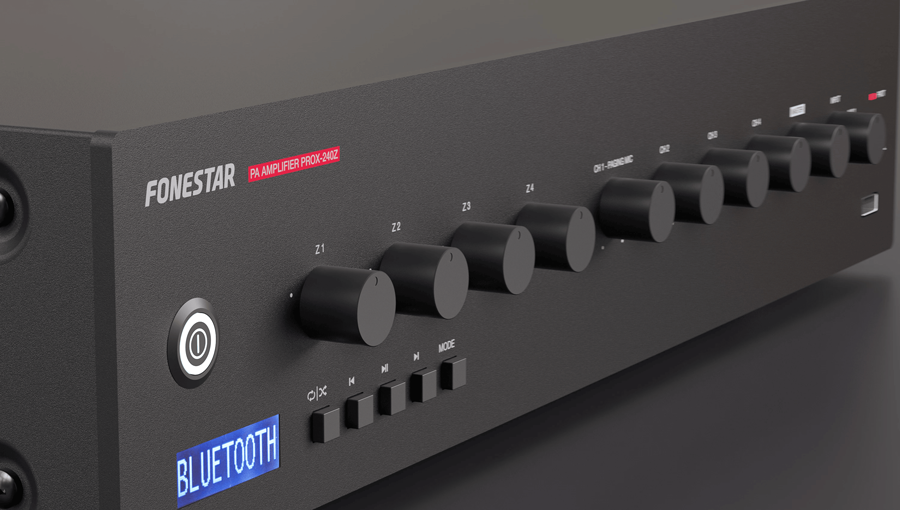

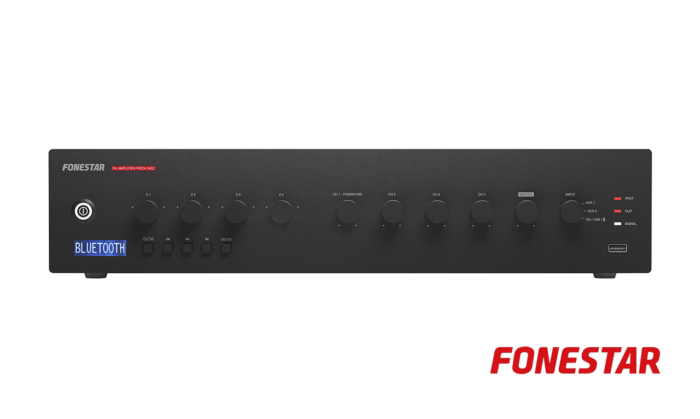

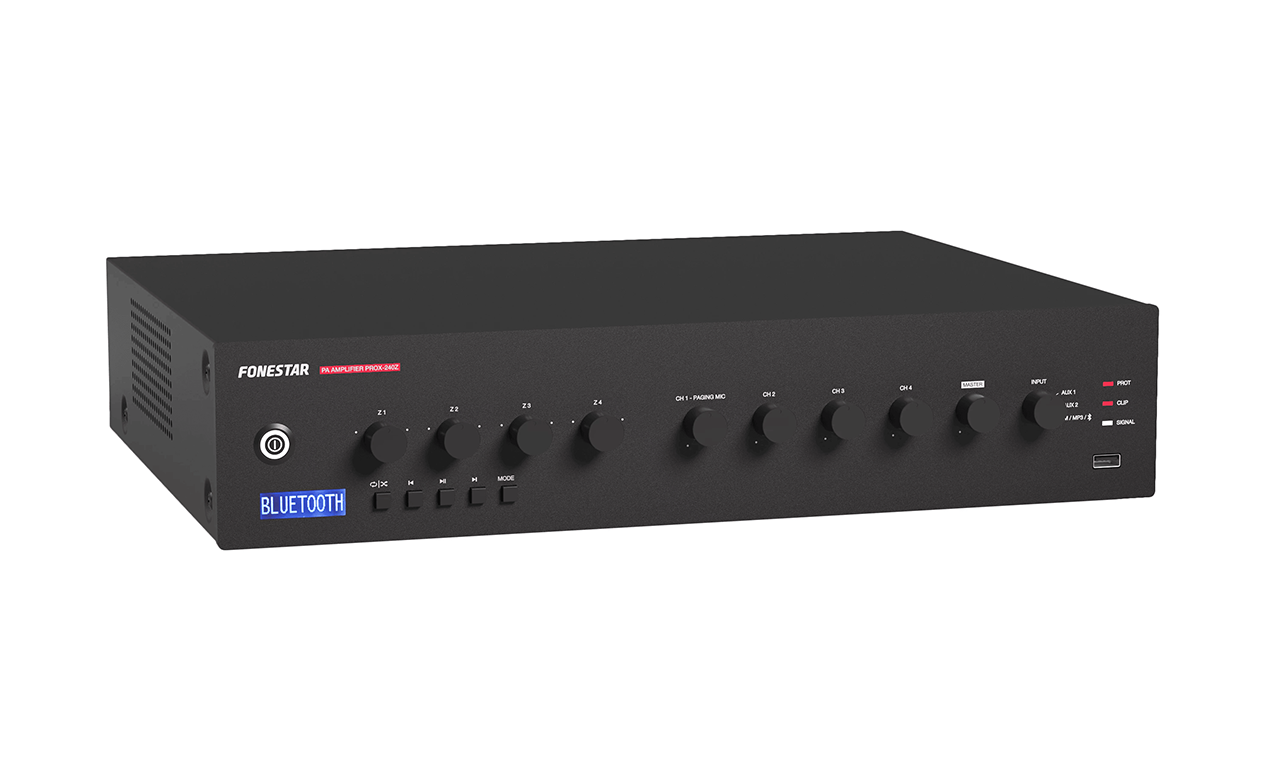

FONESTAR PROX-240Z AMPLIFIER
✅ Output zones with volume control and Off control
✅ Bluetooth/USB/FM player
✅ Great performance, low maintenance
PA amplifier with Bluetooth®/USB/FM player and speaker zone selector.
The best tool for sound coverage of areas.
Reliable for long working days.
Distributed audio for PA installations with 100 V loudspeakers, also with low impedance output.
Versatile player for background music. Bluetooth, FM and USB memory player. With auto play function on power up.
It has 4 zone outputs with volume control for different music levels per zone.
User-friendly operation and a modern, discreet design.
A solution that fits any budget.
Secure, durable connections with low maintenance.
Can be used on the desktop or installed in a rack.
Perfect for PA and piped music systems with 100 V or low-impedance line loudspeakers. Commercial premises, educational centres, monuments, exhibitions, bars, restaurants, etc.
|FEATURES:||Public address amplifier|
Microphone input with mix, gain and priority level control.
Input priorities by signal level.
100 V and 4 Ω outputs.
4 outputs zones with volume control and Off.
|POWER:||240 W RMS|
|RESPONSE:||40-20,000 Hz (-10 dB)|
|DISTORTION:||THD+N: < 1% @ 1 kHz|
|S/N RATIO:||>77 dB|
|PROTECTIONS:||Overcurrent, DC and short-circuit at the output|

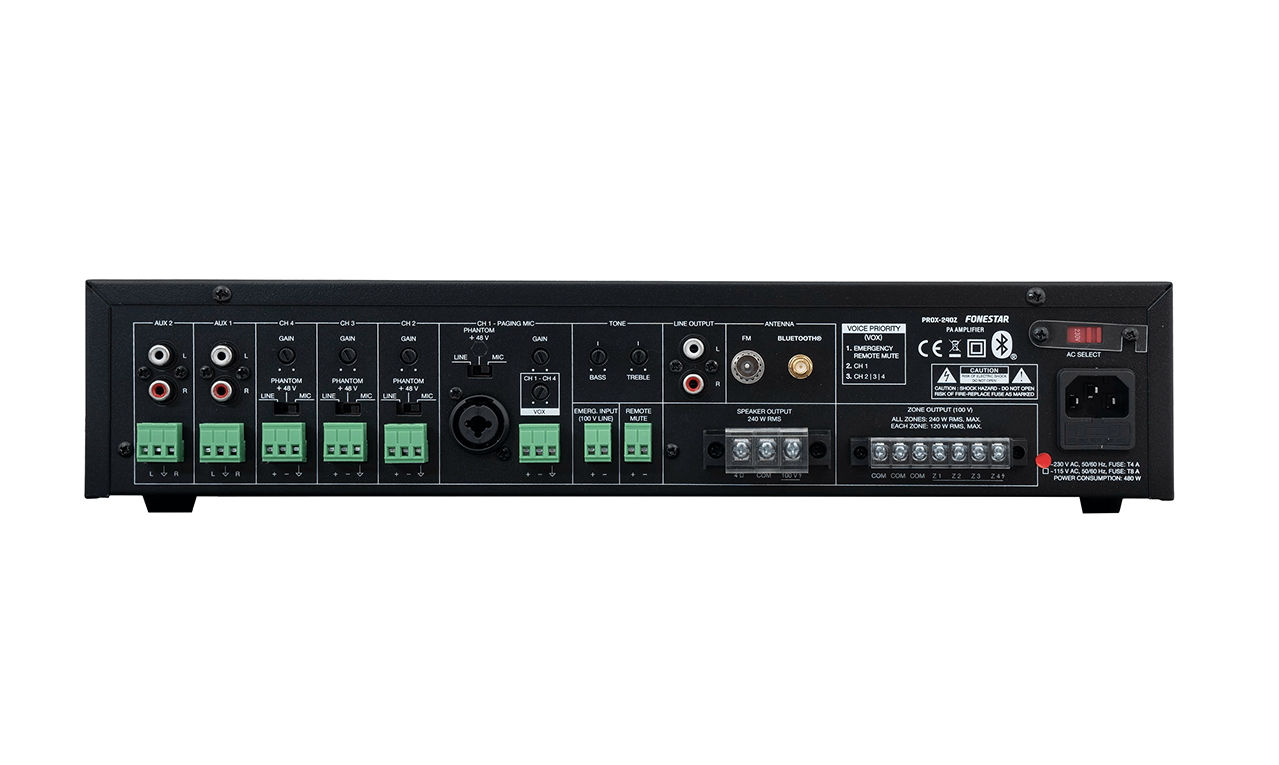

|INPUTS:||CH 1 balanced mic/line with 48V Phantom, Combo (XLR + 6.3 mm) and euroblock.|
CH 2, 3 and 4 balanced mic/line with 48V Phantom. Euroblock connector.
Mic signal level: 6 mV RMS (-44 dBV) / 600 Ω
Line signal level: 250 mV RMS (-12 dBV) / 100k Ω
2 AUX. 2 x RCA and euroblock connector. Signal level 300 mV RMS (-10 dBV) / 47,000 Ω
1 emergency. Euroblock connector. Signal level loudspeaker line 100 V
1 Mute (Emergency Priority) by contact closure. Euroblock connector
|OUTPUTS:||1 line, 2 x RCA connectors, 1.25 V RMS (+2 dBV) signal level|
100 V or 4 Ω speaker output, or 4 100 V speaker zones with 5-position volume selector and OFF (max. 120 W RMS per zone). Connector screw terminals
|IMPEDANCE:||4 Ω and 100 V line (42Ω)|
|FUNCTIONS:||Input priority (voice over VOX inputs):|
100V Emergency input with highest priority, attenuates all other inputs.
Mute by contact closure, attenuates all inputs except the 100V Emergency input.
Channel 1 with priority over all other inputs, level selectable.
Channel 2, 3 and 4 with priority over auxiliary inputs and player, level selectable.
Power on, protection, signal peak and output signal indicator lights
Temperature-controlled forced ventilation cooling
|PLAYER:||Bluetooth/USB/FM player for background music playback|
MP3 and WAV files supported
Maximum USB memory capacity 64 GB
Autoplay, starts playback automatically on power on
Memory of playback mode (random, repeat)
Aux input or player selector
Tone: bass and treble (+/- 10 dB 100 Hz and 10k Hz)
Priority activation signal level (VOX)
|OPERATING TEMPERATURE:||Operation: 0º ~ 40ºC|
|POWER SUPPLY:||230/115 V AC 50-60 Hz, 480 W|
Fuse AC 230 V 4 A / 115 V 8 A
|DIMENSIONS:||433 x 89 x 360 mm depth. 2 U 19” rack|
Bluetooth, USB, FM
