The SA series amplifiers deliver high power and sound quality with high performance and stability. High reliability with temperature, short circuit and overload protections.

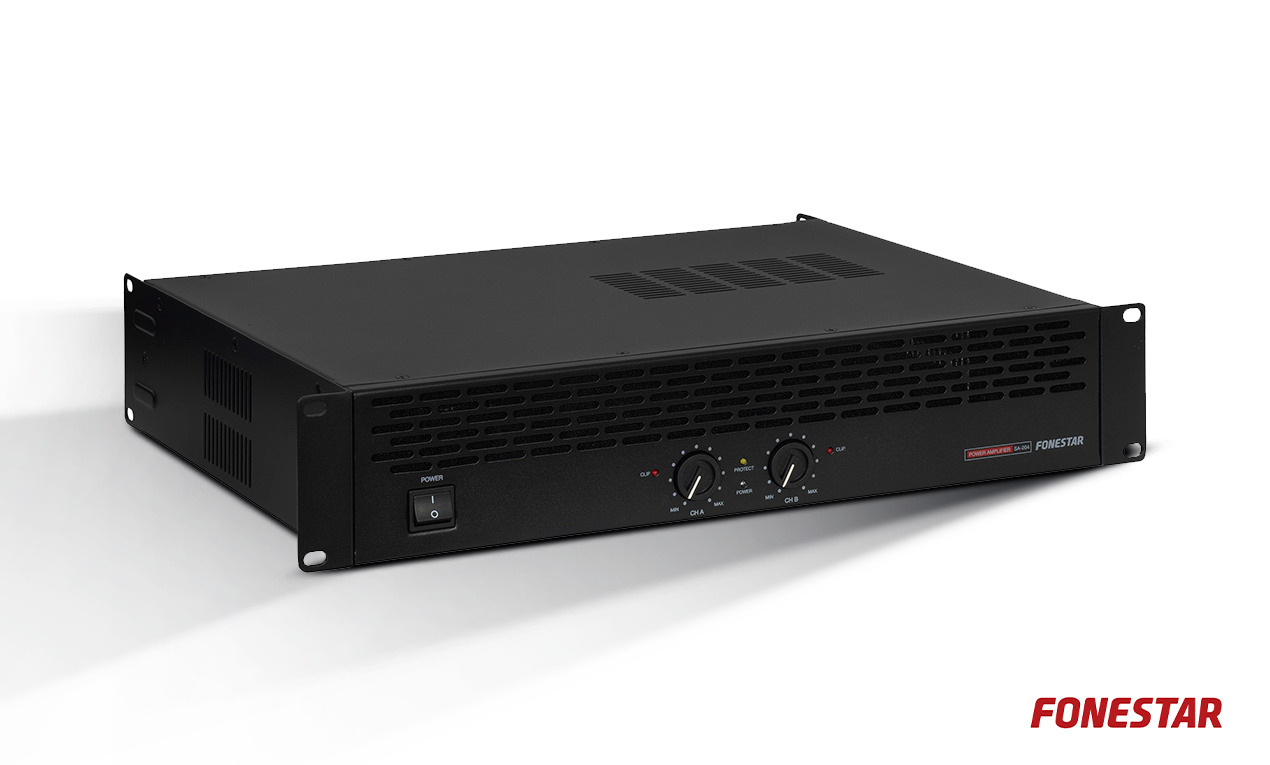

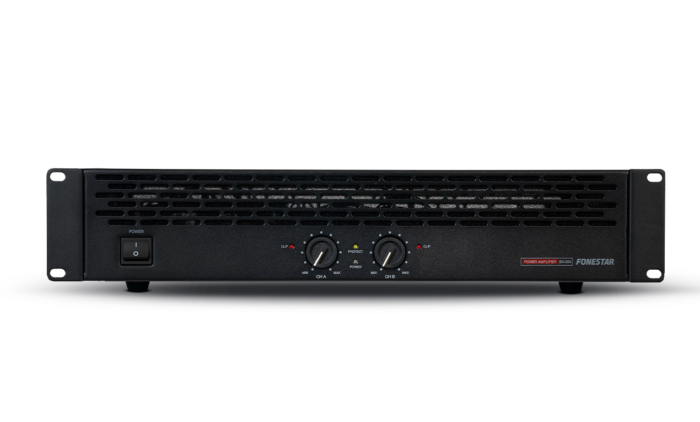

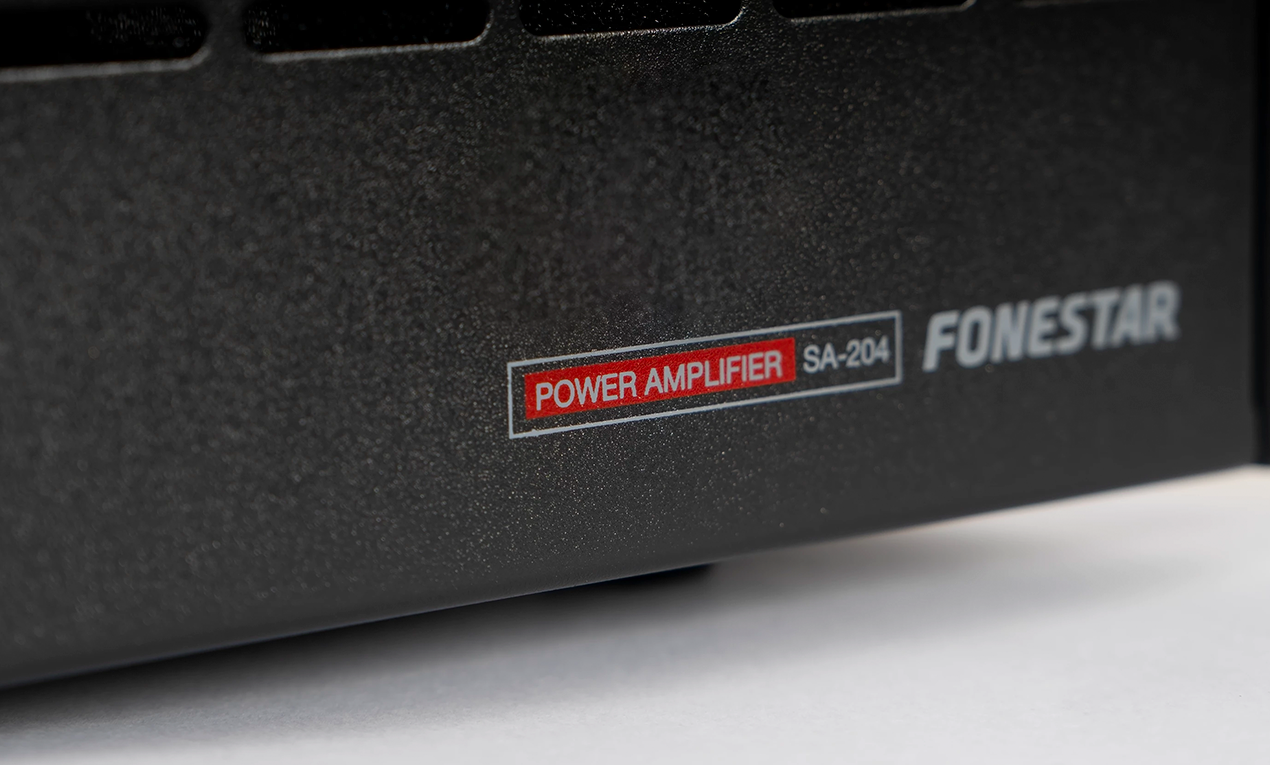

FONESTAR Power Amplifier – SA-204
€280
In stock
In stock
Description
– Great power and sound quality
– High performance and stability
– It has protection circuits
– Very user-friendly and minimal set-up time
Power amplfier
The SA series amplifiers deliver high power and sound quality with high performance and stability.
Operating and power modes:
– Stereo and parallel: up to 150 + 150 W RMS@4 Ω
– Bridge: up to 200 W RMS@8 Ω
High reliability with temperature, short circuit and overload protections.
Audio inputs with standard connectors: XLR and RCA with volume control for each channel.
Speaker outputs with screw terminals and banana plugs or speaker connector.
Very user-friendly and minimal set-up time.
Designed for professional use in different mobile events such as discos, concerts, festivals, meetings, etc., as well as for fixed installations in discotheques, pubs, auditoriums, etc.
| FEATURES: | Professional stereo power amplifier. |
| POWER: | Stereo and parallel mode: 150 + 150 W RMS@4 Ω 100 + 100 W RMS@8 Ω Bridge mode: 200 W RMS@8 Ω |
| PROTECTION: | Temperature, short circuit and surge Forced ventilation |

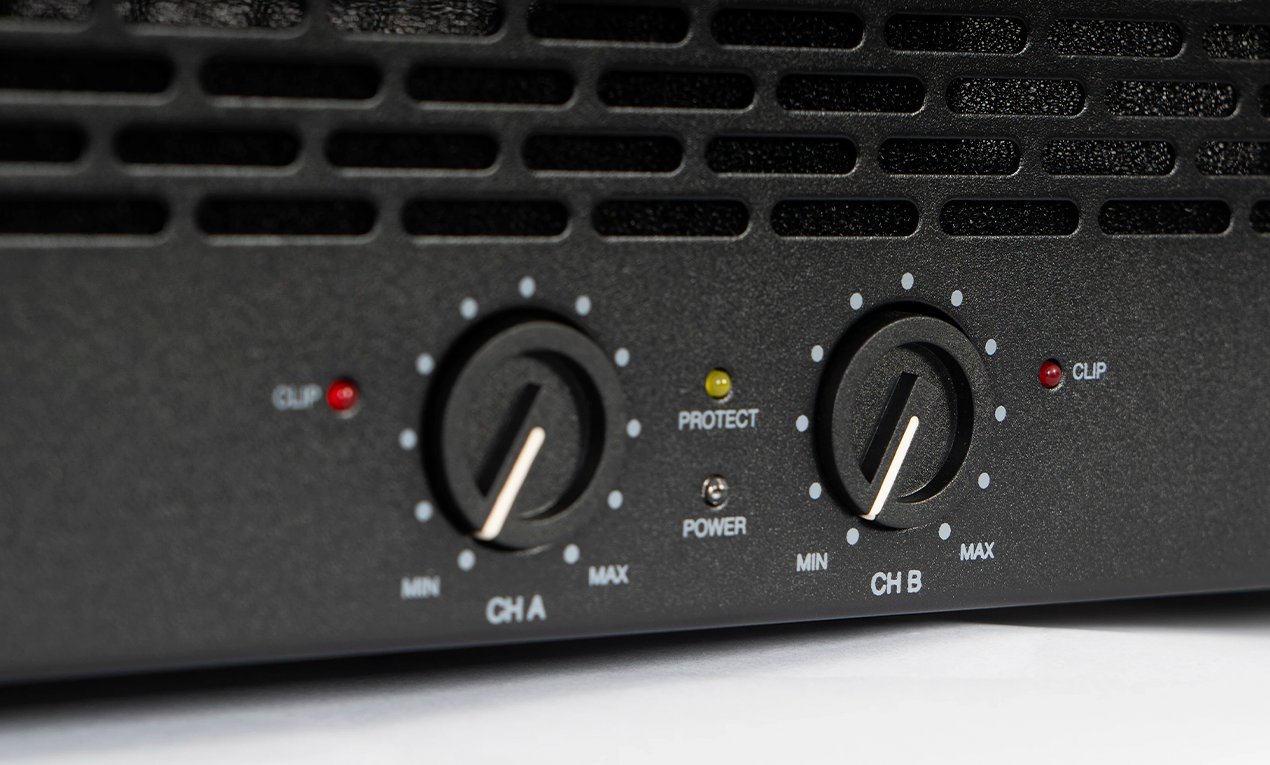

| CONTROLS: | Volume per channel Parallel/stereo/bridge operating mode selector GND lift earth disconnection |
| INPUTS: | 1 balanced aux line, XLR, 20,000 Ω 1 V RMS 1 unbalanced aux line, RCA, 10,000 Ω 1 V RMS |
| VOLTAGE GAIN: | 32 dB |
| RESPONSE: | 10-50,000 Hz |
| DISTORTION: | Harmonic: < 0.05 % |
| DAMPING FACTOR: | > 150 |
| S/N RATIO: | > 85 dB |
| CROSSTALK: | > 70 dB |
| SLEW RATE: | 30 V/µs |

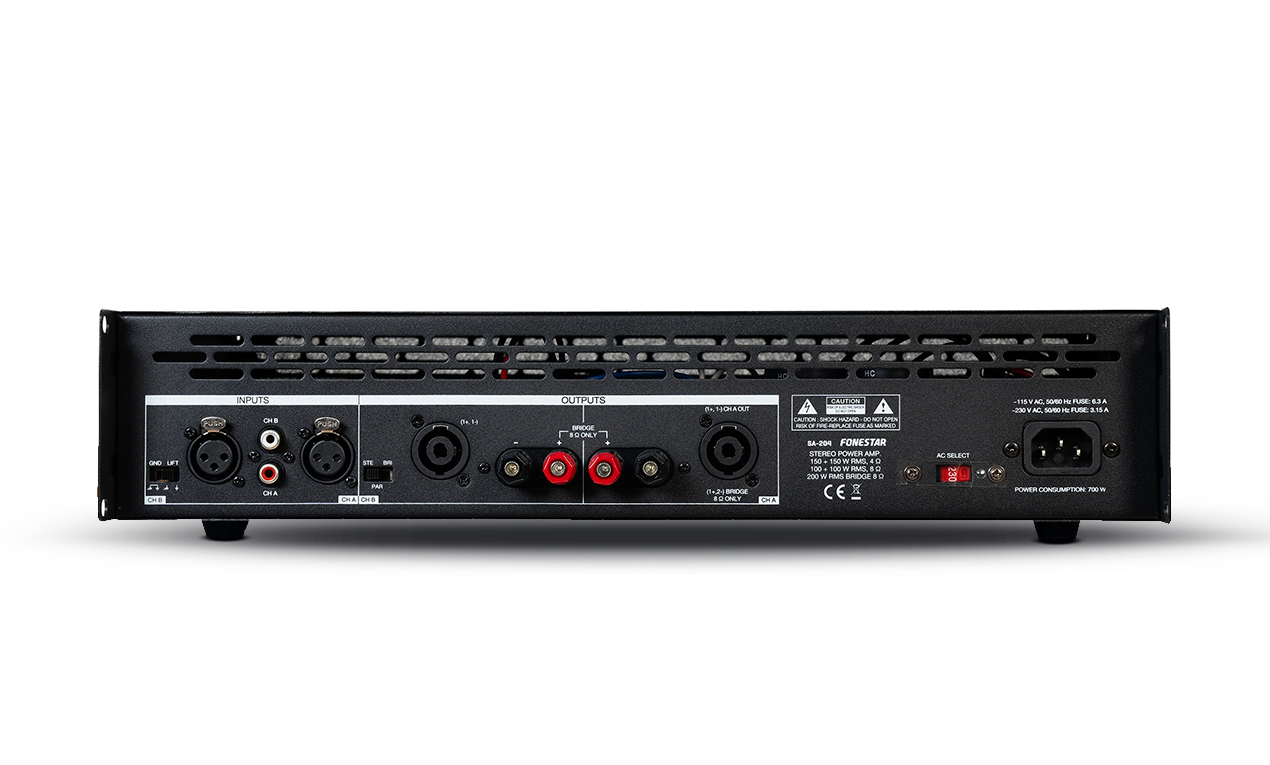

| OUTPUTS: | Loudspeakers: 4-8 Ω stereo, screw terminals and banana plugs or loudspeaker connector 8 Ω mono bridge, screw terminals and banana plugs or loudspeaker connector |
| POWER SUPPLY: | 230/115 V AC, 700 W maximum |
| DIMENSIONS: | 483 x 88 x 350 mm depth 2 U 19″ rack |
| WEIGHT: | 7.8 kg |
Additional information
| Brand | Fonestar |
|---|---|
| Amplifier Connectivity | Aux-In |
