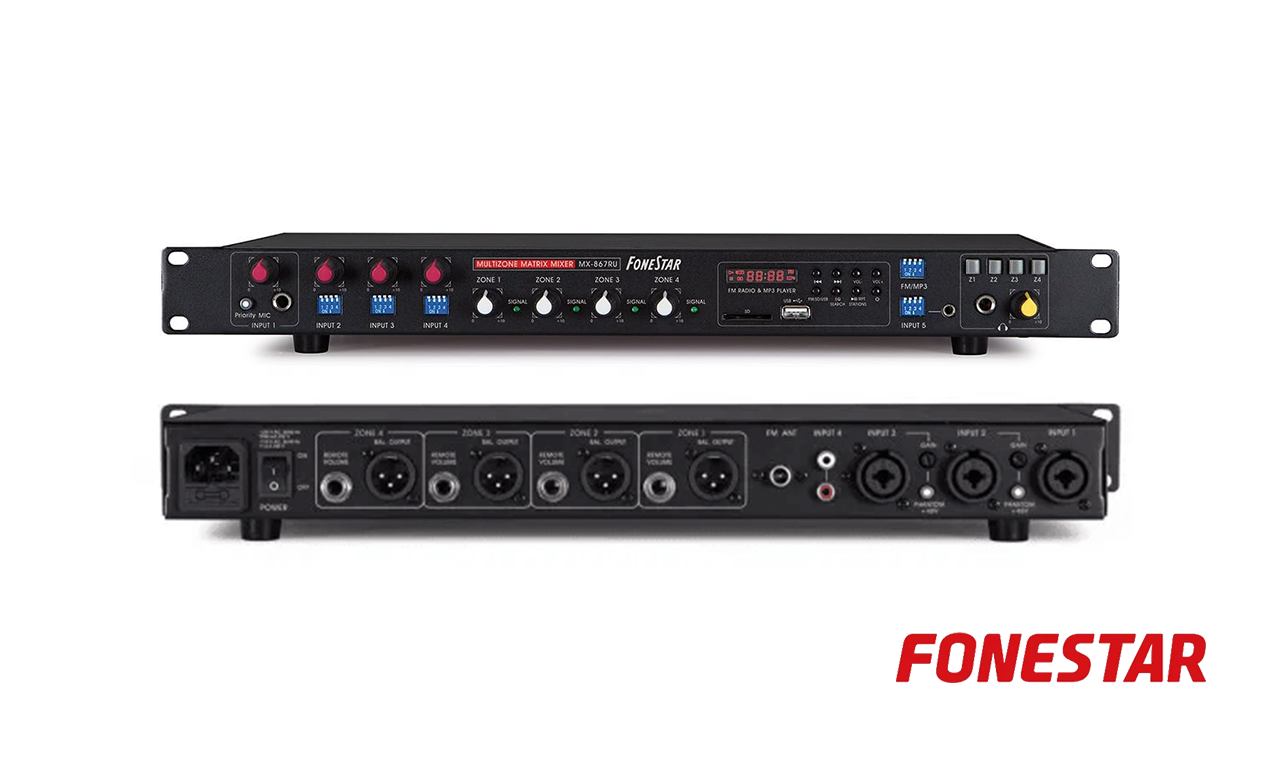

Fonestar MX-867RU – Doneo Malta

Multizone mixer/preamplifier with audio matrix, with 5 channels to be assigned to 4 output zones with independent volume control. USB/SD/MP3 player and digital FM radio tuner. Audio distribution in installations with several zones and different musical programmes. Remote control of the volume in each zone.

CHARACTERISTICS
Multizone mixer/preamplifier.
Microphone input with paging priority.
Allocation matrix with 5 input channels to 4 output zones.
USB/SD player for MP3 files.
Digital FM radio tuner.
4 output zones with independent volume control.
Remote volume control for the zones.
Phantom power supply.

INPUTS
1 balanced microphone, 6.3 mm stereo jack, 3 mV
1 balanced mic. combo (XLR and 6.3 mm jack), 3 mV
2 balanced mics./lines combo (XLR and 6.3 mm jack) adjustable, 3 mV and 175 mV
1 stereo auxiliary, 2 x RCA, 175 mV
1 stereo auxiliary, 3.5 m jack

OUTPUTS
4 balanced zones, XLR, 2.5 V maximum
Remote volume control for the zones
1 stereo monitor, 6.3 mm jack, 1 V

CONTROLS
4 micro allocation switches for zones 1 to 4
Inputs 1 to 4: volume control
Inputs 2 and 3: gain control
Zones 1 to 4: volume cntrol
Monitor: volume control and zone selection
USB/SD player
FM tuner

RESPONSE
20-20,000 Hz
DISTORTION
Harmonic: < 0.2 % to 1 kHz
S/N RATIO
Microphones > 65 dB
Auxiliary/Line > 80 dB

PHANTOM
48 V in mics. 2 and 3, selectable

PRIORITY
Mic. 1 input level priority, selectable
POWER SUPPLY
230/115 V AC, 9 W

DIMENSIONS
483 x 44.5 x 200 mm depth. 1 U 19′ rack

WEIGHT
3 kg
