12 channels, 2 outputs, separate volume. Bluetooth® receiver, USB player/recorder. 16 effects processor. USB audio for PC connection.
Description
✅ 12 channels and 2 outputs with independent volume controls
✅ Bluetooth® receiver and USB recorder/player
✅ 16 digital effects processor
✅ USB audio for connection to PC as an audio card
HOSTELRY
SPORTS FACILITIES
EDUCATION
FACTORIES

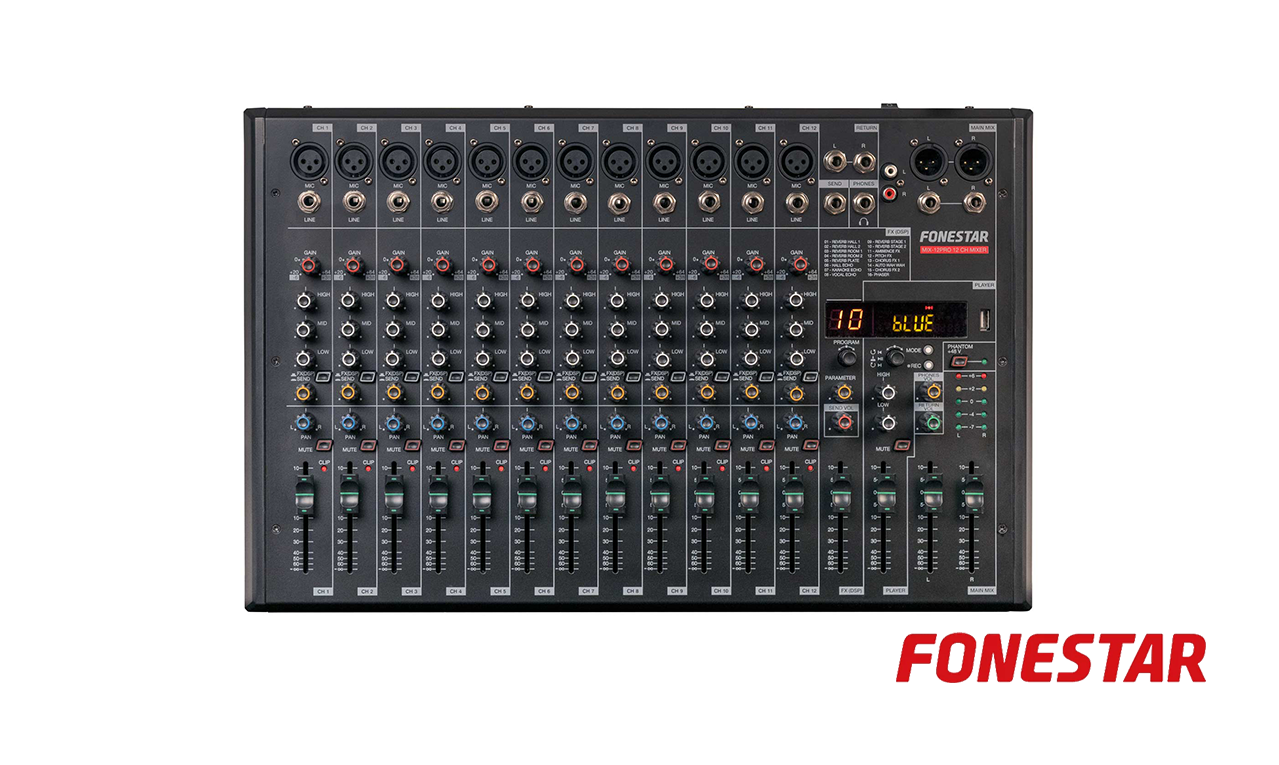

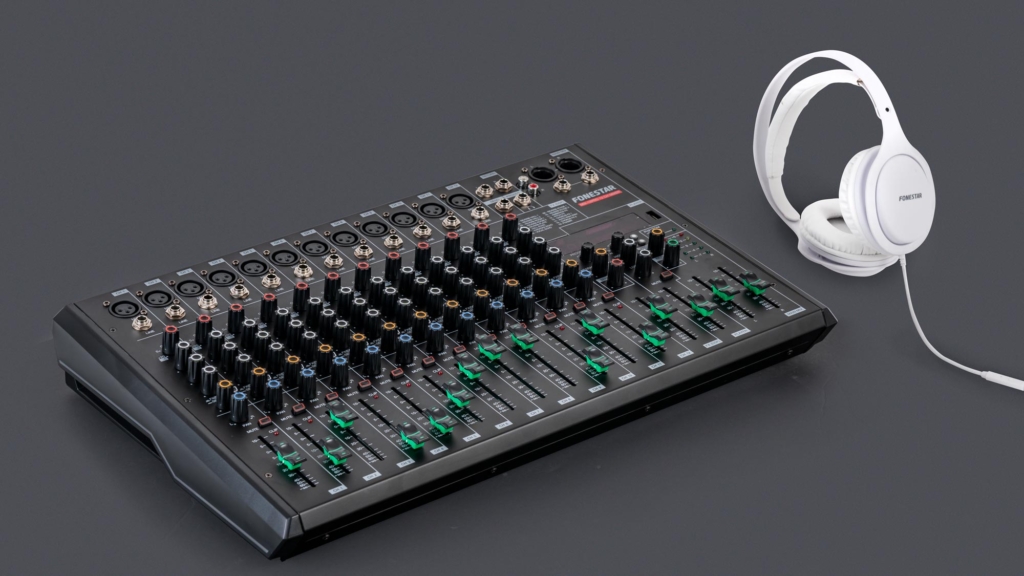

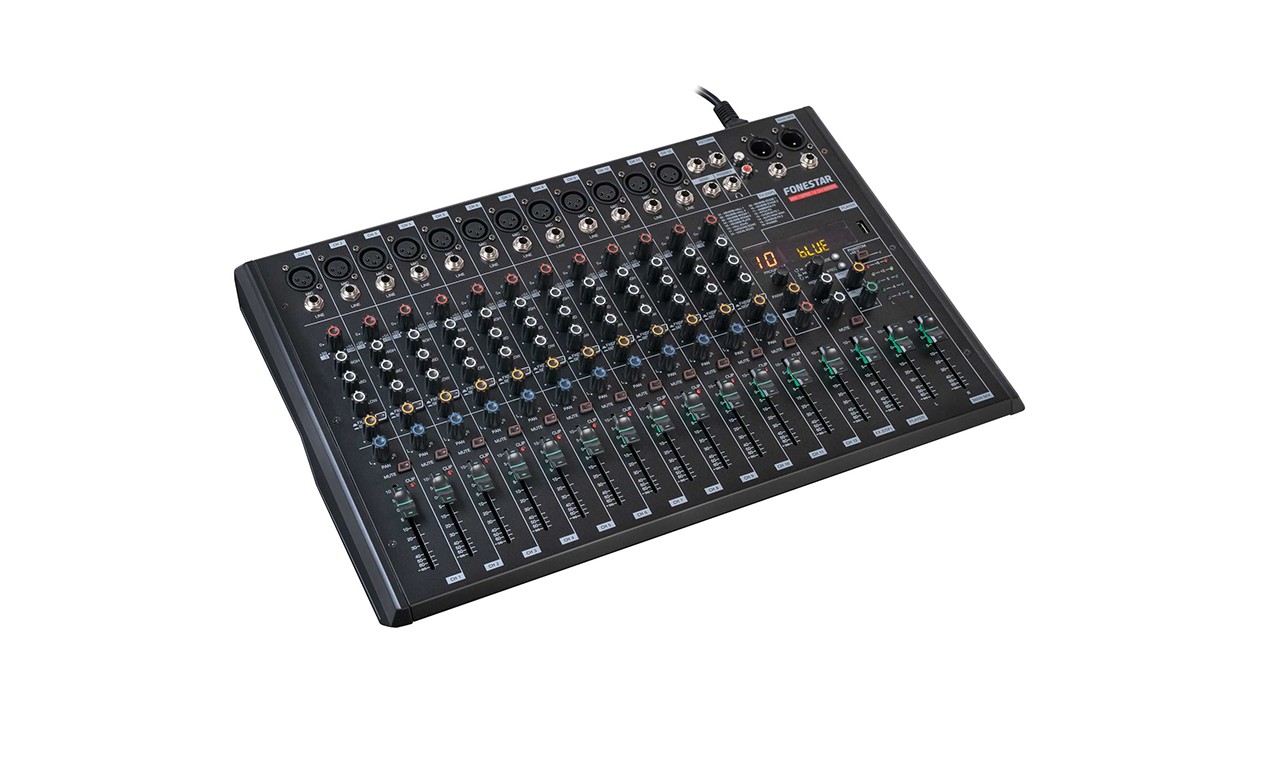

Professional 12-channel stereo mixer with PC audio card, USB recorder/player, and Bluetooth® receiver.
Connect the mixer to your PC as a Plug and Play audio card on Windows and Mac. You can play audio content from your PC and record audio on your PC simultaneously.
Bluetooth receiver and USB recorder/player, play music, or record the event without PC.
It includes a 24-bit digital effects processor (16 effects), which will give an extra touch of quality to your events.
In addition, a 48 V phantom power supply is available for the use of condenser microphones.
Ideal for use at all kinds of events, press rooms, live performances, concerts, etc.
| FEATURES: | Professional 12-channel, 2-output mixer with independent volume controls. USB audio input/output for PC connection as Plug and Play audio card on Windows and Mac allows simultaneous audio playback from PC and recording. 4.2 Bluetooth Receiver USB recorder/player. 16 digital effects processors. |
| USB PLAYER: | Playback formats: WAV and MP3 MP3 recording USB port for USB stick connection or PC connection as Plug and Play audio card under Windows and Mac Supports memory up to 128 GB |
| INPUTS: | 12 balanced XLR mics, 600 Ω 2 mV (LED peak, 1 kHz, 20 mV RMS) 12 unbalanced lines 6.3 mm jack, 47.000 Ω 45 mV (LED peak, 1 kHz, 180 mV RMS) 2 balanced returns, 2 x 6’3 mm jack, 47.000 Ω 300 mV RMS 1 USB/PC, stereo |
| CONTROLS: | Mic/line: bass suppression filter (18 dB/octave, 75 Hz), gain, bass (±15 dB, 80 Hz), mid (±15 dB, 2,500 Hz), treble (±15 dB, 12,000 Hz), aux/EFX send, pan, mute, and slide volume control USB recorder/player: mode, play/pause/rec, fast forward and rewind, bass (±15 dB, 80 Hz), treble (±15 dB, 12,000 Hz), and slider volume control Main: sliding volume control Phones: volume control Post-fader aux send: volume control Aux return: volume control DSP effects processor: effect selection, repeat, and slider volume control |
| FUNCTIONS: | Sliders per channel 3-band EQ on channels 1 to 12 2-band equalizer on USB recorder/player Overload and master output level indicator lights |
| OUTPUTS: | 1 stereo main (2 x XLR or 2 x 6.3 mm jack), 5 V RMS 1 stereo line, 2 x RCA, 5 V RMS 1 post-fader send, 6’3 mm jack, 5 V RMS 1 stereo headphones, 6.3 mm jack 1 USB/PC, stereo |
| PHANTOM: | 48 V, selectable |
| RESPONSE: | 20-20,000 Hz |
| DISTORTION: | Harmonic: 0.07 % |
| S/N RATIO: | > 65 dB |

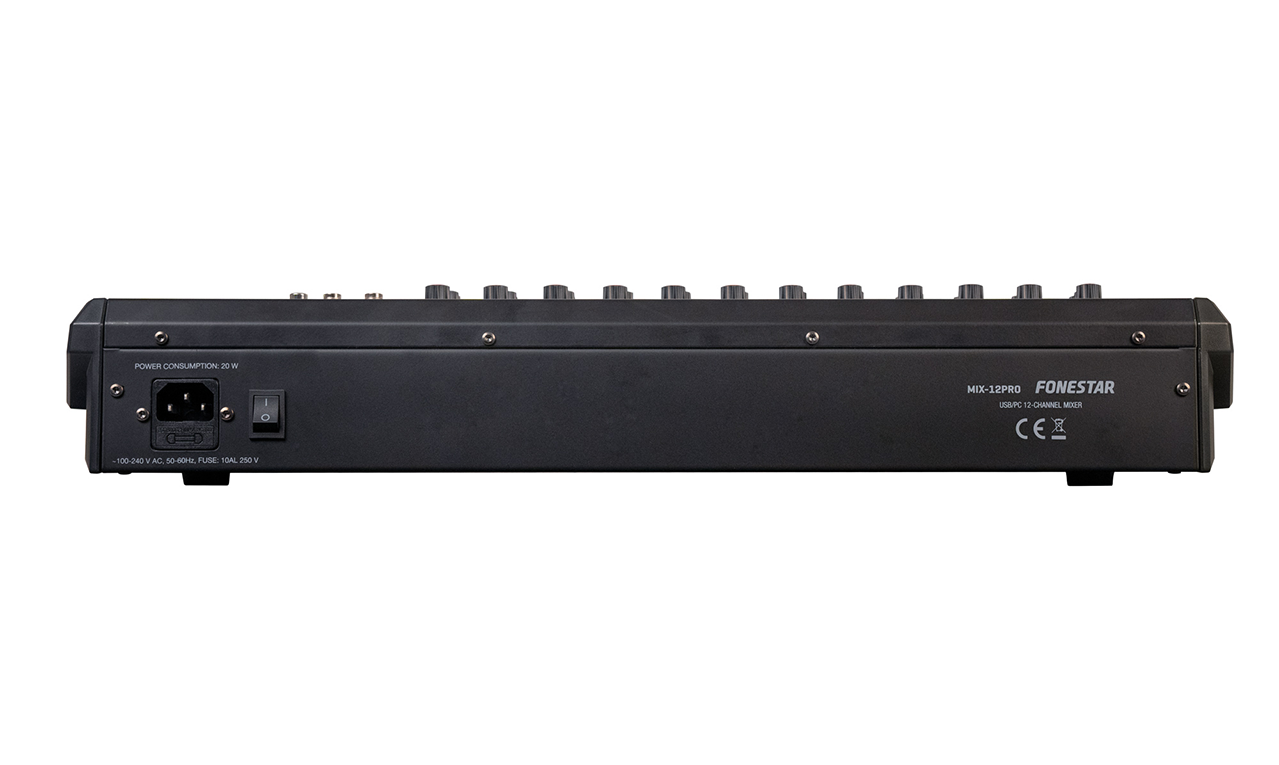

| POWER SUPPLY: | 100-240 V AC, 20 W maximum |
| DIMENSIONS: | 500 x 85 x 320 mm depth |
| WEIGHT: | 4.7 kg |
DOCUMENTATION
Additional information
| Brand | Fonestar |
|---|---|
| Amplifier Connectivity | Bluetooth, USB, 12 Channel |
| Product Type | Mixers |
