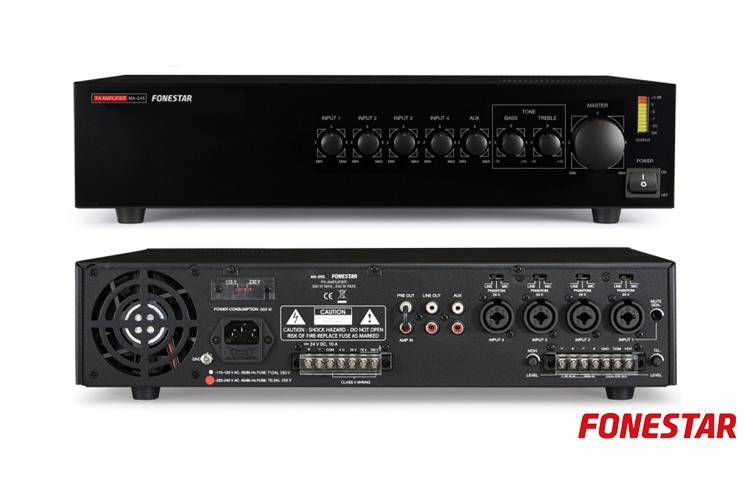

Fonestar MA-245 P.A. Amplifier with Phantom power supply – Doneo Malta

POWER 360 W maximum, 240 W RMS
RESPONSE 80-16 000 Hz ±3 dB
DISTORTION Harmonic: < 1 % at 1 kHz
INPUTS
4 balanced mics./lines, combo (XLR and 6.3 mm jack) 600 Ω 2 mV and 47 000 Ω 150 mV, switchable 1 auxiliary, 2 x RCA, 47 000 Ω 300 mV
1 amp in, RCA 10 000 Ω 1 V
1 tel. input, screw terminal blocks 600 Ω 100 mV
OUTPUTS
1 line out, 2 x RCA 47 000 Ω 1 V
1 pre out, RCA 600 Ω 1 V
1 monitor, screw terminal blocks 600 Ω 775 mV and 1 W 8 Ω (auxiliary input)
CONTROLS
Tone:
Bass: ±10 dB
Treble: ±10 dB
Volume: inputs 1 to 4, aux and general volumen
PHANTOM 24 V in mics 1 to 4, selectable
PRIORITY Tel. input and mic. 1 depending on signal level, selectable
IMPEDANCE 4 Ω and 100, 70 and 25 V lines, screw terminal blocks
POWER SUPPLY 230/115 V AC, 600 W and 24 DC, 312 W
DIMENSIONS 420 x 89 x 300 mm depth. 2U 19? rack
WEIGHT 11.4 kg
OPTIONAL MA-2N: mounts for assembly in 19? rack
