HDMI 2.0 distributor and 4 way extension over Cat 6 cable – up to 35m for 4k UHD or up to 60m for Full HD.

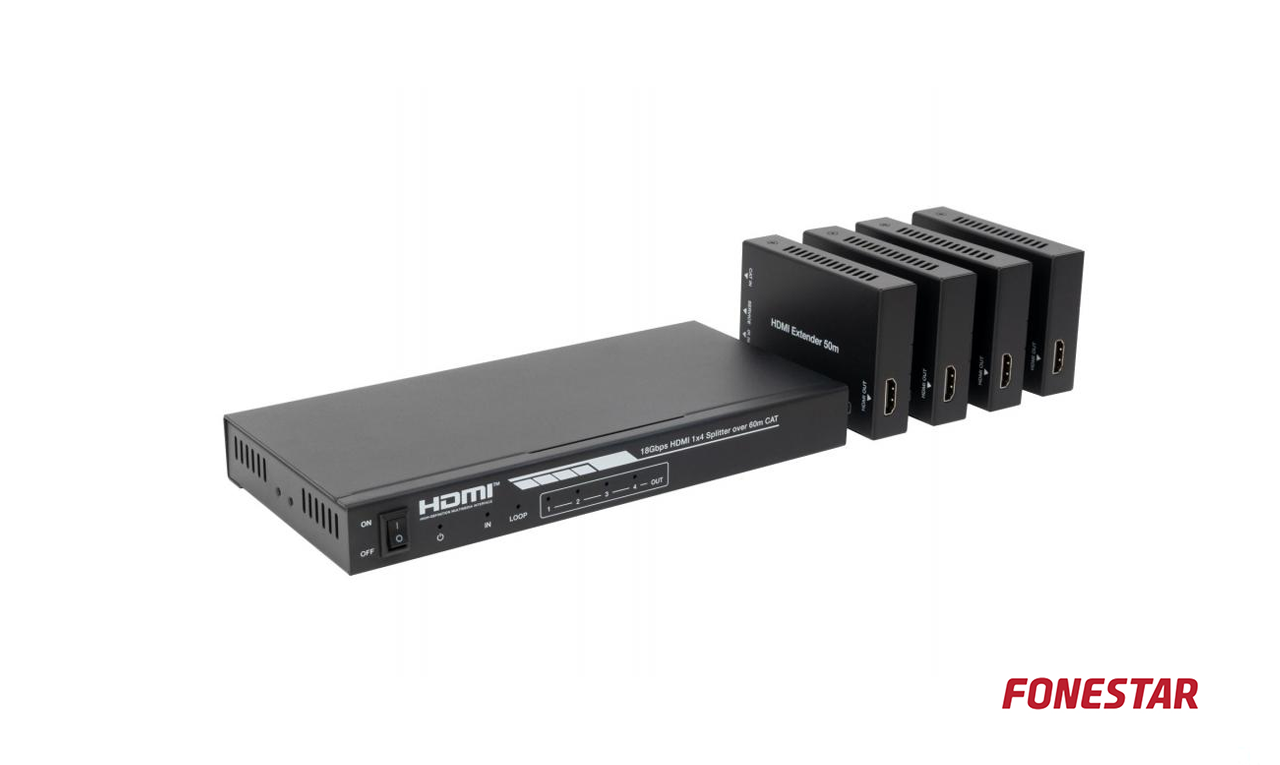

4 way HDMI 4K UHD splitter and Extender Fonestar FO-22CAT4
FO-22CAT4 1 x 4 HDMI distributor extension
HDMI 2.0 distributor extension via Cat 6/6a/7 cable FEATURES This HDMI distributor with Cat 6/6a/7 cable extension function increases the transmission distance of the HDMI signal up to 35 m for 4k@60Hz resolution and up to 60 m for 1080p resolution. It has HDMI loop output on the transmitter for local TV or monitor and extracts analog stereo audio and digital audio compatible with Dolby/Dolby + and DTS. EDID function, allows you to manually select the optimal resolution for all TVs. PoC power from the receivers. Remote control extenders. Features: – Directs an HDMI source to 4 HDMI TVs. – Transmission distance up to 60 m for a FULL HD 1080p signal. – IR remote control signal to control the sources from the receiver’s location. – Compliant with HDMI 2.0 and HDCP 2.2. APPLICATIONS For facilities with up to 4 TVs: bars, restaurants, sports centers, exhibitions, shop windows, conference rooms, etc. TECHNICAL DATA: Resolution UHD 4K@60Hz HDMI 2.0 HDCP 2.2 HDR compliant Bandwidth 18 Gbps
1 x 4 HDMI extension distributor for Cat 6 / 6a / 7 cable. UHD resolution 4k @ 60Hz and lower. Bandwidth 18 Gbps. Transmission distance up to 60 m. HDMI loop output on local TV transmitter. Analog and digital audio extractor. EDID function, manually select the optimal resolution of all TVs. Micro USB port for serial port update and control. PoC power of the receivers. According to IEEE-568B standard. Remote control extenders.
1 HDMI female
4 RJ-45 HDMI extension via Cat 6 cable 1 Female HDMI for local monitor 1 Coaxial digital audio, RCA 1 Stereo audio, 3.5 mm jack
4 receivers with HDMI output 1 micro USB port for upgrade
Distributor: 12 V DC, 2.5 A with adapter included Receivers: PoC
Distributor: 210 x 25 x 100 mm depth Receiver: 88 x 18 x 61 mm depth
Distributor: 0.6 kg Receiver: 4 x 0.2 kg
Transmitter and 4 remote control receivers
Good quality Cat 6 / 6a / 7 cables with FTP / SFTP shielding are recommended. Cables must have shielded connectors with the cable shield connected to the connector shield. In this way, the reliability of HDMI extenders is improved, avoiding ground loops produced when interconnecting devices (player/receiver and TV) with different ground references that can cause loss or cut in the image.
