1 x 8 HDMI splitter extender over Cat 6 cable, transmission distance up to 40 m & resolution of 1080p with Cat 6 cable. HDMI loop output in transmitter for local TV.
Description

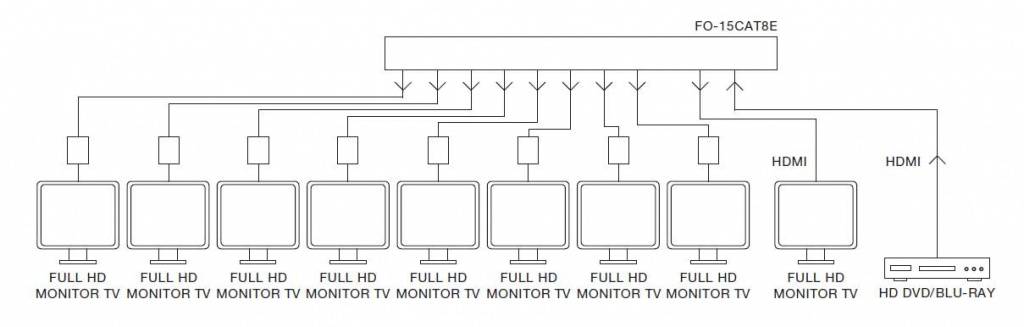

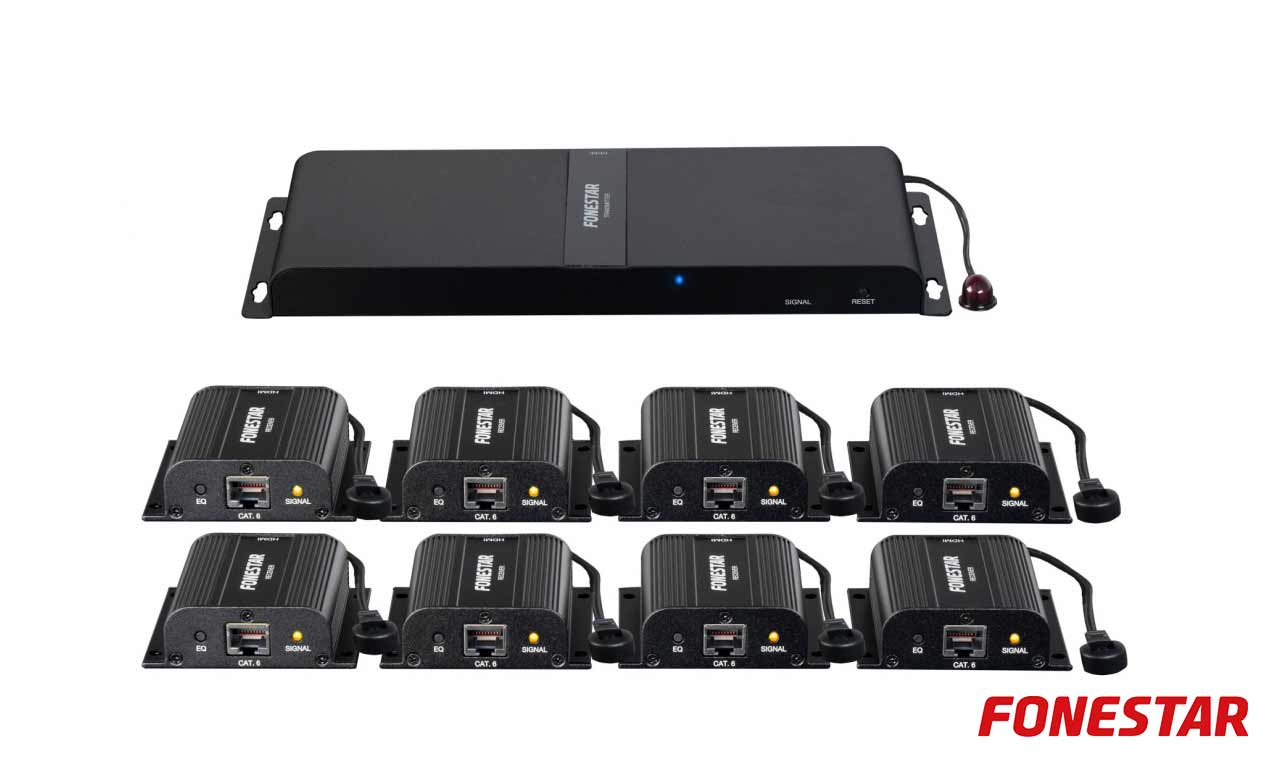

Fonestar FO-15CAT8E 1 x 8 HDMI splitter extender
HDMI splitter extender over Cat 6 cable.This HDMI splitter with extension function over Cat 6 increases the transmission distance of the HDMIsignal up to 40 m for a resolution of 1080p. The transmission over Cat 6 cable reduces the cost and makes it easier to pass the cables throughtubes and walls.Each splitter output operates with a receiver powered by the Cat 6 cable itself.

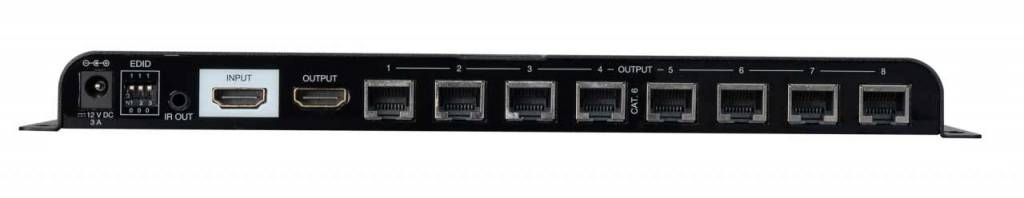

INPUTS
1 gold-plated female HDMI connector
OUTPUTS
8 RJ-45 HDMI extension over Cat 6 cable
1 female HDMI for local monitor
RECEIVERS
8 receivers with HDMI output
POWER SUPPLY
Splitter: 12 V DC, 3 A with adapter included
Receivers: PoC
DIMENSIONS
Splitter: 276 x 24 x 96 mm depth
Receiver: 72 x 23 x 67 mm depth
WEIGHT
Splitter: 0.6 kg
Receiver: 8 x 0.1 kg
ACCESSORIES
Remote control transmitter and 8 receivers
NOTE
It is recommended that good quality Cat 6 cables with FTP/SFTP shielding are used. The cables must have shielded connectors with the cable shielding connected to the connector shielding.
This improves the reliablity of the HDMI extenders, avoiding ground loops produced by interconnecting devices (player/receiver and TV) with different ground reference which could cause losses or image cutting.
Additional information
| Brand | Fonestar |
|---|---|
| Product Type | HDMI Splitters, HDMI Extenders |
