1 x 4 HDMI splitter extender over Cat 6 cable, transmission distance up to 40 m & resolution of 1080p with Cat 6 cable. HDMI loop output in transmitter for local TV.
Description

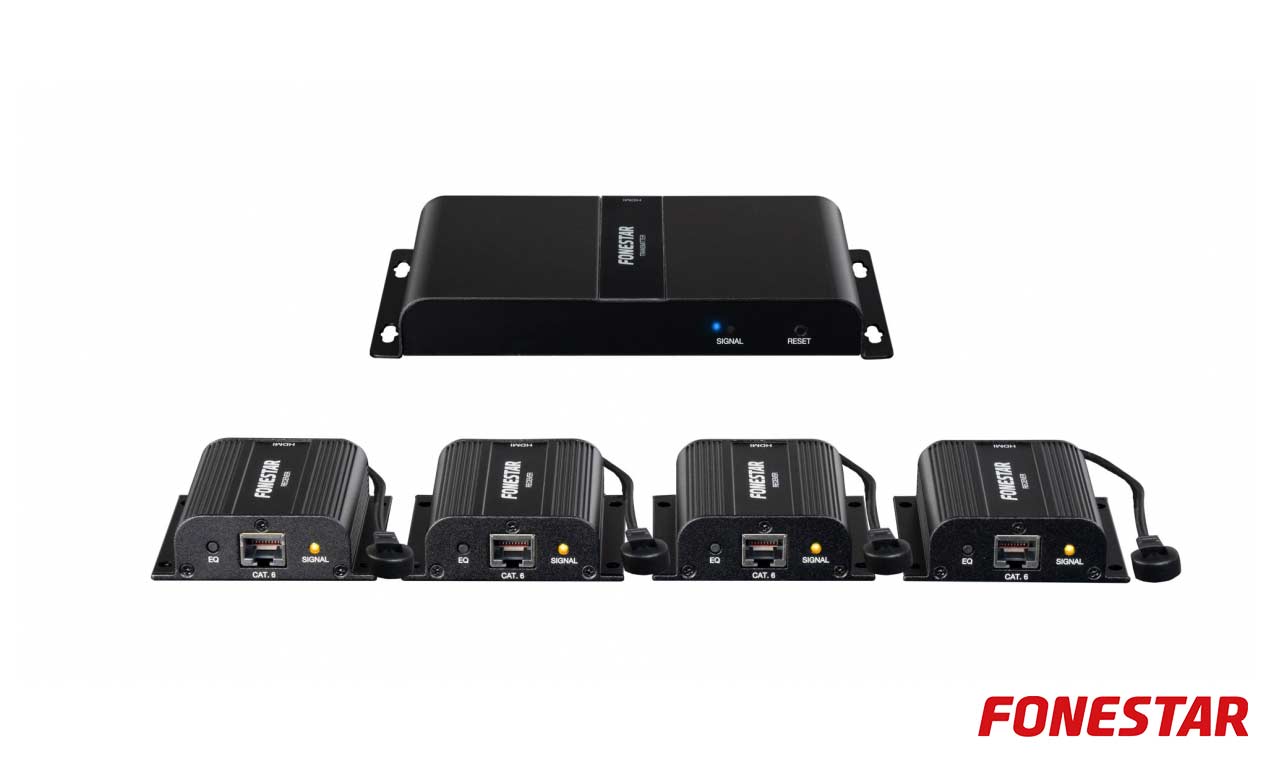

Fonestar FO-15CAT4E 1 x 4 HDMI splitter extender
1 x 4 HDMI splitter extender over Cat 6 cable. Transmission distance up to 40 m for a resolution of 1080p with Cat 6 cable. HDMI loop output in transmitter for local TV. EDID function, automatically or manually selects optimum resolution in all TVs. 10 level equalizer in each receiver to compensate for transmission losses. Receiver powered by PoC via Cat 6 cable. In accordance with IEEE-568B regulations. Compatible with Full HD 1080p. Remote control extenders. Bandwidth 4.95 Gbps.
INPUTS
1 gold-plated female HDMI connector
OUTPUTS
4 RJ-45 HDMI extension over Cat 6 cable
1 female HDMI for local monitor
RECEIVERS
4 receivers with HDMI output
POWER SUPPLY
Splitter: 5 V DC, 3 A with adapter included
Receivers: PoC
DIMENSIONS
Splitter: 190 x 24 x 96 mm depth
Receiver: 72 x 23 x 67 mm depth
WEIGHT
Splitter: 0.5 kg
Receiver: 4 x 0.1 kg
ACCESSORIES
Transmitter and 4 remote control receivers
PLEASE NOTE
High quality Cat 6 cables with FTP/SFTP shielding are recommended. The cables must have shielded connectors with the cable shielding connected to the connector shielding.
In this way, ground loops produced by devices (players/receivers and TVs) interconnecting with different ground reference are avoided, preventing possible losses or image cutting, and improving the reliability of HDMI extensions.
Additional information
| Brand | Fonestar |
|---|---|
| Product Type | HDMI Splitters, HDMI Extenders |
